John Deere Z375R Belt Diagram and Maintenance Guide
If you’re troubleshooting the John Deere Z375R or need to replace the belt, having the right diagram can save time and effort. The belt system in this mower is crucial for proper operation, and knowing exactly how to route the belts will prevent unnecessary wear and tear on the machine. This guide provides the belt diagram specific to the John Deere Z375R, making the repair process straightforward.
Start by examining the routing path for both the drive and mower belts. Understanding the path of each belt helps you avoid common mistakes during installation. The drive belt is responsible for transferring power from the engine to the wheels, while the mower deck belt ensures the blades rotate. If either belt is damaged or misaligned, the mower may not function properly.
For maintenance, always double-check the belt tension to ensure it’s not too loose or too tight. A loose belt can slip off the pulleys, while an overly tight belt can cause unnecessary stress on the engine. Use the diagram as a reference to keep everything aligned as you replace or adjust the belts. Regular inspection and care will extend the life of your John Deere Z375R mower.

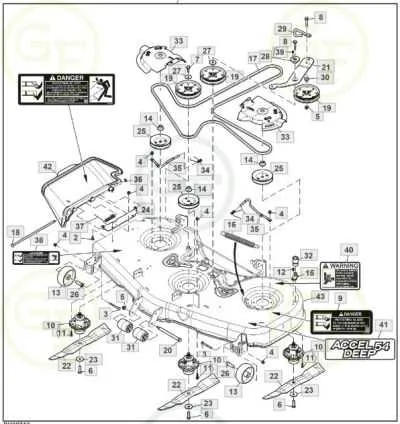

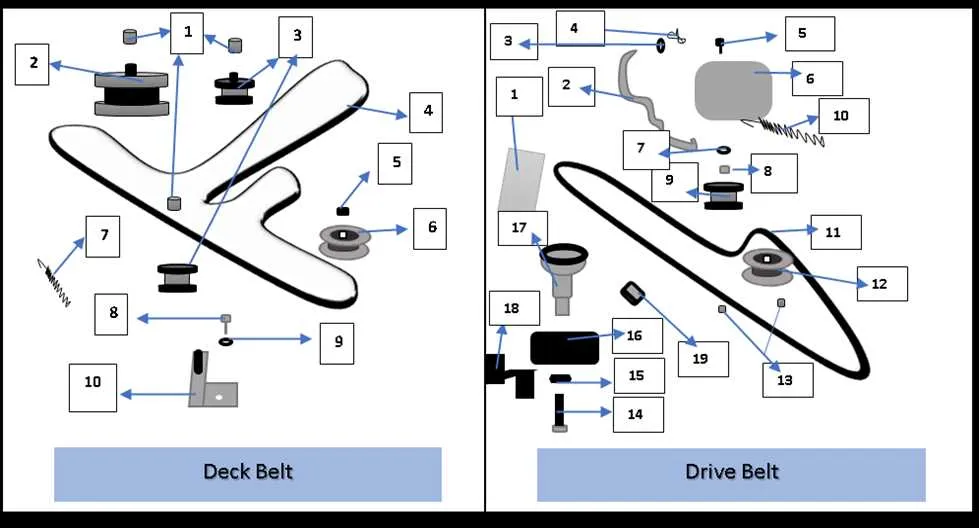

John Deere Z375R Belt Diagram
To replace or adjust the belts on your John Deere Z375R mower, refer to the diagram below for correct routing and installation. The diagram shows the path each belt takes to ensure smooth operation and efficient power transfer from the engine to the cutting deck.
The main drive belt connects the engine to the transmission, while the secondary belts connect to the deck pulleys. Be sure to check the belt’s condition for wear, cracks, or stretching before installing. Using the wrong belt size or improper routing can cause malfunction and excessive wear on the mower.
For belt installation, start by positioning the main drive belt on the engine pulley, following the diagram’s instructions for precise routing. Ensure the belt runs over the deck pulleys, with the tensioner correctly adjusted. Double-check all connections to avoid any slack or misalignment that could cause skipping or slippage during operation.
After installation, run the mower at low speed first to confirm proper belt tension and operation. Adjust as needed by either tightening or loosening the tensioner. Regularly inspect and maintain the belts for long-lasting performance.
How to Identify the Correct Belt Placement for John Deere Z375R
Check the John Deere Z375R belt placement by following these clear steps:
- Start with the engine off. Raise the mower deck to its highest setting to access the belt system easily.
- Locate the belt routing diagram. You’ll typically find this on a decal near the mower deck or in the owner’s manual.
- Inspect the belt path. The belt should travel over the engine pulley, around the idler pulleys, and through the mower deck’s pulleys, including the spindle pulleys and blades.
- Ensure the belt is seated correctly in the grooves of all pulleys. A misaligned belt can cause excessive wear or poor performance.
- Verify that the tension is adequate. The belt should not be loose or too tight. If it is, adjust the idler pulley or check for wear on the belt and pulleys.
If the belt is damaged or worn, replace it with a genuine John Deere replacement part to maintain optimal performance. Avoid using aftermarket belts that might not fit properly or handle the load of the mower efficiently.
After ensuring the belt is properly installed, rotate the blades by hand to confirm the belt moves smoothly without slipping or binding. Recheck the routing once more to guarantee proper placement.
Step-by-Step Guide to Replacing the Belt on John Deere Z375R
Disconnect the battery to prevent any accidental startup while working on the mower. Position the mower on a flat surface for better access to the components.
Raise the mower deck using the deck lift lever. This gives you room to access the pulleys and belt. Use a socket wrench to remove the bolts securing the deck to the mower. Slide the deck out from beneath the mower.
Inspect the belt routing diagram before removing the old belt. The diagram is typically found under the deck. This will guide you in properly installing the new belt.
Loosen the tension on the belt by removing the bolt securing the idler arm. This will allow the idler pulley to move freely and relieve the pressure on the belt.
Carefully remove the old belt from the pulleys, starting with the idler pulley. Keep track of the belt’s path to ensure correct placement when installing the new belt.
Place the new belt over the pulleys following the routing diagram. Ensure the belt is properly seated in the grooves of each pulley. Reinstall the idler arm bolt to maintain the tension on the belt.
Check the alignment of the belt and pulleys. The belt should move freely without excessive slack or tightness. Make sure the belt is positioned correctly in all pulleys.
Reattach the mower deck to the mower, securing it with the bolts. Lower the deck back into its operating position.
Reconnect the battery and test the mower to ensure the belt is functioning properly and the mower operates smoothly without any unusual sounds or slippage.
Common Issues with John Deere Z375R Belts and How to Fix Them
Check for loose or worn-out belts first. If you notice reduced cutting power or strange noises, a loose belt may be slipping. Tighten the belt using the tensioner, but make sure it’s not too tight to avoid premature wear. If the belt looks frayed or cracked, replace it immediately with a genuine John Deere replacement part.
Another frequent issue is the belt coming off its pulleys. This happens when pulleys are misaligned, worn, or obstructed. Inspect the pulleys for any damage or debris and clean them if necessary. If misalignment is the cause, adjust the pulley positions to ensure they line up properly with the belt.
Excessive wear on the belt can also be due to improper installation. Double-check that the belt routing matches the diagram in the owner’s manual. A misrouted belt can lead to uneven tension, causing it to wear out faster or even break.
If the belt squeals or makes loud noises during operation, it might be too loose or have uneven tension. Tighten the belt properly and ensure it’s seated correctly on all pulleys. If the noise persists, inspect the pulleys for any rough spots or damage that might cause friction.
Lastly, the belt may stretch over time, reducing its effectiveness. Regularly inspect the belt for slack and replace it if it shows signs of excessive wear or elongation. Keeping the belt clean and free from debris will also extend its lifespan.
