John Deere X540 Deck Belt Diagram and Maintenance Guide

For smooth operation of your John Deere X540, understanding the deck belt configuration is key. A properly routed belt ensures efficient mowing and minimizes wear on the system. If you’re replacing the belt or performing maintenance, following the exact diagram will save you time and effort.

The John Deere X540 deck belt diagram illustrates the correct path for the deck belt, making installation straightforward. Ensure that you start by aligning the belt with the pulleys in the right sequence. A small mistake can cause the belt to slip or even damage the components.

Before you begin, check your owner’s manual for the exact belt specifications–it’s important to use the recommended part to avoid any issues with performance. Once the new belt is in place, verify the tension to ensure it’s neither too tight nor too loose.

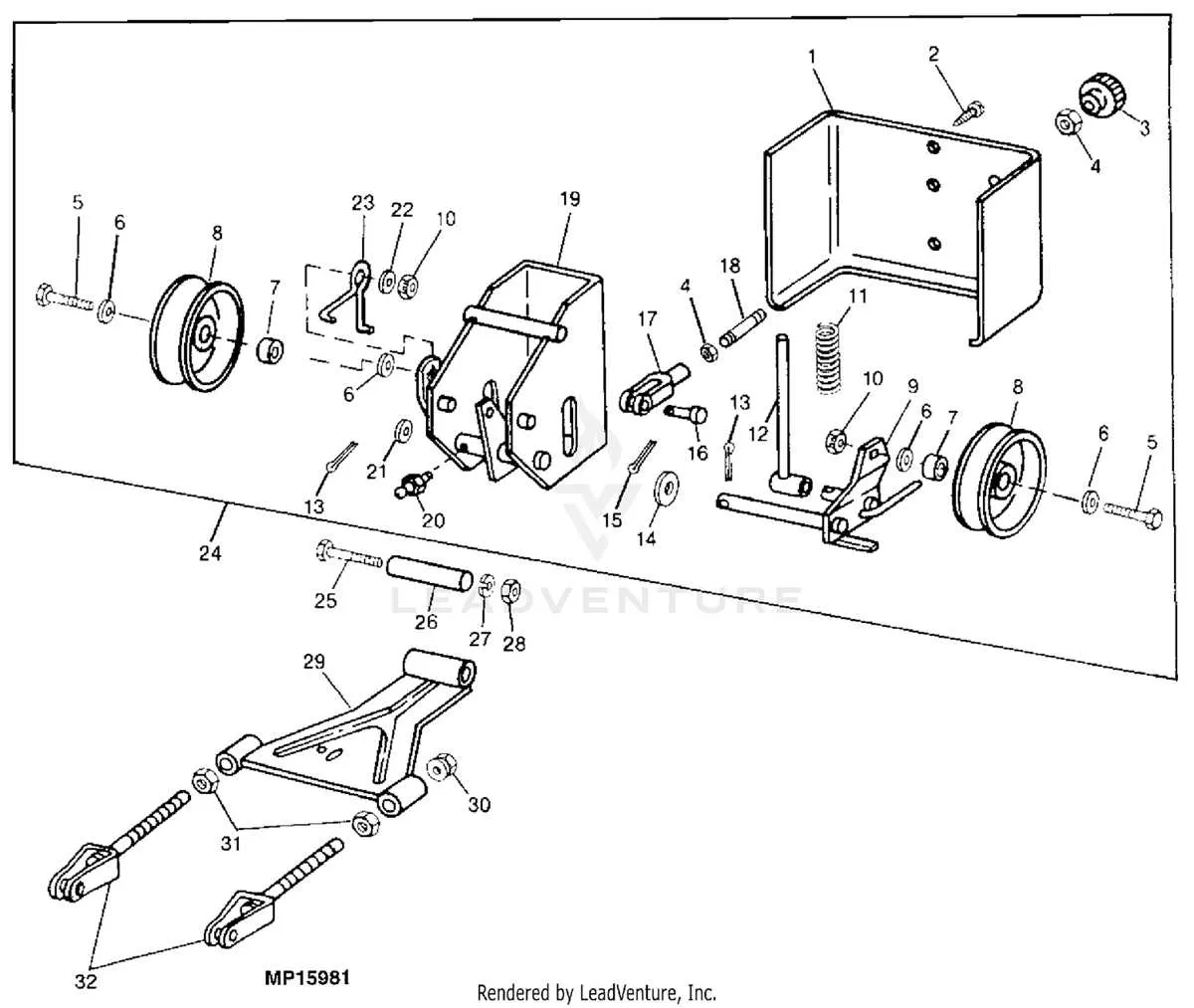

John Deere X540 Deck Belt Diagram

The John Deere X540 deck belt replacement requires attention to detail. To replace the deck belt correctly, refer to the diagram to ensure proper routing and tension. The belt runs around several pulleys, including the engine pulley, idler pulleys, and deck pulleys. Proper alignment prevents premature wear and ensures smooth operation.

The diagram shows the path of the belt starting from the engine pulley at the front, wrapping around the idler pulleys on each side, and connecting to the deck pulleys. Pay attention to the direction of the belt grooves when installing the new belt to avoid any misalignment.

Check the belt’s condition regularly. If you notice fraying or cracks, it’s time to replace it to avoid further damage to the system. Tightening the tension spring on the idler pulley keeps the belt properly tensioned. Ensure all pulleys move freely before reinstalling the new belt.

After installing the new belt, manually rotate the deck by hand to verify that everything is aligned correctly. If you hear unusual noises or notice resistance, double-check the belt routing and pulley alignment.

How to Replace the Deck Belt on John Deere X540

To replace the deck belt on your John Deere X540, start by lifting the mower deck off the ground. Use a jack or a lifting device to safely raise the deck to a comfortable working height. This step ensures access to the components without unnecessary strain.

Next, locate the old deck belt and examine its routing on the pulleys. Pay close attention to how the belt is threaded around the various pulleys and idlers. This will be important when installing the new belt to ensure it operates smoothly.

Loosen the tension on the deck belt by adjusting the idler pulley. This will relieve any pressure, making it easier to remove the old belt. Once the tension is released, slide the belt off the pulleys and remove it from the deck. If needed, use a wrench or socket to remove any components obstructing the belt’s removal.

Install the new belt by following the same routing pattern observed earlier. Carefully thread it around the pulleys and idlers, ensuring it sits correctly in the grooves. Pay close attention to the tension of the belt; it should fit snugly without excessive slack or tightness.

Once the new belt is in place, adjust the tensioner back into position. This will secure the belt, preventing it from slipping during operation. Double-check the belt’s alignment and ensure it moves freely without any obstructions.

Finally, lower the deck back to its original position and perform a test run. Start the mower and observe the deck’s movement to ensure the belt is functioning as expected. If everything is operating smoothly, the replacement is complete.

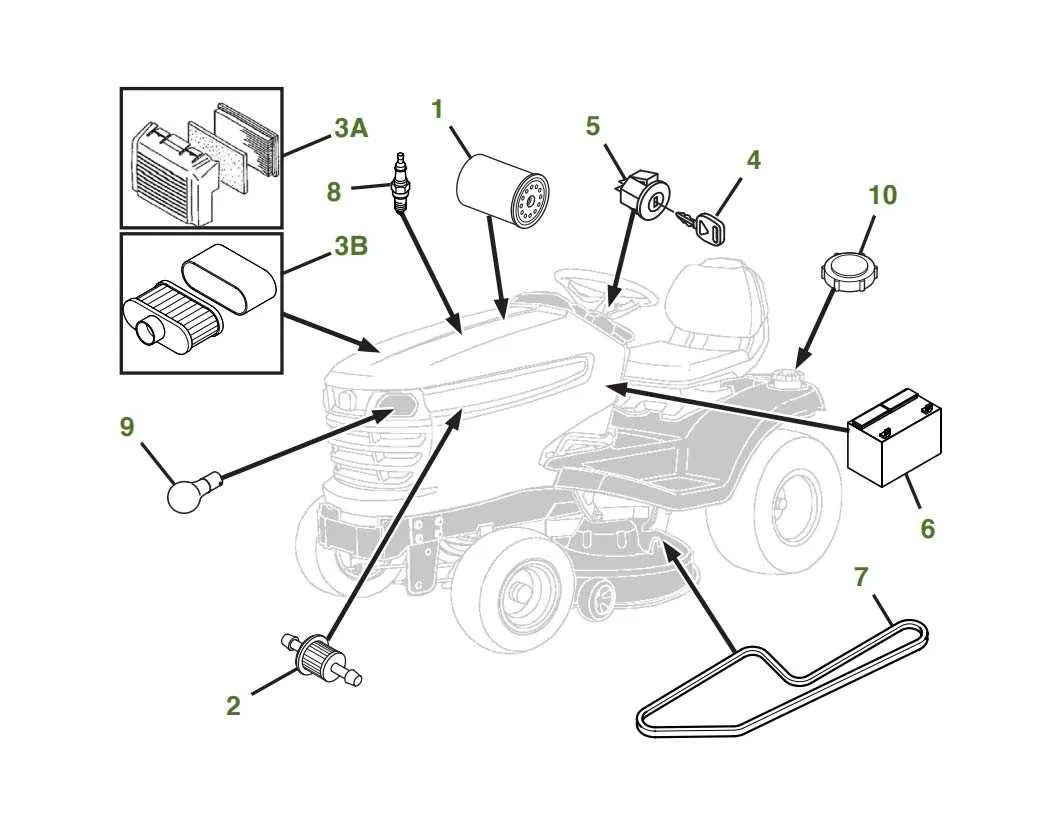

Identifying the Correct Deck Belt for John Deere X540

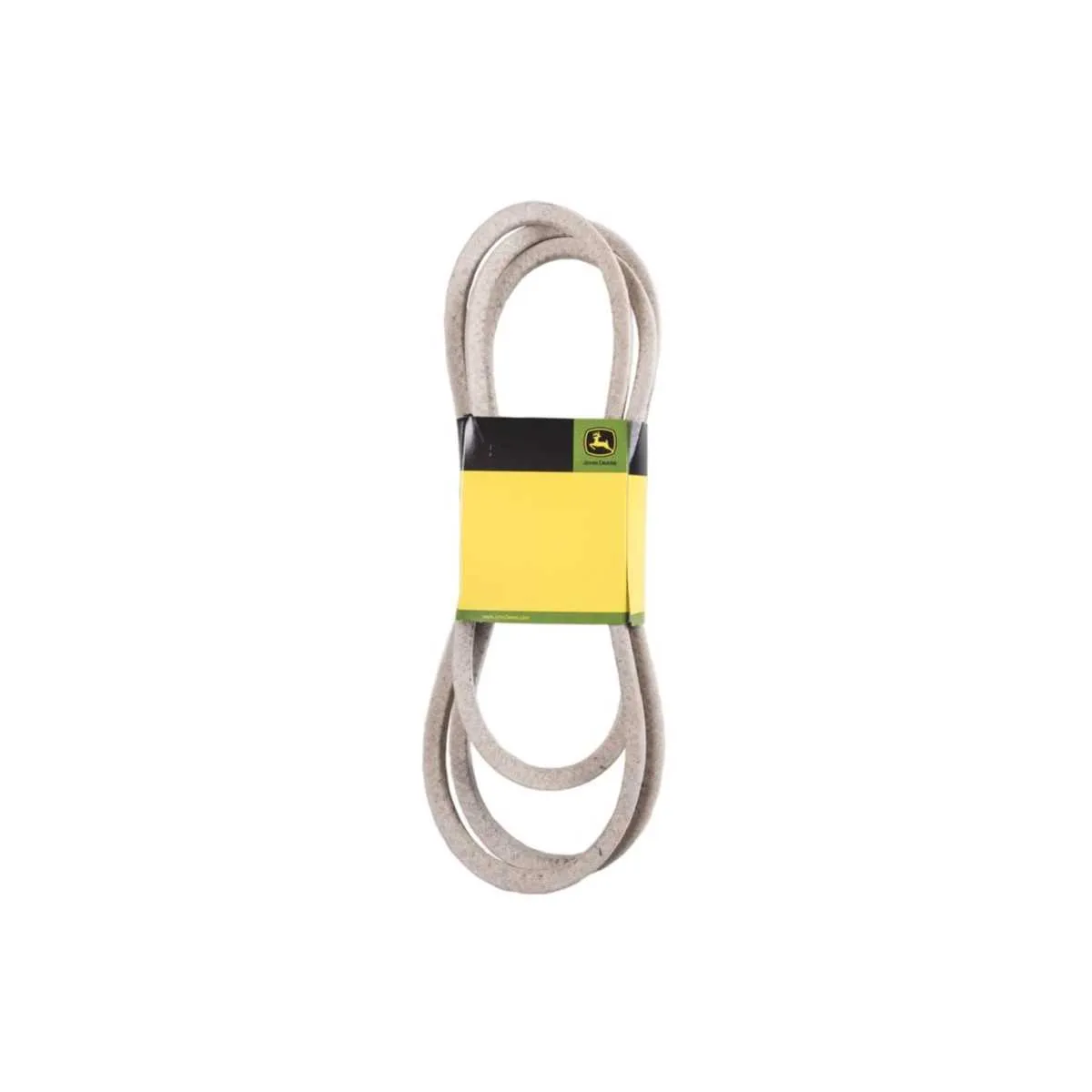

To identify the correct deck belt for the John Deere X540, start by confirming the model year of your mower, as the belt specifications may vary slightly. The X540 typically uses a 54-inch mower deck, and the belt number is often referenced as GX20072. Always verify the part number with the manual or retailer for your specific model.

Check the belt’s width and length. For the X540, the belt length is approximately 142 inches, with a width of about 0.75 inches. These dimensions are crucial for proper fitment and smooth operation.

• Belt Type: The X540 uses a Kevlar-reinforced belt, ensuring durability and resistance to wear.
• Installation: When replacing, ensure the belt routing follows the diagram provided in the manual or on the mower deck. Incorrect routing can lead to slipping or damage.
• Common Symptoms: If you notice poor cutting performance, excessive noise, or difficulty engaging the blades, the belt might be stretched or worn and should be replaced.

Always opt for OEM (Original Equipment Manufacturer) belts to maintain the mower’s performance and longevity. After replacing, check tension and alignment to prevent premature wear.

Troubleshooting Common Deck Belt Issues on John Deere X540

If the deck belt on your John Deere X540 is slipping, check for proper tension. A loose belt can cause poor performance or even damage the components. Adjust the tensioner pulley to ensure the belt is tight enough for efficient operation.

Inspect the belt for visible wear, cracks, or fraying. A worn-out belt is more likely to fail and will need replacing. Ensure that the new belt matches the specifications listed in the owner’s manual for proper fitment.

Check the pulleys for alignment. Misaligned pulleys can cause uneven wear and premature belt failure. Use a straight edge to verify the alignment and adjust if necessary.

Look for any obstructions that may be blocking the belt’s movement. Grass clippings, dirt, or debris can accumulate and cause the belt to slip or wear unevenly. Clean the deck regularly to avoid build-up.

Verify the condition of the idler pulley. If it is damaged or worn out, it may not be able to maintain proper tension on the belt, causing it to slip or come off during operation. Replace the pulley if necessary.

Make sure the clutch is functioning correctly. A faulty clutch can result in insufficient power transmission to the deck, affecting the belt’s performance. Test the clutch and replace it if it fails to engage properly.

Lastly, ensure the deck height is properly adjusted. If the deck is set too low, it could cause excessive stress on the belt, leading to faster wear and potential failure. Adjust the deck height to the recommended setting for optimal performance.
