John Deere X380 Drive Belt Diagram and Maintenance Guide

If you’re facing issues with your John Deere X380 drive belt or planning a replacement, understanding the layout of the drive system can save you time and effort. The drive belt plays a critical role in transferring power from the engine to the mower deck, and ensuring it’s correctly positioned is key to maintaining performance.

Check the diagram before you begin the installation. The X380’s drive belt follows a specific path, winding around pulleys and engaging with various components. Having a clear visual reference will guide you in aligning the belt properly and prevent potential damage or malfunction. Pay attention to the belt’s tension as well–too tight or too loose can affect the mower’s functionality.

The diagram should indicate the exact placement of each pulley, idler, and tensioner. Make sure to inspect these parts for wear or damage while replacing the belt. It’s a good idea to clean the components before reinstalling the new belt to ensure everything moves smoothly and operates efficiently. Keep an eye on the belt routing to avoid any misalignment during reassembly.

John Deere X380 Drive Belt Diagram

If you need to replace or adjust the drive belt on your John Deere X380, referring to the correct diagram will simplify the process. The diagram shows the exact routing for the drive belt, ensuring proper installation and function. Follow these steps for a successful belt replacement:

1. Begin by raising the mower deck to its highest position. This gives you more room to access the belt components. Make sure the engine is off and the ignition key is removed.

2. Locate the drive belt on the front of the mower. It should run from the engine pulley to the transmission pulley, looping around several idler pulleys. The diagram will highlight these paths for clarity.

3. Identify the tension spring that keeps the belt under tension. This spring needs to be detached in order to loosen the belt. Use a wrench to remove any fasteners securing the spring.

4. Once the spring is removed, carefully slip the belt off the pulleys. Take note of how the belt is routed, as the diagram will guide you on the correct reassembly.

5. After removing the old belt, place the new one following the same path as shown in the diagram. Ensure the belt fits properly on each pulley and is aligned with the grooves to avoid misalignment issues.

6. Reattach the tension spring and check the belt for proper tension. The belt should have slight slack but not be overly loose.

7. Finally, test the mower by running the engine briefly and checking for any unusual noises or vibrations. If everything runs smoothly, the belt installation is complete.

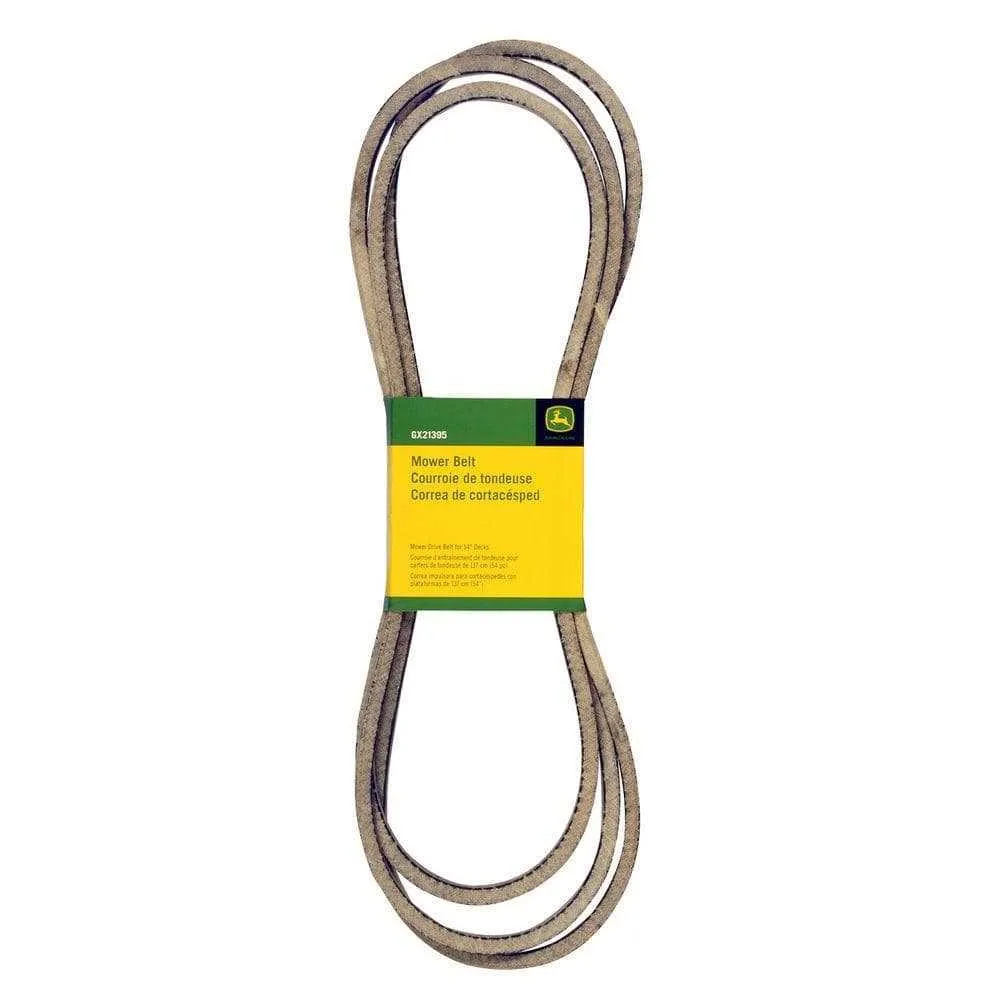

For best results, always use the specific John Deere X380 replacement belt. A proper fit ensures optimal performance and reduces wear on the mower components.

How to Identify the Correct Drive Belt for John Deere X380

To identify the right drive belt for your John Deere X380, follow these steps:

• Check the Model Number: Look for the model number of your John Deere X380, typically located on a label under the seat or near the engine. The part number for the correct drive belt depends on the year and model of your mower.
• Consult the Owner’s Manual: The manual lists the exact part number for the drive belt. Make sure to verify whether it is the primary drive belt or the deck belt, as each has different specifications.
• Measure the Existing Belt: If you’re replacing a worn-out belt, measure the length and width of the old belt to match the new one. Ensure it fits snugly and aligns with the pulleys.
• Visit a Trusted Dealer: If unsure, take the part number or old belt to an authorized John Deere dealer. They can help ensure you get the correct replacement belt.
• Double-Check the Belt Type: There are different types of belts (V-belt, serpentine belt, etc.)–confirm that the replacement is the same type. The correct tension and alignment are critical for proper function.

Once you have the right part, follow the manufacturer’s instructions to install the new drive belt, ensuring it’s routed correctly around all pulleys and tensioners. A properly fitted belt ensures smooth operation and prolongs the life of your mower.

Step-by-Step Guide to Replacing the Drive Belt on John Deere X380

To replace the drive belt on your John Deere X380, follow these clear steps. Begin by parking the mower on a flat surface and shutting off the engine. Engage the parking brake to ensure the machine stays stable throughout the process.

Next, lift the seat and disconnect the negative terminal of the battery. This reduces the risk of accidental starts. Now, remove the mower deck by unscrewing the bolts that secure it to the frame. You may need to lower the deck slightly for easier removal.

Once the deck is off, locate the drive belt. You’ll find it running from the engine pulley to the rear of the mower deck. Make a note of the belt’s routing for easy reassembly later.

Use a wrench or socket to loosen the idler pulley. This will relieve tension on the drive belt, allowing you to remove it from the pulleys. Take care to note the position of the belt around each pulley so you can install the new one correctly.

Now, remove the old belt from the pulleys. Position the new belt in place, ensuring it follows the same path as the old one. Double-check the routing before tightening the idler pulley to restore belt tension.

After securing the belt, reattach the mower deck to the machine. Tighten the bolts firmly to secure it in place. Reconnect the battery and test the mower to ensure the new belt is functioning properly.

Take a moment to inspect the area around the drive belt for any debris or damage. Regular maintenance can help extend the life of your mower and ensure optimal performance.

Troubleshooting Common Drive Belt Issues on John Deere X380

If your John Deere X380 is showing signs of belt problems, it’s crucial to diagnose the issue early. A worn or damaged drive belt can cause significant performance issues. Start by inspecting the belt for visible wear, cracks, or fraying. A belt that appears stretched or misaligned is a common cause of slipping or loss of power. In this case, replace the belt immediately to prevent further damage.

Next, check the tension of the belt. If it’s too loose, it might slip off the pulleys, causing the mower to lose power or stop functioning. Adjusting the tensioner to ensure the belt stays tight can often resolve this problem. Make sure the pulleys and tensioner are clean and lubricated, as dirt and debris can cause friction that leads to premature wear.

If the belt continues to slip or make noise, inspect the pulleys for damage or misalignment. A bent or worn-out pulley can cause uneven wear on the belt. Replace any damaged pulleys to avoid accelerating the wear process on the new belt.

Lastly, ensure the drive belt is routed correctly. A misrouted belt can cause it to rub against other components, leading to friction and damage. Refer to the John Deere X380 drive belt diagram to confirm the belt is in the correct position.
