John Deere Sabre Drive Belt Diagram Guide for Proper Installation and Maintenance Techniques

Locate the exact position of each drive belt by referencing the Sabre mower’s diagram before starting any maintenance. This ensures proper alignment of the mower deck, engine pulleys, and idlers, preventing slippage and uneven cutting patterns.

Follow the routing carefully to avoid tension issues. The diagram clearly distinguishes which belt connects to the engine pulley, deck spindles, and tensioner. Misrouting even a single belt can reduce performance and cause premature wear.

Identify worn or frayed sections on your current belts using the diagram as a guide. By comparing the installed belts with the recommended layout, you can detect misalignment or incorrect installation points that often lead to belt failure.

Maintain consistent tension across all pulleys by checking the diagram for correct belt placement. Adjust the tensioner according to the diagram’s specifications to avoid slipping during heavy mowing or uneven terrain.

Keep a printed or digital copy of the Sabre drive belt diagram within reach. It accelerates belt replacement, reduces installation errors, and ensures the mower operates smoothly, even during complex deck adjustments.

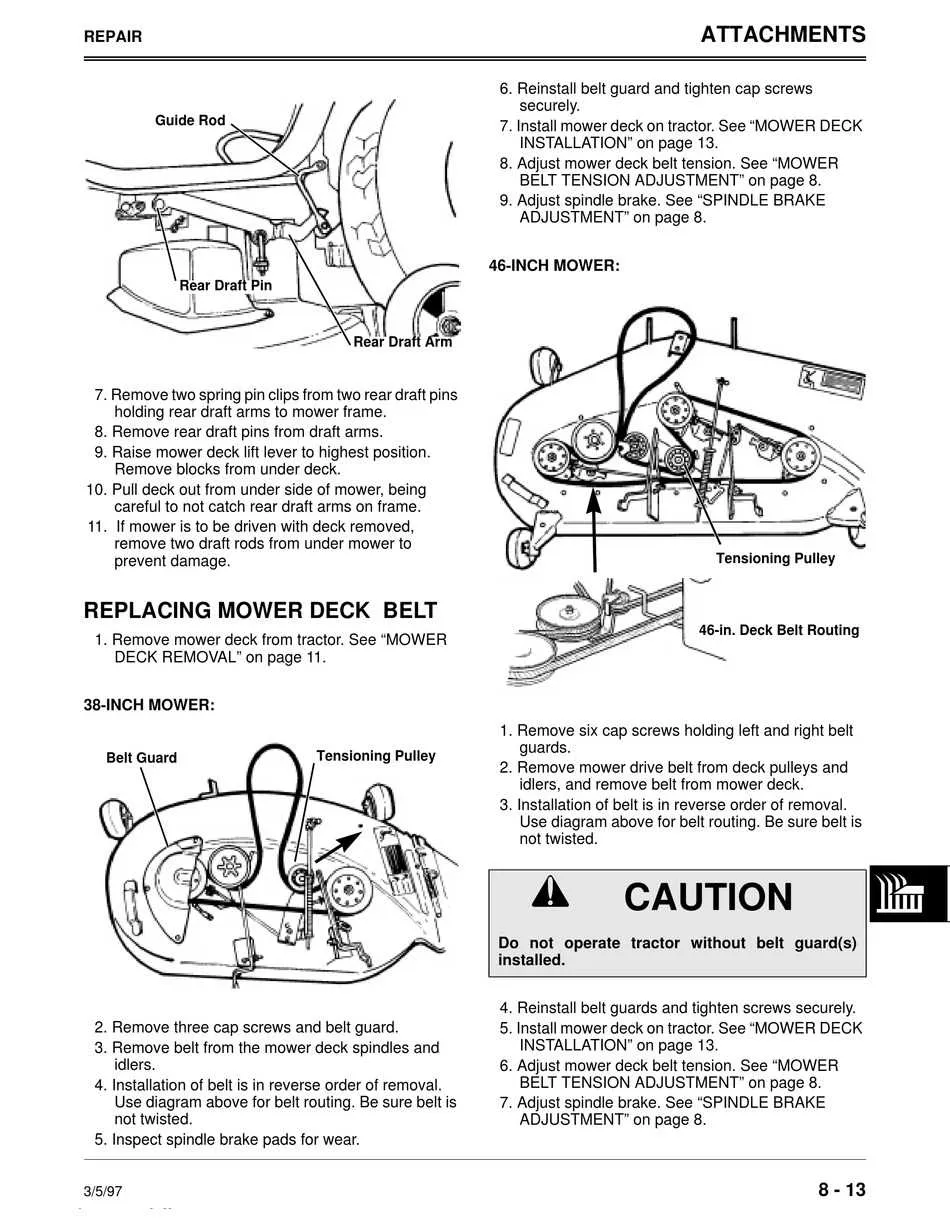

John Deere Sabre Drive Belt Diagram

Position the drive belt over the engine pulley first, ensuring it sits snugly within the groove. Follow the tensioner path carefully: from the engine pulley, route the belt to the idler pulley, then over the mower deck pulleys. Check that the belt aligns with each guide to prevent slipping during operation.

Use the diagram to identify the correct placement for each pulley. The tensioner arm should rest against the belt without excessive pressure; adjust the spring if the belt sags. Misalignment can cause uneven wear or reduce cutting efficiency.

Inspect the belt for cracks or fraying before installation. Replacing worn sections ensures consistent performance and prolongs the life of the mower deck. Refer to the diagram to confirm the proper direction of rotation, as reversing the belt can lead to premature damage.

After installation, rotate the pulleys by hand to verify smooth movement. Ensure the belt maintains tension throughout the rotation and remains in the pulley grooves. Minor adjustments to the idler or tensioner can correct any misalignment detected during this test.

Keep the diagram accessible for maintenance intervals. Following the exact routing prevents accidental slips and maintains the mower’s cutting quality. Document any changes made during replacement to simplify future servicing and reduce downtime.

Identifying Correct Drive Belt for Your Sabre Model

Check your Sabre model number and year before selecting a drive belt. Each Sabre mower has a specific belt length and width listed in the operator’s manual. Using the incorrect size can lead to slippage, premature wear, or mower malfunction.

Refer to the belt diagram for your exact model. The diagram indicates the routing, tensioner positions, and pulley diameters. Compare these details with the replacement belt to confirm proper fit. Most Sabre models use either a 1/2-inch or 5/8-inch wide V-belt, with lengths ranging from 74 to 90 inches.

Measure your old belt if the diagram is unavailable. Record the total outside circumference and the belt width, then match these measurements with manufacturer specifications. Avoid belts labeled only by generic size, as minor variations in pulley spacing can cause misalignment.

Purchase belts from authorized John Deere dealers or trusted suppliers listing compatibility by model number. Cross-reference part numbers from your mower manual. Installing a belt without verifying the model-specific number increases the risk of rapid wear and can affect mower performance.

Inspect pulleys and tensioners during replacement. Even a correctly sized belt will underperform if pulleys are worn or misaligned. Tighten the belt according to the diagram instructions to maintain proper drive tension and reduce stress on the engine and transmission components.

Step-by-Step Belt Routing Using Diagram

Locate the engine pulley, tensioner, and mower deck pulleys on your John Deere Sabre. Place the belt around the engine pulley first, ensuring the grooved side faces the pulley. Follow the diagram to guide the belt along the idler pulleys, wrapping each one as shown. Avoid twisting the belt; it should lie flat against all pulley surfaces.

Route the belt over the tensioner last. Use a wrench to relieve tension while slipping the belt into position. Check that the belt seats fully in the grooves of each pulley and that it matches the path indicated on the diagram. Small adjustments may be needed to align the belt correctly on all pulleys.

Inspect the belt after installation. Rotate the pulleys by hand to confirm smooth movement without slipping. Ensure the tensioner applies consistent pressure and the belt maintains proper tracking along the deck and engine components.

Refer to the diagram frequently during the process. Each pulley position is critical; misrouting can cause premature wear or damage. Work methodically from the engine to the deck, adjusting the belt incrementally and confirming each step visually against the diagram.

Once fully installed, start the engine briefly at low speed to verify the belt operates quietly and tracks precisely. Make final tension adjustments if any misalignment appears. Regular inspection of the belt routing against the diagram prevents operational issues and extends belt life.

Troubleshooting Common Drive Belt Issues

Inspect the belt for visible cracks, fraying, or glazing before any adjustments. A worn belt reduces traction and can slip under load.

• Slipping Belt: Tighten the belt to the manufacturer’s recommended tension using a tension gauge. Check the idler pulleys for wear or misalignment, as they often cause slippage.
• Excessive Noise: Listen for squealing or chirping. Lubricate pivot points of tensioners if dry, but avoid applying oil or grease directly to the belt. Replace worn pulleys to eliminate vibration-induced noise.
• Belt Wear: Examine the belt teeth. Missing or worn teeth indicate the belt has stretched or deteriorated and must be replaced to maintain drive efficiency.
• Overheating or Burn Marks: Inspect for blackened areas or a burnt smell. Realign pulleys and verify proper tension. Persistent heat signals a damaged belt or seized pulley.
• Uneven Wear Patterns: Check for misaligned pulleys or bent shafts. Correct alignment and replace damaged components to prevent premature belt failure.

Maintain a routine inspection schedule every 25-50 hours of operation. Keep the belt and surrounding components clean from debris, grass, or dirt. Replacing the belt at the first sign of serious wear prevents breakdowns and ensures smooth operation.

Always use the exact belt model specified in the John Deere Sabre manual. Mixing belt types or sizes can lead to slippage, rapid wear, or complete drive failure.

After replacement or adjustment, run the mower at low speed and observe the belt movement. Confirm pulleys rotate freely and the belt tracks properly without wobbling or rubbing against housing.
