John Deere Sabre Deck Belt Diagram and Maintenance Guide
Replacing or maintaining the deck belt on your John Deere Sabre is a straightforward task if you have the correct diagram. It is essential to have a clear visual guide to ensure you’re following the right steps and keeping everything in the proper order.
Begin by ensuring you have a clean workspace and all necessary tools, such as a wrench and socket set. Disconnect the battery and lift the mower deck, so you can access the components that require adjustment. Refer to the deck belt diagram for the precise routing of the belt over pulleys and spindles.
When you have the diagram at hand, take note of any idler pulleys or spring-loaded components that may need to be adjusted or released. These elements can be tricky if not handled correctly. Make sure you check the belt for wear and replace it if necessary. A well-maintained belt ensures smooth operation and prevents unnecessary wear on other mower parts.
Once the belt is in place, double-check the tension and alignment before reassembling the deck. Any misalignment can lead to premature wear or functional issues. Take your time to ensure the belt is correctly positioned and secured before starting the mower.
John Deere Sabre Deck Belt Diagram
Understanding the John Deere Sabre deck belt diagram is key for maintaining your mower. It ensures proper installation, alignment, and function of the deck belt. Refer to the diagram to avoid common mistakes and prolong the life of your equipment.
To identify the correct routing of the deck belt, follow these steps:
- Locate the deck belt pulley system. Ensure that all components are visible and accessible for inspection.
- Match the belt’s path as shown in the diagram. Pay attention to the direction of rotation for each pulley to ensure a smooth flow.
- Confirm the tension settings. The belt should not be too tight or loose. Refer to the specific tension recommendations in the manual.
- Ensure that the belt is not twisted. Twists can cause the belt to wear unevenly and reduce its lifespan.
If the belt is broken or severely worn, replace it using the specified part number from the diagram. Always use a high-quality replacement belt to avoid frequent replacements.
Keep in mind that regular checks and maintenance of the deck belt, including cleaning and tightening, help maintain optimal performance of the mower. This preventive measure saves you time and reduces the risk of expensive repairs.

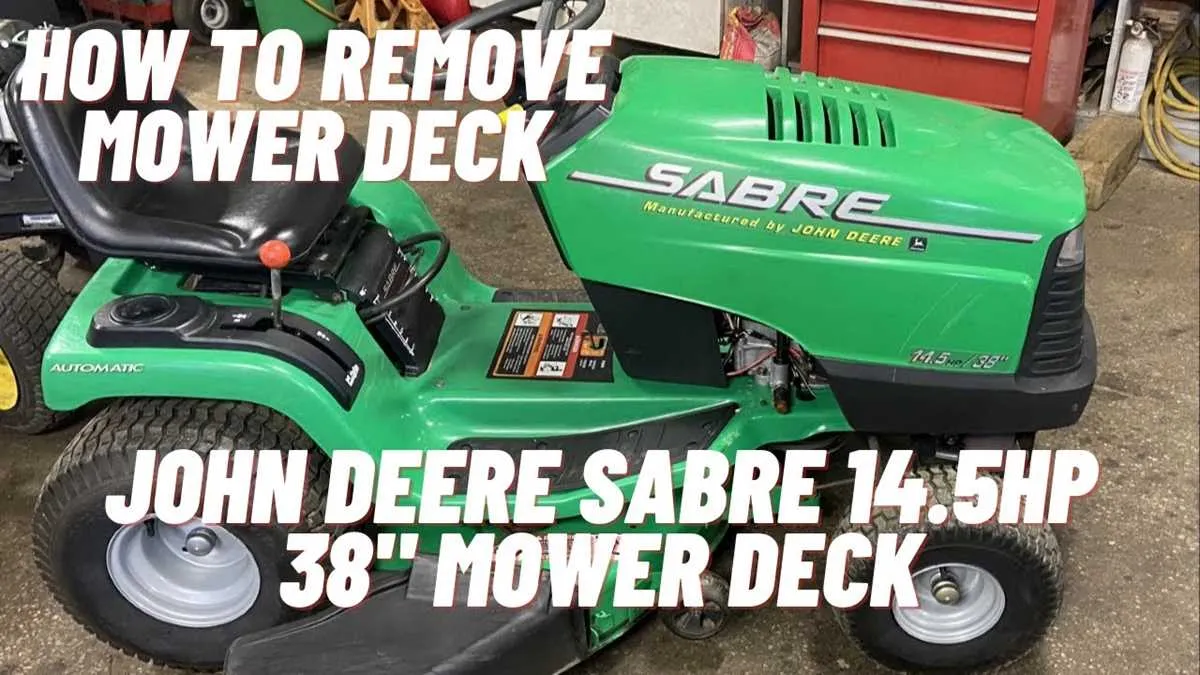

How to Install the Deck Belt on a John Deere Sabre
To replace the deck belt on a John Deere Sabre, begin by disconnecting the spark plug wire to avoid accidental starting. Lift the mower deck to its highest setting to provide easier access. Use a wrench to remove the bolts securing the deck to the mower chassis.
Next, locate the existing deck belt. Remove it by releasing the tension from the idler pulley, typically located at the rear of the deck. Be sure to note the belt routing as this will be important during installation.
Place the new belt over the pulleys, ensuring the correct path as per the original routing. Double-check that the belt is properly seated in the pulley grooves, especially on the idler pulleys and the deck spindle pulleys.
Once the belt is correctly positioned, apply tension by adjusting the idler pulley. Secure the belt by tightening the bolt on the idler pulley bracket to keep it in place. Reattach the mower deck to the chassis and tighten the securing bolts.
Finally, reconnect the spark plug wire and test the mower by running it for a few minutes to ensure the belt operates smoothly without slipping or causing unusual noise.
Common Issues with the John Deere Sabre Deck Belt and How to Fix Them
If the deck belt on your John Deere Sabre isn’t functioning properly, it’s usually due to wear, misalignment, or improper tension. Here’s how to address the most common issues:
Belt Slipping: This occurs when the belt is too loose or worn out. To fix this, first check the belt for signs of damage or wear. If it’s worn, replace it with a new one. If the belt seems fine, adjust the tension by turning the tension bolt to tighten the belt. Ensure that the pulleys are aligned properly, as misalignment can also cause slipping.
Belt Off Track: If the belt comes off the pulleys, check the alignment of the deck and pulleys. Misalignment or worn out components can cause the belt to slip off. Adjust or replace the pulleys if necessary, and reinstall the belt. Be sure to inspect the belt guide for any debris or damage.
Belt Breaking: Frequent breakage of the deck belt is often due to wear or excessive stress on the belt. Inspect the belt for cracks, fraying, or cuts. If any damage is present, replace the belt. Make sure that no foreign objects or debris are lodged in the pulleys, as they can also lead to frequent breakage.
Deck Belt Too Tight: If the belt is too tight, it can cause undue strain on the pulleys and engine. Check the tension and ensure the belt isn’t overly tight. If necessary, adjust the tension to prevent any excessive force on the components.
Noisy Operation: A noisy deck belt can be caused by dry pulleys or a misaligned belt. Lubricate the pulleys to reduce friction and ensure the belt is running smoothly. Also, check for debris buildup around the pulleys, as this can increase noise levels.

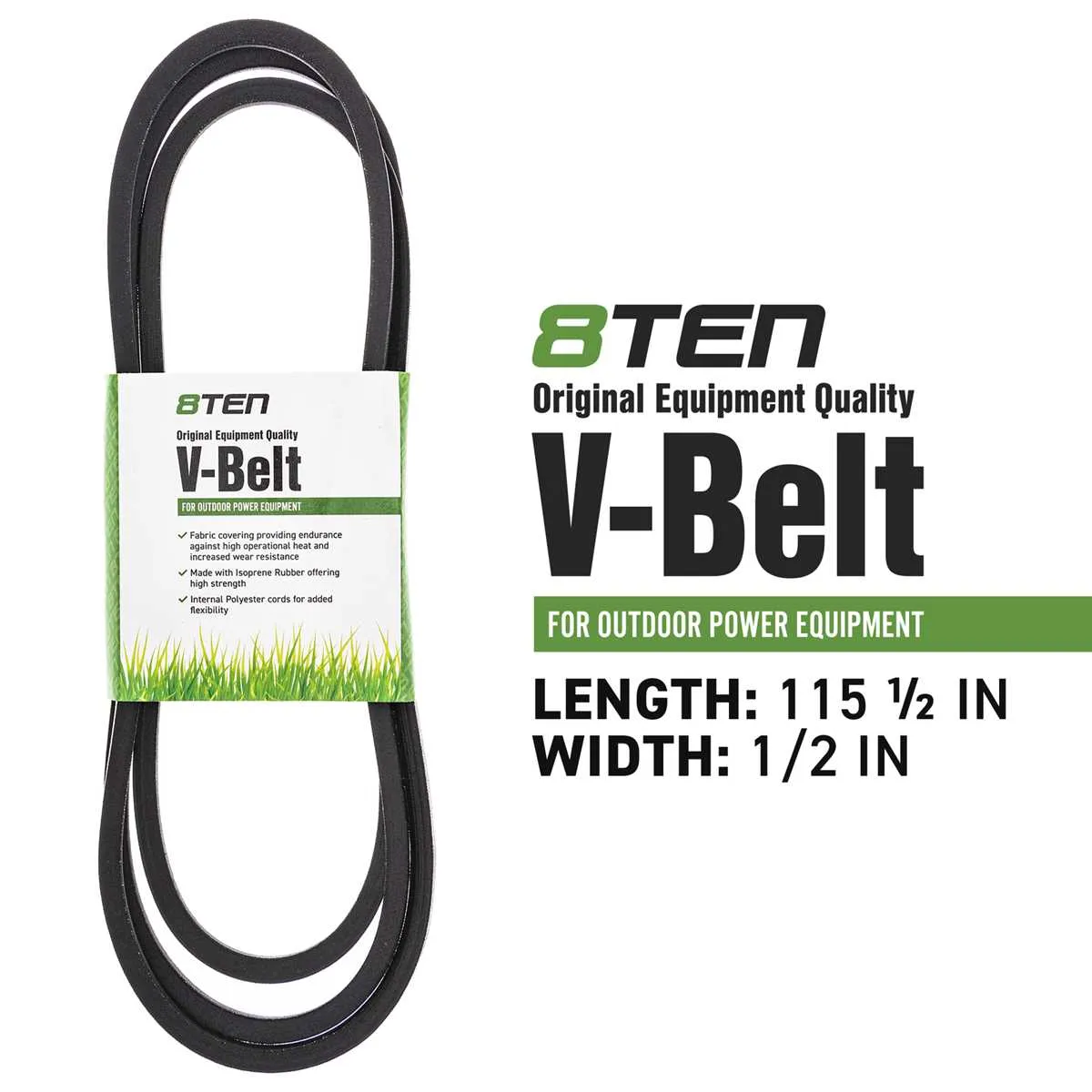

Identifying the Right Deck Belt for Your John Deere Sabre Model
To choose the correct deck belt for your John Deere Sabre mower, begin by identifying the model and year of manufacture. Different models require specific belt sizes and configurations, so double-check the model number located on the mower’s frame or user manual.
Check the existing deck belt’s length, width, and thickness before replacement. The part number is usually printed on the belt itself, which can be used to find a direct replacement. If the belt is worn or broken, measure the length and width of the old belt to ensure a proper fit.
For accurate matching, refer to the John Deere parts manual for your specific Sabre model. Many online resources and dealers offer easy-to-use parts lookup tools. Use these tools to verify compatibility with your mower’s make and model year.
Always opt for original equipment manufacturer (OEM) belts to ensure the best performance and durability. Using aftermarket belts may result in suboptimal fit or reduced lifespan.
If you’re uncertain about the correct part, consult a professional technician or local dealer who can guide you in selecting the proper belt for your mower.
