John Deere Sabre 42 Inch Deck Belt Installation and Maintenance Guide
To properly replace the belt on your John Deere Sabre 42-inch deck, follow these steps carefully to avoid unnecessary damage or misalignment. First, ensure the machine is turned off and all safety precautions are in place. Disconnect the battery to prevent any accidental starts during the process.
Begin by lifting the deck to its highest position for easy access. Locate the tensioner pulley, which controls the tightness of the belt. You will need to release the tension on this pulley before removing the old belt. Use a socket wrench to loosen the bolt and relieve the pressure.
Once the tension is released, remove the old belt by carefully following the path outlined in the diagram. Pay attention to the pulley arrangements and the direction in which the belt needs to be routed for proper functionality. A precise alignment is necessary to prevent slippage or wear.
Before installing the new belt, verify that it matches the size and specifications for the 42-inch deck model. A properly fitted belt ensures efficient power transfer and a smooth operation of the deck.
Route the new belt around the pulleys as shown in the diagram. Once positioned, apply tension to the belt by tightening the tensioner pulley back into place. Check the alignment one last time before reattaching the deck and testing the mower to ensure everything functions correctly.
John Deere Sabre 42 Inch Deck Belt Diagram
The John Deere Sabre 42-inch deck belt system is designed for durability and optimal performance. Proper installation and maintenance of the belt are crucial for the mower to function efficiently. Below is a guide to understanding the belt diagram for this model.
- Check the belt routing before installation to ensure the proper path through the pulleys and spindles.
- Make sure the belt is correctly tensioned. A loose belt can slip, while a tight belt can cause excessive wear on components.
- Always use the recommended replacement belt size to avoid compatibility issues.
For reference, the belt routing follows a specific order from the engine to the deck. The main drive belt connects the engine pulley to the deck’s main spindle pulley, passing through various idlers and pulleys to ensure smooth rotation and optimal cutting performance.
To replace the belt:
- Remove the deck from the mower to access the belt system.
- Loosen the tension on the belt by adjusting the idler pulley.
- Remove the old belt and carefully install the new one, following the diagram closely.
- Reassemble the deck and check the tension again before testing the mower.
Regularly inspect the belt for wear, cracking, or fraying. If you notice any damage, replace the belt immediately to avoid further issues with the mower’s operation.

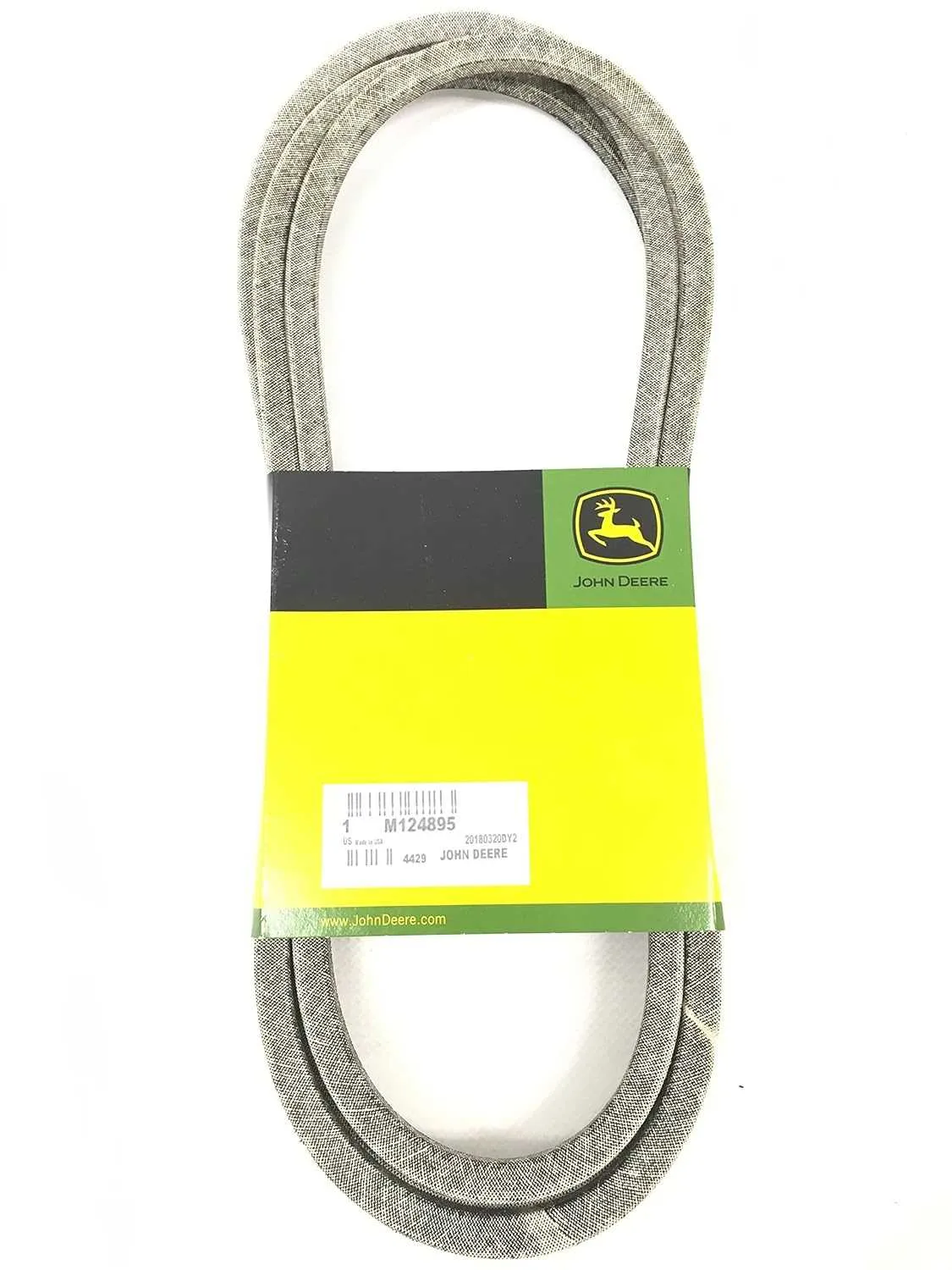

How to Identify the Correct Belt for the John Deere Sabre 42 Inch Deck
To find the right replacement belt for your John Deere Sabre 42-inch deck, begin by checking the model number of your mower. This is often located on the frame near the operator’s seat. Once identified, refer to the manufacturer’s manual to confirm the correct belt size and specifications.
Ensure that the belt length, width, and material match the original specifications. Using a belt that differs in size or strength may affect performance or even damage the mower. A genuine John Deere part or a quality aftermarket replacement is highly recommended.
If you’re unsure about the belt type, consider the deck’s drive system. Some decks use a standard V-belt, while others may require a special Kevlar or heavy-duty belt. Check your mower’s drive system and select a belt designed for that configuration.
Before purchasing, always compare the part number from your mower’s manual with the available options online or at your local dealer. If in doubt, ask for help from an authorized dealer or service center.

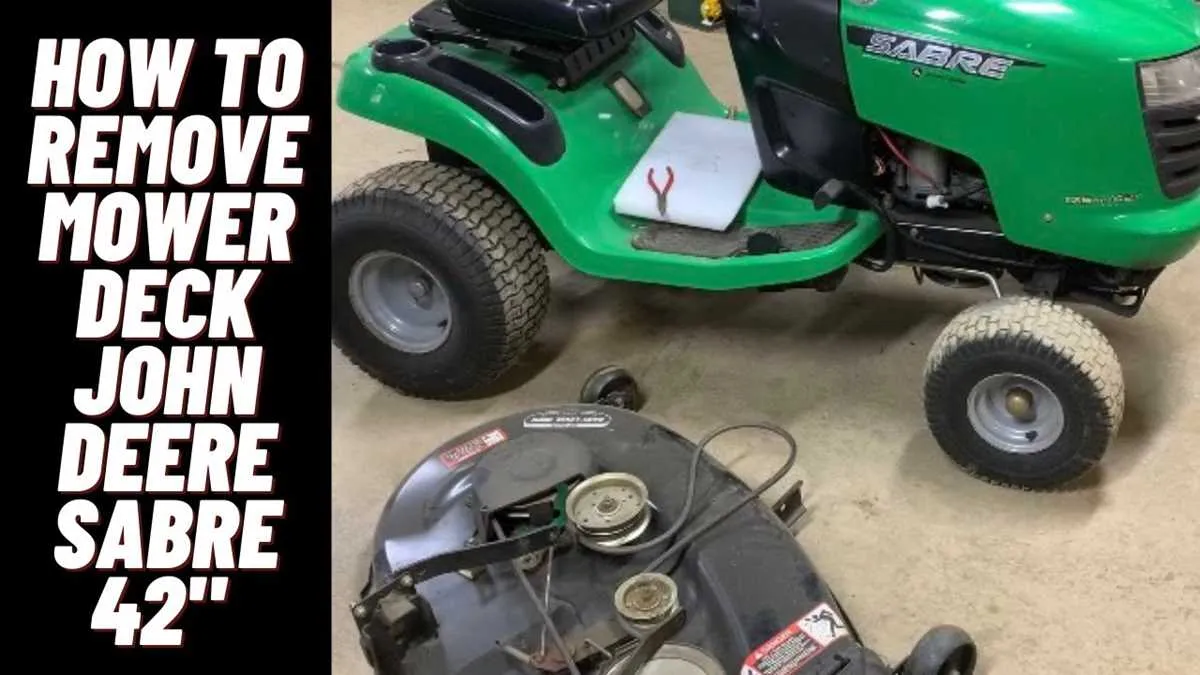

Step-by-Step Guide to Replacing the Belt on a John Deere Sabre 42 Inch Deck
Start by raising the deck of your John Deere Sabre mower. Use the lift lever to position the deck to its highest setting. This gives you better access to the belt and pulleys.

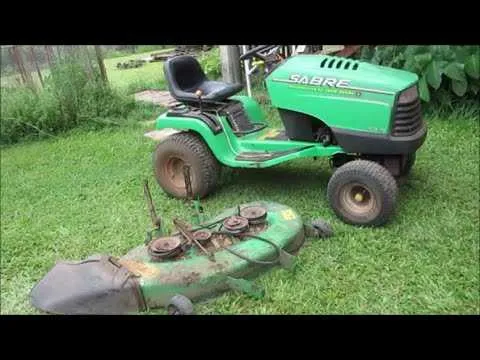

Next, remove the deck from the mower by unhooking the retaining pins. Carefully slide the deck out, ensuring it is free from any obstructions.
Once the deck is removed, locate the tensioner pulley and release the tension on the old belt. This is typically done by using a wrench to rotate the tensioner pulley away from the belt. Carefully slide the belt off the pulleys.
Now, install the new belt by threading it through the pulleys according to the specific routing pattern for your model. Ensure the belt is properly aligned on each pulley, avoiding any twists or misalignments.
After the new belt is in place, adjust the tensioner pulley to apply the correct tension to the belt. This will prevent the belt from slipping or wearing unevenly.
Reinstall the deck by reversing the steps for removal. Carefully align the deck with the mower and reattach the retaining pins.
Finally, lower the deck back into position and test the mower to ensure the belt is functioning properly. Check for any unusual sounds or signs of improper operation.
Troubleshooting Common Belt Issues in John Deere Sabre 42 Inch Decks
If the belt on your John Deere Sabre 42-inch deck is slipping, first check its tension. A loose belt may cause poor performance or even damage other parts. To fix this, adjust the tension using the proper adjustment mechanism. Ensure that the spring is in good condition and properly aligned.
Examine the belt for any signs of wear or damage. Cracks, fraying, or frizzled edges indicate that it’s time for a replacement. Inspect the pulleys as well–if they show signs of wear, replace them to prevent the new belt from failing prematurely.
Misalignment can also lead to belt issues. If the belt doesn’t track properly along the pulleys, check for any obstacles or misaligned components. Realign the pulleys and ensure the belt path is clear and smooth.
Another common problem is debris buildup around the belt and pulleys. Regularly clean the deck, removing grass clippings and dirt to avoid interfering with the belt’s operation. This will not only extend the life of the belt but also keep the mower running smoothly.
If your belt squeals or slips under load, it may be due to a worn-out tensioner or a stretched belt. Consider replacing the tensioner or adjusting its tension to restore proper function. Always use the correct replacement parts for your model to avoid future issues.
