John Deere Sabre 38 Inch Deck Belt Diagram and Replacement Guide
The correct belt diagram is crucial for proper maintenance and smooth operation of your John Deere Sabre 38-inch deck. If you notice issues like reduced cutting efficiency or unusual noises, it’s likely time to check the belt and its alignment.
The diagram helps you understand how the belt runs through the various pulleys, which is essential for ensuring it’s correctly installed. Be sure to follow the exact path shown in the diagram to avoid any misalignment that could lead to premature wear or even damage to the system.
For accurate belt installation, start by disconnecting the mower’s battery to avoid any accidents. Then, check the belt for any visible signs of wear or damage. If it needs replacing, use the John Deere part number specified in the manual to ensure compatibility with your mower model.
Once the belt is replaced, refer to the diagram to guide the reassembly. Make sure all pulleys are aligned as shown, and check the tension. A belt that’s too loose or too tight can cause further damage, so it’s essential to adjust it according to the manufacturer’s instructions.

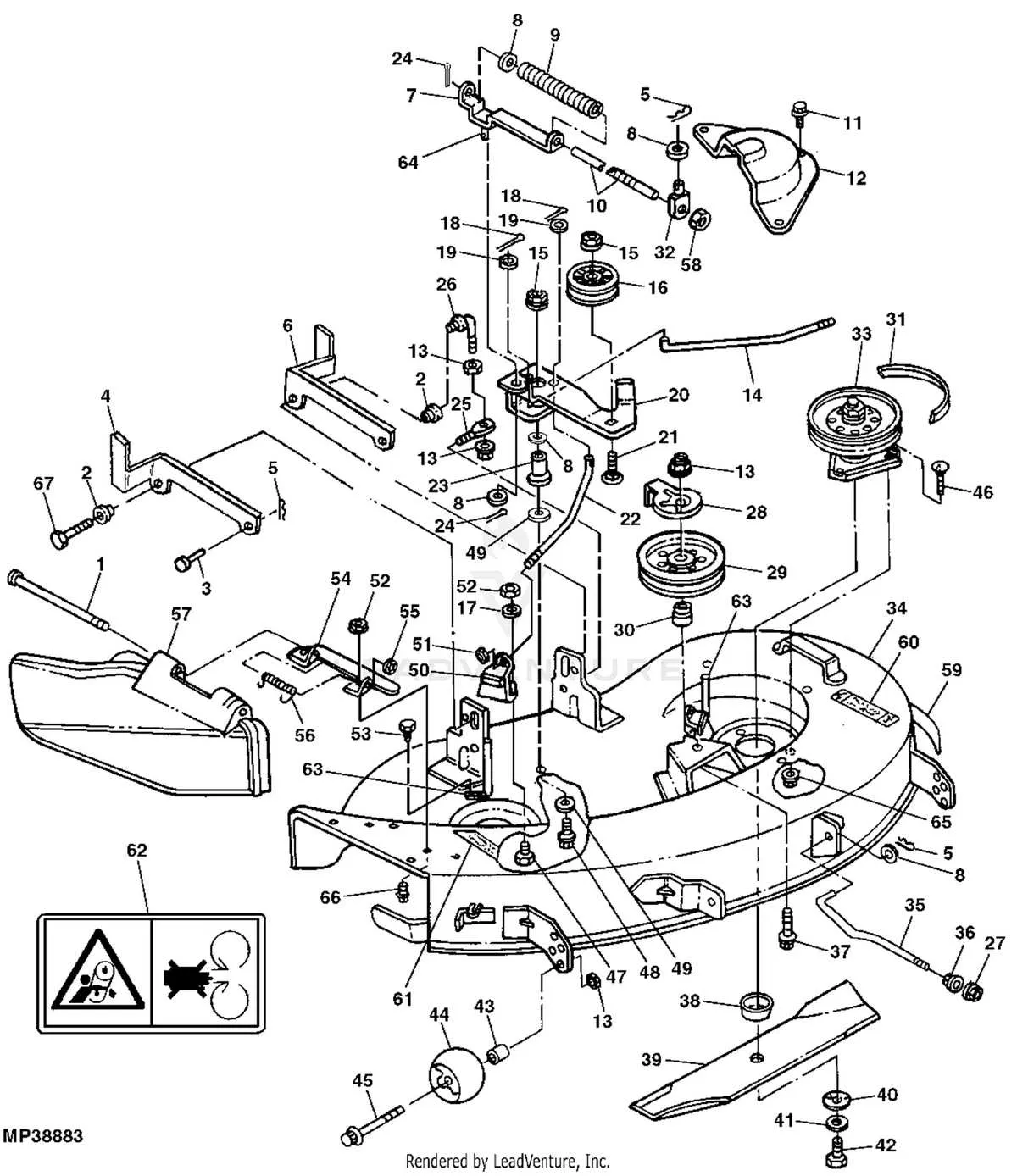

John Deere Sabre 38 Inch Deck Belt Diagram
The John Deere Sabre 38-inch deck belt diagram is crucial for anyone maintaining or repairing the mower. Follow the steps carefully to ensure the correct belt routing. This will help keep your mower running smoothly and prevent unnecessary wear.
Here’s the step-by-step process for understanding the belt diagram:
- Start by identifying the deck belt type: the 38-inch Sabre deck typically uses a standard V-belt.
- Locate the belt routing guide on the mower’s deck, usually found near the pulleys or in the user manual.
- Inspect the tensioner pulley to ensure the belt is under the correct amount of tension. It’s essential for optimal performance.
- Route the belt over the PTO (power take-off) pulley, around the spindle pulleys, and through the idler pulley, ensuring no twists or kinks.
- Double-check the alignment of the belt to ensure it runs straight through the pulleys without interference from any other components.
Before you start, ensure that the mower is turned off and the engine is cool. Safety is the first priority. Once the belt is properly installed, test it by turning the blades to confirm the correct operation. If the belt slips or misaligns, check the routing again and adjust the tension as needed.
By following these guidelines, you’ll extend the life of the mower’s components and keep your equipment in top working condition.
Understanding the Belt Routing for John Deere Sabre 38 Inch Deck
The John Deere Sabre 38-inch deck belt routing is crucial for maintaining proper functioning of the mower. Ensure the belt is routed through the right pulleys and tensioner to prevent wear and ensure smooth operation. Follow the diagram closely when replacing or adjusting the belt.
Start by positioning the drive belt around the engine pulley. It should then pass over the deck’s main spindle pulleys. Ensure the belt wraps around the deck idler pulley, which helps maintain proper tension. Next, thread the belt around the deck pulleys, ensuring it fits snugly without slipping off. The belt should run smoothly without twisting, as this can lead to premature damage.
Check the belt’s tension after installation. The tension should be firm but not overly tight. If the tension is too loose or too tight, adjust the idler pulley or replace the belt if it shows signs of wear or damage.
Regularly inspect the belt and its routing to ensure that no pulleys are misaligned. Misalignment can cause the belt to slip off or wear unevenly. Proper maintenance will extend the lifespan of your mower’s deck and improve performance.
How to Replace the Belt on a John Deere Sabre 38 Inch Deck
Begin by lifting the mower deck. Use a jack or suitable lift to raise it and secure it in place. This gives you clear access to the belt and pulleys.
Next, remove any obstacles. Detach the mower blades by unscrewing the blade bolts. Keep these parts in a safe spot for reinstallation.
Release the tension on the belt. Locate the tensioner pulley and use a wrench to rotate it, which will loosen the belt. Slip the belt off the pulleys carefully, noting the belt’s routing for the reinstallation process.
Remove the old belt completely. Compare the new belt to the old one, ensuring they are the same size and type. If they match, proceed with installing the new belt.
Install the new belt by following the same path the old one followed. Work carefully around the pulleys, making sure the belt sits securely in each groove.
Once the belt is in place, check the tension. Rotate the tensioner pulley again to ensure the belt is tight and properly seated. Reinstall the mower blades and any other parts you removed earlier.
Finally, lower the deck back into its operating position. Start the mower and inspect the belt to ensure it runs smoothly without slipping or making excessive noise.
Common Issues with the Belt and Troubleshooting Tips for John Deere Sabre
One of the most common issues with the belt on the John Deere Sabre 38-inch deck is belt slippage. This usually happens when the belt is either too loose or worn out. To fix this, check the tension and ensure the belt is properly routed around the pulleys. If the belt is visibly worn, replacing it is necessary to maintain optimal performance.
Another issue can be belt misalignment. If the belt keeps coming off or squeals while the mower is running, the pulleys might be out of alignment. Inspect the pulleys for any signs of wear or damage. Ensure the deck is level and the pulleys are not bent. Adjust the pulleys to restore proper alignment if needed.
Overheating of the engine or excessive noise from the deck could indicate that the belt is either too tight or has too much friction. Check the belt’s condition and verify if it’s properly adjusted. If the belt is too tight, it can put additional strain on the engine, which might lead to overheating. Correct the tension to alleviate this problem.
| Issue | Possible Cause | Solution |
|---|---|---|
| Belt Slippage | Belt too loose or worn out | Check belt tension and replace if necessary |
| Belt Misalignment | Pulleys out of alignment or damaged | Inspect and adjust pulleys to restore alignment |
| Excessive Noise or Overheating | Belt too tight, causing excessive friction | Check belt tension and adjust to proper setting |
Lastly, debris buildup can also affect belt function. Grass, dirt, or other debris can get caught in the pulleys or on the belt itself. Regularly clean the deck and pulleys to ensure smooth operation and prevent damage to the belt.
