John Deere RX75 Drive Belt Diagram for Accurate Installation and Maintenance

Locate the main drive belt by positioning yourself at the mower’s front with the engine off. The RX75 uses a single V-belt connecting the engine pulley to the transmission, ensuring proper power transfer. Check belt alignment with the pulleys and verify that tension is consistent along its entire length.

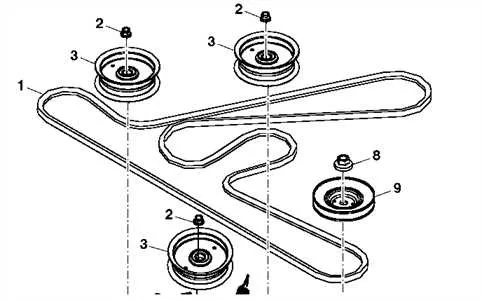

Inspect the belt for cracks, fraying, or glazing before reinstalling. Replace the belt if wear exceeds 3 mm depth loss or if any fiber strands are broken. Correct installation requires routing the belt around the idler and tension pulleys exactly as shown in the RX75 diagram, which prevents slipping and reduces engine strain.

Apply gentle tension using the idler pulley adjustment, ensuring the belt deflects roughly 10–15 mm under moderate finger pressure. Lubricate pivot points on the tensioner if movement is stiff, avoiding oil contact with the belt surface. Proper routing and tension extend belt life and maintain smooth mower operation.

John Deere RX75 Drive Belt Diagram Practical Guide for Owners

Refer to the drive belt diagram before attempting removal or installation to ensure correct routing around pulleys. The RX75 uses a single V-belt for the mower deck and a separate belt for the transmission drive system.

Locate the idler pulleys and tensioners as shown in the diagram. Release tension using a wrench on the tensioner arm, then slide the belt off the pulleys carefully. Avoid twisting or bending the belt sharply to prevent damage.

Inspect all pulleys for wear, rust, or debris. Replace any pulleys showing grooves, cracks, or excessive wobble. Check the belt for fraying, cracks, or glazing; replace it if signs of wear are present.

When installing the new belt, follow the exact routing indicated in the diagram. Start by placing the belt on the largest pulley, then loop it around the remaining pulleys while maintaining proper tension. Use the tensioner to achieve correct belt tension without over-tightening.

After installation, manually rotate the mower deck and transmission pulleys to confirm smooth movement and correct belt alignment. Adjust tension if necessary, ensuring the belt sits securely in all pulley grooves.

Regularly inspect and maintain the belts according to the diagram intervals. Keeping the belts aligned and tensioned reduces slippage, prevents premature wear, and maintains consistent mower performance.

Identify and Locate Drive Belt Components on RX75

Begin by positioning the mower on a flat surface and engaging the parking brake. Remove the mower deck to access the drive belt area safely. Locate the engine pulley near the front center of the machine; this is the primary point where the drive belt begins its loop.

Next, identify the tensioner pulley on the right side of the engine compartment. The tensioner maintains proper belt tension and is spring-loaded. Use a wrench to slightly release the tension, allowing the belt to move freely for inspection or replacement.

Trace the belt path to the transaxle pulleys located near the rear wheels. Each transaxle pulley connects directly to the drive system, transferring engine power to the wheels. Confirm that the belt sits correctly in the grooves of both pulleys, avoiding twists or misalignment.

Inspect the idler pulleys positioned along the belt’s route. These smaller pulleys guide the belt around corners and maintain smooth operation. Ensure each idler rotates freely without excessive play or noise.

Finally, check the mower deck pulleys if the deck remains installed. These pulleys engage the cutting blades and must align precisely with the belt. Verify the belt runs straight across all pulleys and maintains firm tension without slipping.

By following this layout, each component–the engine pulley, tensioner, transaxle pulleys, idler pulleys, and deck pulleys–can be identified and located for maintenance or replacement.

Step-by-Step Instructions for Removing and Installing the Drive Belt

Remove the old drive belt: Begin by placing the RX75 on a flat surface and engaging the parking brake. Locate the belt tensioner near the engine pulley. Use a wrench to rotate the tensioner away from the belt, relieving tension. Slide the belt off the pulleys carefully, noting the routing path for reference.

Inspect pulleys and tensioner: Check each pulley for wear, damage, or debris. Spin pulleys manually to detect rough spots or binding. Examine the tensioner for smooth movement and proper spring tension. Replace any components that show signs of wear before installing a new belt.

Position the new belt: Follow the exact routing path of the original belt. Begin with the smallest pulley or the one furthest from the tensioner. Ensure the belt sits evenly in the pulley grooves without twisting.

Apply tension: Rotate the tensioner using the wrench to create slack. Slide the belt over the tensioner pulley and slowly release the tensioner to apply proper tension. Verify that the belt is snug but not overly tight, allowing smooth rotation of all pulleys.

Check alignment and operation: Turn the engine by hand to ensure the belt moves smoothly and remains seated in all pulley grooves. Listen for unusual noises and watch for wobbling or misalignment. Adjust as needed before starting the engine.

Finalize installation: Recheck belt tension after the first few minutes of engine operation. Tighten or reposition if necessary to maintain consistent performance. Ensure all tools are removed and the mower is safe for operation.

Troubleshoot Common Belt Alignment and Tension Issues on RX75

Check the drive belt for uneven wear or fraying along the edges. Misalignment often causes belts to rub against pulleys, generating noise and reducing lifespan.

Verify pulley alignment using a straight edge or laser tool. The pulleys should sit in the same plane; even a small offset of 1–2 mm can cause slipping or premature wear.

Inspect belt tension by pressing down on the midpoint of the longest span. The recommended deflection for RX75 belts is approximately 1/2 inch (12–13 mm) with moderate hand pressure.

• If the belt is too loose, adjust the idler or tensioner pulley until the proper deflection is achieved. Avoid over-tightening, which strains bearings and the belt.
• If the belt is too tight, release tension slightly and recheck deflection. Excess tension can lead to pulley wear and reduce engine efficiency.
• Ensure all pulleys spin freely and are free of debris or damage. A seized pulley can distort belt alignment.

After adjustments, rotate the drive system manually for several turns to verify smooth movement and consistent tension. Recheck alignment and tension before running the engine.

Replace belts showing cracks, glazing, or uneven wear. Always use RX75 OEM or high-quality replacement belts to maintain correct fit and performance.
