John Deere LX277 drive belt layout guide with detailed part locations and connections

Check the drive belt layout of your John Deere LX277 before attempting any replacements. The belt runs through the engine pulley, deck idler, and transaxle, creating the proper tension for smooth operation. A clear diagram helps identify each pulley and ensures the belt seats correctly, avoiding premature wear or slippage.

Refer to the diagram to locate the tension spring and idler positions. Position the belt over the mower deck correctly to maintain consistent cutting performance. Misalignment of even one pulley can cause the belt to skip or fray, reducing the lifespan of your equipment.

Follow the routing path shown in the diagram when installing a new belt. Start from the engine pulley, wrap around the deck idlers, then guide it to the transaxle. This prevents twisting and ensures tension remains uniform across all points. Check the diagram for proper placement of the spring-loaded idler to maintain correct belt pressure.

Regularly compare the installed belt against the diagram to identify any shifts or looseness. Observing the routing and tension can prevent costly repairs and maintain consistent mower performance. The diagram also helps when removing the belt for maintenance, guiding the sequence of pulley disengagement safely.

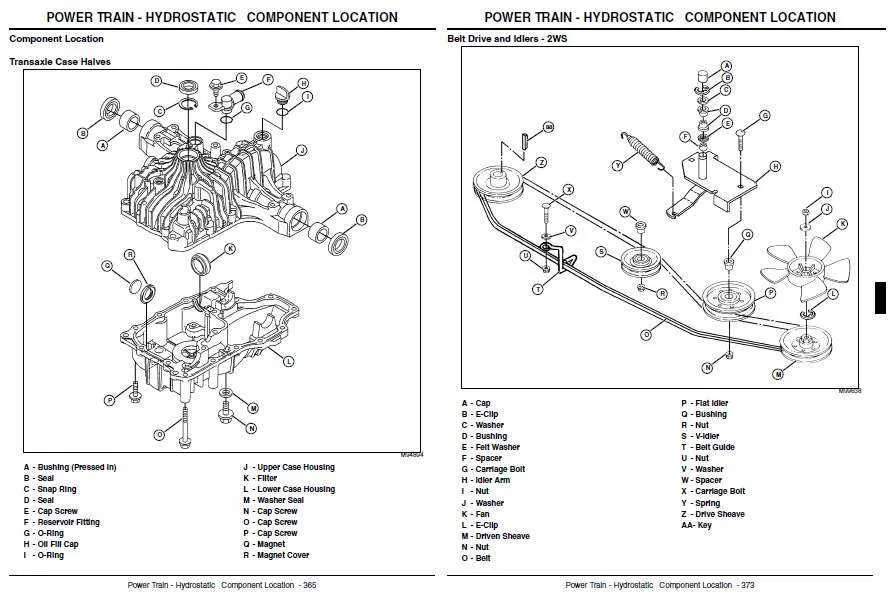

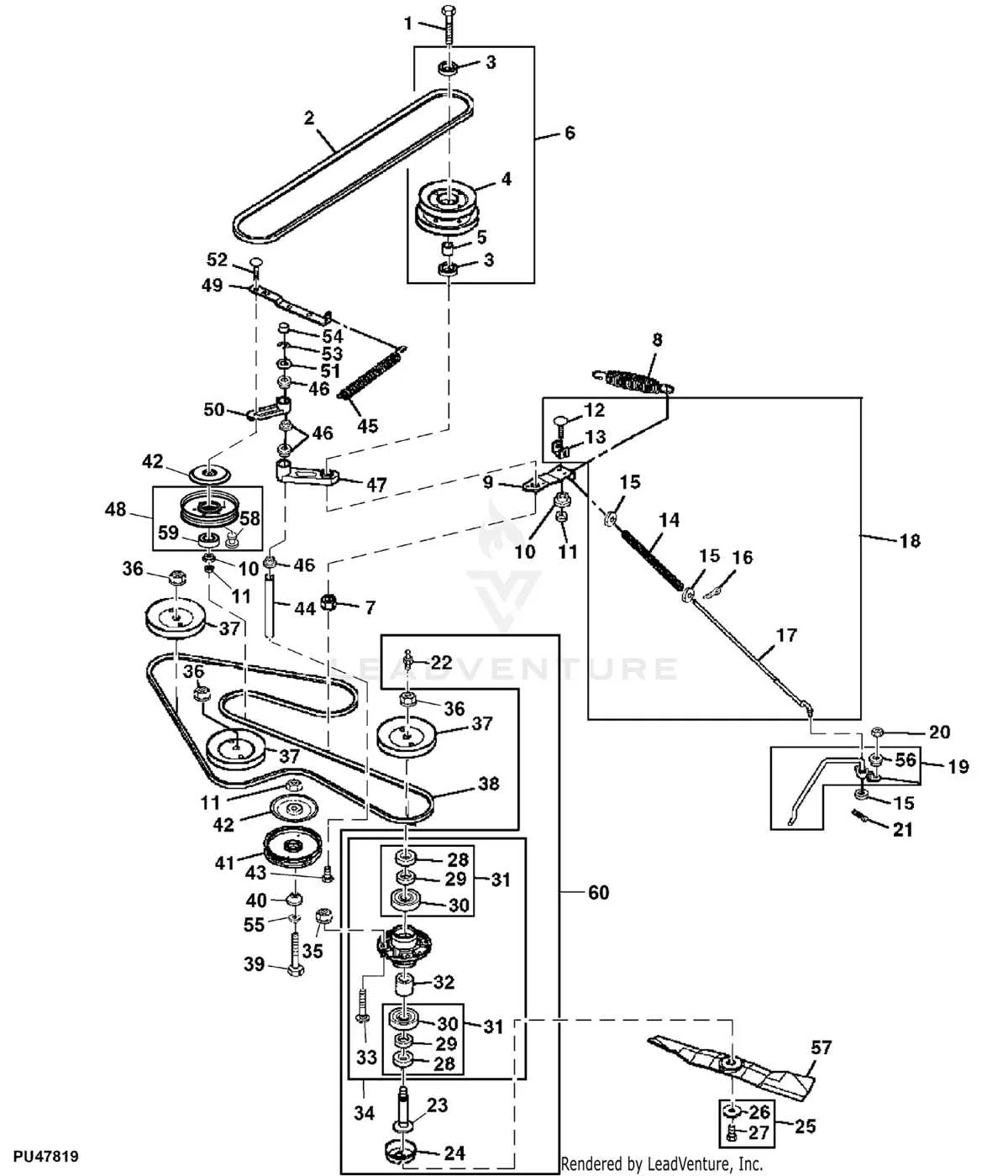

John Deere LX277 Drive Belt Diagram

Locate the drive belt routing immediately by consulting the official John Deere LX277 diagram, which details the path from the engine pulley to the transmission and mower deck pulleys. This diagram shows each pulley position and the correct belt orientation, preventing slippage or premature wear.

Follow the numbered sequence on the diagram to thread the belt accurately through the tensioner, idler pulleys, and main drive pulleys. Applying slight tension while guiding the belt ensures proper alignment and reduces the risk of misalignment during operation.

Check the diagram for the mower deck belt separately, as it often has a distinct routing from the main drive belt. Position the deck engagement lever correctly and confirm that the belt sits in all pulley grooves to maintain smooth cutting performance.

Inspect the pulleys indicated on the diagram for signs of wear or damage. Replacing any worn idlers or cracked pulleys before installing the belt prevents future breakdowns and ensures consistent power transmission from engine to wheels and deck.

Use the diagram to verify belt type and length; John Deere LX277 typically requires an exact OEM belt specification. Following the diagram precisely reduces installation errors, improves mower reliability, and extends the belt’s lifespan.

Locating and Identifying Each Belt on the LX277

Begin by parking the LX277 on a flat surface and removing the mower deck to access the drive components. The primary drive belt runs from the engine pulley to the transmission input, connecting the crankshaft to the hydrostatic system. Trace this belt carefully to confirm it sits correctly in all pulley grooves.

The mower deck belt loops around the engine’s deck pulley and routes through the idler pulleys that control tension. Identify each idler by its mounting bracket and spring tension; the larger idlers guide the belt over the deck blades, while smaller ones maintain proper alignment.

On the deck, note the blade pulleys and the belt path indicated by the embossed arrows on the deck itself. Each blade pulley is driven indirectly by the deck belt, so ensure the belt wraps around the pulleys following the exact sequence: engine pulley, idlers, and blade spindles.

Labeling each belt during inspection can prevent mistakes during reassembly. Use a contrasting tape or chalk to mark the top and bottom of each belt. Verify the orientation matches the diagram printed in the operator’s manual to avoid slippage or premature wear.

Finally, rotate the engine by hand to observe belt movement. This reveals misalignment or tension issues before running the mower. Adjust the idler positions or reinstall belts as needed, confirming each belt follows the proper path and maintains consistent tension throughout the system.

Step-by-Step Guide to Removing and Replacing the Drive Belt

Loosen the tension on the idler pulley by pushing it away from the belt. This releases pressure and allows the belt to slide off smoothly. Use a wrench or socket that fits the pulley bolt securely to avoid slipping.

Trace the belt path before removing it, noting the exact routing around the pulleys. Taking a photo can help during reinstallation and prevent misalignment.

Carefully slide the belt off the mower deck and engine pulleys. Avoid forcing it over sharp edges to prevent fraying or damage. If the belt is stuck, gently work it free by rotating the pulleys while guiding the belt.

Inspect the pulleys for wear or debris. Remove any dirt, rust, or buildup with a rag or brush. Check for wobbling or uneven rotation, which can affect the new belt’s performance.

Position the new belt along the same path as the old one, starting with the engine pulley. Ensure it sits fully in each pulley groove. Route it over the deck pulleys last, keeping it aligned to prevent slipping during operation.

Apply tension to the idler pulley until the belt is snug but not overly tight. Rotate the mower deck by hand to confirm smooth movement and correct tracking. Adjust tension slightly if the belt slips or rubs against housing.

Test the mower at low speed before full operation. Listen for unusual noises and watch for belt movement. Recheck pulley alignment and tension after a short run to secure proper performance.

Troubleshooting Common Drive Belt Problems on the LX277

Inspect the drive belt for cracks, fraying, or glazing at least once a month. Replace any belt that shows visible wear to maintain consistent power transmission.

Check belt tension using a belt tension gauge or by applying moderate pressure. A properly tensioned belt should deflect about 1/2 inch at the midpoint between pulleys. Adjust the idler pulley to achieve correct tension.

Listen for squealing noises during operation, which often indicate a loose or misaligned belt. Tighten the belt or realign the pulleys immediately to prevent further damage.

Clean pulleys and belt surfaces from dirt, grass, and oil buildup. Contaminants reduce friction and cause slippage. Wipe with a clean cloth and apply light talcum powder if necessary to improve grip.

• Inspect pulley alignment visually; misaligned pulleys can lead to uneven belt wear.
• Replace pulleys that show grooves, chips, or excessive wear.
• Check for bent or damaged idler arms and replace if needed.

Monitor belt heat during operation. Excessive heat indicates slippage or over-tensioning. Reduce tension slightly and ensure proper lubrication of moving parts.

Maintain a spare drive belt on hand. LX277 belts degrade faster under heavy mowing conditions, and immediate replacement prevents downtime.
