John Deere LX277 Deck Belt Diagram for Quick Reference and Maintenance
To replace or repair the deck belt on a John Deere LX277, refer to the belt diagram for clear guidance. This diagram outlines the correct routing of the belt, ensuring smooth operation and preventing any potential issues during operation. Make sure to check the diagram before starting the replacement process to avoid errors and save time.
The diagram is divided into sections, each highlighting specific components that are essential for proper installation. Pay special attention to the pulley arrangement and the path of the belt, as this is crucial for correct tension and functionality. A misrouted belt can cause premature wear or even damage the mower’s engine.
Before proceeding, inspect the deck belt for signs of wear such as cracks or fraying. Replacing a worn-out belt promptly will maintain the mower’s performance and avoid costly repairs down the line. Ensure the new belt matches the specifications outlined in the diagram for optimal results.

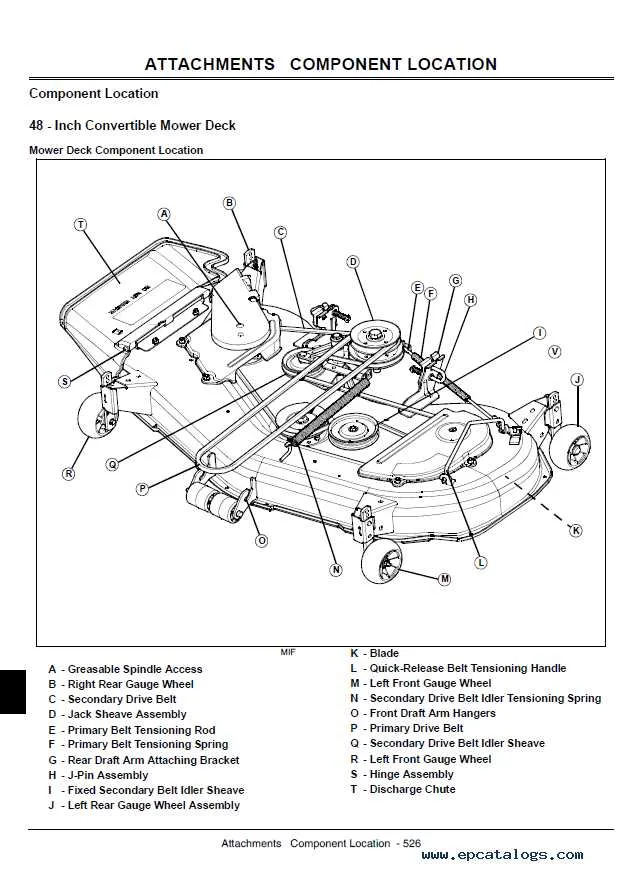

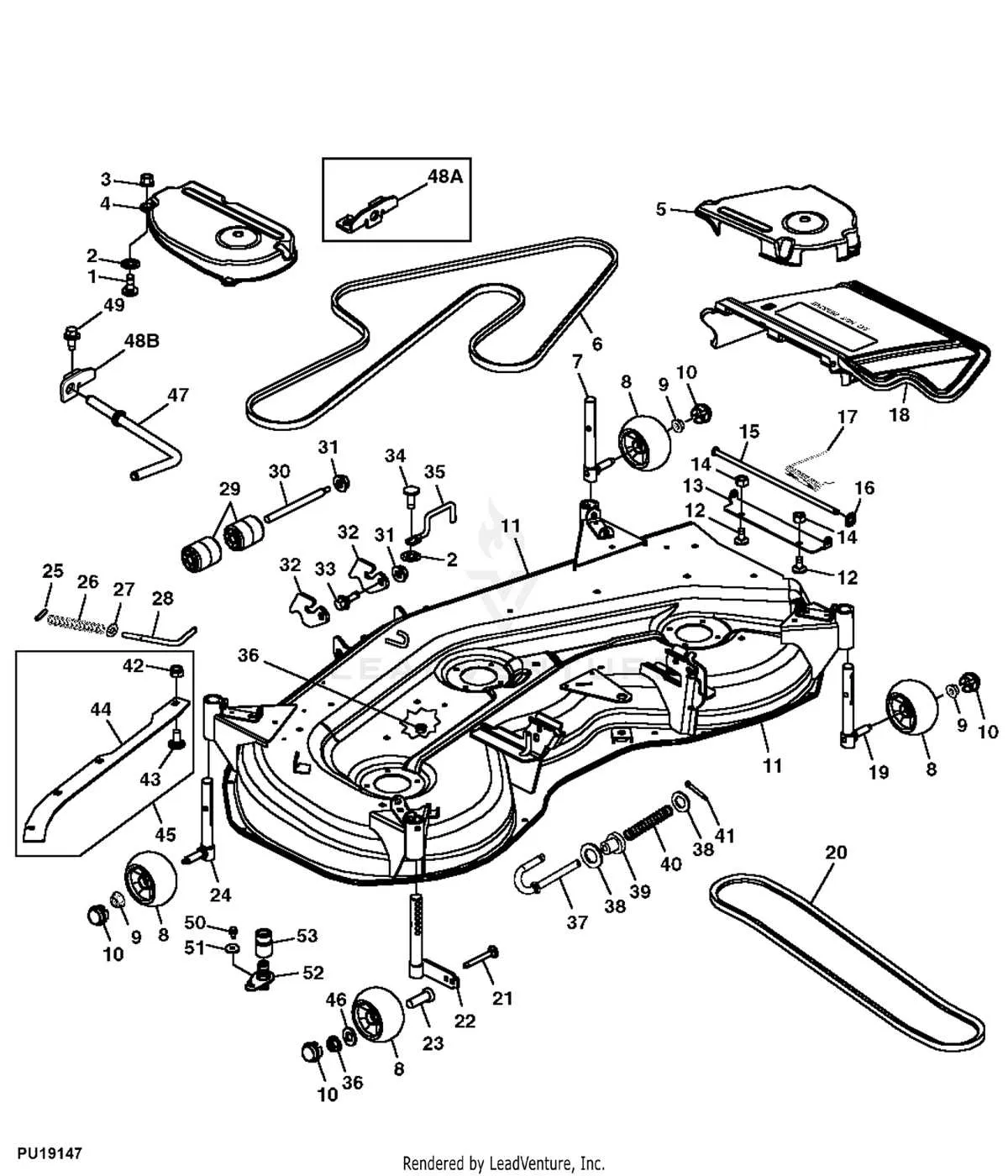

John Deere LX277 Deck Belt Diagram
Refer to the diagram below to understand the correct placement and routing of the deck belt on your John Deere LX277 mower. Ensure you follow the exact configuration to prevent slipping and maintain optimal performance.
Start by identifying the main components of the deck belt system: the deck pulleys, idler pulleys, and the drive pulley. The belt should be routed in a specific sequence to ensure proper tension and operation. The diagram clearly shows the belt passing through the center idler pulley and around the deck pulleys, connecting to the drive pulley.
Before installation, make sure the deck is raised and supported securely to avoid any injuries. Inspect the belt for any signs of wear, cracking, or fraying. If any damage is noticed, replace the belt before installation. Once you have verified the belt’s condition, proceed by looping it around the pulleys as shown in the diagram.
During installation, ensure the belt is not twisted and that it sits securely in the pulley grooves. After installing the belt, manually rotate the deck to ensure smooth movement and proper belt alignment. If the belt doesn’t align correctly or shows signs of slack, adjust the idler pulley tension accordingly.
Finally, double-check that the belt is securely seated and that there’s no undue slack. Tighten any loose components, and perform a test run on the mower to confirm that the deck operates smoothly without belt slippage or excessive noise.
How to Properly Install the Deck Belt on the John Deere LX277
Follow these steps to install the deck belt on your John Deere LX277 mower:
- Lift the mower deck using the deck lift lever to provide enough space for the installation.
- Remove the old deck belt if it’s still attached. To do this, release any tension by loosening the idler pulley or spring.

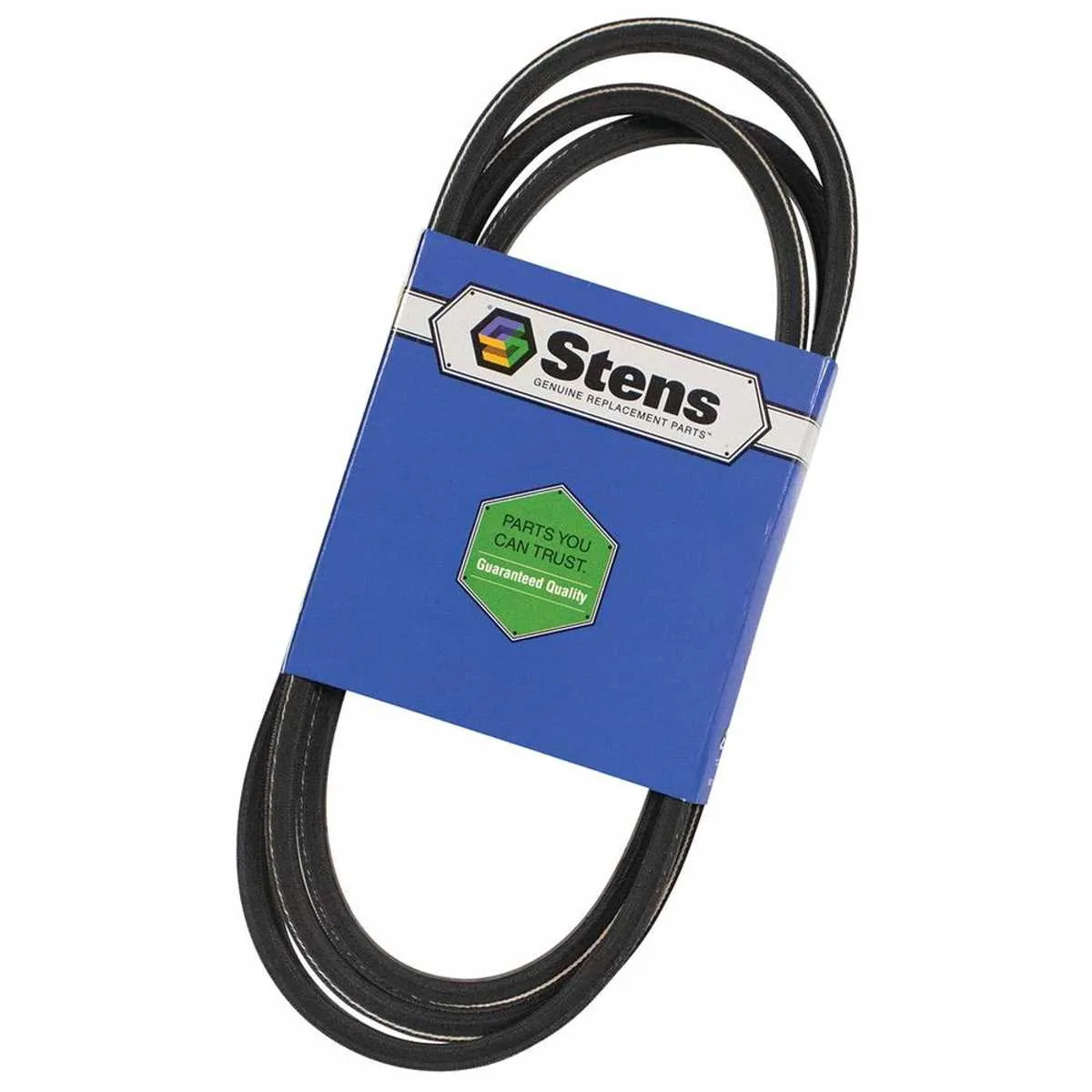

- Inspect the new deck belt to ensure it’s the correct model for your mower. The part number should match your machine’s specifications.
- Position the belt around the deck pulleys, making sure it runs along the correct routing path. Refer to the belt diagram for proper routing.
- Ensure the belt sits snugly in all pulley grooves, avoiding any misalignment that could cause wear or malfunction.
- Reattach the idler pulley and spring to apply tension to the belt. Make sure the tension is adequate, as an overly tight or loose belt can cause operational issues.
- Test the deck belt by turning the mower on and observing the operation. Check for smooth movement and listen for any unusual sounds.
- If necessary, adjust the tension slightly to ensure the belt operates without slipping or excessive noise.
Proper installation ensures the belt operates efficiently and reduces the risk of premature wear or failure.
Identifying Common Problems with the John Deere LX277 Deck Belt
Inspect the deck belt for visible signs of wear or damage, such as cracks, fraying, or missing pieces. A worn belt will often result in reduced performance or failure to engage the cutting blades properly. Look closely at the belt’s edges, as wear typically starts here and can lead to slipping or misalignment.
Another common issue is incorrect tension. If the belt is too loose, it may slip or fail to drive the mower blades effectively. Conversely, an overly tight belt can cause excessive wear on the pulleys and the belt itself. Adjust the tension according to the manufacturer’s specifications to avoid these problems.
Check the alignment of the deck belt. Misalignment occurs when the belt is not properly routed through the pulleys, which can lead to uneven cutting or increased strain on the belt. Refer to the John Deere LX277 deck belt diagram for the correct routing and positioning of the belt.
Inspect the pulleys and idlers for damage or wear. A damaged pulley can cause the belt to slip or misalign, leading to poor performance or even failure of the belt. Make sure the pulleys spin freely and are not obstructed by debris or dirt.
Lastly, listen for unusual sounds during operation. A squealing or grinding noise could indicate a problem with the belt or pulleys. If you hear these sounds, stop the mower immediately to inspect the components before further use to avoid more severe damage.
Step-by-Step Guide to Replacing the Deck Belt on the John Deere LX277
Begin by lifting the mower deck. Use a jack or hydraulic lift to raise the deck to a comfortable working height. Secure the deck with safety supports to prevent it from lowering during the procedure.
Next, disconnect the battery. This step is crucial for safety, as it prevents accidental engine startup while working on the mower.
Remove the deck from the mower. To do this, unhook the suspension arms, and detach any bolts securing the deck to the mower frame. Carefully slide the deck out from under the machine.
With the deck removed, locate the old belt. It will run along the pulleys, connecting the engine to the deck’s blades. Inspect the belt for any signs of wear, such as cracks or fraying, which indicate that it needs replacing.
Remove the old belt by loosening the tension. Typically, there is a spring-loaded tensioner that keeps the belt tight. Release this tension by moving the tensioner pulley away from the belt and carefully remove the belt from all pulleys.
Now, place the new deck belt in the correct routing pattern. Use the John Deere LX277 deck belt diagram as a reference to ensure the belt fits through all the pulleys in the proper order. Make sure the belt sits securely in each groove of the pulleys.
Reapply tension to the belt by moving the tensioner pulley back into place. Ensure that the belt is snug but not overly tight. The tension should allow the belt to move freely without slipping.
Reinstall the deck under the mower, aligning it with the suspension arms and securing it with the appropriate bolts.
Reconnect the battery, and perform a test run. Check the belt’s performance by engaging the blades and listening for any unusual sounds. If the belt operates smoothly, the replacement was successful.
