John Deere LT166 Belt Diagram and Maintenance Guide
The John Deere LT166 uses a specific serpentine belt system that powers several components, including the engine, alternator, and more. Ensure the belt is properly routed for smooth operation and to avoid damage to the engine or accessories.
Start by checking the belt’s condition. If you notice signs of wear such as cracks, fraying, or glazing, it’s time to replace it. A worn-out belt can slip, leading to reduced efficiency and possible engine damage.
Use the official belt diagram for the LT166 to guide the installation process. The diagram indicates the exact routing and proper tensioning needed to ensure optimal performance. Follow each step carefully to maintain the longevity of the engine and related parts.
John Deere LT166 Belt Diagram
To ensure proper functionality, it’s important to understand the belt layout for the John Deere LT166 mower. This belt connects key components such as the engine, transmission, and deck, enabling the mower to operate smoothly. Follow the diagram carefully for proper routing.
The drive belt for the LT166 runs through several pulleys, providing power to the mower’s deck and transmission. Make sure the belt is correctly positioned on each pulley to prevent slipping or misalignment. Pay close attention to the tension; too much slack can lead to malfunction.
Refer to the diagram to check the following key points:
- Ensure the belt is routed around the tensioner pulley correctly for proper tension.
- The belt should pass over the deck pulleys smoothly without binding or excessive friction.
- Verify that the belt aligns with the engine’s drive pulley for efficient power transfer.
If you notice any wear or damage, replace the belt promptly to avoid more serious issues. Check for fraying or cracking on the belt surface, as this could reduce its lifespan or cause failure during use.

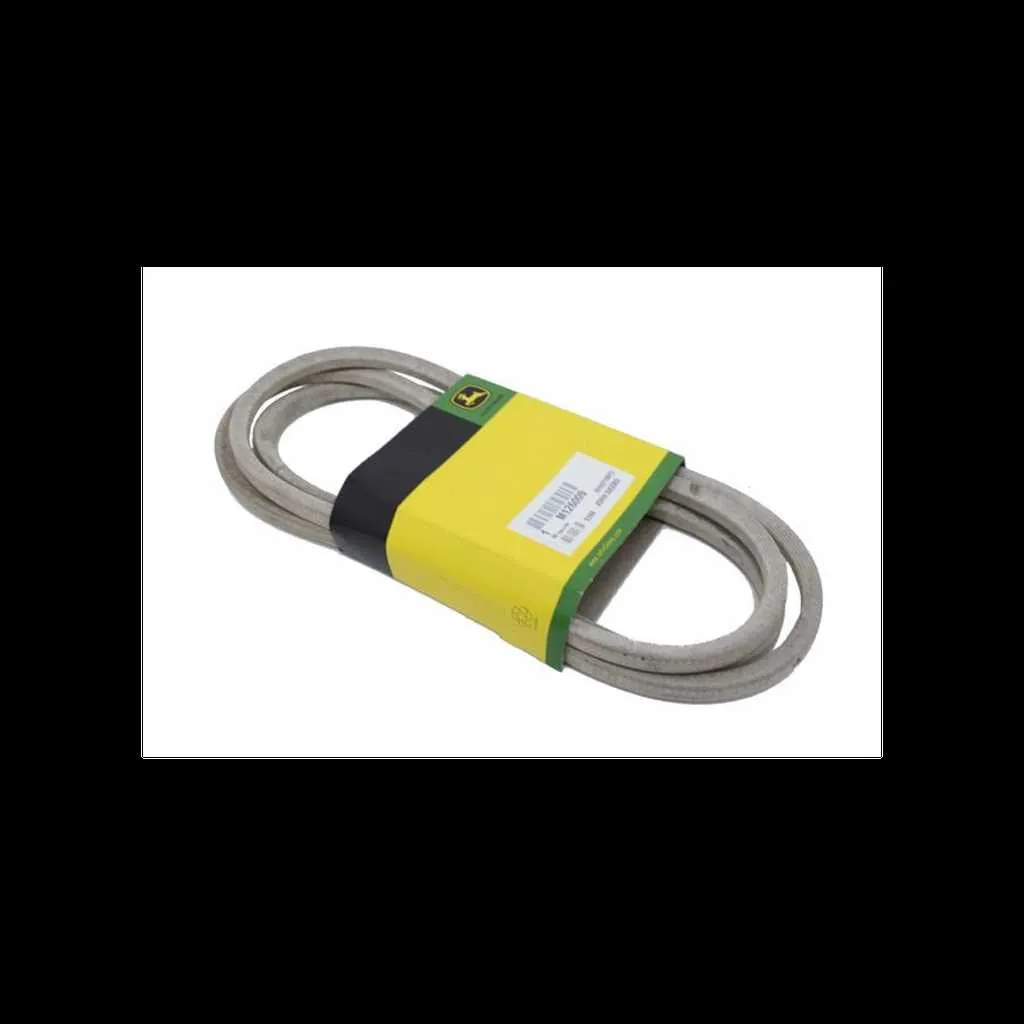

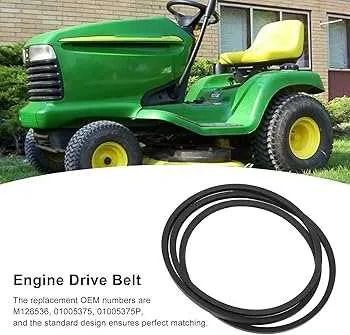

Always use the specific John Deere LT166 replacement belt to ensure proper fit and functionality. Using the wrong belt can lead to improper fitment and premature wear, affecting the performance of your mower.
Step-by-Step Belt Installation for John Deere LT166
Begin by lifting the front of the mower and securing it on stable supports. This will give you easy access to the belt area.
Locate the tensioner pulley and relieve the tension on the belt by rotating the tensioner clockwise. This will allow you to remove the old belt or install the new one without resistance.
Remove the existing belt by carefully sliding it off the pulleys. Make sure to observe the routing of the old belt before removing it completely to ensure proper installation of the new one.
Take the new belt and start threading it through the pulleys, following the exact routing as the old belt. Start with the engine pulley and work your way around, making sure the belt is seated correctly in each groove.
Once the belt is in place, rotate the tensioner pulley back to its original position to apply tension. Check that the belt is tight and properly aligned with the pulleys.
Inspect the belt for any slack or misalignment. If the belt appears loose or incorrectly routed, adjust it by following the same steps until it is correctly installed.
Lower the mower back down and test the belt by starting the engine. Listen for any unusual sounds or slipping to confirm the belt is functioning properly.
Identifying Common Issues with the LT166 Belt System
The LT166 belt system may experience several issues over time. One of the most common problems is a worn-out or frayed belt. Inspect the belt for any visible signs of wear, cracks, or fraying. If any of these signs are present, replacing the belt immediately will prevent further damage to other components.
Another frequent issue is misalignment of the pulleys. This can occur if the belt is not routed properly or if the pulleys have shifted from their original positions. Check the alignment of all pulleys to ensure they are in the correct position and adjust if necessary to avoid excessive wear on the belt.
Loose or tight tension can also cause issues. A belt that is too loose will slip, reducing efficiency and causing wear on the belt and pulleys. On the other hand, a belt that is too tight can cause excessive strain on the system. Use the tension adjustment mechanism to ensure the belt has the correct tension for smooth operation.
In some cases, the belt may not properly engage with the drive system due to debris or dirt accumulation. Regularly clean the belt and pulleys to remove any buildup that could affect performance.
Lastly, pay attention to any strange noises such as squealing or grinding. These sounds are often indicative of problems with the belt, pulleys, or other related components. Addressing these issues early can help maintain the overall function of the LT166.
How to Maintain and Adjust the Belt for Optimal Performance
Ensure the belt is correctly tensioned by checking its deflection. If the belt sags too much when pressed, tighten the tensioner. On the other hand, over-tightening can cause excessive wear, so adjust carefully.
Inspect the belt for wear and cracks at least once a season. A worn belt should be replaced immediately to avoid system failure. Replace it with a belt that matches the specifications outlined in the owner’s manual.
Regularly clean the belt and surrounding pulleys to remove debris that can cause slipping. Use a soft cloth or compressed air to clean these areas. Dirt buildup can lead to uneven wear or damage over time.
Check the alignment of the pulleys. Misaligned pulleys can lead to uneven belt wear and cause the belt to slip. If the pulleys are out of line, they should be repositioned or replaced to ensure smooth operation.
Lubricate moving parts around the belt system to minimize friction. Use appropriate grease for pulleys, but avoid applying it directly to the belt, as it may cause slippage.
Perform regular maintenance on the belt system during the off-season to avoid problems when in use. This includes checking for proper tension, wear, and lubrication of the system components.
