John Deere LT160 Belt Diagram and Installation Guide
For proper maintenance and troubleshooting of the John Deere LT160, refer to the belt diagram for accurate assembly and adjustments. This diagram helps to ensure that all belts are correctly installed, preventing unnecessary wear and improving mower performance. Knowing the belt routing can save time during repairs and avoid costly mistakes.
Before you begin, make sure the engine is off and the mower deck is lowered. The diagram typically shows the correct belt routing for both the drive belt and deck belts, highlighting the exact path each belt should follow around pulleys and other components. Understanding this layout helps you troubleshoot issues like slipping or broken belts efficiently.
If you’re replacing a belt, use the diagram to ensure you select the right belt length and type. Each part of the mower deck, from the tensioner pulleys to the blade engagement mechanism, plays a critical role in belt alignment. Misalignment can lead to premature wear, decreased performance, or even mechanical failure.
Having a clear diagram on hand can speed up your maintenance tasks, ensuring you get your mower back in working condition quickly and without confusion. If you’ve misplaced the diagram, you can often find it in the owner’s manual or online, providing a reliable resource for any repairs you need to make.

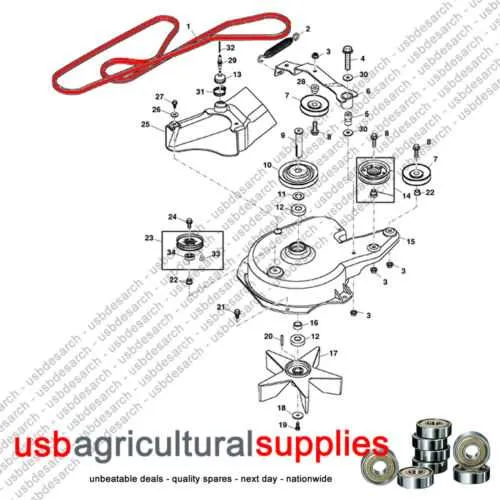

John Deere LT160 Belt Diagram
For a smooth operation of your John Deere LT160, it’s important to understand the belt system and how to replace or adjust the belts when necessary. The diagram provides a clear view of the entire belt path, ensuring your lawnmower functions correctly.
The primary drive belt of the LT160 connects the engine to the cutting deck. Start by checking the tension and condition of this belt regularly. If it’s loose or worn, it can cause a decrease in performance and even damage other components. The belt runs through several pulleys, with each pulley having a specific role in transferring motion from the engine to the blades.
To remove or replace the belt, first, ensure the mower is off and the ignition is disconnected. Carefully follow the diagram for routing, as it will help you avoid mistakes during installation. The diagram shows the routing around the engine pulleys, idlers, and the deck pulleys, which are key for smooth operation. Make sure the new belt is the correct length and specification as shown in the manual for your LT160 model.
When adjusting or replacing the belt, pay attention to the tensioners. Incorrect tension can lead to premature belt wear or inadequate cutting performance. Test the belt by spinning the deck by hand after installation to ensure everything is in place. If the belt is too tight or too loose, you may need to adjust the tensioner pulley.
Referencing the diagram regularly during maintenance will ensure that your LT160 continues to operate efficiently. Keep an eye on the belt’s condition, and replace it at the first signs of wear. This will help prevent breakdowns during mowing seasons and keep your lawn mower running smoothly.
How to Identify Belt Routing on the John Deere LT160
Inspect the belt routing by following the path outlined in the owner’s manual or a detailed diagram. Begin by locating the belt around the engine and the pulleys. The LT160’s belt should pass around the mower deck, drive pulleys, and idler pulleys in a specific order to ensure proper functionality.
Follow these steps for accurate belt routing identification:
- Locate the engine and mower deck. The engine drives the belt, which transfers power to the mower’s cutting blades.
- Check the routing around the engine’s crankshaft pulley, where the belt begins its journey.
- Ensure the belt wraps around the idler pulleys correctly, which keep the tension and allow for smooth operation.
- Confirm that the belt runs around the drive pulleys attached to the mower deck, powering the blades.
- Verify the belt’s return path to the engine pulley. Make sure there are no twists or misalignments.
For visual guidance, refer to the belt routing diagram available in the manual, which provides clear instructions for each step. If the belt appears worn or damaged, replace it with the recommended model to maintain optimal performance.
Step-by-Step Guide to Replacing Belts on John Deere LT160
Before starting, gather the necessary tools: a wrench set, screwdriver, replacement belts, and safety gloves. Always disconnect the battery to avoid any electrical hazards.
1. Lift the mower deck: Use a jack or appropriate lifting tool to raise the mower deck. This gives you enough room to work on the belts.
2. Remove the deck: Unscrew the bolts securing the mower deck. Carefully slide it out from under the machine. Keep track of the screws for reassembly.
3. Identify the belts: The LT160 uses several belts, including the engine drive belt and mower deck belts. Examine their condition and note how they are routed around pulleys and other components.
4. Loosen the tension: Locate the tensioners for the belts. Use a wrench to loosen the tension and relieve pressure on the belts. This step is crucial for easier removal.
5. Remove the old belts: Once the tension is relieved, slide the belts off the pulleys. If the belts are stuck, gently wiggle them free, but avoid forcing them as it could damage surrounding components.
6. Install the new belts: Begin by threading the new belts around the pulleys, following the same routing path as the old ones. Make sure the belts are properly seated on all pulleys.
7. Tighten the tension: Adjust the tensioners and make sure the belts are tight but not overly strained. There should be a slight give when you press on the belt with your finger, but it shouldn’t be too loose.
8. Reassemble the deck: Slide the mower deck back under the tractor and secure it with the bolts. Double-check that everything is aligned and fastened correctly.
9. Test the mower: Reconnect the battery and start the mower. Run it briefly to check for any unusual noises or issues with the belts. If everything runs smoothly, you’ve successfully replaced the belts.
Common Issues with LT160 Belts and How to Fix Them
If your John Deere LT160 belt is slipping or breaking frequently, start by inspecting the belt for wear and tear. A worn belt should be replaced immediately, as it can lead to more damage to the mower’s engine or pulleys.
Another common issue is improper tension. If the belt is too loose, it can slip off the pulleys or fail to engage the mower’s blades properly. Adjust the tension by tightening the tensioner pulley until the belt fits snugly but not overly tight. If the tensioner itself is damaged or worn out, replace it to maintain proper belt tension.
Misaligned pulleys are another frequent cause of belt problems. Check if the pulleys are properly aligned with each other. If one is out of alignment, the belt may wear unevenly or slip off. Realign or replace misaligned pulleys to ensure smooth operation.
If the belt is not routing correctly, check the diagram to confirm the belt’s path. Incorrect routing can lead to excessive friction or misdirected motion, causing premature wear. Adjust the belt according to the correct path to avoid unnecessary damage.
In some cases, debris accumulation around the belt or pulleys can cause slipping or excessive wear. Regularly clean the area, ensuring no dirt or grass clippings are obstructing the moving parts.
Finally, always ensure you are using the correct replacement belt for your LT160. Using a belt that is too small or too large can result in poor performance and excessive wear. Refer to the owner’s manual or belt diagram to select the correct belt size.
