John Deere LT160 42 Inch Deck Belt Diagram and Installation Guide
If you’re facing issues with your John Deere LT160 42-inch mower deck, understanding the belt diagram is the key to quick and accurate repairs. This diagram shows how the mower deck belt should be routed, helping you replace or adjust it with ease. By following the correct belt path, you can avoid unnecessary damage and ensure the mower runs smoothly.
The diagram outlines the path the belt takes, including the tensioner and pulleys that keep everything in place. A proper understanding of this setup ensures the belt remains properly tensioned and reduces wear, preventing breakdowns and extending the mower’s lifespan. Be sure to check the belt’s condition regularly, as a worn or frayed belt can affect performance.
Replacing or adjusting the belt involves a few steps. Start by lifting the deck to gain access to the belt system. Once visible, take a close look at the diagram to guide your reinstallation. Pay special attention to the belt’s routing around the pulleys and the tensioner. This diagram is a simple tool to keep your mower running efficiently.

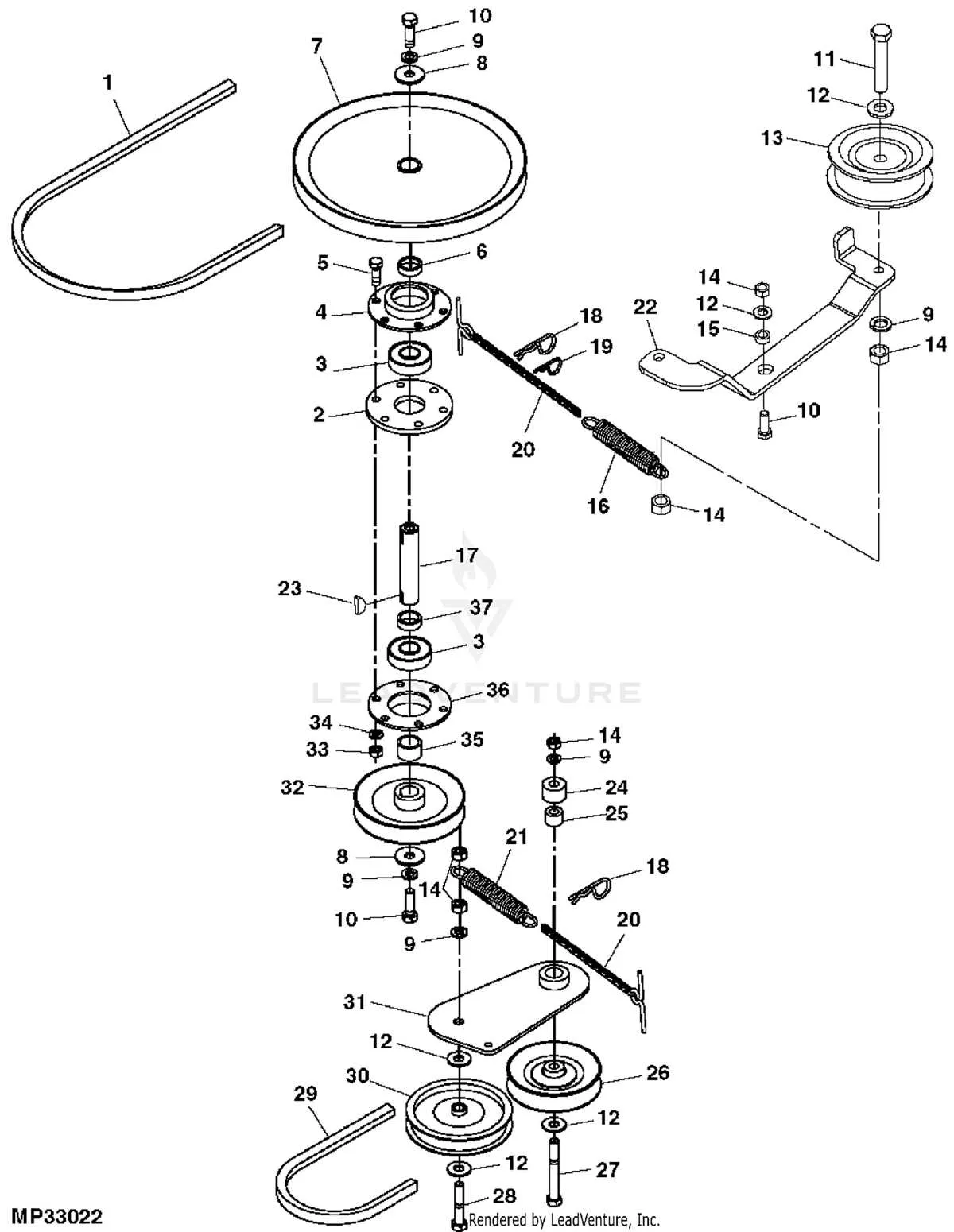

John Deere LT160 42 Inch Deck Belt Diagram
The correct belt routing for the John Deere LT160 with a 42-inch deck is key for smooth operation and maintenance. The diagram shows how the belt should loop through the pulleys to ensure proper tension and functionality.
Start by identifying the primary drive pulley, located near the engine. The belt will wrap around this pulley, then move across to the deck’s spindle pulleys. Each pulley plays a crucial role in ensuring the mower deck rotates evenly and without slippage.
From the engine pulley, the belt runs down towards the idler pulley. This helps maintain belt tension. After passing through the idler, the belt moves around the deck’s main spindle pulley, powering the blades. The routing follows a smooth, circular path around all spindles, ensuring consistent blade speed and performance. Be sure to check that the belt fits securely on all pulleys to avoid damage or slipping.
For assembly or replacement, it’s best to follow the exact routing path as shown in the diagram to prevent unnecessary wear on the belt and pulleys. Incorrect routing can lead to reduced efficiency or damage to the components. Always replace the belt with the recommended part number for optimal performance.
Check the belt tension periodically. Over time, belts stretch, and this can affect performance. Adjust or replace as needed to maintain the proper functionality of your mower.

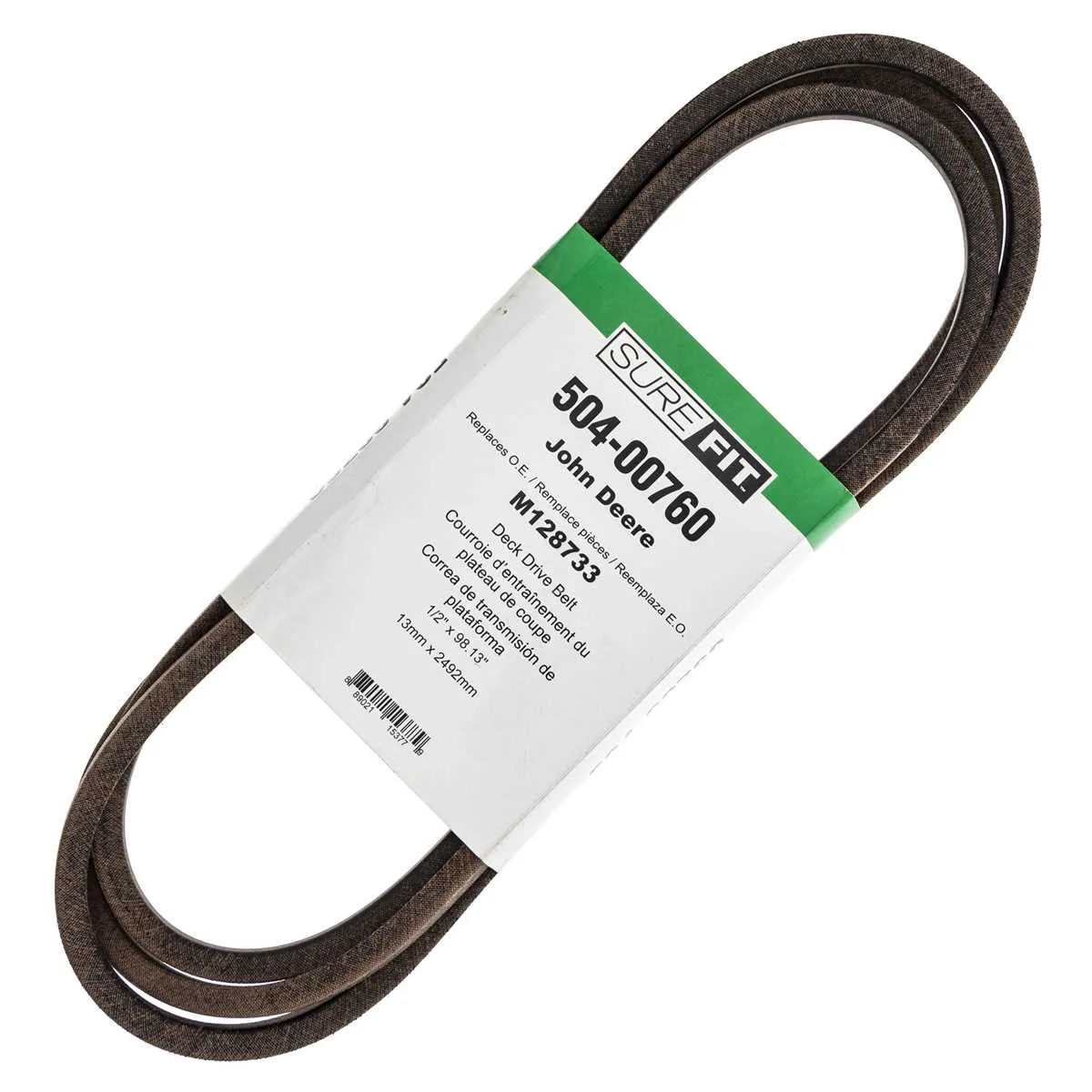

How to Identify the Correct Belt Size for LT160 42 Inch Deck
To find the correct belt size for your John Deere LT160 42-inch deck, check the model and part number printed on the mower’s deck or refer to the owner’s manual. Typically, the LT160 uses a 1/2-inch wide belt with a length of around 103 inches, but confirming this based on your deck’s configuration is essential.
If you don’t have the manual or part number, measure the length of the existing belt from the center of the pulleys when it’s removed. Make sure to account for any worn sections or stretch that may affect the measurement. For precision, compare your measurement with the OEM specifications listed in the manual or on parts websites.
Additionally, check the number of ribs on the belt, as this affects performance. Most LT160 belts feature multiple ribs for better grip on the pulleys, so be sure to match the rib count to the original part for proper operation.
Always replace the belt with one specifically designed for the LT160 to ensure correct fitment and reliable performance. Using an incorrect size could lead to slippage, damage to components, or inefficient cutting.
Step-by-Step Instructions for Installing the Belt on LT160
To replace the belt on your John Deere LT160, follow these clear instructions for a smooth installation.
- Lift the Deck
Use the lift lever to raise the mower deck to its highest position. This will provide enough clearance to access the belt. - Remove the Old Belt
Locate the belt tension spring and release it from the pulley system. Carefully remove the belt from the pulleys and around the deck. Take note of how the belt is routed for reinstallation. - Check the Pulleys
Inspect all pulleys for any signs of wear or damage. Replace any faulty pulleys before installing the new belt to avoid further issues. - Route the New Belt
Place the new belt around the engine pulley first, following the path marked on the diagram. Be sure the belt fits snugly into the grooves of each pulley. - Reconnect the Tension Spring
Attach the spring back to the tension mechanism. Make sure it’s securely fastened to maintain the correct tension on the belt. - Test the Installation
Rotate the pulleys by hand to ensure the belt moves freely. Double-check that the belt is correctly aligned and there’s no slack. - Lower the Deck
Once everything is in place, lower the deck back to its working position. Start the mower to confirm the belt operates properly.
By following these steps, you’ll have the belt installed correctly and your mower ready for use.
Common Issues with Deck Belts on LT160 and How to Fix Them
If your LT160’s deck belt isn’t working properly, it’s often due to one of these common issues. Here’s how to tackle them effectively:
1. Belt Slipping or Loosening
One of the most common issues is a belt that slips or loosens. This happens when the tensioner isn’t working as it should, or the belt is worn out. Start by inspecting the tensioner for wear or damage. If it’s worn, replace it. For a belt that’s slipping, adjust the tension by tightening the spring on the tensioner. If the belt itself is cracked or stretched, replace it with a new one for optimal performance.
2. Excessive Vibration or Noise
If your deck is making excessive noise or vibrating, the belt may be misaligned. Check the routing diagram for the LT160 to ensure that the belt is properly positioned on the pulleys. Misalignment can cause unnecessary friction, leading to noise and potential damage. Reposition the belt correctly or replace any pulleys that seem worn or damaged.
3. Belt Wears Out Quickly
A belt that wears out prematurely could indicate that it’s too tight or too loose. A tight belt puts extra strain on the engine, causing wear and tear, while a loose belt can slip and overheat. Check the belt tension and adjust accordingly. Ensure that all components, like pulleys and the tensioner, are working correctly. Also, check for debris buildup that could be causing friction.
4. Belt Keeps Breaking
Frequent belt breakage often points to misalignment or faulty components. Inspect the pulleys for cracks, rust, or bent areas. Damaged pulleys can misguide the belt, causing it to snap. Replace any broken parts, and ensure the belt is routed correctly. A worn deck or an uneven cut can also strain the belt, so inspect the deck thoroughly.
5. Belt Keeps Coming Off
If the belt keeps coming off, it’s typically a sign of severe misalignment. Inspect the pulleys for wear and ensure the belt is routed according to the LT160’s diagram. Also, check that the idler arm is functioning properly. If the arm is stuck or doesn’t apply the right tension, the belt may not stay in place. Lubricate moving parts to ensure smooth operation.
By addressing these common issues promptly, you can ensure that the LT160 deck belt functions smoothly and lasts longer. Regular maintenance and quick fixes go a long way in avoiding unnecessary repairs.
