John Deere LT155 38 Deck Belt Diagram and Routing Guide
Replace the belt on your John Deere LT155 by following the belt routing as shown in the diagram. Ensure the mower deck is raised and the engine is off before starting. This prevents injuries and ensures a smooth process. Follow the steps in the diagram to place the belt correctly over the pulleys to avoid issues with tension and operation.
The belt must be routed around each pulley as illustrated. Incorrect placement can cause the belt to slip, overheat, or even break prematurely. Pay attention to the direction of the belt, especially around the idler pulleys, as improper alignment can lead to uneven wear.
Before installing a new belt, inspect the pulleys for wear or damage. Replace any worn pulleys to prevent premature belt failure. Make sure the tension is correct once the new belt is in place to avoid unnecessary strain on the system. Using the diagram ensures the belt is correctly installed and functions properly.
Refer to the John Deere LT155 38 deck belt diagram whenever replacing or adjusting the belt. This will help you avoid mistakes and ensure that your mower operates at its best.

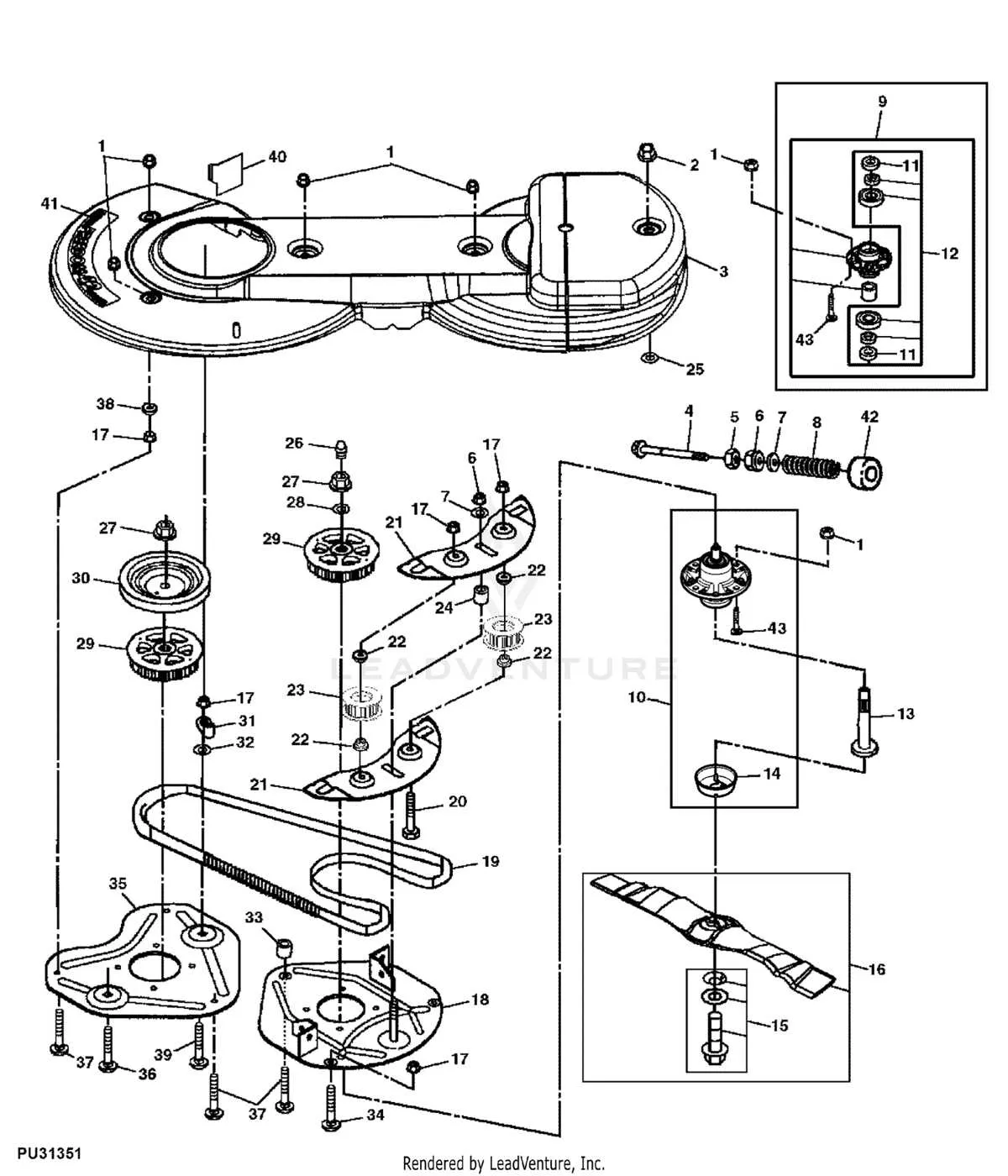

John Deere LT155 38 Deck Belt Diagram
To replace or inspect the belt on the John Deere LT155 with a 38″ deck, follow this diagram for proper routing and setup. This guide outlines the correct belt path to ensure smooth operation.
Start by locating the belt routing diagram on the frame of the mower deck. Typically, it is positioned near the deck’s spindle or on the mower’s frame itself. This visual guide will indicate the precise alignment needed for the belt around the pulleys and spindles.
First, remove any debris or dirt from the area to ensure smooth installation. Then, carefully follow the path from the engine pulley through the deck’s various spindles and idler pulleys. Make sure the belt is correctly tensioned, and that there is no slack that could cause slipping or wear over time.
Be mindful of the direction in which the belt loops around the pulleys, as a mistake here can cause the mower to malfunction. Tighten the belt accordingly by adjusting the tensioning mechanism to maintain the correct slack and ensure the belt runs efficiently without too much tension that could damage the components.
If you’re replacing the belt, choose a high-quality replacement that matches the original specifications. Over time, the belt may wear down, affecting the mower’s performance. Regularly checking and replacing the belt is recommended for optimal operation of your John Deere LT155.
Understanding the Belt Routing for the 38-inch Deck
The 38-inch deck on the John Deere LT155 uses a specific routing pattern for the deck belt. Correct routing ensures the belt operates smoothly and avoids premature wear. Here’s the proper way to route the belt:
- Start by locating the deck pulley system. The belt should loop around the engine pulley and extend to the deck pulleys.
- Position the belt around the two primary pulleys–one near the engine and one on the deck. Ensure the belt is snug but not overly tight on the pulleys.
- Route the belt through the tensioner arm. The tensioner should apply the right amount of pressure to the belt to maintain proper function.
- Ensure the belt is routed over the guide pulleys to prevent it from slipping off during operation. The guide pulleys keep the belt aligned.
- Finally, check that the belt does not rub against any parts of the mower deck that could cause excessive wear.
Once the belt is routed correctly, check its alignment and tension before use. If the belt seems loose or too tight, adjust the tensioner until the belt maintains proper tension without excessive slack or strain.
Remember, accurate belt routing is key to maintaining the mower’s performance and preventing damage to the system.
How to Identify and Replace Worn or Broken Belts
Inspect the belt for visible cracks, fraying, or missing sections. A worn belt will often appear stretched or uneven. If the belt slips off during operation or makes a loud noise, it may be broken or close to breaking. Check for signs of wear on the pulleys as well, as they can cause premature belt damage.
To replace a worn belt, first disconnect the battery to ensure safety. Loosen the tensioner pulley using a wrench or socket, and remove the old belt carefully. Compare the old belt with the new one to confirm the correct size and fit. Install the new belt over the pulleys, ensuring it runs smoothly through each groove. Tighten the tensioner to secure the new belt in place.
After installation, check the belt’s alignment and tension. A belt that is too tight can wear out faster, while a loose one may slip. Perform a short test run to confirm the belt operates smoothly without any unusual noises.
Troubleshooting Common Belt Issues on the John Deere LT155
If the belts on your John Deere LT155 are slipping, squealing, or not engaging properly, inspect them immediately to avoid further damage. The most common causes of belt issues include wear, misalignment, and debris build-up. Start by checking the condition of the belts. Look for cracks, fraying, or any signs of damage. Replace any worn belts to prevent malfunction.
Next, verify the belt tension. If the belt is too loose, it may slip or fail to engage the pulleys effectively. Use the tension adjustment mechanism to tighten the belt to the manufacturer’s specifications. If the tension is too tight, it can cause premature wear on both the belt and the pulleys, leading to additional issues.
Misalignment is another common cause of belt problems. Ensure that all pulleys are aligned properly and that none of them are damaged or bent. Misaligned pulleys can cause the belt to rub against components, leading to accelerated wear. Adjust or replace pulleys as necessary to restore proper alignment.
Check for debris that may have accumulated around the belt and pulleys. Grass, dirt, or rocks can interfere with belt operation and cause slipping. Clean the area thoroughly and remove any blockages that could prevent smooth belt movement.
Finally, inspect the drive system for any other issues, such as a malfunctioning tensioner or a faulty idler pulley. Replacing a damaged idler pulley or tensioner can resolve many belt-related problems.
