John Deere LT150 Belt Diagram and Maintenance Guide
Understanding the belt layout on your John Deere LT150 is crucial for maintaining proper function. Referencing the belt diagram can help you identify the right parts and troubleshoot potential issues before they become major problems.
Start with the main drive belt, which connects the engine to the transmission. Ensure it is properly routed through the pulleys. Misalignment or wear on this belt can affect the mower’s performance and even cause mechanical failure.
Check the tension of each belt to ensure they are neither too tight nor too loose. Overly tight belts can strain the engine, while loose ones might slip, causing inefficient power transfer. Regularly inspect for any signs of wear, cracks, or fraying.
Review the auxiliary belts, which run the attachments and other features of the mower. These belts should also be checked for proper routing and tension. If the diagram shows any adjustments, ensure they are done to avoid belt slippage.

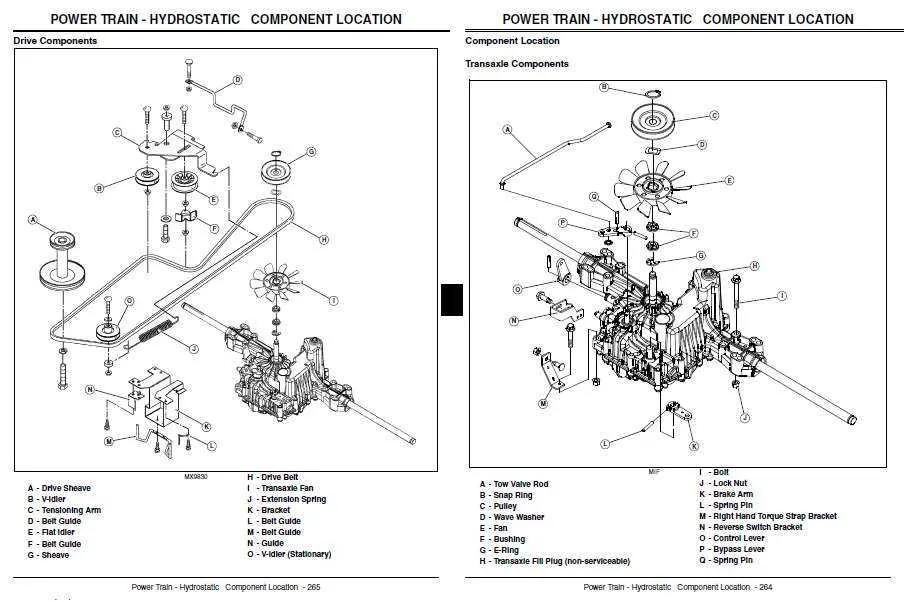

John Deere LT150 Belt Diagram
How to Identify the Correct Belt Layout for John Deere LT150
To correctly identify the belt layout for your John Deere LT150, first refer to the model number located on the frame of the mower. This is crucial, as different models may have variations in belt configuration.
Next, check the operator’s manual for a detailed belt diagram specific to your LT150. If the manual is unavailable, you can often find the belt diagram online through the official John Deere website or authorized dealers.
Visually inspect the mower’s current belt setup. Take note of the routing around pulleys, idlers, and other components. The correct belt should follow a precise path to ensure proper tension and performance. If the belt is worn or damaged, replacing it with the exact replacement part is essential for optimal function.
If in doubt, use a tape measure to compare the old belt’s length with the new one. Ensure the new belt matches the specifications for your LT150 model.
Once you have the correct belt, install it by following the manual’s diagram or your visual reference, ensuring the belt is aligned correctly and properly tensioned. Check the pulley alignment as well, as misalignment can cause premature wear on the new belt.
Regularly inspect the belt for signs of wear or damage to prevent unexpected breakdowns and ensure smooth operation of your John Deere LT150 mower.
Steps for Replacing the Belt on John Deere LT150
Begin by disconnecting the battery to ensure safety. This prevents any accidental starts while working on the machine.
Next, lift the mower deck off the ground. Use a jack or lifting equipment to raise the deck so you have access to the underside where the belt is located.
Locate the belt tensioner and relieve the tension by using a wrench or socket to loosen the tension bolt. This will free the belt for removal.
Remove the old belt by pulling it off the pulleys. Take note of the belt’s path for easier installation of the new one. It’s useful to consult a belt diagram for the LT150 to ensure you install it correctly.
Install the new belt by following the same routing path as the old one. Make sure the belt sits properly on all pulleys to avoid slippage during operation.
Once the belt is in place, reapply tension to the belt by tightening the tensioner bolt. Ensure the belt has the correct tension, which can be verified by checking for about half an inch of give when pressed down in the center.
Lower the mower deck back into position and reconnect the battery. Perform a quick test run to check the operation of the new belt, ensuring it moves freely and doesn’t slip or make any unusual noises.
Troubleshooting Common Belt Issues on John Deere LT150
If the belt on your John Deere LT150 is slipping, misaligned, or worn, follow these steps to resolve common issues.
- Slipping Belt: Check the belt tension. If the belt is too loose, adjust the tension by tightening the idler pulley. A loose belt may slip and cause poor performance.
- Worn or Frayed Belt: Inspect the belt for signs of wear. A worn belt can cause inefficient operation and should be replaced. Ensure you use the correct replacement belt for the LT150 model.
- Misaligned Belt: Verify that the belt runs in a straight line through all pulleys. Misalignment often occurs when the idler pulley or tensioner is faulty. Realign the components and check the belt routing against the diagram.
- Damaged Pulley: Inspect all pulleys for damage or wear. A worn pulley can cause the belt to wear unevenly. Replace any damaged pulleys and ensure smooth movement.
- Noisy Belt: Excessive noise could indicate a loose or improperly routed belt. Check for alignment and ensure proper tension. Clean the pulleys and check for debris that might interfere with smooth operation.
Regular maintenance, including inspecting the belt and its components, can prevent most common belt issues on the John Deere LT150.
