John Deere LT133 Drive Belt Diagram and Maintenance Guide

If you’re working on your John Deere LT133 lawn tractor, understanding the drive belt layout is crucial for proper maintenance. This diagram will help you accurately identify each component and how they interact with the engine, ensuring smooth operation.

Begin by locating the main drive belt, which transfers power from the engine to the wheels. This belt is essential for movement and should be inspected regularly for wear or damage. Pay close attention to the routing, as an incorrect setup can lead to operational issues or even damage to the tractor.

Next, focus on the pulleys and idlers. These components help guide the belt and ensure consistent tension. If any of them are misaligned or damaged, the belt may slip or wear unevenly, causing reduced performance. A clear understanding of the belt path and pulley system will make it easier to troubleshoot and replace parts as needed.

Use the diagram to verify that the belt’s alignment matches the manufacturer’s specifications. This will help you avoid unnecessary repairs and ensure that your LT133 continues running smoothly for years to come.

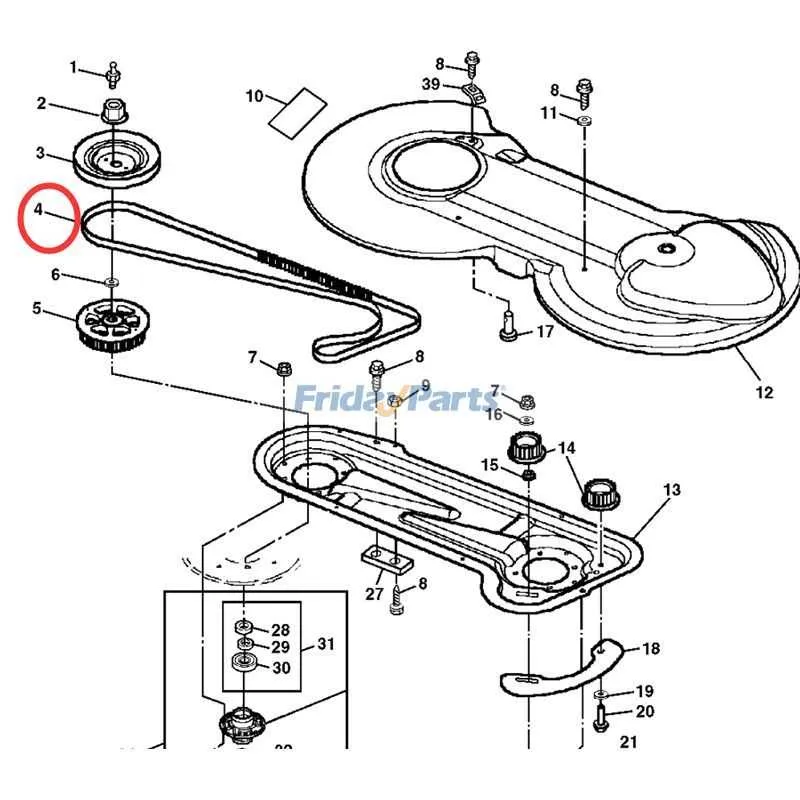

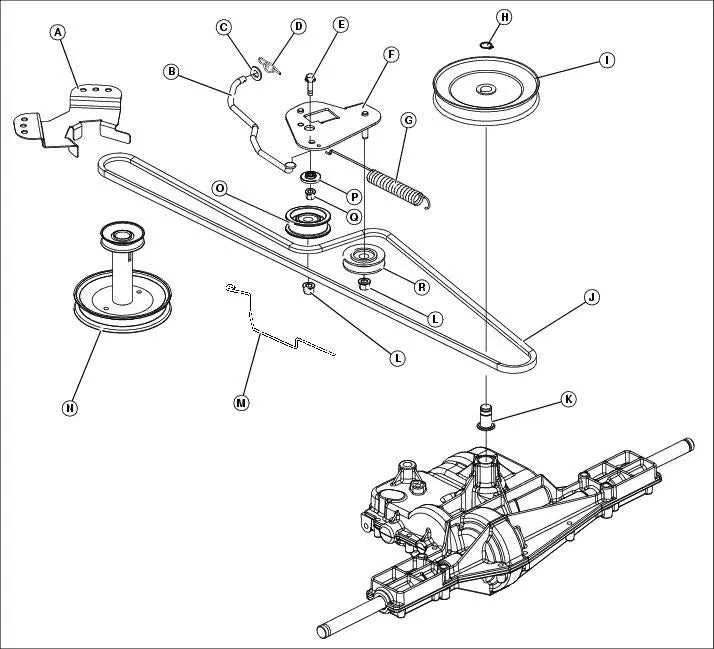

John Deere LT133 Drive Belt Diagram

For smooth operation of your John Deere LT133, check the drive belt diagram for precise installation. Follow the path shown in the diagram for optimal tension and alignment. It ensures the drive belt runs without slipping or becoming misaligned, which can cause premature wear.

Start by locating the pulley system: the drive belt wraps around the engine pulley, the drive pulley on the transmission, and the idler pulleys. The diagram clearly shows each connection point. Make sure the belt is routed over the right pulleys–incorrect routing can damage both the belt and the mower.

Pay attention to belt tension. The diagram will indicate the position of the idler pulley, which keeps the belt taut. Adjust the idler pulley if necessary, ensuring it has enough pressure to maintain tension without over-tightening, which could strain the engine or transmission.

If the belt is worn, it will no longer follow the correct path. Always replace the belt with the manufacturer’s recommended part. Look for any signs of fraying or cracks, and avoid using a stretched-out belt, as it won’t provide proper torque.

Refer to the diagram each time you inspect or replace the drive belt to ensure proper alignment. Correct installation prevents unnecessary damage and keeps the mower operating smoothly throughout the season.

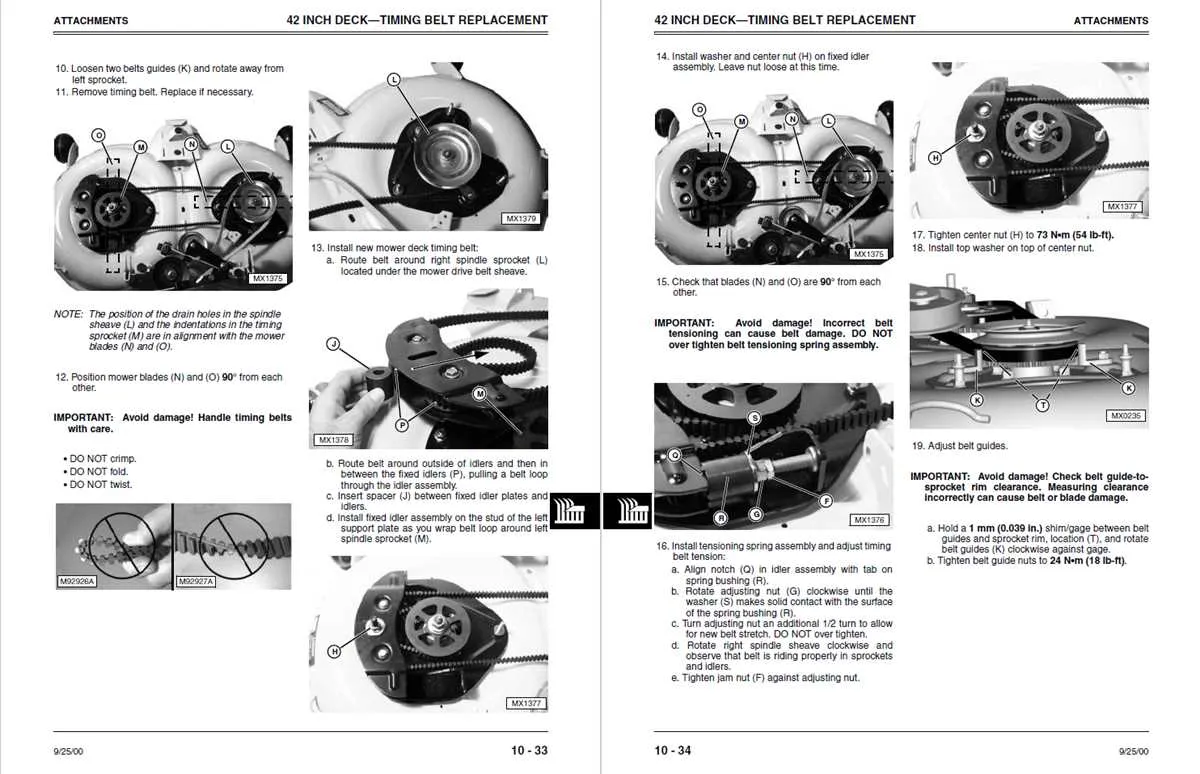

Step-by-Step Guide to Replacing the Drive Belt on John Deere LT133

Begin by disconnecting the spark plug wire to ensure safety during the repair.

Next, lift the rear of the mower using a jack or lift to gain access to the underside of the machine. Place the mower on a stable surface to avoid any movement while working.

Locate the old drive belt by removing the belt covers. Use a wrench or socket set to unscrew the bolts securing the covers. This will expose the belt and the pulleys that drive the mower’s blades and wheels.

Release the tension on the drive belt by either loosening the tension spring or using a belt tension tool. The tension should be relaxed enough to remove the belt from the pulleys without resistance.

Carefully remove the old drive belt, noting its routing around the various pulleys. It’s important to remember the exact path to ensure the new belt is installed correctly.

Take the new belt and route it through the pulleys following the path of the old belt. Ensure that the belt fits snugly around each pulley and that it runs straight without twists.

Once the new belt is in place, apply the correct tension. This will typically involve adjusting the spring or tensioner to achieve the manufacturer’s recommended tightness. A loose belt can cause poor performance, while a belt that’s too tight may wear out quickly.

Replace the belt covers and tighten the bolts. Check that everything is secure and in place before lowering the mower back to the ground.

Reconnect the spark plug wire. Start the mower and test the drive system to ensure the new belt is functioning properly.

If you hear any unusual noises or notice any issues, double-check the belt routing and tension to make sure everything is set correctly.

Troubleshooting Common Issues with the LT133 Drive Belt System

If your John Deere LT133 drive belt isn’t functioning properly, start by checking the belt tension. If it feels loose or too tight, adjust the tensioner to ensure the belt is aligned and at the correct tension. A slack belt can slip, causing poor performance, while a belt that is too tight may wear out prematurely or strain the engine.

Inspect the belt for signs of wear such as cracks, fraying, or splits. A damaged belt will need replacing immediately to prevent further issues. Pay special attention to areas where the belt comes into contact with pulleys, as this can cause friction and lead to rapid wear.

Check the pulleys and idlers for any obstructions or damage. A misaligned pulley can cause the belt to slip or wear unevenly. Make sure the pulleys are properly aligned and rotate freely without resistance. If any pulley appears damaged or stiff, replace it right away to avoid further belt damage.

If the belt keeps coming off, ensure that the guide channels are clean and free of debris. Small objects can obstruct the belt path, leading to misalignment. Regular cleaning of the system prevents this issue from recurring.

Look for any loose or worn-out fasteners on the drive system. Bolts or screws that are not secure can cause misalignment or instability in the belt operation. Tighten any loose fasteners and replace any missing or worn-out ones.

Finally, check the clutch and brake system. A malfunction in the clutch mechanism can cause the belt to overheat or fail, while a stuck brake can also affect belt performance. Make sure both systems are operating smoothly.

Understanding the Drive Belt Routing and Tensioning for John Deere LT133

To ensure smooth operation of your John Deere LT133, it’s vital to follow the correct drive belt routing and maintain proper tension. Misrouting or incorrect tension can lead to premature wear, poor performance, or even damage to other components.

The drive belt on the LT133 connects the engine to the transmission, driving the mower blades and powering the wheels. To properly route the belt, start from the engine’s pulley, making sure the belt follows the specific pattern outlined in the diagram for your model. The belt should be looped around the main engine pulley, then routed around the deck pulleys and the idler pulley. Pay close attention to the idler tensioner, which helps maintain the correct amount of tension throughout the belt system.

When tensioning the belt, the goal is to ensure it is neither too tight nor too loose. Too much tension can strain the engine and pulleys, while too little can cause the belt to slip or fail to drive the mower blades. To adjust tension, locate the spring-loaded idler pulley. Adjust the tension by either moving the idler arm or changing the spring’s position, depending on your LT133 model’s specific design.

Check the belt’s tension regularly. If it appears too loose or the mower’s performance drops, it may be necessary to tighten it. On the other hand, if the belt seems overly tight or makes a squealing sound, loosen it slightly to prevent damage. Keep the belt clean and free of debris, as this can also affect performance and longevity.

By following these guidelines, you’ll extend the life of your drive belt and keep your John Deere LT133 running at its best.
