Detailed John Deere LT133 Deck Belt Diagram for Accurate Maintenance and Replacement

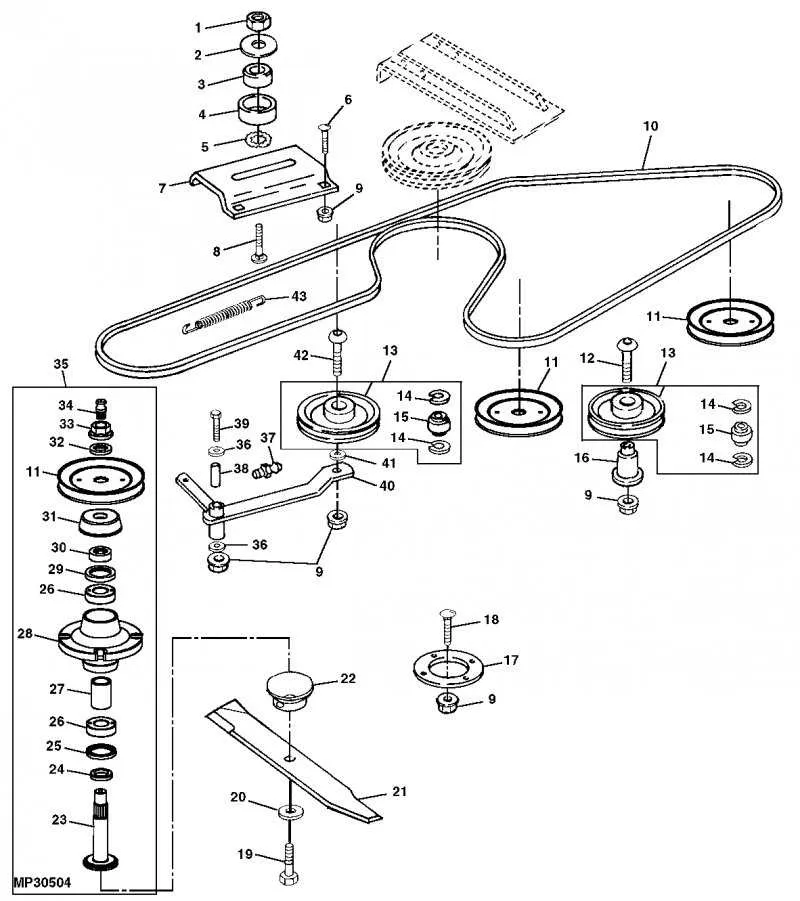

Check your deck belt routing carefully before attempting any maintenance on the John Deere LT133. The correct path ensures smooth engagement of the mower blades and prevents premature belt wear. Follow the belt diagram exactly, noting the positioning around the idler pulleys, spindle pulleys, and engine pulley.
Identify the main pulleys: The deck belt loops around the engine pulley at the front, passes through two idler pulleys on the deck, and connects to the spindle pulleys that drive each blade. Keeping tension consistent on the belt reduces slippage and prolongs the life of both the belt and pulleys.
Use the diagram as a reference during installation: Align the belt with the arrows or markings on the diagram, paying attention to any crossover points or twists. A misaligned belt can lead to uneven cutting, excessive vibration, or damage to the mower deck components.
For troubleshooting, inspect each pulley for wear and ensure the belt sits properly in the grooves. If a pulley shows signs of damage, replace it before installing a new belt. Maintaining proper routing according to the diagram prevents unnecessary downtime and keeps your LT133 operating at optimal performance.
John Deere LT133 Deck Belt Diagram Guide
Follow the exact belt routing to prevent slipping or damage to the LT133 mower deck. Begin by locating the idler pulleys on the front and rear of the deck; these guide the belt through the correct tension path.
- Front idler pulley sits near the center of the deck, slightly toward the left blade.
- Rear idler pulley aligns with the right blade spindle, keeping the belt tight across the deck.
- Spindle pulleys attach directly to each cutting blade and must rotate freely without belt interference.
Route the belt clockwise around the engine pulley first, then follow the sequence through the tensioner and idlers. Avoid crossing the belt over itself, which can cause fraying.
- Loop belt around the engine pulley at the front of the mower.
- Guide belt to the left spindle pulley, ensuring it fits securely in the grooves.
- Run belt to the right spindle pulley, maintaining proper tension.
- Pass belt over the rear idler pulley and back to the tensioner, checking alignment with all pulleys.
Check belt wear regularly. Replace if cracks, fraying, or glazing appear. Proper installation keeps blades spinning evenly and reduces stress on the engine and pulleys.
Use the diagram printed in the operator’s manual as a reference during installation. Marking the belt path with chalk or tape can simplify reassembly after removal for maintenance.
Identifying Each Belt and Pulley on the LT133 Deck
Locate the primary drive belt first, as it connects the engine pulley directly to the deck spindle assembly. This belt is wider than the others and typically marked with a model-specific number stamped on its sidewall. Follow its path to identify the idler pulleys, which maintain proper tension and guide the belt around the deck. The idler pulleys are smaller, usually metal with a smooth bearing surface, and mounted on adjustable arms.
Next, trace the belt to each spindle pulley attached to the mower blades. These pulleys are secured with a central bolt and often feature a slight lip to prevent the belt from slipping off. Check the alignment of each spindle pulley to ensure smooth operation; misaligned pulleys accelerate wear on both belt and blade assembly.
Inspect the tensioner pulley last. This spring-loaded component applies constant pressure on the belt to avoid slack. It is positioned near the front or center of the deck and rotates freely when the belt is removed. Manually rotate each pulley to feel for resistance or wobble, confirming which ones are active and which remain idle during operation.
Label each pulley and belt after identification to simplify future maintenance. Use a diagram or take a photo from the top of the deck to verify correct belt routing before reinstalling. Proper identification reduces risk of belt slipping, uneven cutting, and premature component wear.

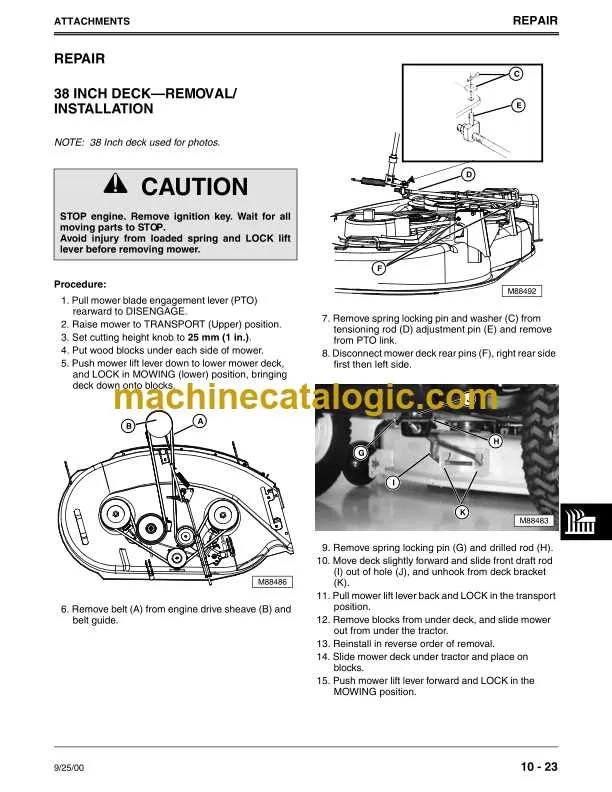

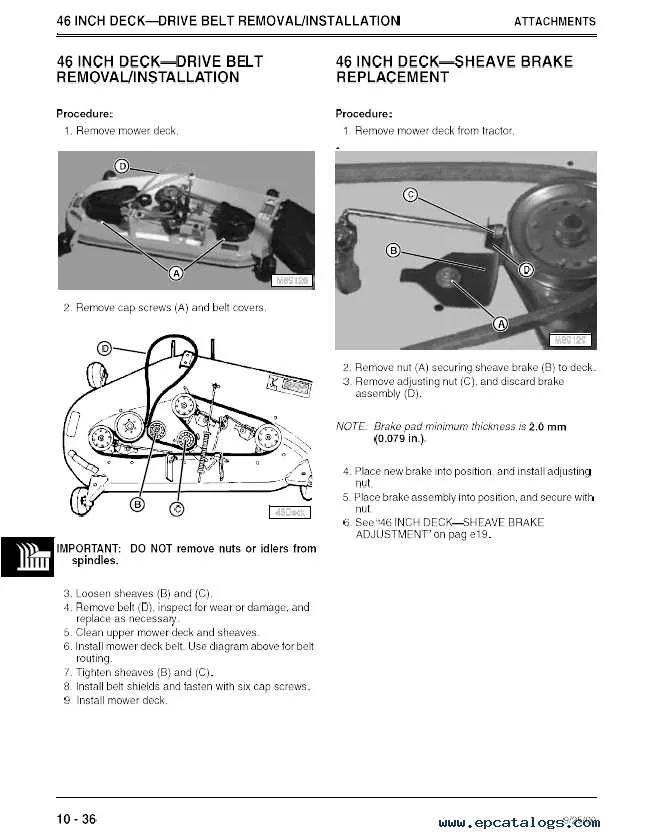

Step-by-Step Routing for Replacing the Deck Belt
Lift the mower deck and secure it with blocks to prevent movement. Remove the old belt by sliding it off the mandrel pulleys and the idler pulley. Inspect all pulleys for wear or damage before installing the new belt.
Position the new belt around the engine pulley first, ensuring it sits fully in the groove. Route the belt along the deck frame following the exact path shown in the manufacturer’s diagram, looping it around each mandrel pulley in sequence.
Loop the belt over the idler pulley last, keeping tension with your hand while checking alignment on every pulley. Make sure the belt tracks straight without twisting. Engage the tension spring on the idler pulley to secure proper tension.
Lower the deck and rotate the pulleys by hand to verify smooth movement and correct belt alignment. Adjust the idler position if the belt slips or rides off-center. Recheck tension after a short test run to confirm stable operation.
Store leftover tools and old belt safely, and wipe any debris from the deck area to prevent future wear. Confirm that the belt follows the diagram’s exact routing before starting the mower for regular use.
Troubleshooting Common Belt Alignment Issues
Inspect the pulleys first for any visible wear or debris. Dirt buildup or worn edges can cause the belt to slip or track improperly. Clean each pulley with a brush and apply a light coating of silicone spray to reduce friction points.
Check belt tension using a tension gauge or by pressing the belt midway between pulleys. A belt that is too tight can strain bearings, while a loose belt may slip. Adjust the idler pulley according to the LT133 service manual, aiming for 1/2 inch deflection under moderate pressure.
Ensure the deck itself sits level. Uneven deck height causes belts to misalign, especially on side-to-side adjustments. Use a carpenter’s level across the deck to identify discrepancies and adjust the lift links to achieve parallel alignment with the mower frame.
Examine the belt path for proper routing. The LT133 deck belt diagram shows specific routes around the engine, idlers, and spindles. Misrouting even a single loop can create tension imbalances, causing premature wear or belt jumping off pulleys.

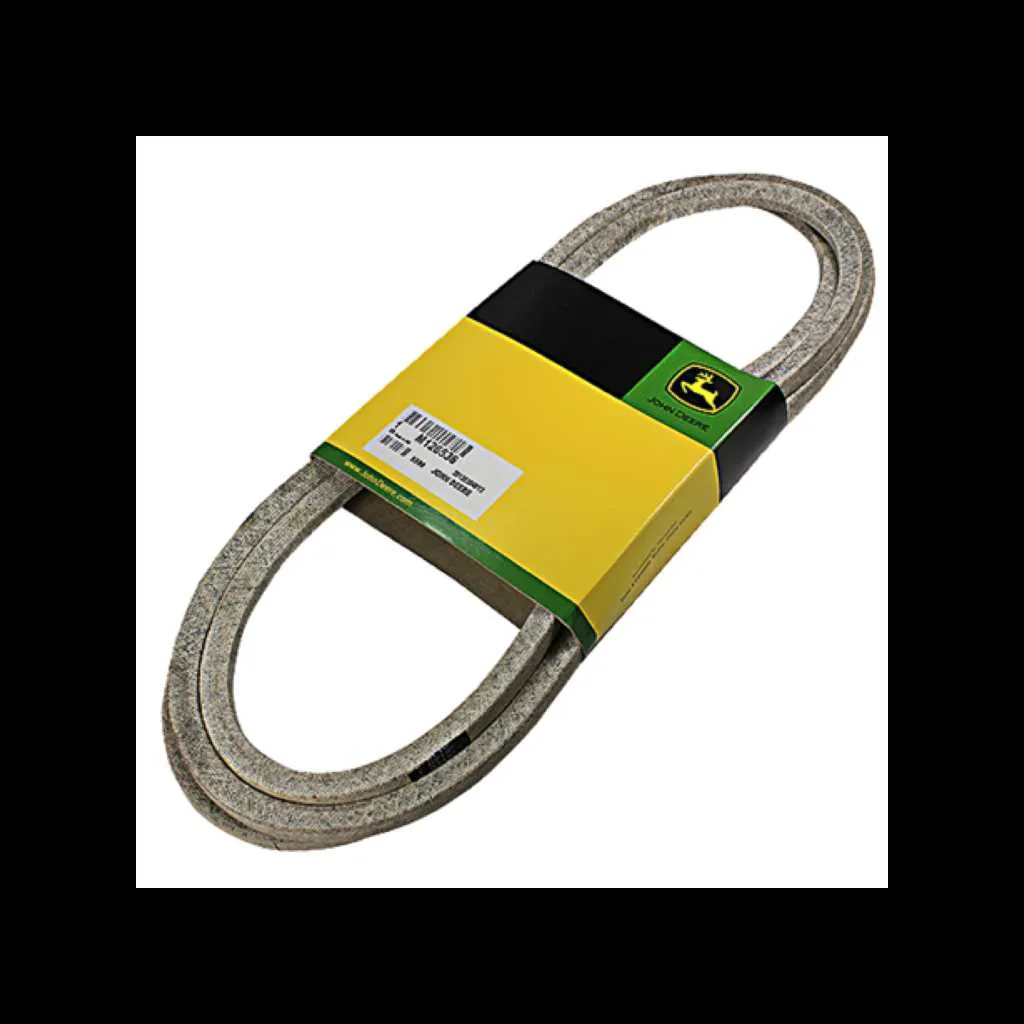

Replace any cracked or frayed belts immediately. Visible cracks along the ribbed side indicate stress points that will worsen under load. Always use John Deere OEM belts to ensure exact fit and correct material tension.
Rotate the deck by hand and watch the belt movement. It should run smoothly without wobbling or rubbing against pulley edges. If irregular movement occurs, check for bent pulleys or loose spindle bolts. Tighten or replace components as needed to restore straight tracking.
Perform a test cut on a flat surface to verify alignment. Uneven cutting lines or squealing belts signal remaining misalignment. Repeat tension adjustments and pulley checks until the belt tracks cleanly along the intended path.
