John Deere LA110 Drive Belt Diagram and Installation Guide

If you’re experiencing issues with the drive belt on your John Deere LA110, referring to the correct diagram can save time and frustration. The drive belt plays a crucial role in powering the mower’s wheels and blades, so understanding its path is key to diagnosing problems or performing replacements. Start by locating the belt in your model, ensuring that you’re following the right route through the pulleys and tensioners.

The drive belt on the John Deere LA110 follows a straightforward configuration. The diagram clearly marks where each pulley should be located and how the belt should wrap around them. Typically, you’ll find the drive belt running from the engine pulley to the transmission, passing over idlers and a tensioner pulley along the way. Make sure that the belt isn’t twisted or misaligned as this can cause inefficient operation or even further damage to the system.

Before replacing the belt, ensure the mower is powered off and cooled down. A properly installed belt will not only help the mower run more smoothly but also extend its lifespan. Check for signs of wear on the belt before reinstalling it, such as fraying or cracks. If necessary, consult the diagram to ensure you’re following the manufacturer’s recommended belt routing. For further peace of mind, always keep a fresh drive belt on hand as a backup to prevent unexpected downtime.

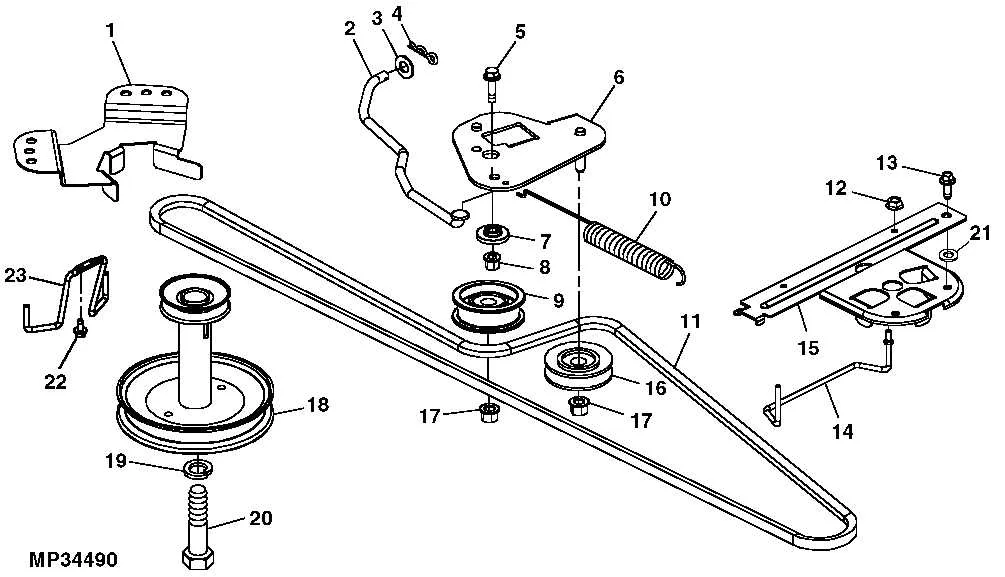

John Deere LA110 Drive Belt Diagram

For replacing or repairing the drive belt on your John Deere LA110, follow this detailed diagram and steps to ensure a smooth process.

The drive belt on the LA110 connects various parts of the mower to power the blades and wheels. The diagram will help you understand its routing through the pulleys and components, making installation and maintenance simpler.

• Step 1: Begin by safely lifting the front of the mower to gain access to the deck. Disconnect the battery to avoid any electrical issues during the process.
• Step 2: Remove the deck. This will give you clear access to the drive belt and its pulleys.
• Step 3: Examine the belt routing based on the diagram. Typically, the belt runs from the engine pulley through the tensioner, around the drive pulley, and to the transmission pulley.
• Step 4: If replacing, remove the old belt by loosening the tensioner pulley. This will relieve the tension on the belt, allowing you to remove it from the pulleys.
• Step 5: Install the new drive belt according to the diagram. Start by looping the belt around the pulleys in the exact same pattern as shown.
• Step 6: Tighten the tensioner pulley to apply the necessary tension to the belt. Ensure that the belt is properly aligned with all pulleys and that it runs smoothly without slipping.
• Step 7: Reattach the deck and reconnect the battery. Test the mower to confirm the belt is functioning properly.

Use this diagram as a reference during maintenance to ensure your John Deere LA110 mower operates efficiently. Regularly inspect the belt for wear and replace it if necessary to maintain optimal performance.

How to Identify the Correct Drive Belt for John Deere LA110

Check the model number and serial number of your John Deere LA110 to ensure compatibility with the correct drive belt. Locate the belt specifications in the operator’s manual, or use the belt part number listed on the label found near the engine compartment. The drive belt for this mower is usually a V-belt, designed for use in the 42-inch cutting deck. Measure the belt length and width to ensure they match the required dimensions. Cross-reference with the part number from authorized John Deere dealers or parts retailers to confirm compatibility.

Look for signs of wear or damage on the belt, such as fraying or cracking, which could indicate the need for replacement. Always use a genuine John Deere part or an equivalent, ensuring the belt is designed to handle the power output and torque requirements of the LA110. Incorrect belt size or material can lead to inefficiency and potential damage to the mower’s drive system.

Step-by-Step Instructions for Installing the Drive Belt on John Deere LA110

Lift the front of the mower using a jack to ensure easy access to the underside.

Remove the mower deck by loosening the pins and bolts that hold it in place. This will allow you to reach the drive belt and other components more easily.

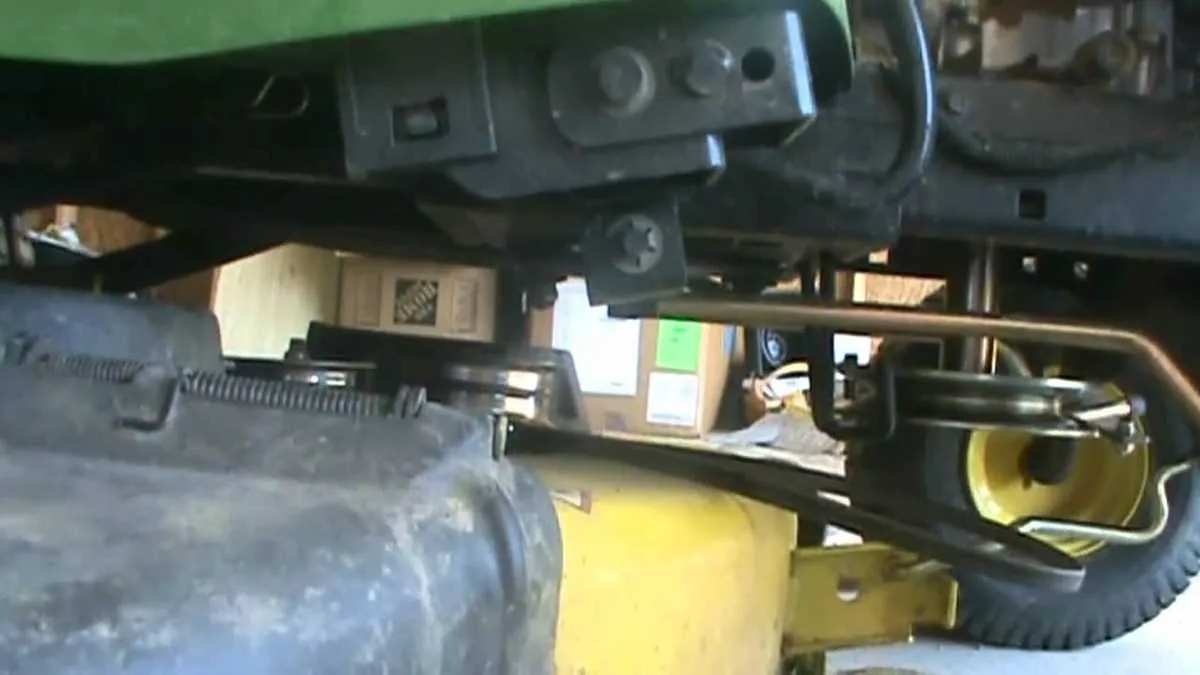

Locate the old drive belt and examine how it is routed. Make a note of the routing path before removal, or take a photo to refer to later.

Release the tension on the belt by loosening the tension spring that holds the idler pulley. This will provide enough slack to remove the belt.

Carefully remove the old belt from the pulleys, ensuring not to damage any components in the process. If the belt is damaged, it’s best to replace it with a new one.

Take the new drive belt and carefully route it around the pulleys, following the same path as the old one. Ensure the belt fits snugly in the grooves of each pulley.

Reattach the idler pulley and tighten the spring to restore tension to the belt. Ensure the belt is taut but not over-tightened.

Reinstall the mower deck by securing it with the pins and bolts you removed earlier.

Lower the mower and test the operation of the new drive belt by starting the engine and engaging the transmission. Listen for any unusual noises and check the belt’s function.

If everything runs smoothly, the installation is complete. If not, check the belt routing and tension again for any misalignment or issues.

Common Problems with John Deere LA110 Drive Belt and How to Fix Them

If the drive belt on your John Deere LA110 isn’t functioning properly, it can cause issues with power transmission, resulting in poor performance or complete failure. Below are common problems and how to resolve them.

1. Drive Belt Slipping

Slipping usually happens when the belt becomes loose or worn. To fix this, check the tensioner for any signs of wear or damage. If it’s functioning properly, adjust the tension. If the belt is stretched or frayed, replace it with a new one. Also, ensure the pulleys are not worn out and are aligned properly.

2. Broken or Frayed Belt

Inspect the belt for any signs of fraying, cuts, or breaks. A broken belt will cause the mower to stop working. Replace the belt immediately if you find any damage. When installing a new one, ensure it is routed exactly as the diagram specifies to avoid reoccurrence.

3. Misaligned Pulleys

Misalignment can cause the belt to wear unevenly or slip off. Inspect the pulleys for damage or misalignment. If any are out of place, adjust or replace them. Ensure all pulleys are securely mounted and in proper alignment to maintain optimal belt tension.

4. Excessive Belt Wear

Belt wear occurs naturally over time, but it can be accelerated by using the mower on rough terrain or under heavy load. Regularly inspect the belt for signs of wear. If it appears excessively worn, replace it before it breaks to prevent further damage to the mower.

5. Obstructions Around the Belt

Debris or objects caught around the belt and pulleys can cause the system to malfunction. Clean the area around the belt regularly to ensure no obstruction is affecting the belt’s movement. Clear out any grass, dirt, or small debris that may have accumulated.

6. Incorrect Belt Installation

If the belt isn’t routed correctly, it may slip off or fail prematurely. Refer to the manufacturer’s diagram to ensure the belt is installed properly. This is crucial, as incorrect installation can cause damage to the mower and belt.

7. Worn or Faulty Idler Pulley

The idler pulley keeps the belt in tension. If the pulley is worn, it can cause the belt to lose tension and slip. Replace the idler pulley if it shows signs of wear, such as cracks or missing bearings, to prevent further damage.

Regular maintenance and timely replacement of parts will keep your John Deere LA110 operating smoothly. Always use genuine parts for the best performance and durability.
