John Deere L120 48 Inch Belt Diagram and Troubleshooting Guide
For smooth operation and easy maintenance of your John Deere L120 mower, referencing the correct belt diagram is key. This diagram outlines the precise routing and alignment of the 48-inch deck’s belts, ensuring the mower runs efficiently and reduces wear over time.
First, locate the drive belt and blade belt routing on the diagram to identify the proper placement. The belts on your L120 are critical for transferring power from the engine to the cutting deck, and an incorrect setup can lead to slipping or excessive friction, impacting performance.
Keep an eye on belt tension as well. A belt that is too loose or too tight can cause premature failure or affect the mower’s cutting capabilities. Adjusting the tension according to the manufacturer’s specifications, as shown in the diagram, will help maintain optimal performance.
By following the belt diagram, you’ll ensure that each component is properly aligned, reducing maintenance time and keeping your mower in top shape for years to come.
John Deere L120 Belt Diagram 48 Inch
For an accurate belt installation on the John Deere L120 with a 48-inch deck, refer to the specific diagram for proper routing. This ensures smooth operation and prevents unnecessary wear on components. The key parts to focus on are the drive belt, idler pulleys, and the deck belt. Check each component for wear before reassembling.

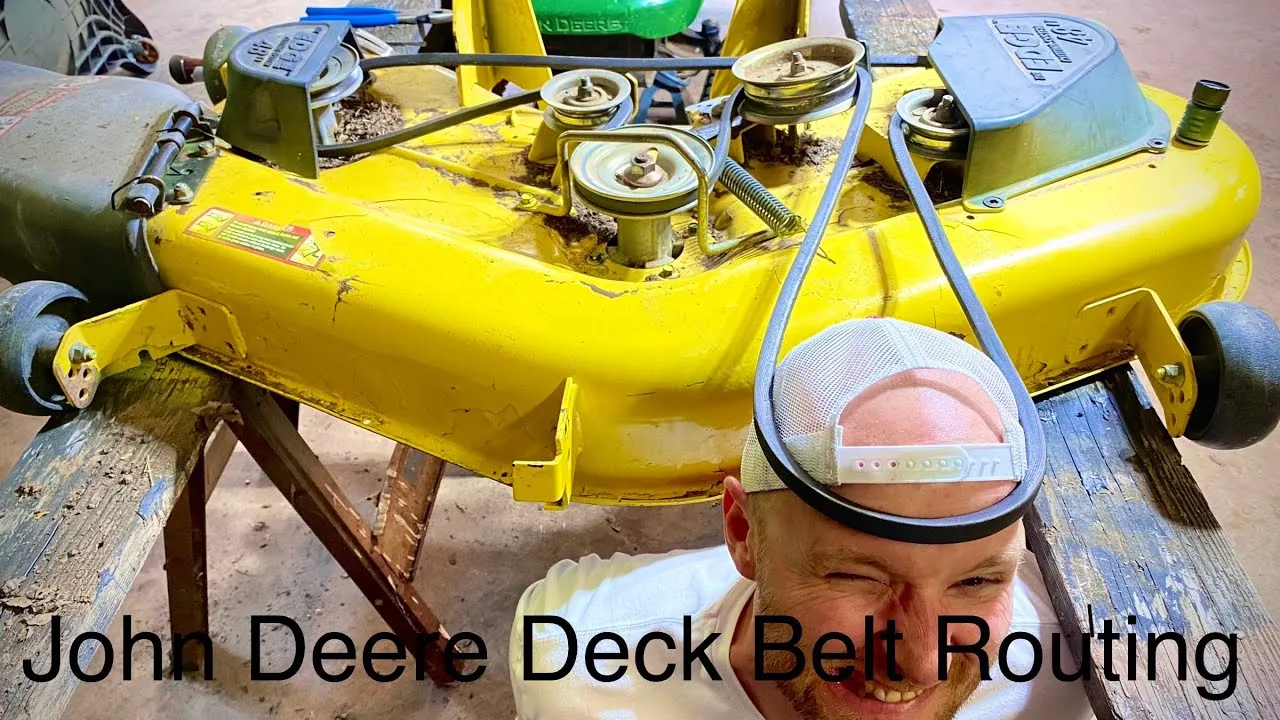

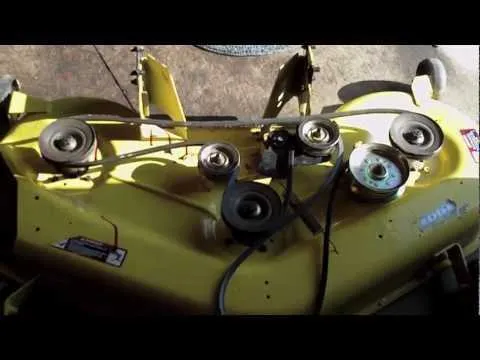

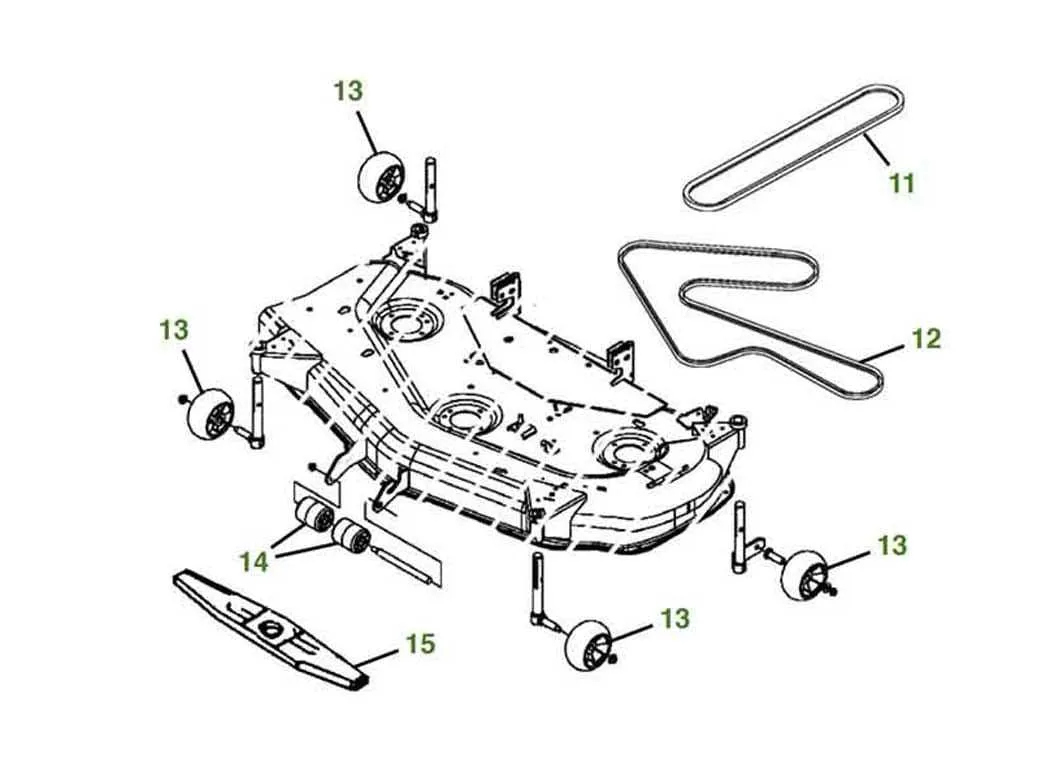

The diagram for the L120’s 48-inch deck includes detailed routing for the mower deck belt, including the tensioner and guide pulleys. The belt should loop around the blade spindles and the idler pulleys. Pay attention to the direction of the belt’s grooves to ensure proper engagement with the pulleys.
| Component | Part Number |
|---|---|
| Drive Belt | GX20072 |
| Deck Belt | GX20072 |
| Idler Pulley | AM132749 |
| Deck Pulley | AM132748 |
Replace any damaged parts immediately. For smooth operation, inspect the drive belt and pulleys at regular intervals. If the mower isn’t cutting evenly, the belt routing may need to be checked again, as misalignment could lead to inconsistent performance.
Follow the diagram carefully, ensuring each part is installed as shown. Once everything is aligned, test the mower’s functionality before full use to verify proper belt tension and pulley engagement.
How to Replace the Drive Belt on a John Deere L120 48-Inch Mower
To replace the drive belt on your John Deere L120, follow these steps to ensure a smooth process and restore the mower’s performance.
First, elevate the front of the mower to access the drive belt. Use a jack or lift to support the mower, and make sure it’s stable before proceeding.
Locate the belt guard on the side of the mower deck. Remove the bolts securing it in place, then take off the guard. This will expose the drive belt and the pulleys.
Now, release the tension on the belt. Use a socket wrench to loosen the bolt on the tensioner pulley. This will allow the belt to become slack, making it easier to remove.
Remove the old drive belt from the pulleys. Take note of how the belt is routed around the pulleys, as you’ll need to replicate this when installing the new one.
Place the new belt over the pulleys, following the same routing pattern. Ensure the belt fits securely on each pulley, especially the tensioner and idler pulleys.
Once the new belt is in place, tighten the tensioner pulley bolt to apply the right amount of tension. Double-check that the belt is aligned and runs smoothly along the pulleys.
Reattach the belt guard and secure it with the bolts you removed earlier. Lower the mower back to the ground and perform a quick test to make sure the belt is functioning properly.
If everything runs smoothly, the drive belt replacement is complete, and your mower is ready for use.
Step-by-Step Guide to Identifying the Correct Belt Routing for John Deere L120 48-Inch Deck
Start by lifting the mower deck and removing any debris or old parts to clear the workspace. Make sure the tractor is off, and the engine is cool to prevent injury.
1. Locate the Belt Diagram: Check the user manual for the belt routing diagram specific to the 48-inch deck. If the manual is unavailable, search online for a clear image or printed diagram for reference.
2. Position the Pulley System: Identify the pulleys that will guide the belt. There are three primary pulleys: the deck idler pulley, the tensioner pulley, and the engine pulley. All should move freely when the belt is removed.
3. Remove the Old Belt: If replacing the belt, carefully remove the old one. Ensure you follow the routing path exactly, noting how the belt wraps around the pulleys and tensioner.
4. Install the New Belt: Begin by routing the belt over the engine pulley, then move it to the tensioner pulley. The belt should fit snugly but not be over-tightened. Ensure it is in the correct position for smooth operation.
5. Check Alignment: Double-check that the belt runs along the correct pulleys. It should pass over each one in a clear path with no twists or bends. Pay special attention to the tensioner pulley to avoid improper belt tension.
6. Test the Belt Function: Once installed, manually rotate the belt to ensure it moves smoothly through the system. If there is resistance, adjust the tension or recheck the routing.
7. Secure the Deck: Lower the deck back into position, ensuring all components are aligned and properly installed. Tighten any fasteners that may have been loosened during the process.
8. Run a Test: Start the mower to check for any unusual sounds or belt slippage. If everything runs smoothly, your installation is complete.
Common Problems with John Deere L120 Belt and How to Fix Them
If your John Deere L120 belt starts slipping or isn’t turning the blades properly, it’s likely due to one of these common issues.
1. Worn Out or Broken Belt
Over time, the belt can wear out, stretch, or even snap. A worn-out belt will cause the blades to stop engaging. Replace the belt immediately. When doing so, ensure the replacement is compatible with the L120 model for optimal performance.
2. Loose Belt
If the belt is loose, it won’t maintain the proper tension needed to operate the blades effectively. Check the belt tensioner and adjust it. If the tensioner is worn or broken, replace it to restore proper belt tension.
3. Misaligned Pulley
A misaligned pulley can cause uneven wear on the belt and prevent the mower blades from functioning properly. Inspect all pulleys and make sure they are correctly aligned. If necessary, adjust or replace any pulleys that seem to be out of place.
4. Dirty or Blocked Pulleys
Debris buildup around the pulleys can cause them to seize, leading to improper belt movement. Clean the pulleys regularly, and check for any debris that could obstruct their rotation.
5. Faulty Idler Pulley
A worn or damaged idler pulley can cause the belt to lose tension or slip off. Inspect the idler pulley for damage or wear. If needed, replace the pulley to maintain smooth operation of the belt system.
6. Incorrect Belt Routing
If the belt isn’t routed correctly, it can slip off or wear unevenly. Refer to the John Deere L120 belt diagram to ensure the belt is installed properly. A wrong routing can lead to premature wear or complete failure.
