John Deere L118 Drive Belt Diagram and Installation Guide
To replace or repair the drive belt on your John Deere L118, a clear understanding of the diagram is essential. This guide provides you with all the necessary information to ensure you can tackle the task without confusion. The drive belt plays a crucial role in transferring power from the engine to the wheels, and any issues with it can lead to a significant decrease in performance. Refer to this diagram as you work through the replacement or maintenance process for accurate alignment and proper belt routing.

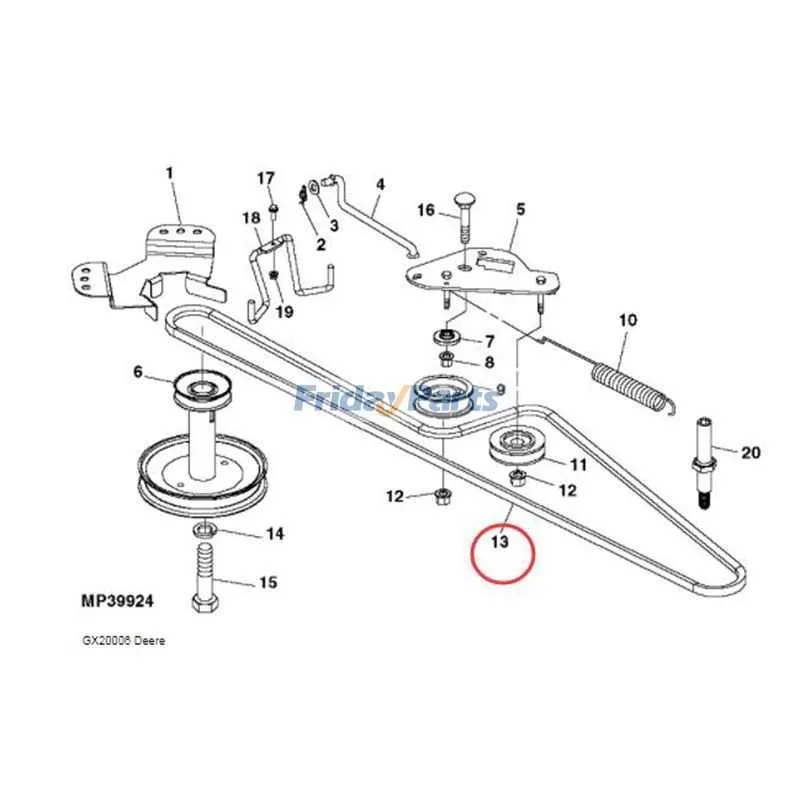

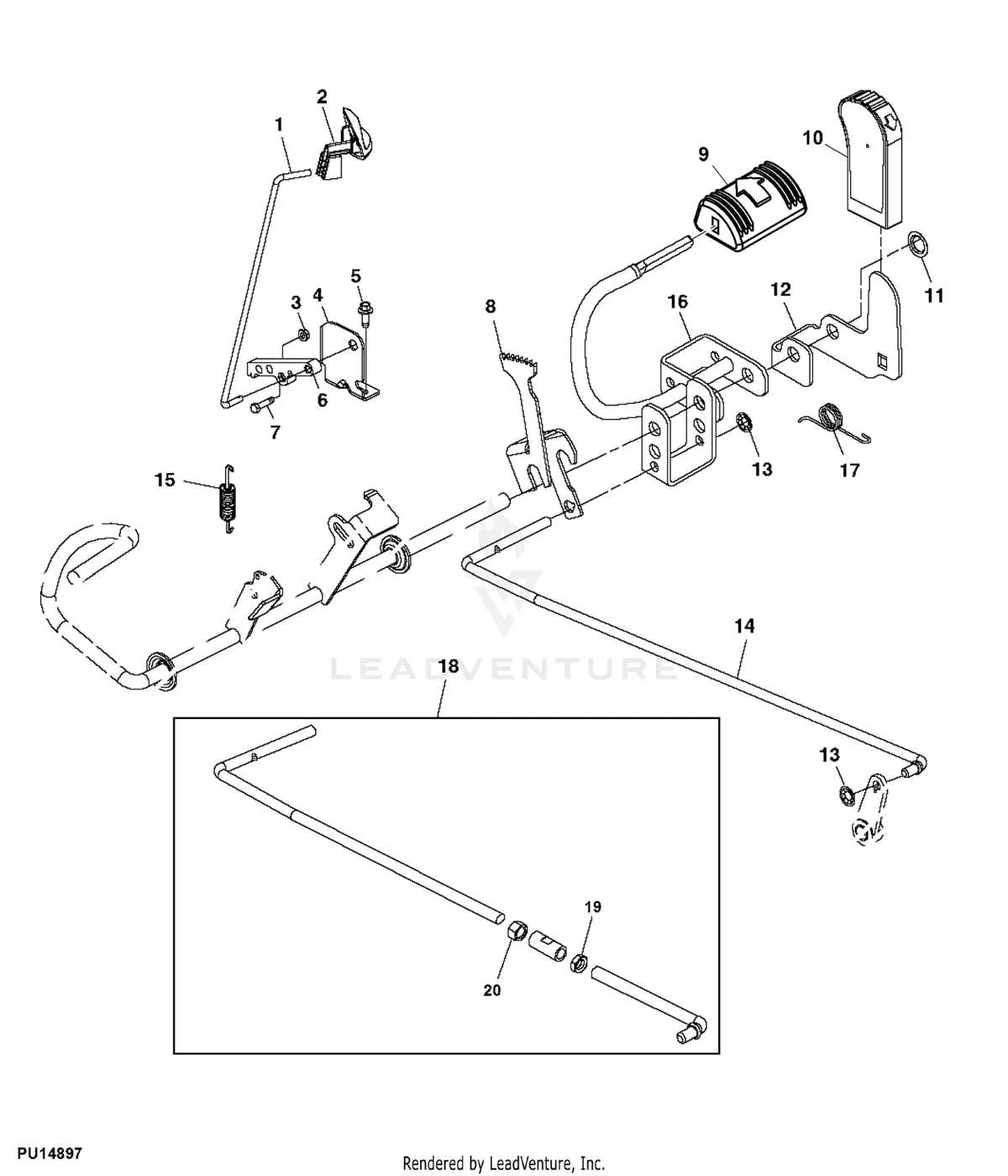

The drive belt diagram for the John Deere L118 lawn tractor shows how the belt fits over various pulleys. It’s important to follow the exact sequence to avoid damage. Start by identifying the different parts: the engine pulley, idler pulleys, and the transmission pulley. The diagram will give you a clear visual of where each part fits and how the belt interacts with them. This ensures the belt moves freely and is tensioned properly for optimal performance.
Take note that when replacing the belt, the correct tension is critical. Too much slack or too tight a fit can affect your tractor’s operation. Use the diagram to check the belt’s path and confirm that it sits correctly in each pulley slot. After installation, manually rotate the belt to make sure it runs smoothly across all pulleys without slipping or binding.
John Deere L118 Drive Belt Diagram
To replace or inspect the drive belt on your John Deere L118, refer to the diagram for precise guidance. Start by locating the belt in the engine compartment, running from the engine pulley to the drive system. The belt is looped around the idler pulleys and spindles, which should be checked for wear or damage.
First, ensure the mower is off and the ignition is removed. Remove the deck by loosening the mounting bolts, giving you full access to the drive belt. The diagram typically shows the correct routing for the belt over pulleys, ensuring it runs smoothly without interference. If the belt is worn or cracked, replace it with a compatible John Deere part for best results.
Examine the tensioner assembly next. The tensioner keeps the belt under appropriate tension. Make sure the spring is intact and the pulleys move freely without obstruction. A worn tensioner can cause improper belt operation, leading to potential slippage or breakage.
Follow the diagram for proper reassembly, ensuring each pulley and belt section is aligned as shown. Once everything is in place, manually rotate the belt to confirm it moves smoothly. Tighten any bolts and replace the deck once satisfied with the setup. Always double-check the belt’s tension before using the mower to avoid damage.
How to Replace the Drive Belt on John Deere L118
To replace the drive belt on your John Deere L118, first, lift the front of the mower using a jack or a lift to give you enough room to access the underside. Disconnect the spark plug wire to prevent accidental starts.
Next, locate the belt cover on the left side of the mower. Use a socket wrench to remove the screws securing the cover. Once removed, you’ll be able to see the drive belt that connects the engine to the wheels.
Before removing the old belt, note the routing of the belt. You may want to take a photo or refer to a diagram for reassembly. Loosen the tension on the belt by adjusting the tensioner pulley. Depending on the model, you may need to use a wrench to release the tensioner spring.
Remove the old belt by sliding it off the pulleys, making sure to avoid any damage to the surrounding components. Place the new belt on the pulleys, ensuring it follows the correct routing. Double-check that the belt fits snugly on all pulleys without slipping off.
Once the new belt is in place, adjust the tensioner pulley to ensure proper tension. The belt should have a little slack, but it should not be overly loose. Reattach the belt cover, securing it with the screws you removed earlier.
Finally, reconnect the spark plug wire, lower the mower, and test the drive system. If everything operates smoothly, the replacement is complete. If you notice any unusual sounds or issues, recheck the belt installation and tension.
Identifying the Right Drive Belt for John Deere L118 Model

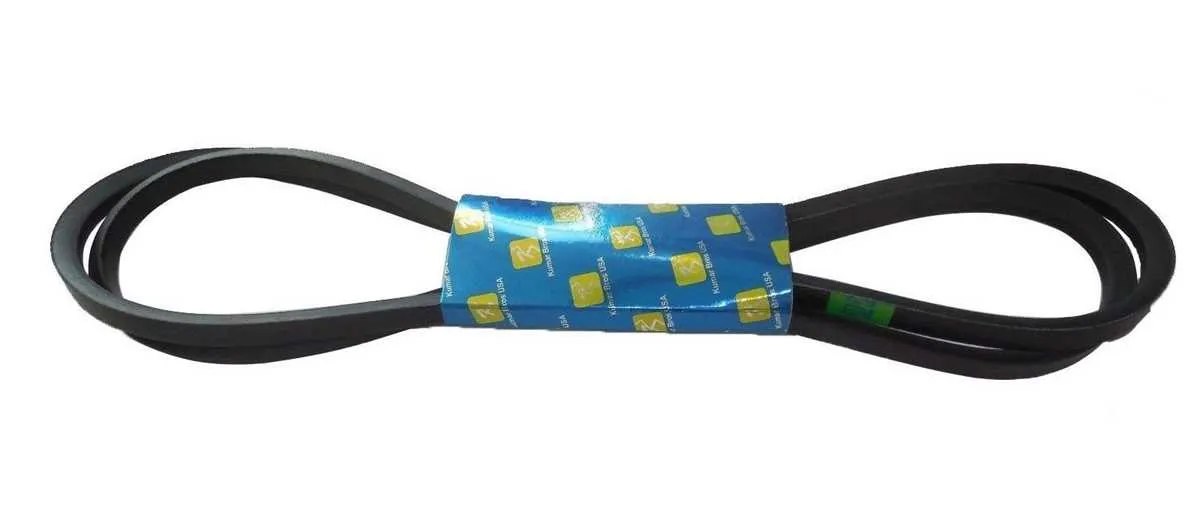

To select the correct drive belt for the John Deere L118, first check the model specifications. The L118 typically uses a 1/2″ x 95 1/2″ drive belt. This part number corresponds to the OEM replacement belt that ensures a proper fit and functionality.
Before purchasing, verify your mower’s serial number to confirm compatibility. The belt’s correct length and width are crucial for smooth operation. An incorrect size can lead to slipping, premature wear, or even system failure.
- OEM Belt Part Number: M144924
- Width: 1/2 inch
- Length: 95 1/2 inches
Check the belt’s condition regularly. If it shows signs of wear, cracking, or stretching, it’s time for a replacement. A worn-out belt can reduce mowing efficiency and cause unnecessary strain on the engine.
If you’re not sure whether the belt needs replacing, try inspecting it visually or by hand. A belt that’s no longer smooth or shows fraying on its edges will likely need replacement.
For installation, use the drive belt diagram specific to your John Deere L118. It will show the correct routing and tensioning for the new belt. Follow the diagram carefully to avoid errors and ensure the drive system works smoothly.
Step-by-Step Guide to Troubleshooting Drive Belt Issues on L118
If your John Deere L118 isn’t moving properly, the drive belt might be the issue. Follow these steps to troubleshoot effectively.
1. Inspect the Drive Belt for Wear
Start by examining the drive belt closely for any signs of wear or damage. Look for cracks, fraying, or missing pieces. A worn belt won’t transfer power effectively, causing slippage or failure to engage the wheels.
2. Check the Belt Tension
If the belt seems fine but you’re still experiencing issues, check its tension. A loose belt won’t operate properly. Look for the adjustment mechanism near the pulleys and make sure the belt has the correct tension–tight enough to avoid slipping but not so tight that it causes damage to the pulleys.
3. Inspect the Pulleys and Idlers
Examine the pulleys and idlers that guide the belt. Any misalignment or damage can cause uneven wear or prevent the belt from moving smoothly. If you notice any issues, replace the affected pulley or idler immediately.
4. Verify the Belt Routing
Ensure the belt is properly routed according to the manufacturer’s diagram. A misrouted belt can cause it to slip off the pulleys or wear out prematurely. Check the user manual for the correct routing pattern.
5. Clean the Components
Debris or dirt buildup on the belt, pulleys, or idlers can affect belt movement. Clean these components thoroughly, removing any debris that might be causing friction or interfering with the belt’s operation.
6. Examine the Belt’s Alignment
Misaligned belts can cause uneven wear and even prevent the mower from moving. Look at the alignment of the belt along its entire length, from the engine to the wheels. Adjust the position of the pulleys or other components if necessary to ensure the belt runs straight.
7. Test the Belt After Reassembly
Once you’ve checked everything and reassembled the components, start the mower and observe its performance. Listen for unusual noises and check if the wheels engage properly. If the issue persists, you may need to replace the belt or consult a professional for further assistance.
