John Deere GT245 Deck Belt Diagram and Maintenance Guide
Replace the deck belt on your John Deere GT245 by following the clear steps outlined in the diagram. This visual guide will help you quickly identify the exact routing for the deck belt, saving you time and effort during maintenance.
Ensure that you have the correct replacement belt for your model. The belt’s part number can be found in the owner’s manual or by checking the label on the mower. Once you have the replacement, follow the belt routing diagram closely to avoid any installation issues.
The deck belt routing involves a specific path around pulleys and the engine. Pay attention to the direction the belt should face, as improper installation can lead to early wear and ineffective mowing. Refer to the diagram to position the belt correctly around the idler pulleys and the blade spindle.
After installation, manually rotate the belt by hand to check for smooth movement. If you notice any resistance or slipping, reassess the alignment and adjust as necessary. This quick check can prevent future issues and keep your mower running smoothly.

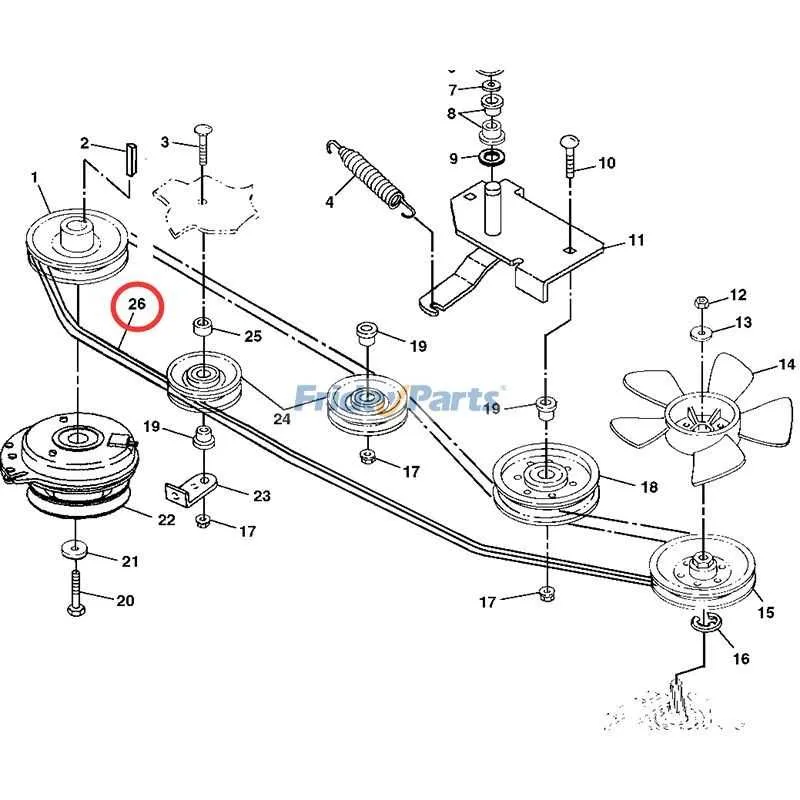

John Deere GT245 Deck Belt Diagram
The John Deere GT245 deck belt setup requires precise routing to ensure proper operation. Follow this diagram to avoid issues during installation. Begin by positioning the belt over the pulleys, starting from the engine pulley, moving down to the deck. Ensure the belt runs through the tensioner pulley and wraps around the idler pulleys on either side. Pay close attention to the direction of the belt’s grooves, as misalignment can cause wear or damage over time.
Check the routing around the blade spindles. The belt should loop around these pulleys smoothly, avoiding any sharp angles. If the deck belt slips off during operation, recheck the alignment using the diagram and verify the tension is adequate. Tighten the tensioner spring if necessary to prevent the belt from loosening. Regular maintenance and belt inspection will help keep the system running smoothly and extend the life of your mower.

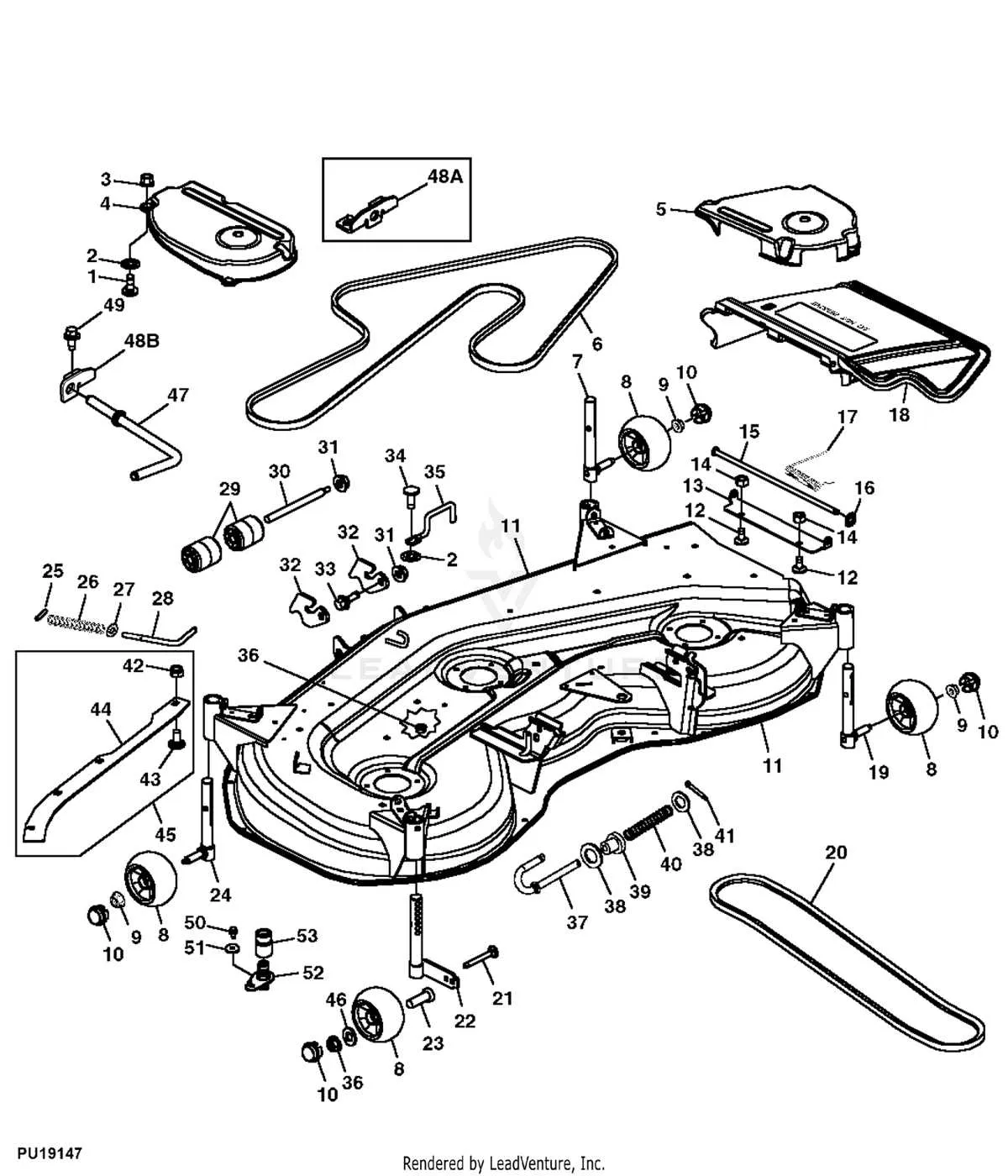

For visual reference, the diagram shows the precise order of the belt’s path. Follow the steps to ensure your deck belt is correctly routed and functioning at its best. If you encounter problems, consider replacing the belt if it shows signs of excessive wear.
How to Locate the Deck Belt on John Deere GT245
To locate the deck belt on the John Deere GT245, follow these steps:
- Raise the mower deck to its highest setting using the lift lever.
- Ensure the engine is off and the key is removed from the ignition for safety.
- Locate the front of the deck, where the belt is attached to the pulley system. This is typically near the blade spindles.
- Inspect the path of the belt, which runs from the engine’s pulley to the deck and then through various idler pulleys.
- To gain full access, you may need to remove the mower deck by unbolting it from the tractor. This will give you better visibility of the belt’s entire routing system.
Once you’ve identified the belt’s route, take note of its tension and condition. If you’re replacing the belt, ensure the new one matches the exact model for proper fitment.
Step-by-Step Guide to Replacing the Deck Belt
Disconnect the battery to prevent accidental starts. Use a wrench to remove the negative terminal of the battery before starting the work.
Lift the mower deck using a jack or a lift to provide clearance for the belt replacement. Make sure the deck is securely elevated and stable.
Locate the tension spring attached to the deck belt. Using pliers, carefully remove the spring to release tension from the belt.
Remove any debris around the belt to avoid interference during the process. Clean the area where the belt runs to ensure smooth installation of the new belt.
Identify the routing of the old belt using the deck belt diagram. This will help you install the new belt in the correct position. Follow the path shown in the diagram closely.
Start by placing the new belt over the pulleys and around the spindles, making sure it aligns exactly as shown in the diagram. Pay close attention to the position of each pulley to avoid mistakes.
Reattach the tension spring to the belt, ensuring it is tight enough to provide proper tension. This step is crucial for the belt’s performance.
Double-check the belt’s placement by rotating the deck manually. This ensures the belt moves freely without slipping or rubbing against other components.
Lower the deck back into its normal position and reconnect the battery. Test the mower to make sure the belt operates correctly without any unusual noises or issues.
If everything works smoothly, you have successfully replaced the deck belt. Regular maintenance can help prevent further wear on the new belt.
Troubleshooting Common Belt Issues on John Deere GT245
If your John Deere GT245 mower isn’t cutting properly, the deck belt could be the culprit. Start by inspecting the belt for any visible damage or wear. Check for cracks, frays, or signs of excessive stretching. If any of these are present, replace the belt to restore functionality.
Another common issue is the belt slipping off. This can happen if the belt is not properly routed around the pulleys. Double-check the belt routing diagram for the GT245 to ensure everything is in its correct position. Misalignment or a loose tensioner can also cause the belt to come off, so inspect the tensioner spring and pulley system for wear or damage.
If the belt continues to slip, the pulley or spindle may be damaged. Inspect the pulleys for any rust, debris, or wear. A worn-out pulley can create uneven pressure on the belt, causing it to slip. Clean or replace any faulty pulleys as needed.
Excessive tension on the deck belt can also lead to premature wear. If the tensioner is too tight, it will stretch the belt faster. Adjust the tensioner to the correct specifications found in the manual, and check the belt tension regularly to prevent over-tightening.
Lastly, if the mower vibrates or makes unusual noises during operation, check for obstructions in the deck. Grass or debris buildup can cause the belt to slip or overwork. Clean the deck thoroughly to avoid any blockage that could affect the belt’s performance.
