John Deere 60 Inch Mower Deck Belt Diagram and Installation Guide

To maintain optimal performance of your John Deere 60-inch mower, ensure the deck belt is correctly routed. The diagram provides a visual guide for belt placement, helping to prevent unnecessary wear and tear. Follow the exact routing steps shown in the diagram for a smoother, more efficient operation.

Identify the right belt size before starting the installation. The John Deere 60-inch deck typically uses a specific belt size, which is critical for proper tension and functionality. Refer to the mower’s manual for the correct belt part number and dimensions.

Check for wear and tear on the belt before replacing it. A worn-out belt can slip or break, causing the mower to lose power or function improperly. Regular inspection is key to avoiding disruptions in mowing tasks.

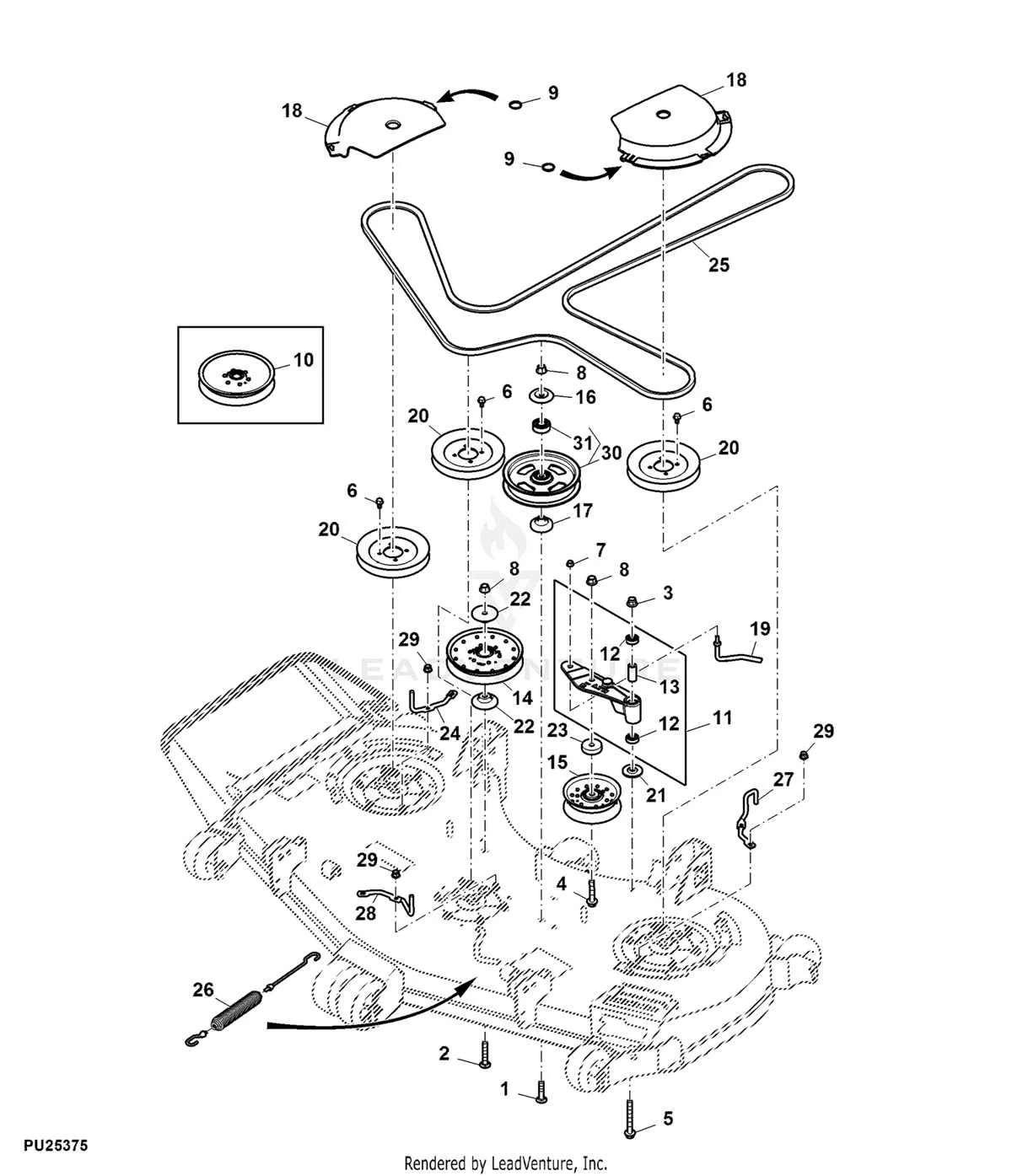

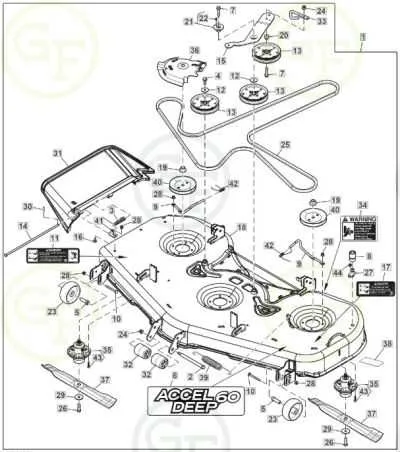

John Deere 60 Inch Mower Deck Belt Diagram

To replace or adjust the belt on your John Deere 60-inch mower deck, start by understanding the diagram for proper belt routing. The belt moves in a specific path to power the mower’s blades and ensure smooth operation. Begin by disconnecting the battery and lifting the deck to access the belt.

Locate the idler pulleys, the tension spring, and the main drive pulley. The belt loops around these components to engage the blades. Pay close attention to the direction the belt needs to be routed around each pulley, ensuring no twists or misalignments. Tighten the belt to the correct tension by adjusting the spring mechanism that controls the idler pulley.

After routing the belt, check for any slack. If the belt feels too loose or too tight, adjust the tensioner accordingly. Proper tension ensures the blades spin at optimal speed and prevents premature wear on the belt.

Before reassembling everything, visually inspect the belt for any signs of damage, like cracks or fraying. If the belt shows signs of wear, replace it with a new one to avoid further issues. Finally, reconnect the battery and test the mower to verify proper operation.

How to Identify the Correct Belt for Your John Deere Mower

To find the right belt for your John Deere 60-inch mower deck, start by checking the model number of your mower. This can typically be found on the frame of the mower or the manual. Once you have the model number, search for the corresponding belt part number in the owner’s manual or on John Deere’s official website.

If you don’t have the manual, measure the old belt’s length and width, or use a ruler to measure the inside circumference if the belt is broken. You can also check the part number printed on the existing belt, if visible, as it will help you identify a suitable replacement.

Another option is to use John Deere’s online parts locator. Input your mower’s model number and the system will provide a list of compatible parts, including the drive belt. Double-check the belt’s specifications, including the number of ribs and the width, to ensure it matches your mower’s requirements.

When selecting a belt, ensure that it’s made of durable materials designed to withstand outdoor conditions. Genuine John Deere belts are recommended for best performance and durability. After identifying the correct belt, purchase it through an authorized dealer or retailer.

Step-by-Step Guide to Installing the Belt on a 60 Inch Mower Deck

Step 1: Raise the mower deck to its highest position using the lift lever. This will provide better access to the components you’ll be working with.

Step 2: Disconnect the spark plug wire to ensure safety while working on the mower. This step will prevent any accidental engine starts.

Step 3: Locate the old belt on the mower deck and remove it. Begin by loosening the tension on the belt by adjusting the idler pulleys. If necessary, use a wrench to loosen bolts holding the pulleys in place.

Step 4: Check the pulley system for any wear or damage. If any pulleys are worn out, replace them before installing the new belt.

Step 5: Lay the new belt on a flat surface to prevent twisting. Refer to the belt diagram specific to your mower deck model for proper routing.

Step 6: Route the new belt around the pulleys, following the diagram closely. Make sure the belt sits properly on each pulley groove to prevent slipping.

Step 7: Once the belt is in place, adjust the idler pulleys to apply the correct tension. Ensure the belt is taut but not too tight, as this can lead to premature wear.

Step 8: Reattach any components you removed, such as the belt guard or covers. Tighten all bolts securely to hold everything in place.

Step 9: Reconnect the spark plug wire and test the mower deck by engaging the blades. Listen for any unusual noises that could indicate improper installation.

Step 10: After confirming everything is working correctly, lower the mower deck back to its normal position. Clean up your work area and dispose of the old belt properly.

Troubleshooting Common Belt Issues on John Deere 60 Inch Mowers

If the belt on your John Deere 60-inch mower is slipping or breaking, it could be due to several common issues. Addressing these problems promptly will prevent further damage and ensure smooth operation.

• Incorrect Belt Tension: A loose or tight belt can cause slipping or premature wear. Check the belt tension and adjust it according to the manufacturer’s recommendations. Use a tension gauge to ensure the proper adjustment.
• Damaged Belt: Inspect the belt for cracks, fraying, or signs of wear. A damaged belt will need to be replaced. Ensure that you are using the correct belt size and type for your mower model.
• Worn Pulley or Idler Pulley: A worn or damaged pulley can cause misalignment, leading to belt issues. Inspect the pulleys for wear, and replace any damaged components to maintain proper belt alignment.
• Debris on the Belt: Grass, twigs, or dirt can accumulate on the belt, causing it to slip. Clean the belt area regularly to remove any debris that could interfere with the belt’s performance.
• Misaligned Mower Deck: If the mower deck is not aligned properly, it can put undue stress on the belt. Check that the mower deck is square and properly positioned before tightening the deck bolts.
• Excessive Belt Wear: If the belt shows signs of excessive wear, such as uneven fraying or cracking, it could be due to overloading the mower. Avoid mowing dense grass or obstacles that could strain the belt.

Regular maintenance and quick identification of these issues can extend the life of your mower’s belt and keep your machine running smoothly.
