John Deere 54 Mower Deck Belt Diagram and Installation Guide

If you’re working on your John Deere 54 mower and need to replace the belt, following a correct diagram is crucial for proper installation. The belt ensures that all the mower’s blades operate smoothly, providing an even cut. A misaligned or improperly installed belt can lead to performance issues or even damage the deck and engine.

Start by locating the pulley system. The diagram will show you exactly where each pulley connects, helping you trace the path of the belt. Be sure to check for any wear or damage on the pulleys themselves before installing the new belt. Replacing the belt correctly will not only improve mowing performance but also extend the lifespan of your equipment.

Once you’ve got the belt in place, double-check the tension. A belt that’s too loose or too tight can cause excessive wear or prevent the blades from spinning properly. Use the diagram to ensure that everything is positioned as it should be, and refer to your mower’s manual for any specific adjustments that may be necessary for optimal performance.

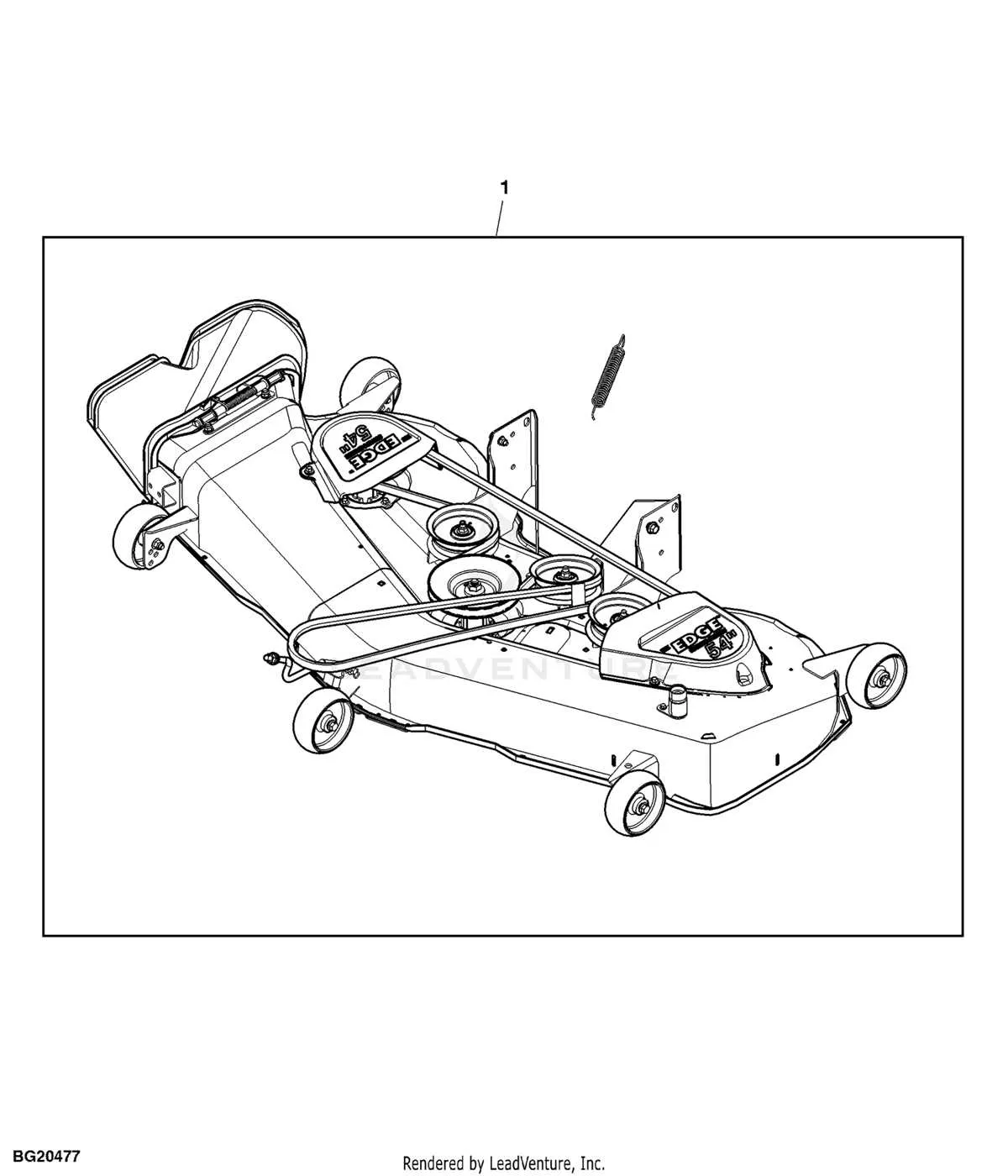

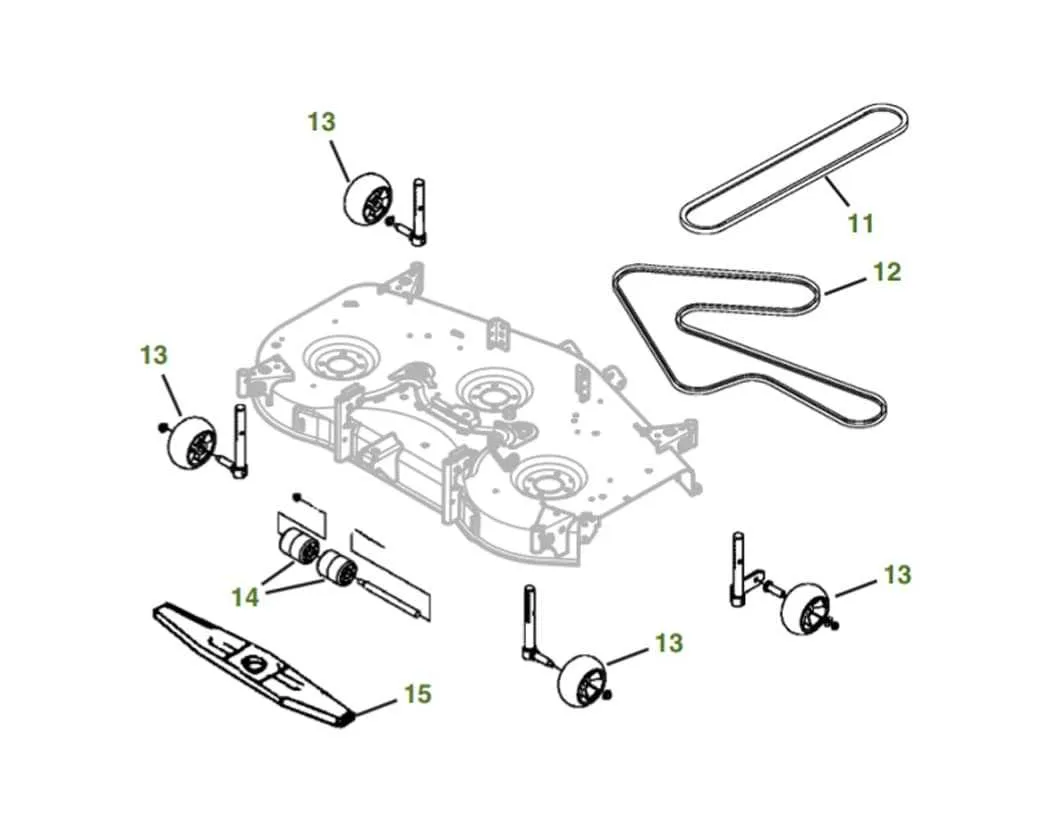

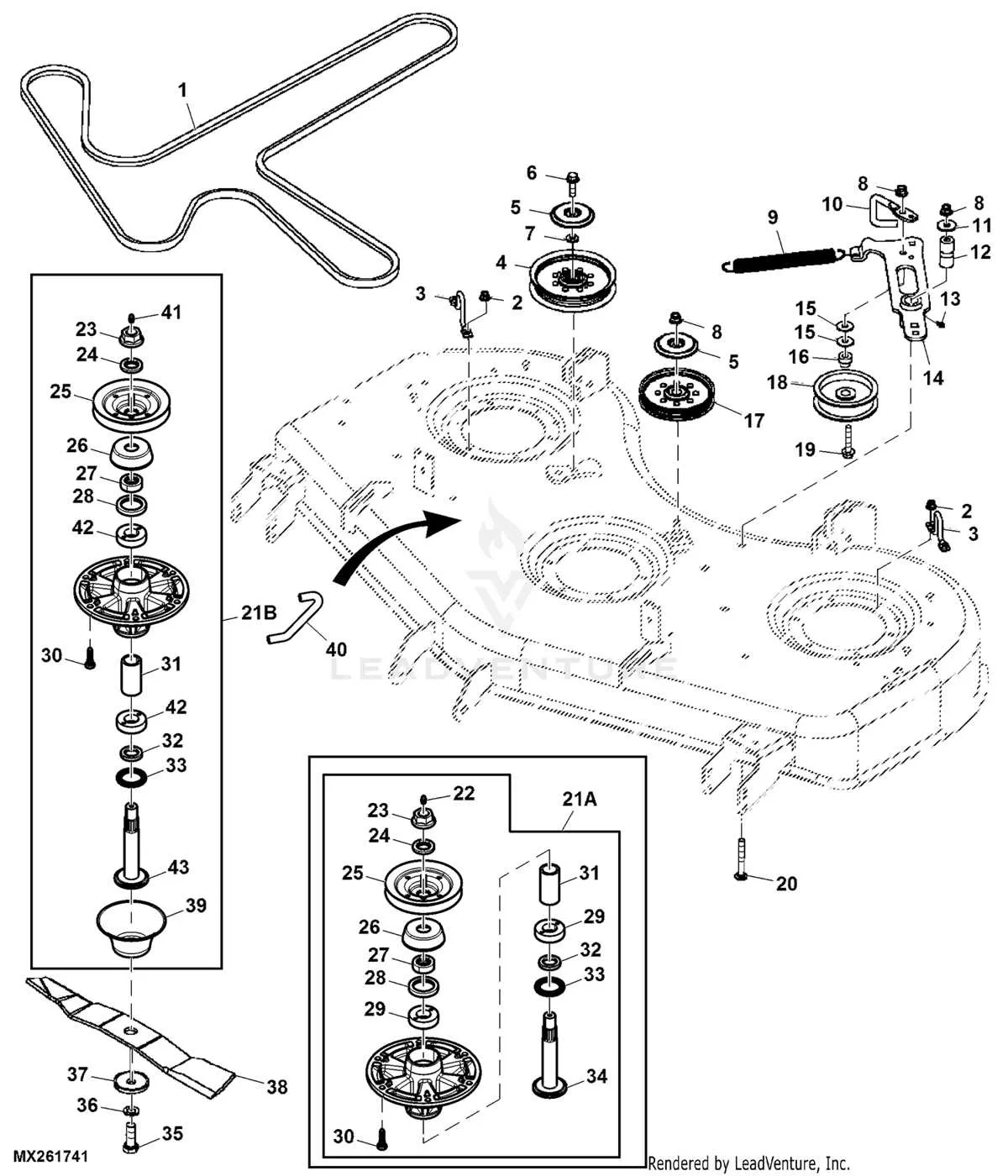

John Deere 54 Mower Deck Belt Diagram

To replace or maintain the belt on your John Deere 54-inch mower deck, refer to this detailed diagram for proper routing. Start by ensuring the mower is off, and the key is removed. The diagram shows how the belt should travel from the engine pulley to the deck pulleys. Be sure to follow the path precisely to avoid incorrect tension or misalignment.

The main drive belt attaches to the engine pulley and routes downwards towards the two deck pulleys. Make sure the tensioner is positioned correctly to avoid over-tightening, which can cause premature wear. Check for any visible damage to the belt, like fraying or cracks. If the belt shows signs of wear, replace it with the appropriate John Deere part number to maintain optimal performance.

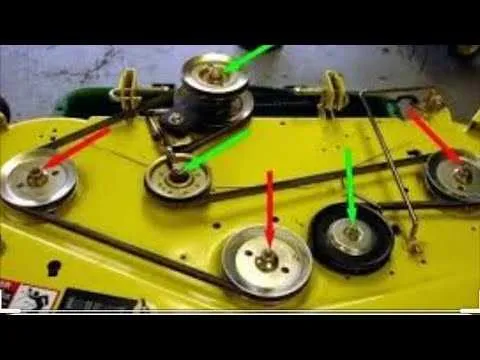

The diagram also includes the spring-loaded tensioner that ensures the belt remains tight while in use. Pay close attention to the idler pulleys as well. They should move freely without obstruction, and any buildup of grass or debris can reduce the effectiveness of the belt drive system.

After replacing the belt, spin the pulleys by hand to ensure smooth rotation. Test the mower deck to verify proper operation. If the belt is misaligned or too loose, the mower may not operate efficiently, so adjust accordingly.

How to Properly Install the Belt on a John Deere 54 Mower Deck

Start by ensuring the mower deck is fully raised and the engine is turned off. Position the deck so you have easy access to the belt and pulleys.

Locate the tensioning spring, which holds the belt under tension. Using a wrench, release the tension on the spring by disconnecting it from the idler pulley. This will allow the belt to loosen.

Remove the old belt from the pulleys. Take note of the routing pattern for reference when installing the new belt.

Place the new belt around the main drive pulley and follow the same routing pattern, ensuring it fits into each groove and pulley as it was before. Make sure the belt is seated correctly around each pulley without twists or slack.

Reattach the tensioning spring to the idler pulley. This will reapply tension to the belt, ensuring it is tight enough for proper operation. Verify that the belt moves freely and doesn’t rub against any components.

Finally, test the mower deck by turning the engine on briefly. Listen for any unusual sounds, indicating improper installation. If everything runs smoothly, the belt installation is complete.

Troubleshooting Common Belt Issues in John Deere 54 Mower Decks

When you notice your John Deere 54 mower deck is underperforming, check the belt for common issues like slippage, wear, or breakage. Here are the key steps to address these problems:

• Belt Slippage: Slippage can occur when the belt is too loose or the tensioner spring is weak. Inspect the spring for any signs of damage or wear. Adjust the tensioner to ensure the belt has proper tightness. If the belt still slips after adjustment, consider replacing the tensioner.
• Belt Wear: Examine the belt for cracks, frays, or signs of excessive wear. If you spot any damage, replace the belt immediately. Ensure the replacement belt is the correct size and model for your mower deck.
• Belt Alignment: A misaligned belt will cause uneven wear and reduced performance. Inspect the pulleys and ensure they are aligned properly. If any pulleys appear to be out of line, adjust or replace them as needed.
• Belt Overheating: If the mower deck is overheating, it could be due to a clogged or dirty pulley system, which restricts belt movement. Clean the pulleys and check for any blockages in the system. Overheating can also be a sign of excessive friction caused by improperly installed parts.
• Belt Breakage: Regular belt breakage can result from several factors, including a weak tensioner, misalignment, or improper belt size. Always replace the belt with the correct model and ensure all components are properly installed. Check the entire system for any parts that might be causing undue strain on the belt.

Addressing these issues early can prevent further damage to your mower deck and ensure it runs smoothly for years to come. Keep your mower deck well-maintained by checking the belt regularly for signs of wear and keeping the system clean and well-lubricated.

Step-by-Step Guide to Replacing the Belt on a John Deere 54 Mower Deck

Start by turning off the mower and disconnecting the spark plug to avoid any accidental starts. Lift the mower deck to access the belt, ensuring it is fully supported before you begin. Use a jack or a suitable lift to keep the deck stable.

Next, locate the belt tensioner pulley and release the tension on the old belt. You can do this by either using a wrench or by moving the tensioner arm, depending on the model. Once the tension is relieved, remove the belt from the pulleys. Be sure to take note of how the belt is routed so that you can easily install the new one.

Now, remove the old belt completely. Inspect the pulleys for any damage or wear. If needed, clean them or replace any worn components to ensure smooth operation. It’s a good idea to check the belt guide for any debris that might obstruct the new belt’s path.

With the old belt removed, place the new belt onto the mower deck following the same routing as the previous one. Start by threading it through the pulleys and then install it onto the tensioner pulley. Ensure that the belt is properly aligned and seated in the grooves of the pulleys.

Once the belt is in place, restore the tension by adjusting the tensioner. Check the belt to make sure it’s snug, but not too tight. A belt that’s too tight can cause unnecessary wear, while one that’s too loose can slip or come off during operation.

Finally, inspect everything to make sure the belt is properly installed, and the tensioner is working correctly. Reconnect the spark plug, lower the mower deck, and test the mower by running it briefly to confirm the belt is functioning properly.
