John Deere 54 Inch Mower Deck Belt Diagram and Maintenance Guide

To replace or maintain the mower deck belt on your John Deere 54-inch mower, follow the diagram specific to your model. This diagram provides a clear layout of the belt routing, helping you avoid mistakes and save time during installation or repair.

Start by identifying the correct belt length and width for your specific model. A belt that is too tight or too loose can lead to poor performance or damage to the mower. After obtaining the correct belt, refer to the diagram to see exactly how it should be routed around the pulleys and spindles.

As you install the belt, ensure that it is properly tensioned. A slack belt can slip, reducing cutting efficiency, while a belt that is too tight can cause excessive wear on both the belt and the pulleys. Check the belt’s alignment regularly to ensure it stays on track.

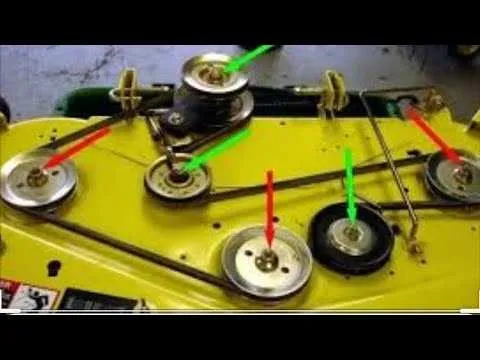

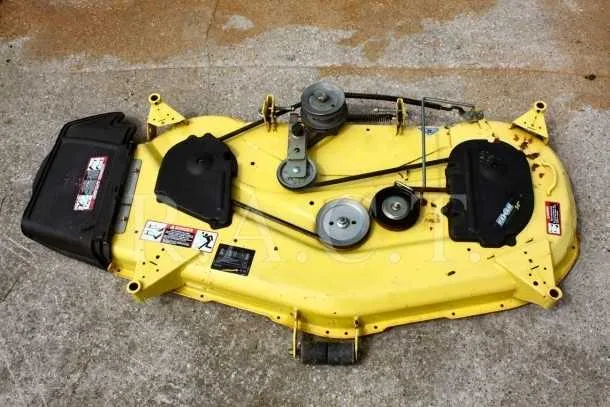

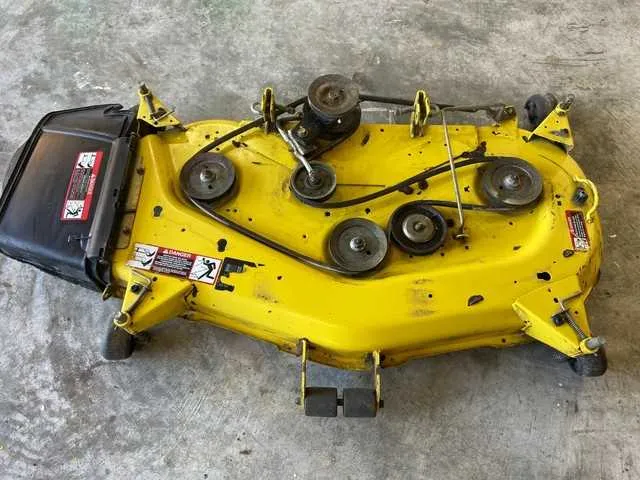

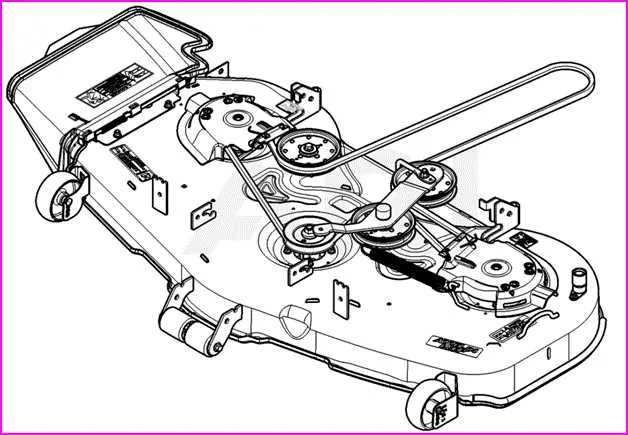

John Deere 54 Inch Mower Deck Belt Diagram

To replace or adjust the mower deck belt on your John Deere 54-inch model, first locate the belt routing diagram, which is often found on the deck itself or in the user manual. This diagram shows the correct path for the belt, ensuring the mower operates smoothly.

Ensure the mower is turned off and the engine is cool before starting. Begin by disconnecting the spark plug wire for safety. After removing the deck from the mower, inspect the belt for any signs of wear or damage, such as cracks or fraying. If the belt is in good condition, follow the diagram to reassemble it. If the belt is worn out, replace it with the recommended part number.

The diagram will clearly illustrate how the belt should loop around the pulleys, guides, and tensioners. Pay close attention to how the belt moves over the pulleys that control the blade engagement. Tension should be adjusted to ensure the belt is tight enough to spin the blades efficiently but not so tight as to cause unnecessary strain.

For a smooth installation, it helps to apply light lubrication to the pulleys and other moving parts before reassembling the deck. Once reassembled, check the belt alignment by manually rotating the deck and ensuring the belt moves freely over the pulleys without slipping or binding. Finally, reconnect the spark plug wire and test the mower to confirm the belt operates as expected.

Step-by-Step Guide to Installing the Belt on a 54 Inch Mower Deck

Begin by lifting the mower deck to access the belt system. Ensure the engine is turned off and the ignition key is removed.

Next, locate the existing belt routing diagram on the mower deck, usually found on the deck frame or near the belt guard. This will help you understand how the new belt should be routed.

Remove any existing tension from the old belt by loosening the idler pulley. Use a wrench to loosen the tensioning bolt or nut, allowing the belt to slacken.

Take off the old belt from the pulleys, making sure to note the correct routing. Pay attention to how it fits over each pulley and the direction of rotation. This step is crucial for correct installation.

Position the new belt onto the pulleys, following the routing guide. Begin with the largest pulleys and work your way to the smaller ones. Ensure the belt is seated properly in the grooves of each pulley.

Once the belt is in place, check for any slack. If necessary, adjust the tension by tightening the idler pulley bolt until the belt is tight but not overly stretched.

After securing the belt, test the tension by gently pulling on it. It should not move excessively but should have some slack for proper operation.

Lower the mower deck back to its normal position and double-check the belt’s alignment. Run the mower briefly to ensure the belt runs smoothly and is not slipping off any pulleys.

If the belt appears to be misaligned or slipping, recheck the routing and tension. Adjust as needed and repeat the testing process.

How to Troubleshoot Common Belt Issues on John Deere Mower Deck

If the mower belt on your John Deere 54-inch mower deck is slipping, you may need to check for signs of wear, proper tension, or correct installation. Start by inspecting the belt for cracks, fraying, or damage. If any of these are found, replacing the belt is necessary. Check the alignment of the belt as well, ensuring it sits properly on all pulleys.

Next, assess the tension. A loose belt can lead to slippage and poor performance. Use a belt tension gauge to verify the correct tension. If the tension is too loose, adjust the idler pulley to restore it. If the tension is too tight, check the spring mechanism for any issues.

Ensure that the pulleys are clean and free from debris. Dirty or rusty pulleys can cause uneven movement, which may wear out the belt prematurely. Clean the pulleys thoroughly using a wire brush or cloth to remove any buildup.

Finally, check the routing of the belt. Compare it with the diagram provided in the mower’s manual. Incorrect routing can cause premature wear or prevent the belt from engaging properly. If any part of the belt appears misaligned, correct it to prevent further damage.

Understanding the Belt Routing for Optimal Performance on John Deere Mowers

The belt routing on a John Deere 54-inch mower deck directly affects its efficiency and longevity. Ensure the belt follows the correct path for smooth operation and reduced wear. Check that the belt loops around the pulleys in the exact sequence, from the engine to the blades and back. Misrouted belts can lead to power loss, excessive wear, or even damage to the mower deck components.

Pay close attention to the tensioners and idler pulleys. These parts play a critical role in maintaining proper belt tension, which is necessary to avoid slippage or over-tightening. A belt routed incorrectly or too loosely will impact cutting performance and cause premature wear. Regularly inspect these components for any signs of wear or damage.

It’s important to reference the John Deere 54-inch mower deck diagram for exact routing details. This diagram highlights each pulley’s position and how the belt should loop over or under them. Following this diagram closely during both installation and maintenance can prevent costly mistakes and ensure optimal mower function.

Lastly, be aware of any obstacles, like debris or worn components, that might obstruct the belt’s path. Clearing the area around the deck and performing routine inspections will keep the belt operating smoothly and avoid unexpected failures during mowing.
