John Deere 54 Inch Deck Belt Routing and Diagram Guide

Replace the belts on your John Deere 54-inch deck by following a precise belt routing diagram. This guide ensures a proper setup and avoids operational issues.

Begin by confirming the correct belt type and length for your model. Incorrect belt dimensions can cause misalignment, reducing performance and increasing wear.

Next, check the routing path shown in the diagram. Follow the sequence carefully to prevent the belt from slipping or coming off during use. The path is designed to optimize tension and maximize belt lifespan.

Ensure proper tension by adjusting the tensioning spring according to the diagram. Too much or too little tension will lead to inefficient operation and can cause premature damage to the system.

Lastly, after installation, test the deck operation at a slow speed. Monitor the belt movement to ensure there is no friction or misalignment. Regular maintenance and attention to the belt diagram will prolong the lifespan of your mower.

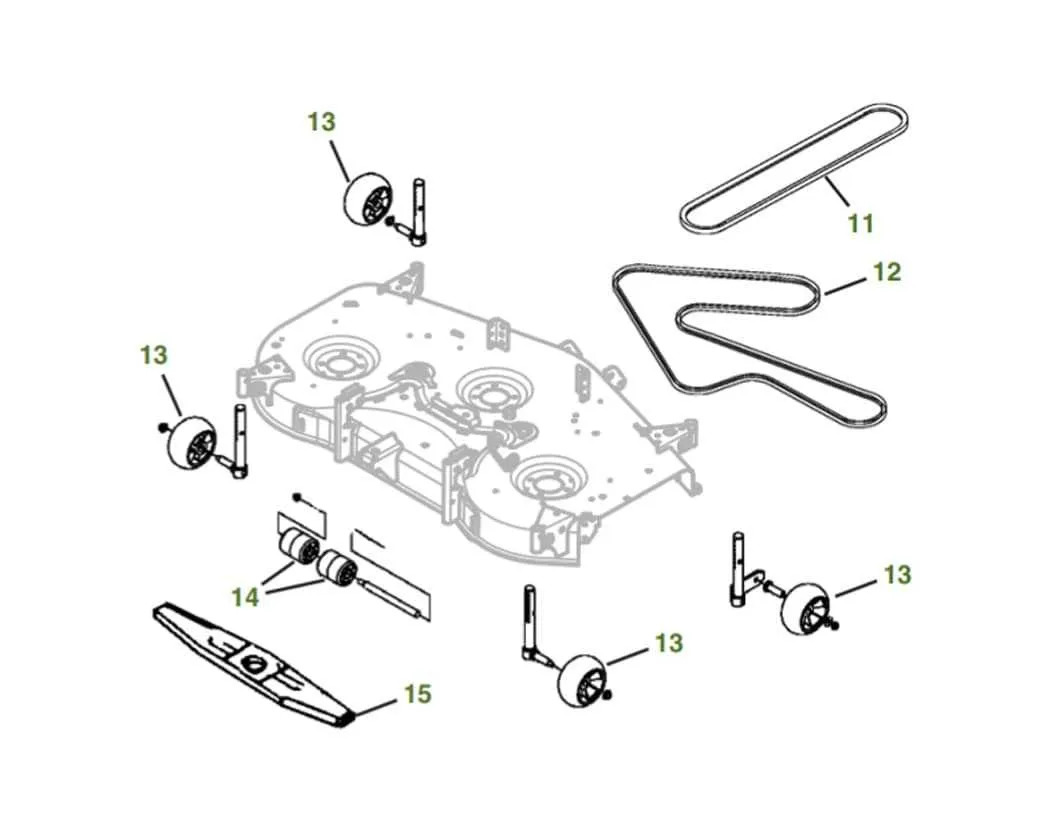

John Deere 54 Inch Deck Belt Diagram

To replace or repair the belt system of a John Deere 54-inch deck, you need to follow the correct routing steps. The belt drives the blades and ensures smooth operation, so proper alignment is crucial for optimal performance.

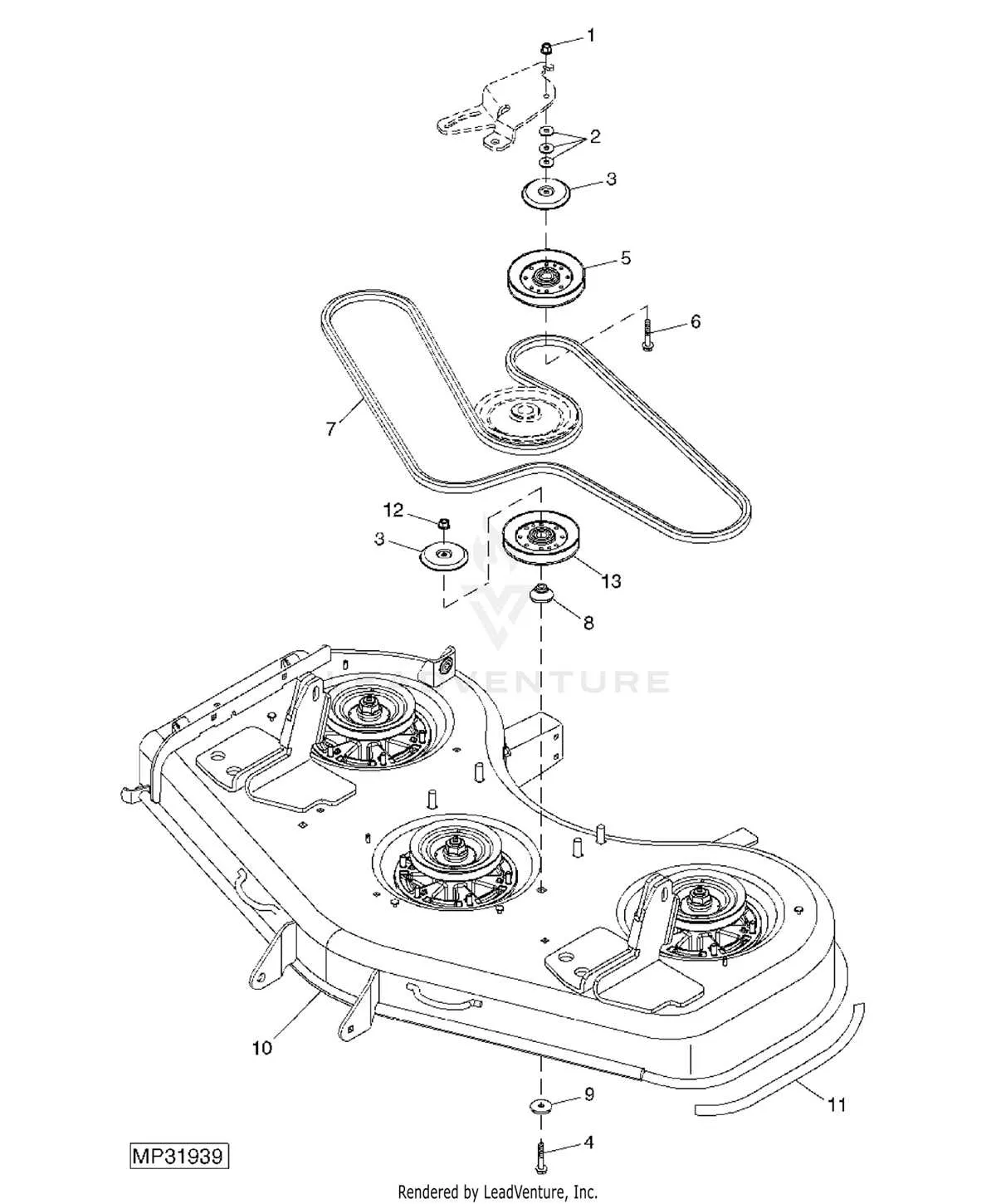

Here’s the belt routing for the John Deere 54-inch deck:

• Start by positioning the belt around the engine pulley, ensuring that the belt is aligned correctly with the grooves.
• Next, route the belt around the tensioner pulley to maintain proper tension and prevent slippage.
• The belt should then go around the blade pulleys. Ensure it fits snugly but not too tight, allowing for sufficient blade movement.
• Check the belt’s position on the idler pulleys to ensure it follows the recommended path. The belt should not touch any other components, as this can cause wear or damage.
• Finally, ensure that the belt is correctly seated and tensioned before reassembling the deck. Check for any slack or misalignment.

For troubleshooting, inspect the belt for signs of wear, cracks, or fraying. If the belt appears damaged or excessively worn, replace it to prevent further issues. Also, verify that all pulleys are in good condition and that the belt does not rub against any parts of the mower deck.

Identifying Key Components in the John Deere 54 Inch Deck Belt System

The John Deere 54-inch deck belt system includes several critical components that ensure efficient operation. These parts work together to maintain proper tension and allow smooth power transfer to the mower blades.

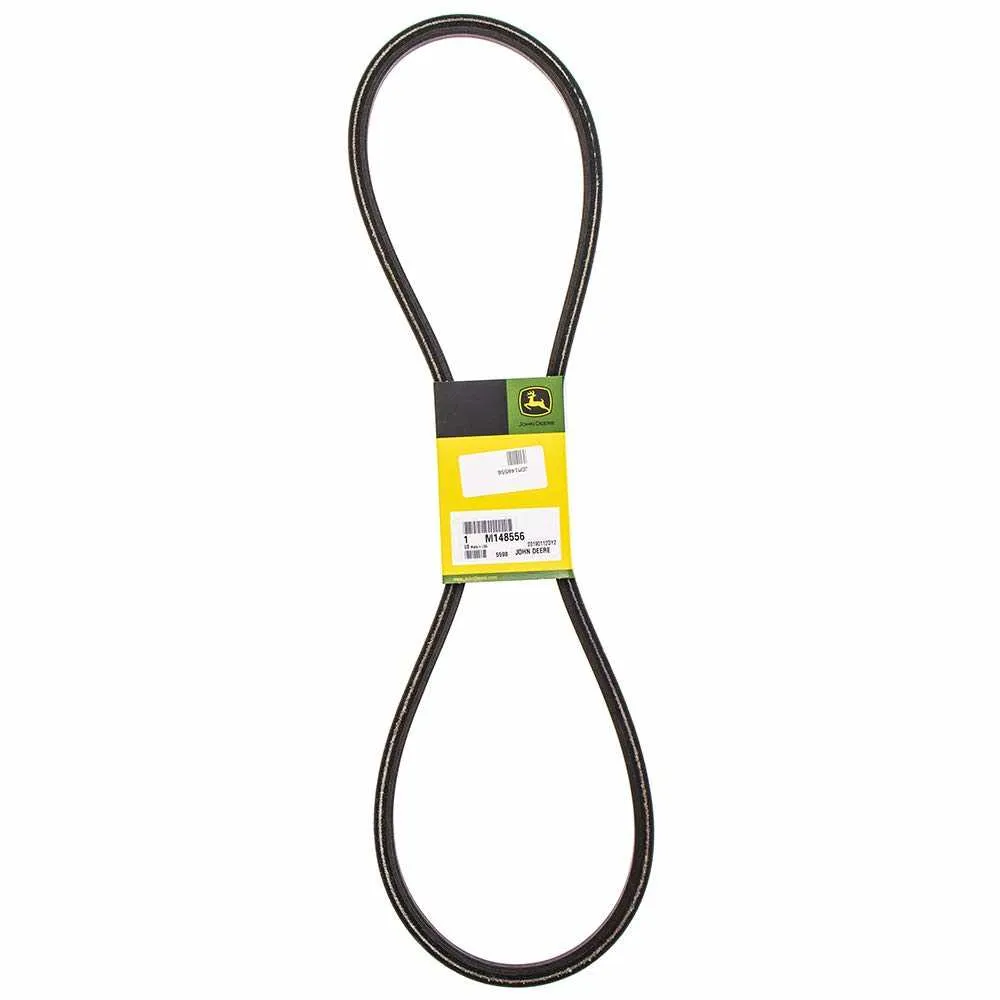

Deck Belt: The central component, responsible for transferring power from the engine to the blades. It runs over pulleys and idlers, driving the mower blades’ rotation. A properly routed and tensioned belt is vital for optimal performance.

Idler Pulley: The idler pulley plays a crucial role in maintaining belt tension. Positioned along the belt path, it prevents slack, ensuring the belt remains taut. Inspect this component for wear and ensure it moves freely without resistance.

Spindle Pulley: The spindle pulley connects to the mower blades and is driven by the deck belt. This pulley directly controls the rotation of the blades, and its alignment with the belt ensures consistent cutting performance.

Tension Spring: The tension spring maintains appropriate pressure on the idler pulley, helping keep the belt tight. A worn-out spring can cause the belt to slip or lose tension, affecting overall system efficiency.

Engine Pulley: This pulley is attached to the engine’s crankshaft and transmits power to the deck belt. Proper alignment between the engine pulley and the belt is necessary to avoid premature wear or slippage.

Regularly inspect these components for signs of wear, misalignment, or damage. Replacing worn-out parts promptly ensures that the system continues to function at peak performance.

Step-by-Step Guide for Correct Belt Routing in John Deere 54 Inch Deck

First, ensure the deck is raised to its highest position. This will provide more space for routing the belt.

Remove the old belt if present. Start by loosening the tension from the idler pulley, then slide the belt off the pulleys carefully. Make a note of the belt’s routing to assist in installing the new one correctly.

Place the new belt over the engine pulley, ensuring it follows the correct path around the pulleys and spindles. The belt should pass over the blade spindles and around the idler pulleys in the proper sequence. Double-check the routing against the John Deere manual or diagram for accuracy.

Ensure the belt is positioned securely in the idler pulley system. This ensures proper tension and reduces the risk of slipping.

Once the belt is routed correctly, check its tension by pressing down on it. The belt should have enough tension to rotate the blades effectively but not be overly tight.

Reattach the tension spring or mechanism to secure the belt in place. Confirm that the belt is properly aligned with the pulleys to avoid wear or damage during operation.

Test the belt by manually rotating the blades to check for any issues with movement or tension. If everything is running smoothly, lower the deck back to its operational height.

Finally, perform a test run by engaging the mower blades. Listen for any unusual noises and ensure the blades are spinning without issue. If the belt seems loose or misaligned, repeat the tension and routing checks.

Troubleshooting Common Issues with John Deere 54 Inch Deck Belt

If the belt on your John Deere 54-inch deck isn’t functioning properly, check for visible wear, cracks, or breaks. A damaged belt often causes poor performance, so inspect it thoroughly for any signs of damage.

Ensure the belt is correctly routed according to the manufacturer’s diagram. Misrouting can lead to inefficient operation or even belt breakage. Recheck the alignment to avoid unnecessary stress on the belt.

If you notice excessive noise or slippage, the tension on the belt might be too loose. Tighten the tensioner and recheck the belt’s tension. If the belt is still loose, replacing the tensioner or belt might be necessary.

Another common issue is the accumulation of debris around the pulley system. Regularly clean the pulleys to ensure smooth movement and prevent wear on the belt. Accumulated dirt or grass can cause the belt to slip or wear unevenly.

If the belt is showing signs of wear but doesn’t need replacing yet, check the pulleys for alignment and ensure they rotate freely. A misaligned pulley can lead to premature belt wear or failure.
