John Deere 48 Inch Deck Belt Diagram and Maintenance Guide

To properly maintain your John Deere 48-inch deck, understanding the belt diagram is critical. This diagram shows how the belt routes around the deck’s pulleys and helps ensure smooth operation. Pay close attention to the belt’s path, as any misalignment can cause wear or malfunction.

Start by confirming the model and year of your mower. Belt routing can vary slightly across models, and knowing the correct diagram for your machine will prevent unnecessary confusion during maintenance. Refer to the John Deere manual for the most accurate and detailed diagrams, which include pulley sizes and specific routing instructions.

If the belt is worn, damaged, or broken, replacing it with the correct part is necessary. Make sure to inspect the condition of the pulleys as well, since they can also wear out over time and impact the belt’s performance. When replacing the belt, follow the diagram closely to avoid errors that could lead to improper belt tension or potential damage to other components.

Lastly, check belt tension regularly. An over-tightened or loose belt can cause performance issues and shorten the lifespan of both the belt and the deck’s components. Adjust tension as needed to ensure everything functions smoothly, and refer to the manual for specific tension settings for your model.

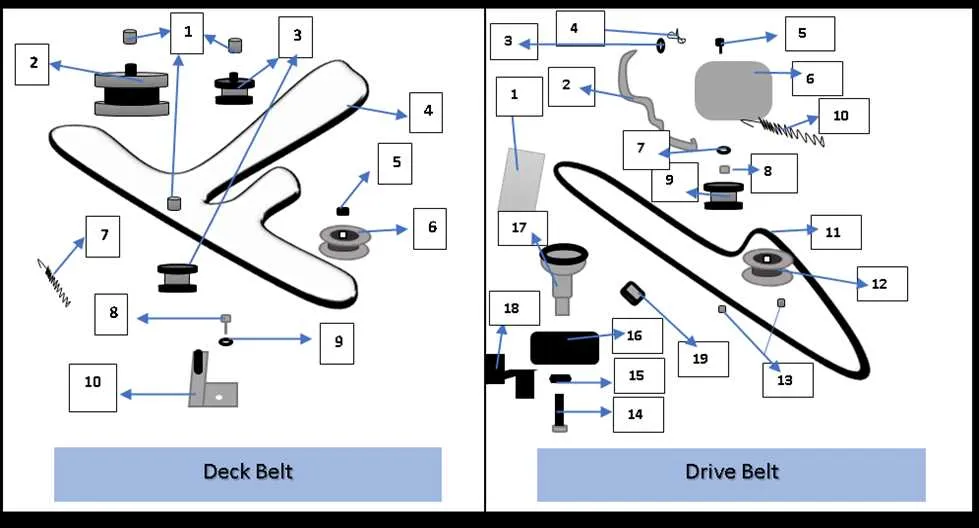

John Deere 48 Inch Deck Belt Diagram

To replace or maintain the belt on your John Deere 48-inch deck, start by reviewing the belt diagram to ensure proper installation. The diagram shows the correct routing of the belt, which is essential for the mower’s performance. Align the belt properly with the pulleys to avoid unnecessary wear or slippage.

Pay close attention to the belt’s position around the deck and the tensioner. Incorrect routing can lead to a loss of power or damage to other components. Ensure that the belt is correctly threaded through the idler pulleys and that there is sufficient tension to keep it running smoothly.

Check for signs of wear on the belt, such as cracks or fraying. If the belt shows any damage, replace it with a new one that matches the specifications for your model. Regular inspection and maintenance will prolong the lifespan of both the belt and the deck components.

Steps to Remove and Replace the Deck Belt on John Deere Mower

Lift the mower deck using the deck lift lever to access the belt system. Ensure the mower is turned off and parked on a flat surface.

Loosen the deck belt tension by adjusting the idler pulley. Use a wrench to release the tension on the belt, allowing it to loosen and come off the pulleys.

Remove the belt from the pulleys, starting from the front of the mower and working your way back. Make sure to track the belt routing so you can install the new one correctly.

Inspect the old belt for wear and damage before discarding it. Check the pulleys and other components for any obstructions or damage that could affect the new belt.

Install the new belt by following the exact routing of the old belt. Begin by placing it on the pulleys in the same order, ensuring it is properly seated in each groove.

Once the belt is in place, reapply tension to the belt by adjusting the idler pulley. Verify that the belt has the correct tension by checking its slack.

Lower the mower deck and test the operation by starting the mower. Listen for any unusual sounds and verify that the belt is functioning smoothly during operation.

How to Identify Common Issues with the John Deere Deck Belt

Inspect the deck belt for visible signs of wear, such as fraying, cracking, or stretching. These issues reduce the belt’s ability to function properly and may cause it to slip or break.

Check the belt tension. A loose or overly tight belt can lead to poor performance and excessive wear. Ensure the tension is in accordance with the manufacturer’s specifications for optimal operation.

• Look for belt misalignment. If the belt runs off track or appears crooked, the pulleys may be misaligned or damaged, which can cause the belt to wear unevenly.
• Listen for unusual noises during operation. Squealing or chirping sounds often indicate that the belt is slipping, which may be due to improper tension or excessive wear.
• Examine the pulleys for damage. Worn or rusted pulleys can affect the belt’s performance, causing it to slip or become damaged.

Inspect the deck belt’s routing. If the belt isn’t routed correctly through the pulleys, it will cause excessive friction and lead to faster wear. Consult the John Deere diagram to ensure correct routing.

Test the belt’s ability to engage and disengage properly. If the belt is too loose or tight, it may fail to engage correctly, resulting in poor mowing performance or damage to the mower’s components.

• Look for missing or damaged belt guards. These guards protect the belt from debris and other hazards, and their absence can lead to belt damage.
• Regularly clean the deck area to remove debris and grass buildup, which can cause the belt to slip or wear out prematurely.

Finally, consider replacing the belt at the first sign of significant wear or damage to prevent further issues and to maintain the mower’s performance.

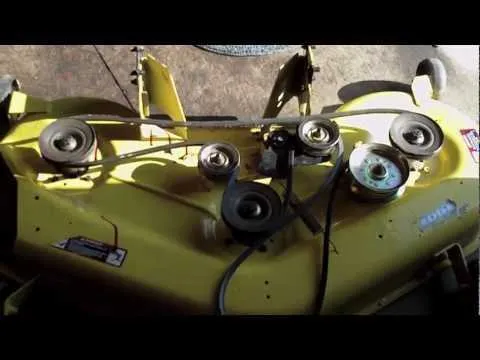

Understanding the Belt Routing for a John Deere 48 Inch Deck

For a smooth mowing experience, the correct belt routing on a John Deere 48-inch deck is critical. Start by locating the drive pulley at the center of the deck. The deck belt should wrap around the main drive pulley, extending to each blade pulley, ensuring that each blade receives power to spin efficiently.

The belt should pass over the tensioner pulley to maintain proper tension. Ensure that the tensioner moves freely without resistance, as a stuck or damaged tensioner can lead to premature wear of the belt.

Check that the belt runs in a straight line without any twists. If the belt is incorrectly routed or twisted, it can cause uneven wear or even damage the mower’s drive system.

Additionally, inspect the pulleys for wear or damage. Worn pulleys can lead to slippage, causing the belt to fail prematurely. Replacing damaged pulleys will ensure consistent power transfer to the blades.

Finally, confirm the belt is properly aligned within the grooves of the pulleys. Misalignment can lead to belt misdirection, leading to loss of power or further damage to the entire system.
