John Deere 48 Deck Belt Diagram and Maintenance Guide

Properly routing the belt on your John Deere 48″ deck is crucial to avoid excessive wear and ensure the mower operates at its best. Start by identifying the correct path for the belt according to the manufacturer’s specifications. The belt should run from the engine’s pulley to the deck’s main spindle, ensuring smooth motion and minimal friction. If the belt is not routed properly, it may cause slippage or even damage to the pulley system.

Regular maintenance of the belt and related components will extend the lifespan of the mower. Inspect the belt for wear and tear before each use, and replace it if it appears cracked or frayed. Keep the pulleys clean and free from debris to prevent unnecessary strain on the belt. If the tension is incorrect, it can cause the belt to slip or not engage properly, leading to reduced performance.

Replacement procedure for the belt is straightforward but requires attention to detail. Begin by removing the old belt and ensuring that the pulleys are in good condition. Follow the diagram closely when installing the new belt, ensuring that each part is aligned as specified. Proper installation will prevent the belt from coming loose or prematurely wearing out.

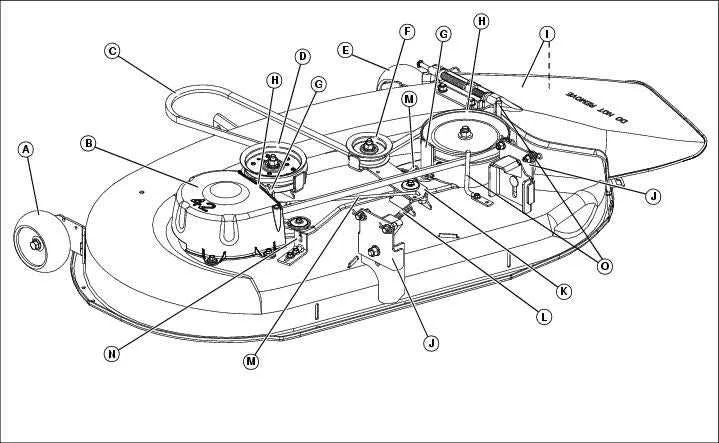

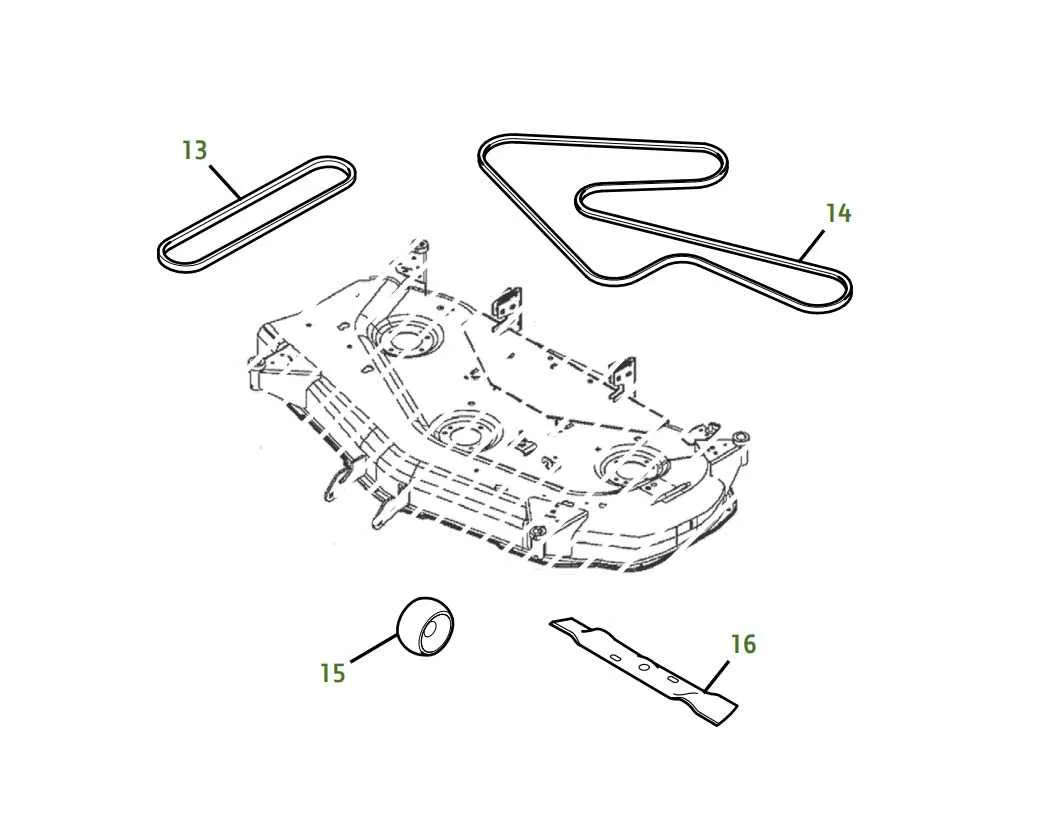

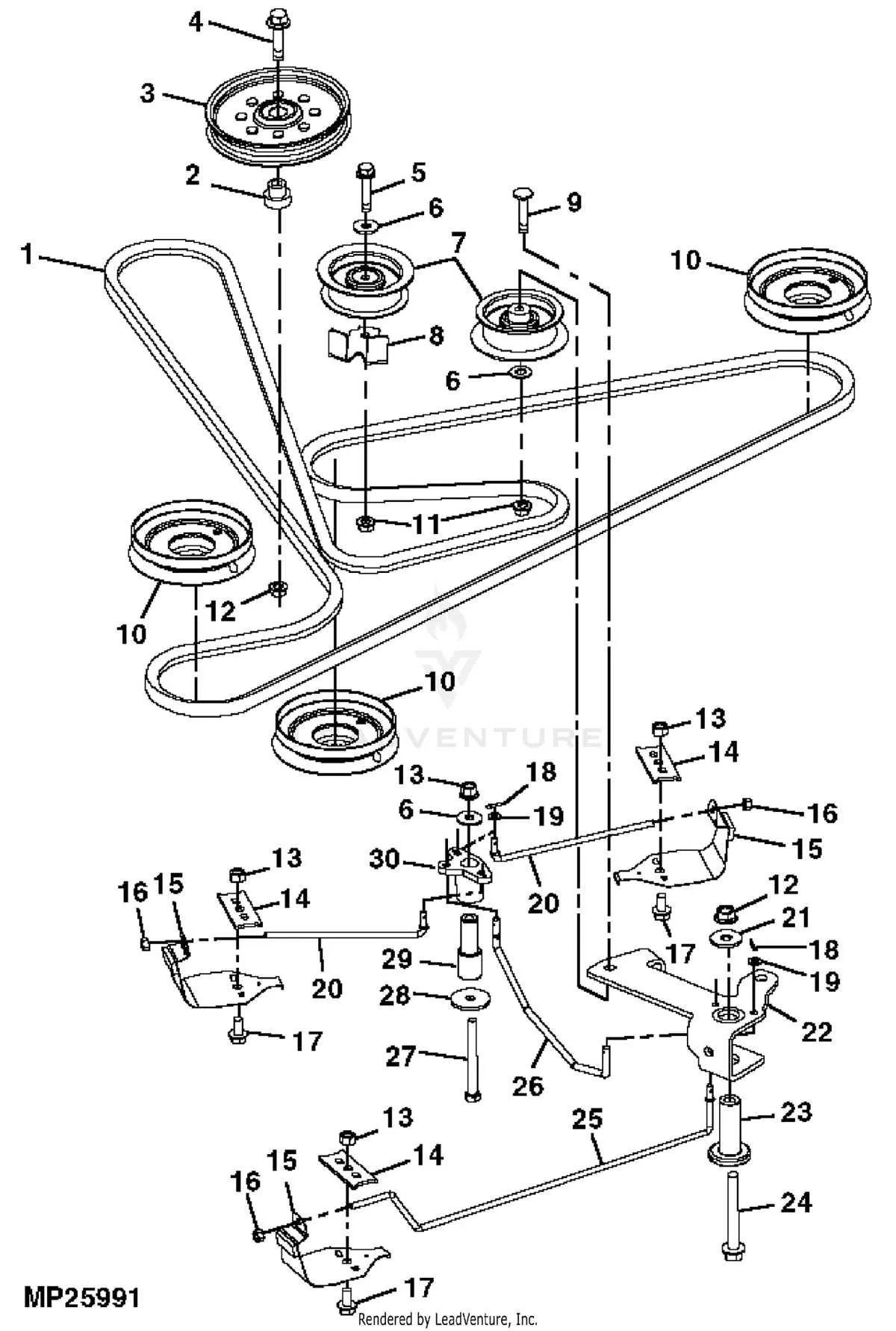

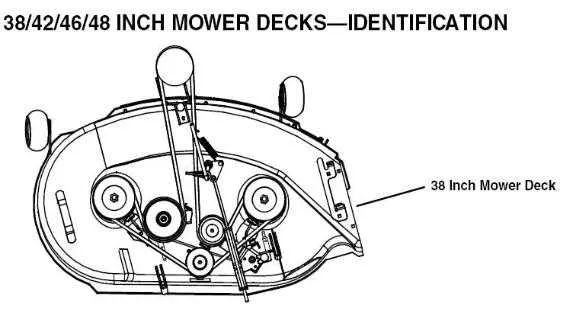

John Deere 48 Deck Belt Diagram

For proper maintenance of the John Deere 48″ deck, it is crucial to understand the belt routing system. The correct belt diagram ensures smooth operation and prevents unnecessary wear. Here’s a breakdown of the components and their positioning:

• Deck Pulley: The primary pulley that drives the mower blades, located at the center of the deck. The belt should loop around this pulley, ensuring correct tension.
• Idler Pulley: This pulley keeps the belt taut. Check its alignment regularly to prevent slippage.
• Engine Pulley: The engine pulley connects the engine to the belt system. It’s important to confirm that it is aligned with the rest of the pulleys to avoid belt misalignment.

Follow the belt routing diagram closely to avoid misplacement and ensure the belt fits snugly into its intended path. Regularly inspect the belt for signs of wear, such as cracking or fraying, and replace it when necessary. A loose or misaligned belt can lead to poor mowing performance or engine damage.

When reinstalling the belt, ensure it runs smoothly around all pulleys and is properly tensioned. This will enhance the lifespan of both the belt and the mower’s engine.

How to Properly Route the Deck Belt on a John Deere 48

Start by positioning the deck so it’s easily accessible, ensuring the mower is off and the key is removed. Begin by feeding the belt over the engine pulley. Make sure the smooth side of the belt faces outwards for proper tension.

Next, route the belt around the deck pulleys. Ensure that it passes under the idler pulley, which is essential for maintaining the correct tension. The belt should loop around the larger pulleys, making sure it runs along the outside edges to avoid slippage.

For the best results, check that the belt is aligned with the grooves of the pulleys. Misalignment can cause wear and lead to premature failure. After routing the belt, inspect its path once more before securing it. Ensure there is enough slack for the belt to move freely, but not too much that it causes slipping.

Finish by reinstalling the belt tensioner, making sure it applies the right amount of pressure to keep the belt tight without over-stretching it. Double-check the routing and tension, then test the mower to confirm the belt operates smoothly and without issue.

Common Issues with the John Deere 48 Deck Belt and How to Solve Them

1. Belt Slippage occurs when the deck belt does not maintain enough tension, leading to inefficient operation. Check the tensioner pulley for wear or damage, and replace it if necessary. Adjust the tension to the recommended specifications using the adjustment bolt on the tensioner arm.

Step-by-Step Guide to Replacing the John Deere 48 Deck Belt

Begin by disconnecting the spark plug to prevent accidental starting. This is a necessary safety step before working on the mower.

Next, lift the mower deck. You may need to remove the deck from the mower frame, depending on the model. For most models, this requires removing several bolts and pins that hold the deck in place.

Locate the existing belt. Inspect how it is routed around the pulleys, as you will need to replicate this routing with the new belt.

Remove the old belt by loosening the tension. This can typically be done by adjusting the tensioner pulley. Use a wrench or socket to move the pulley away from the belt, and then slide the belt off the pulleys.

Take the new belt and route it according to the original setup. Start by placing the belt on the larger pulleys, then route it around the smaller pulleys, ensuring it fits properly into the grooves of each pulley.

Once the belt is correctly routed, adjust the tensioner pulley to its original position. This step ensures the belt is tight enough to function properly but not too tight to cause excessive wear.

Reattach the mower deck to the frame if it was removed earlier. Secure it with the bolts and pins that were previously undone.

Reconnect the spark plug and test the mower. Ensure the belt is functioning smoothly and that no abnormal sounds or issues occur during operation.
