John Deere 42-Inch Deck Belt Diagram for Maintenance and Repair

If you’re replacing the belt on your John Deere 42-inch deck, it’s important to follow the correct routing to ensure smooth operation. Start by identifying the deck belt’s path, as an incorrect installation can lead to unnecessary wear and potential damage. Refer to the diagram provided by John Deere to guide you through this process.

Inspect the Belt regularly to check for any signs of wear, fraying, or cracks. A worn belt can cause the deck to underperform, affecting cutting efficiency and overall mower function. Replace the belt if you notice any significant damage, and always choose a belt designed specifically for your John Deere model to avoid compatibility issues.

Proper Installation of the belt is critical. Be sure to follow the correct tension specifications, as a belt that is too tight or too loose can cause slippage or premature wear. After installing the belt, rotate the blades manually to ensure smooth movement without any binding or excessive friction.

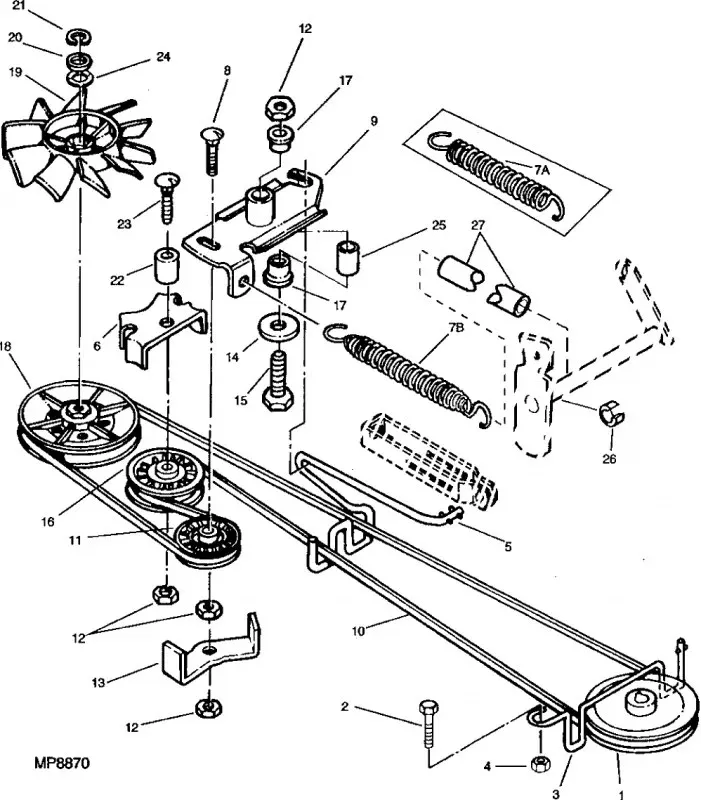

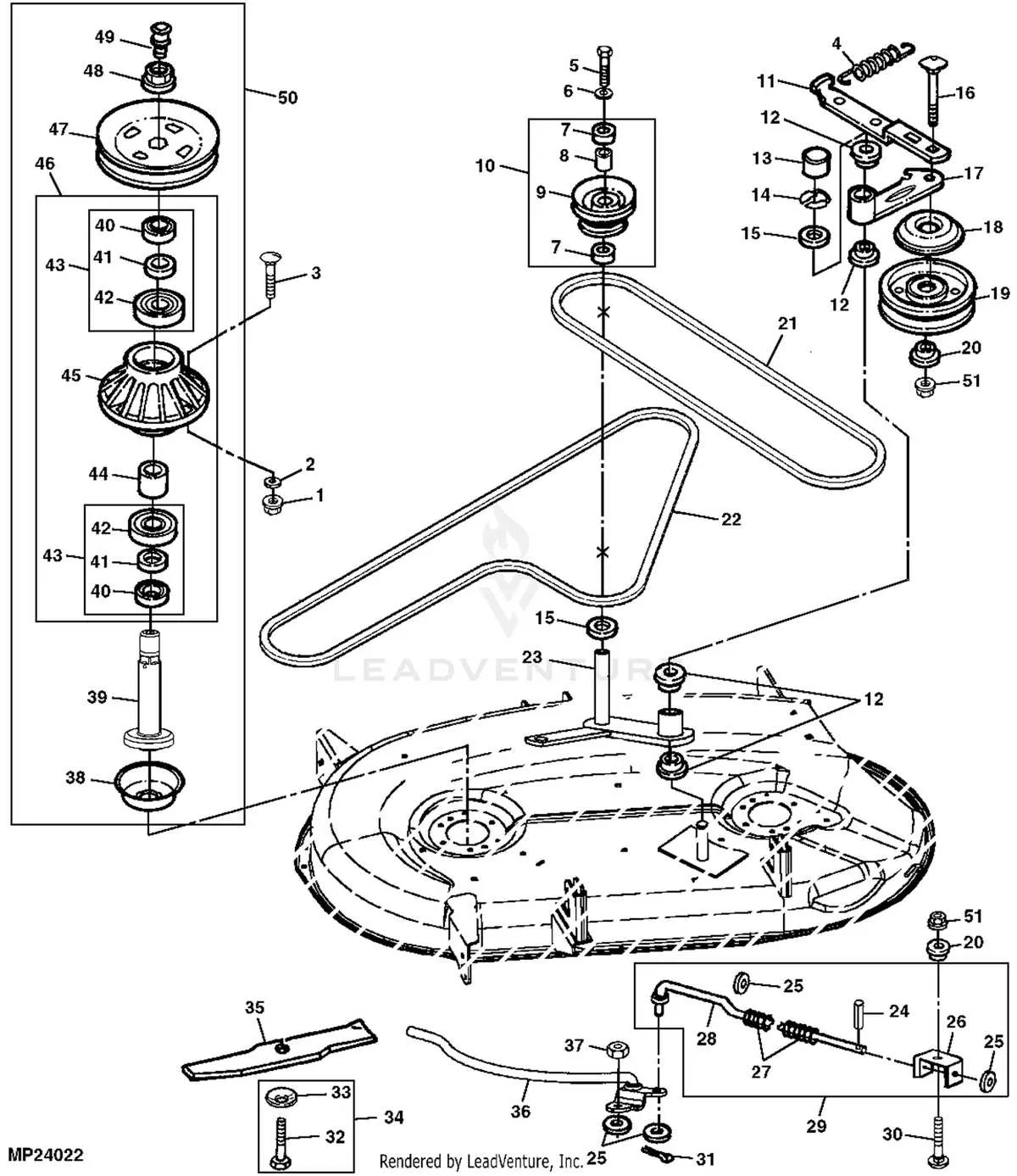

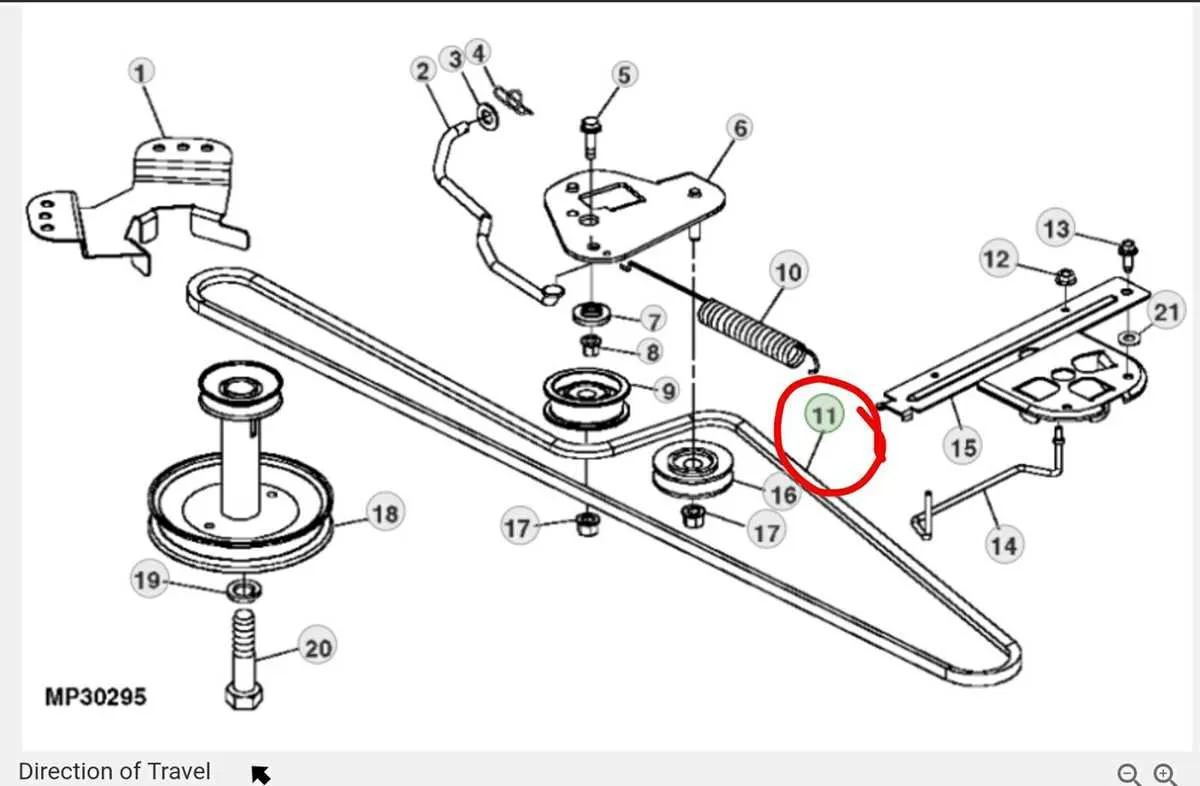

John Deere 42-Inch Deck Belt Diagram

To replace the belt on your John Deere 42-inch deck, you need to follow the exact belt routing as shown in the diagram. Ensure the belt is the correct size for your specific model before starting the replacement process. A standard 42-inch deck uses a serpentine-style belt, which is commonly used to power multiple deck components like blades and pulleys.

The belt should be routed through each pulley and around the tensioner with proper tension to avoid slipping or damage. Refer to the belt diagram for precise details on the path the belt takes across the system. Incorrect routing or insufficient tension can lead to decreased performance or premature wear.

Here’s a quick checklist for the replacement process:

• Ensure the mower is turned off and the ignition key is removed.
• Lift the deck and secure it to provide easy access to the belt and pulleys.
• Loosen the belt tensioner to relieve pressure on the belt.
• Remove the old belt and inspect the pulleys for any wear or damage before installing the new belt.
• Route the new belt according to the diagram, making sure it fits snugly over each pulley and tensioner.
• Re-tighten the belt tensioner to ensure the proper belt tension.

Once installed, test the mower to confirm that the belt is properly routed and tensioned. If any issues arise, double-check the belt’s path and tension before continuing to operate the mower.

How to Identify the Correct Belt Size for Your John Deere 42-Inch Deck

To determine the correct belt size for your John Deere 42-inch deck, start by checking the model number of your mower. This can typically be found on the frame or under the seat. Use the model number to cross-reference with the manufacturer’s manual or official John Deere parts catalog.

Next, measure the length of the old belt if available. Use a measuring tape to get an accurate measurement of the belt’s outer circumference. Compare this measurement to the specifications in the parts catalog. If your belt is damaged or missing, it’s best to use the part number provided by John Deere to ensure compatibility.

Check the belt’s width as well. A belt that is too wide or too narrow will not function properly, causing wear or potential damage. The width of the belt should match the original specification in your mower’s manual or parts diagram.

Finally, verify the belt’s style. John Deere offers different belt types, including V-belts and serpentine belts. Ensure you are selecting the right type for your model. Using the correct belt type and size guarantees proper tension and functionality, helping maintain the mower’s performance.

Step-by-Step Instructions for Installing the 42-Inch Deck Belt on a John Deere Mower

1. First, disengage the mower’s drive system by turning off the engine and removing the key from the ignition. This will ensure safety during the installation process.

2. Raise the mower deck to its highest position using the deck lift lever. This will provide easier access to the belt and pulleys.

3. Locate the old deck belt and note its routing around the pulleys. This step will be useful for proper installation of the new belt. If necessary, refer to the mower’s manual for a detailed diagram.

4. Using a wrench, remove the fasteners that hold the old belt in place. Carefully take the belt off the pulleys and discard it.

5. Before installing the new belt, inspect the pulleys and tensioners for any signs of wear or damage. Replace any faulty parts as needed to ensure smooth operation.

6. Begin threading the new belt through the mower’s pulleys according to the diagram. Ensure the belt is aligned properly to avoid misrouting, which could cause operational issues.

7. Once the belt is in place, check its tension by applying slight pressure. The belt should be tight but still have a small amount of give when pressed. Adjust the tension if necessary by manipulating the tensioner pulley.

8. Reattach any fasteners that were removed earlier, securing the belt in place. Double-check all connections to ensure they are tight and secure.

9. Lower the mower deck back to its normal position and start the engine to test the belt’s performance. Ensure that the mower runs smoothly and the belt does not slip or make unusual noises.

10. If the belt appears to be functioning correctly, finish by inspecting the mower one last time before putting it back into regular use.

Common Issues with the 42-Inch Deck Belt and How to Fix Them

If your John Deere 42-inch deck belt is slipping or showing signs of wear, inspect it closely for cracks, fraying, or stretching. These issues can cause the belt to malfunction, leading to poor mower performance.

One common issue is belt slippage, usually caused by incorrect tension or a worn-out spring. To fix this, adjust the tension by tightening the spring or replacing it if necessary. Always ensure the belt is properly routed along the pulleys according to the manufacturer’s diagram.

Another issue is a misaligned belt, which can occur when pulleys or brackets are damaged or worn. Inspect the pulleys for signs of wear or damage and replace them if needed. Misalignment can also be caused by debris buildup, so make sure to clean the area thoroughly and check that all components are correctly aligned.

If the belt is stretched and no longer fits snugly around the pulleys, it may need to be replaced. Over time, belts naturally lose their elasticity, and replacing a stretched belt is the only solution. Make sure to use the exact replacement part recommended by John Deere to ensure proper fit and performance.

In some cases, the deck may be obstructed by debris, preventing the belt from functioning properly. Check the deck for grass clippings, twigs, or other objects that could interfere with the belt’s movement. Cleaning the deck regularly can prevent such issues.
