John Deere 42 Snow Thrower Belt Diagram and Maintenance Guide

Ensure your John Deere 42 Snow Thrower operates smoothly by understanding the belt layout. The correct belt diagram is crucial for proper maintenance and avoiding unnecessary wear. Check the belt regularly for signs of damage and replace it when necessary to maintain optimal performance.

The diagram shows how the belt should be routed around the pulleys, which is essential for preventing slippage and ensuring the snow thrower works at full capacity. Follow the steps in the diagram carefully to avoid mistakes that could lead to malfunction or reduced efficiency.

Replace the belt following the instructions, and take note of the belt size and specifications to ensure you’re using the right part for your model. The diagram also highlights key maintenance points to check, helping you prolong the life of the equipment.

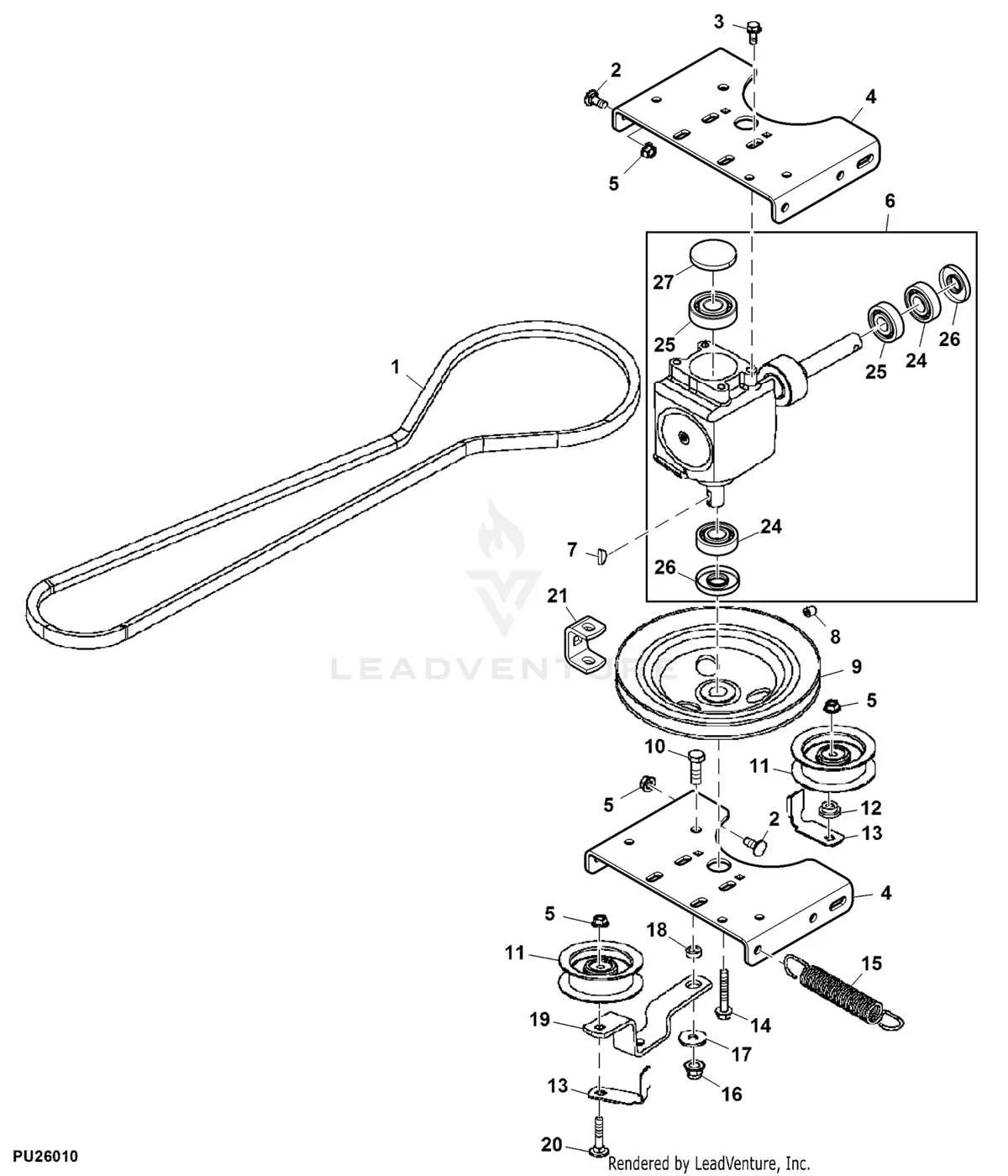

John Deere 42 Snow Thrower Belt Diagram

Inspect the belt routing before performing maintenance on the John Deere 42 snow thrower. The belt connects the engine pulley to the auger and drive pulleys, transferring power for snow clearing. Examine the belt for signs of wear such as fraying or cracks. If necessary, replace the belt to maintain performance.

To replace the belt, lift the snow thrower and remove the cover to access the components. Identify the proper routing based on the diagram. The belt should pass over the idler pulley, then route to the auger and drive pulleys. Ensure the belt fits snugly but is not over-tightened to avoid unnecessary strain on the pulleys.

Check the belt’s tension after installation. A correctly tensioned belt will function without slipping. Rotate the pulleys by hand to confirm the belt is aligned and moves smoothly. After ensuring proper setup, reassemble the unit and perform a test to verify the system works as intended.

Understanding the Belt Routing on John Deere 42 Snow Thrower

The belt routing on the John Deere 42 Snow Thrower is a crucial aspect of its operation. Correct routing ensures the smooth functioning of the snow thrower and prevents damage to the system. Follow these steps for proper belt routing:

• Start by ensuring the snow thrower is powered off and all moving parts are stationary.
• Locate the main drive pulley at the engine, which drives the belt system.
• The belt should pass over the tensioner pulley to maintain appropriate tension during operation. Make sure the belt is aligned properly on this pulley to avoid slippage.
• Route the belt around the auger pulley, making sure it is tight and sits securely in the groove without twisting.
• Double-check the belt’s position around the idler pulley, which helps maintain the correct tension throughout the system.
• Ensure that the belt moves freely across all pulleys when manually rotated. If any resistance is felt, adjust the position or inspect for possible blockages.
• Reinstall any covers or shields that protect the belt system from debris or damage.

Properly routed belts enhance the performance and longevity of your John Deere 42 Snow Thrower, reducing the risk of wear and increasing efficiency. Always refer to the operator’s manual for specific guidelines and troubleshooting tips related to belt routing.

How to Replace the Snow Thrower Belt on a John Deere 42

To replace the snow thrower belt on a John Deere 42, begin by disconnecting the spark plug to prevent accidental starts. Lift the front of the snow thrower to access the belt area.

Next, locate the belt tensioner. Use a wrench to relieve tension on the belt. Carefully remove the old belt from the pulleys and discard it.

Take the new belt and position it on the pulleys, ensuring it fits correctly in the grooves. Reinstall the tensioner to apply pressure to the belt, securing it in place.

Lower the front of the snow thrower and reconnect the spark plug. Start the machine to check that the belt is properly installed and functioning smoothly. Make adjustments if necessary.

Common Belt Issues and How to Troubleshoot on John Deere 42 Snow Thrower

If your John Deere 42 snow thrower isn’t performing well, it’s often due to belt issues. The most common problem is the belt slipping off or becoming too loose, causing the auger or impeller to stop working. To troubleshoot, first check if the belt is correctly routed through the pulleys and ensure it’s not worn or cracked.

Another issue is a stretched belt. Over time, belts lose tension, which reduces performance. Replace the belt if it appears worn or stretched. Adjust the tensioning system if possible to ensure the belt remains tight during operation.

In some cases, dirt, snow, or ice buildup around the belt can cause it to slip. Regularly clean the area around the belt to prevent this. If the belt is slipping on the pulleys, inspect the pulleys for wear or damage and replace any faulty parts.

Inspecting the spring-loaded idler pulley is also important. If the idler pulley is damaged or loose, it can affect the tension on the belt. Tighten or replace the idler pulley as needed to maintain proper belt tension.
