John Deere 325 Drive Belt Diagram and Maintenance Guide

If you’re experiencing issues with your John Deere 325 drive belt, understanding the belt layout can save you time and effort. The drive belt is a crucial part of the mower’s operation, linking the engine to the mower deck and rear wheels. Having the right diagram on hand helps you identify the correct routing and avoid unnecessary mistakes during replacement.

First, locate the belt routing diagram in the owner’s manual or on a decal attached to the mower’s frame. This visual guide will show you the correct path for the drive belt, ensuring it aligns with the pulleys and tensioners properly. Make sure to check for any wear or damage to the belt, as a worn-out belt can cause slipping and reduce performance.

Next, follow the diagram closely when installing the new belt. Begin by releasing the tension on the existing belt, typically by adjusting the idler pulley. Once the old belt is removed, carefully route the new belt according to the diagram, ensuring it fits snugly in each pulley groove. Double-check all connections before reapplying tension to avoid misalignment.

Regular maintenance of the drive belt will extend the life of your John Deere 325 and improve its efficiency. Inspect the belt periodically for signs of wear, such as fraying or cracking, and replace it as needed. A quick visual inspection of the belt and pulleys can prevent more significant issues down the line.

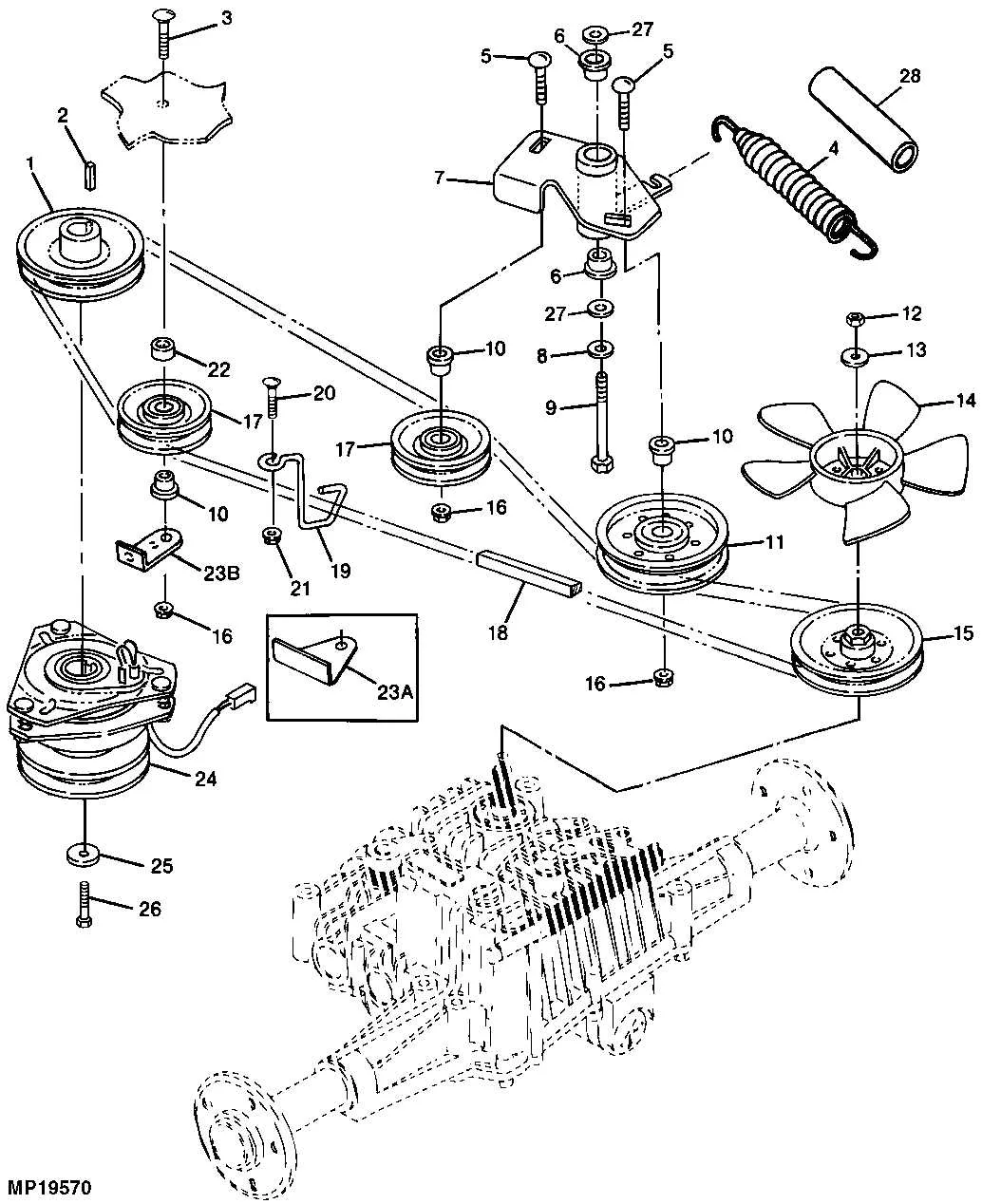

John Deere 325 Drive Belt Diagram

To replace or inspect the drive belt on your John Deere 325, refer to the diagram below for precise routing instructions. The drive belt plays a critical role in transferring power from the engine to the wheels, ensuring proper operation of the mower. It’s important to replace a worn belt promptly to maintain the machine’s efficiency.

Step 1: Disconnect the battery to avoid accidental starts while working on the mower. This will ensure your safety throughout the process.

Step 2: Lift the mower deck. This provides easy access to the drive belt and pulleys. Depending on the model, you might need to remove the deck entirely for a more thorough inspection.

Step 3: Locate the drive belt. It loops over multiple pulleys, typically including the engine pulley, transmission pulley, and the deck pulley system. If the belt has snapped or become damaged, you’ll need a replacement with the exact same specifications for proper operation.

Step 4: Follow the diagram to correctly route the new belt around the pulleys. Make sure the belt is seated in the correct grooves on each pulley to avoid slipping or excessive wear. The diagram shows the proper alignment and the direction in which the belt should be installed.

Step 5: Reassemble any parts you removed to access the belt, ensuring that everything is tightened and secured as per the manufacturer’s instructions.

Step 6: Test the mower by running it at idle speed to check for any unusual noises or slipping. If everything operates smoothly, you’re all set!

Make sure to check the belt tension after installation. A loose or overly tight belt can cause issues with performance and premature wear. Regular maintenance checks will help keep your John Deere 325 running like new.

How to Locate and Identify the Drive Belt in John Deere 325

To locate the drive belt in your John Deere 325, first lift the hood to access the engine compartment. The drive belt runs from the engine’s pulley system to the transmission, powering the mower deck and wheels. It’s typically visible near the front of the engine, running along a series of pulleys. If the belt isn’t immediately visible, look for the idler pulleys and tensioners as they guide the belt’s path.

Before proceeding with any work, ensure the mower is turned off, and the engine is cool. Next, follow the belt from the engine to the transmission and note how it wraps around the various pulleys. The main drive belt will usually be larger and thicker than the smaller belts that drive other components. For easier access, you may need to remove the mower deck or other obstructions, depending on the model year.

If you need to identify a worn or damaged belt, check for cracks, fraying, or any signs of wear along the length of the belt. It should fit snugly without excessive slack or tension. A properly fitted belt will align evenly across the pulleys and rotate smoothly when the engine is engaged. If the belt appears loose or shows signs of damage, it’s time for a replacement.

Step-by-Step Guide to Replacing the Drive Belt on John Deere 325

Start by raising the tractor using a jack or lift to ensure access to the underside. Make sure the ignition is off and the engine is cool before proceeding.

Remove the deck by loosening the pins and bolts. This will give you better access to the drive belt area.

Once the deck is off, locate the drive belt. It runs around the engine pulley, idler pulley, and transmission pulley. Take note of the current routing, as you’ll need to replicate it with the new belt.

Next, release the tension on the belt. To do this, locate the idler pulley, and use a wrench or ratchet to release the tension by moving it away from the belt.

Remove the old belt carefully from all pulleys. Be sure not to damage any components while doing this.

Now, place the new drive belt around the engine pulley, making sure it sits properly. Follow the belt’s routing around the other pulleys, ensuring it’s seated correctly in each groove.

Once the belt is in place, apply tension to the idler pulley again to secure the belt in place. You may need to adjust the tensioner to ensure the belt is tight enough, but not too tight.

Reinstall the mower deck, tightening all pins and bolts securely. Double-check that the belt is properly routed and has the right amount of tension.

Finally, test the tractor by running it at a low speed to ensure the belt operates smoothly and everything is functioning correctly.

Common Issues with the Drive Belt and Troubleshooting Tips

If your John Deere 325 drive belt is slipping, check for signs of wear or debris buildup. A worn-out belt will lose grip and cause performance issues. Inspect the belt for fraying, cracks, or glazing. If these signs are present, replacing the belt is the best solution.

Another common issue is improper tension. A loose drive belt can slip and result in inefficient power transfer. Use the tension adjustment procedure in the manual to tighten the belt. If the adjustment doesn’t help, check for misalignment in the pulleys that could be causing the issue.

If the belt keeps coming off, the alignment of the pulleys may be off. Inspect the pulleys for wear or damage, ensuring they are aligned properly. Any bent or misaligned pulley will cause the belt to move out of place. Replace any faulty pulleys if needed.

Excessive noise during operation could indicate that the belt is too tight. Check the belt tension again, and if the noise persists, inspect the bearings in the pulleys. Worn-out bearings will increase friction, causing noise and potential damage to the belt.

For smoother operation, regularly clean the drive belt area. Dirt, grass clippings, or oil can accumulate on the belt, affecting its performance. Use a soft brush or cloth to clean the components without causing any damage.

Lastly, keep an eye on the belt’s routing. Make sure the belt is routed according to the diagram in the manual. Incorrect routing can lead to overheating and premature wear.
