John Deere 165 Drive Belt Diagram and Replacement Guide
The drive belt on your John Deere 165 plays a vital role in powering the mower’s functions, so understanding how it’s routed and maintained can save you time and headaches. Referencing a drive belt diagram is the most efficient way to ensure the belt is correctly installed and tensioned. This will help avoid wear, slipping, or misalignment issues that can hinder your mower’s performance.
Start by locating the diagram in your owner’s manual or consult reliable online resources to get a clear visual of the correct belt routing. This diagram will outline the path the drive belt takes across pulleys and tensioners, ensuring you install the replacement belt without confusion. Pay close attention to the tensioner pulleys, as these play a key role in keeping the belt taut.
Once the belt is properly aligned, check for any fraying or signs of damage. A well-maintained drive belt ensures your mower operates smoothly, making your lawn care tasks more efficient. Make sure to keep the diagram handy for future maintenance and quick fixes when needed.
John Deere 165 Drive Belt Diagram
To replace or inspect the drive belt on your John Deere 165 lawn tractor, refer to the following diagram for accurate belt routing. This guide will help you avoid confusion and ensure smooth operation of the machine.
The drive belt on the John Deere 165 is responsible for transferring power from the engine to the wheels, enabling movement. Start by identifying the belt path, as shown in the diagram, which clearly illustrates how the belt runs from the engine pulley, through the idler pulleys, and onto the transmission. Pay close attention to the tensioner and idler pulleys, as improper installation can lead to premature wear or malfunction.
Before starting, make sure to safely disengage the spark plug to prevent accidental engine starts. Remove the mower deck if needed to gain better access to the belt. Once you’ve located the belt, check for any visible signs of wear or cracks. If the belt is in poor condition, it’s time to replace it with the correct model for your John Deere 165.
The diagram below will assist in ensuring correct routing during installation. Follow the sequence carefully, making sure the belt is aligned properly with all pulleys. Double-check the tension on the belt once it’s in place; it should have slight tension but shouldn’t be overly tight.
Reassemble any parts you removed for access, and run the tractor to test the new belt. Listen for any unusual noises that may indicate misalignment or improper tension. Adjust the belt if necessary, making sure the tensioner is functioning correctly.
How to Identify the Correct Drive Belt for John Deere 165
Check the model number of your John Deere 165 mower. You can usually find it on the frame or near the engine. This will help you find the correct belt type and size for your machine.
Next, gather the specifications of the drive belt. The manufacturer’s manual provides detailed information, including the belt length, width, and material. If you don’t have the manual, use online resources or visit your local dealer for assistance.

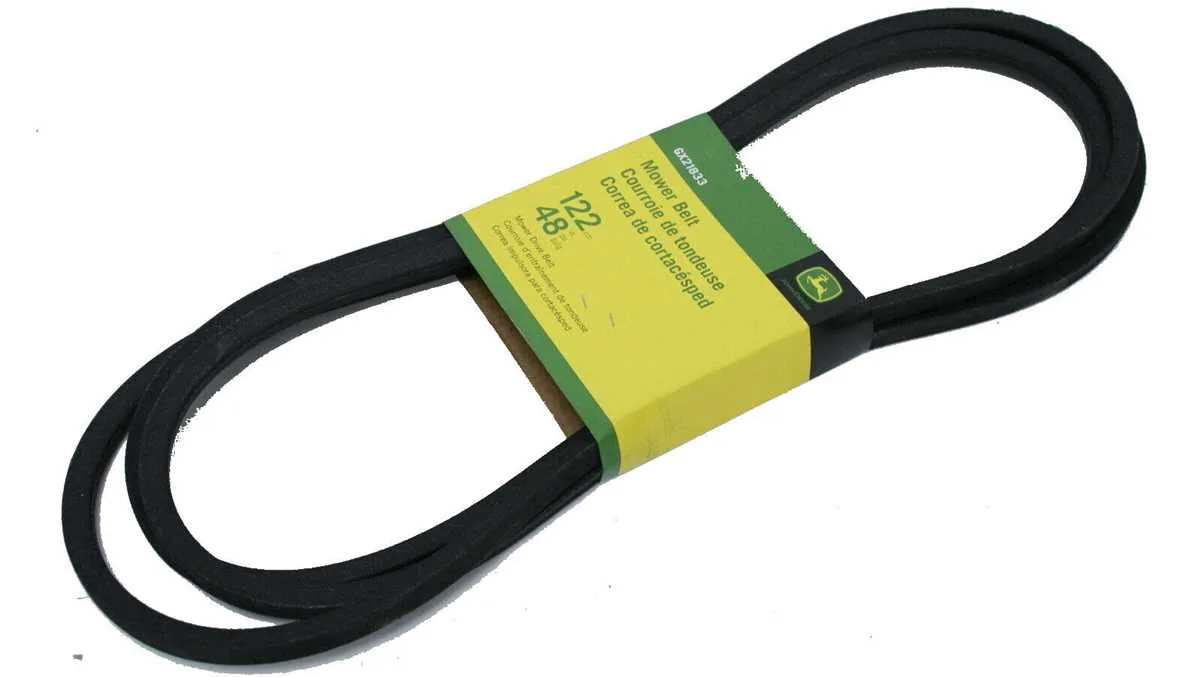

When buying a replacement, verify the belt’s dimensions. Measure the old belt’s length and width, and cross-check the part number for a match. If the original belt is worn out or damaged, it’s essential to replace it with a belt of the same size and material to ensure optimal performance.
Use the following steps to confirm the correct drive belt:
- Measure the old belt’s length and width.
- Note the part number from the existing belt, or check the mower’s manual for recommended belt specs.
- Visit a local dealer or check online for the exact part number for the John Deere 165 drive belt.
- Ensure the material of the replacement belt matches the original to maintain proper durability and flexibility.
Make sure the new belt is compatible with the specific configuration of your mower’s deck and engine. Using the wrong belt size or type may cause damage or inefficient operation.

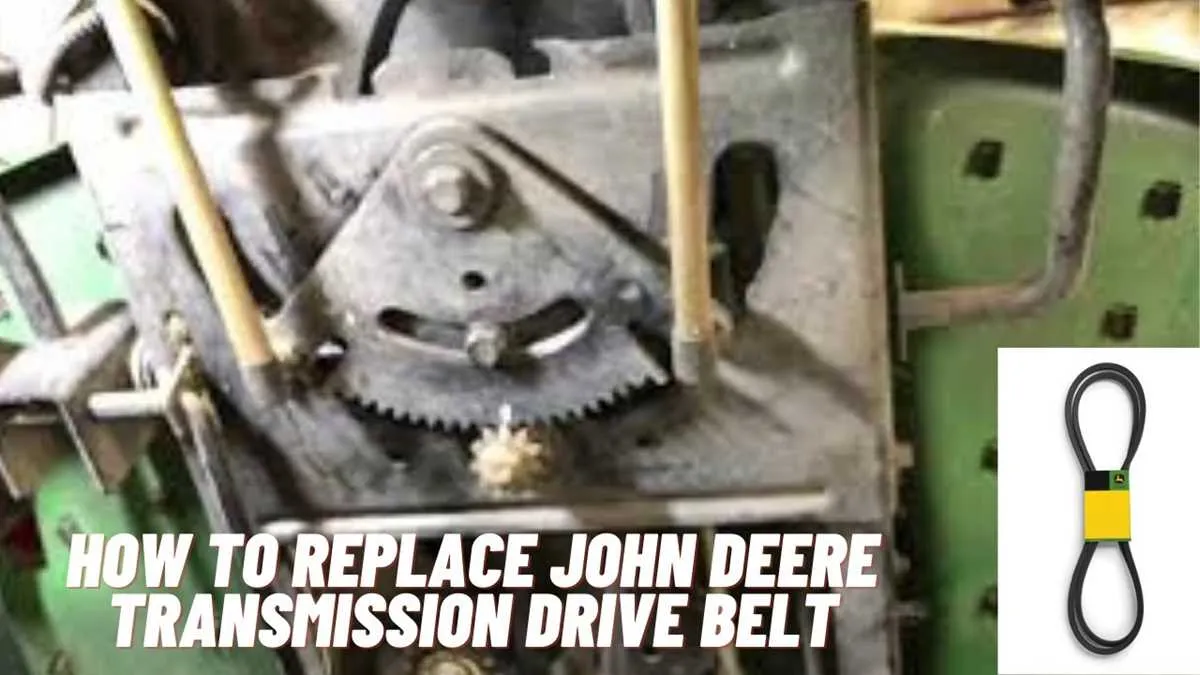

Step-by-Step Guide to Replacing the Drive Belt on John Deere 165
To replace the drive belt on a John Deere 165, follow these steps carefully to ensure a smooth repair process.
1. Lift the Mower Deck
Raise the mower deck to its highest setting. This will provide enough space to access the belt and other components. Use a jack or lifting equipment if needed for additional clearance.
2. Disconnect the Battery
Disconnect the negative terminal of the battery to prevent any accidental electrical short circuits or starts while working.
3. Remove the Mower Deck
To gain full access to the drive belt, you will need to remove the mower deck. Start by loosening the deck engagement lever, then disconnect any bolts or fasteners securing the deck to the mower. Slide the deck out carefully.
4. Identify the Drive Belt Path
Before removing the old belt, examine the belt routing on the tractor. Take note of how the belt is threaded around the pulleys and idlers. This will be your guide for installing the new belt.
5. Remove the Old Drive Belt
Release the tension from the belt by loosening the tensioner pulley. Once the tension is relieved, remove the old drive belt from the pulleys, starting from one end and working your way through the system.
6. Install the New Drive Belt
Position the new belt on the pulleys following the path you noted earlier. Be sure it is aligned correctly with the idlers, tensioner, and other components. The belt should sit properly in the grooves of each pulley.
7. Reapply Tension
Adjust the tensioner pulley to apply the proper tension to the new belt. Make sure the belt is tight but not over-stretched. It should have minimal slack, allowing it to operate smoothly without slipping.
8. Reinstall the Mower Deck
Once the belt is properly installed and tensioned, slide the mower deck back into place and secure it with the bolts and fasteners. Ensure everything is tight and in position.
9. Reconnect the Battery
Reconnect the negative terminal of the battery. Check that all connections are secure and ready for operation.
10. Test the System
Start the engine and engage the mower deck. Observe the operation of the new belt and ensure it runs smoothly, without any unusual noises or slippage. Make any adjustments if needed.
Common Drive Belt Issues on John Deere 165 and How to Troubleshoot Them
If the drive belt on your John Deere 165 starts slipping or making unusual noises, it’s time to check the belt’s condition. A worn-out, loose, or misaligned belt can affect the mower’s performance and efficiency.
First, inspect the belt for visible signs of wear such as cracks, frays, or stretching. A damaged belt will need replacement. If the belt looks fine, check the tension. A loose belt can cause slipping, reducing power transfer. Adjust the tension according to the specifications in the manual, making sure the belt sits snugly on the pulleys.
Next, check the alignment of the belt. If it’s misaligned, the belt will not track properly, leading to premature wear or failure. Adjust the pulleys or replace them if they are worn out or damaged. Misalignment is often caused by a faulty pulley or an incorrect installation angle.
Inspect the pulleys for any damage or build-up of debris. Dirty or damaged pulleys can create additional friction, leading to belt wear. Clean the pulleys thoroughly and ensure they rotate freely. If you notice any irregularities, consider replacing the pulley.
Check the tension spring on the mower’s deck. If it is weak or broken, it may not provide enough tension to keep the belt in place. Replacing the spring can often resolve tension-related issues.
If the belt squeals or slips while the mower is in use, it could indicate an issue with the clutch or other components in the system. Inspect these parts for any wear and replace them if necessary.
Lastly, ensure you’re using the correct replacement belt. Using a non-compatible belt can lead to premature failure. Always refer to the John Deere 165’s manual to confirm the right part number for your model.
