Belt Diagram for John Deere LA145 Maintenance and Setup Guide

The belt diagram for the LA145 John Deere lawn tractor is a critical reference for proper maintenance and repair. If you need to replace the belts or troubleshoot any issues, following the exact layout ensures proper functionality. This diagram provides clear guidance on how to route the belts, ensuring the correct connection between all components.

Start by identifying the components that the belt interacts with. The main belt connects the engine to the mower deck and other essential parts. Pay attention to the routing, as an incorrect setup can lead to wear or malfunction of the system. Review the tensioner placement and the path the belt follows through pulleys to ensure alignment with the diagram.

Regular maintenance is key to prolonging the lifespan of both the belts and the engine. Always inspect the belts for signs of wear or damage. If a belt is loose or misaligned, refer to the diagram to adjust the routing. Proper belt tension can prevent slippage and improve performance.

Belt Diagram for LA145 John Deere

The LA145 John Deere mower uses a specific belt configuration to drive various components like the blades and engine accessories. Understanding the belt diagram is crucial for proper maintenance and repairs. If the belt shows signs of wear, it’s vital to replace it promptly to avoid further damage or operational issues.

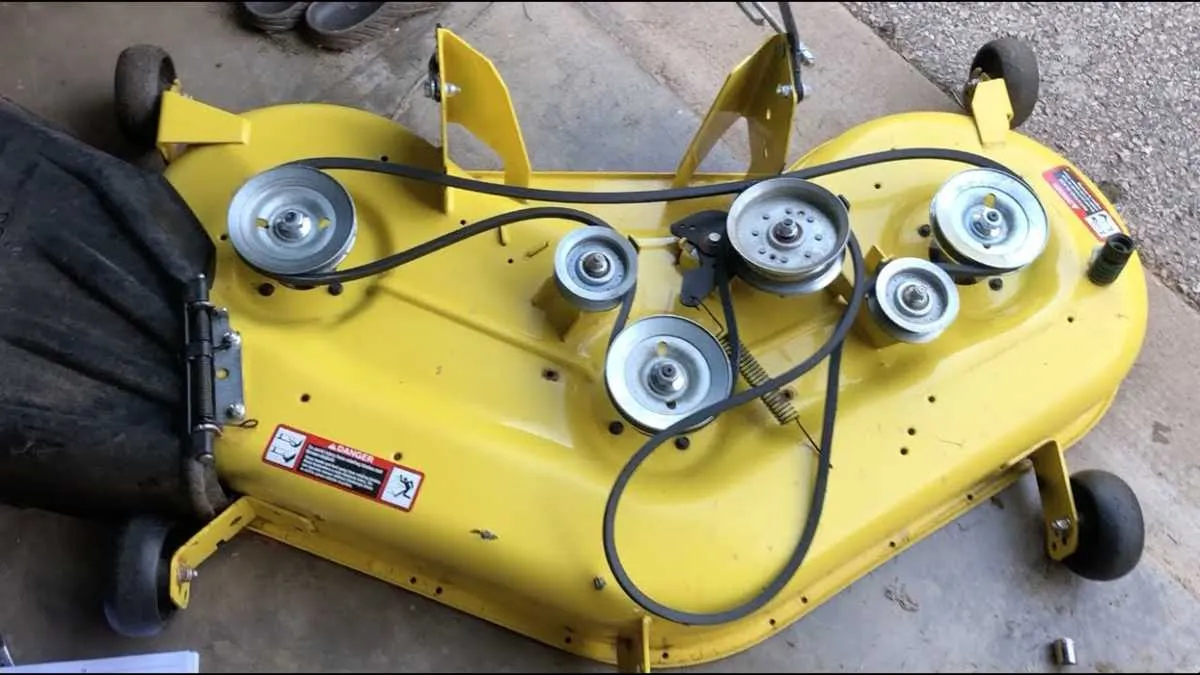

Start by ensuring the mower is turned off and the engine is cool. Check the routing of the belt according to the diagram, which will show how the belt wraps around the engine pulley, tensioner, and spindles. The diagram ensures the belt is installed correctly, with no slack, which could lead to slippage or excessive wear.

One common issue with the LA145 belt system is improper tension. If the belt is too loose, it can slip off or not engage fully. On the other hand, a belt that is too tight can cause undue stress on the pulleys and tensioner. Always inspect the tensioner for signs of damage or wear, as this can impact the overall performance of the system.

When replacing the belt, ensure the new one matches the specifications outlined in the manual. Mismatched belts may not fit properly, affecting the mower’s performance. Additionally, check for any obstructions or damage to the pulleys or spindles before installing the new belt.

To make the installation easier, you may want to use a belt installation tool or a wrench to adjust the tensioner. Once the new belt is in place, rotate the pulleys manually to ensure the belt is properly aligned and there’s no resistance.

Step-by-Step Guide to Installing the Belt on LA145 John Deere

1. Begin by ensuring the engine is turned off, and the key is removed from the ignition. For safety, disconnect the battery before proceeding.

2. Lift the mower deck to its highest position. This will give you enough space to work around the belt system and access all necessary components.

3. Remove the belt guard. Use a wrench or socket to remove any bolts holding the guard in place. This will expose the belt and its pulleys.

4. Locate the tension spring that applies pressure to the belt. Use pliers to remove the spring from its anchor point to relieve the tension on the belt.

5. Detach the old belt from the pulleys. Take note of how the belt is routed around each pulley to ensure correct installation of the new belt.

6. Place the new belt around the pulleys, following the same path as the old belt. Start from the engine pulley and work your way through the other pulleys in the system.

7. Once the belt is correctly positioned, reattach the tension spring to apply proper tension to the belt.

8. Reinstall the belt guard and secure it with the bolts you previously removed.

9. Finally, test the belt by turning the engine on and engaging the blades. Ensure the belt runs smoothly and there is no unusual noise or slipping.

Common Issues with the LA145 Belt System and How to Fix Them

If the belt on your LA145 John Deere mower starts slipping or making strange noises, it’s time to inspect the system for common issues. One of the first things to check is the tension. A loose belt will slip and cause poor performance. To fix this, adjust the tensioner to ensure the belt is tight enough. If the belt continues to slip, consider replacing the tensioner spring if it’s worn out.

Another common problem is belt misalignment. This can happen if the pulleys or guides become damaged or misaligned over time. Check the pulleys for any signs of wear or debris that might cause friction. If necessary, replace the pulleys or clean them thoroughly to restore proper alignment.

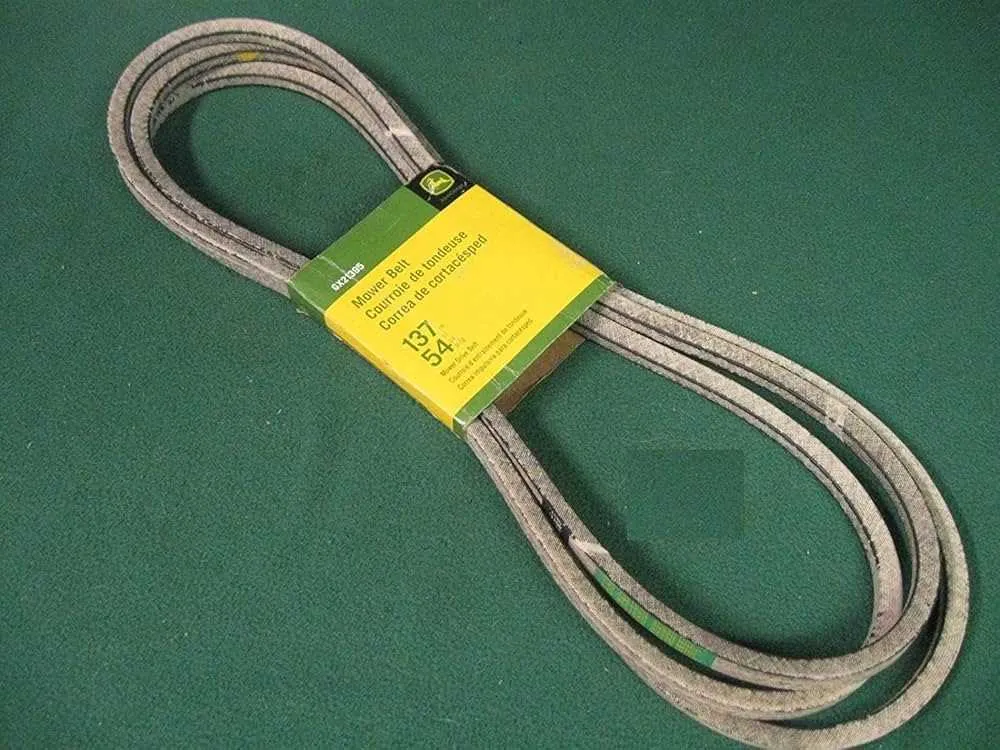

A worn or damaged belt itself is another issue. If the belt has cracks, fraying, or visible wear, it’s time for a replacement. Installing a new, properly sized belt can resolve issues related to power transmission and performance. Ensure the belt matches the specifications for the LA145 to avoid further complications.

If the belt is squealing, it could indicate a buildup of dirt or debris around the pulleys. Clean the area carefully to remove any buildup. Also, check for any debris caught in the belt path, which can prevent smooth operation. Regular cleaning can prevent this issue from recurring.

Lastly, check the idler pulley and its bearings. If these components wear out, they can cause the belt to move irregularly or become slack. Replacing worn bearings or the entire idler pulley can restore smooth function to the system.

Understanding the Role of Each Belt Component in the LA145 John Deere

The LA145 John Deere’s belt system consists of several key components, each with a specific function to ensure smooth operation. Understanding these parts helps in maintaining and troubleshooting the system efficiently.

• Primary Drive Belt: This belt is responsible for transferring power from the engine to the mower deck. It ensures the mower blades rotate, providing cutting power to the lawnmower.
• Idler Pulley: The idler pulley maintains tension on the primary drive belt. It helps to keep the belt running smoothly, reducing wear and tear over time.
• Deck Pulley: The deck pulley connects to the mower deck and works with the drive belt to power the blades. It is crucial for blade rotation and cutting efficiency.
• Engine Pulley: This component links directly to the engine and drives the primary belt. It plays a pivotal role in ensuring that the engine’s power is effectively transferred to the mower deck.
• Tensioner: The tensioner maintains the correct tension on the belt system. Proper tension ensures optimal performance and helps prevent belt slippage or premature wear.
• Secondary Belts: These belts work in tandem with the primary drive belt and other components to provide power to other parts of the machine, such as the cooling fan or transmission.

Regular inspection of these components ensures that the belt system in the LA145 operates without issue. Replace any worn-out parts promptly to avoid damage to the entire system.
