Belt Diagram for John Deere L120 Tractor Detailed Overview
To maintain optimal performance of your John Deere L120 lawn tractor, accurate belt routing is crucial. Ensure you follow the exact diagram for proper installation to avoid unnecessary wear and tear on components.
The belt system of the L120 consists of multiple belts, each serving a specific function, such as driving the mower deck or the engine. Make sure to replace belts with the correct specifications and follow the manufacturer’s guidelines for proper tension.
When replacing the belts, start by disconnecting the battery to ensure safety. Follow the routing diagram closely, paying attention to the direction of the belt teeth and the pulleys they engage with. This will prevent incorrect installations that could lead to malfunction or premature wear.
Regularly check the condition of your belts. If you notice cracking, fraying, or any loss of tension, replace them immediately. This will prolong the lifespan of both the belts and other related parts like pulleys and tensioners.

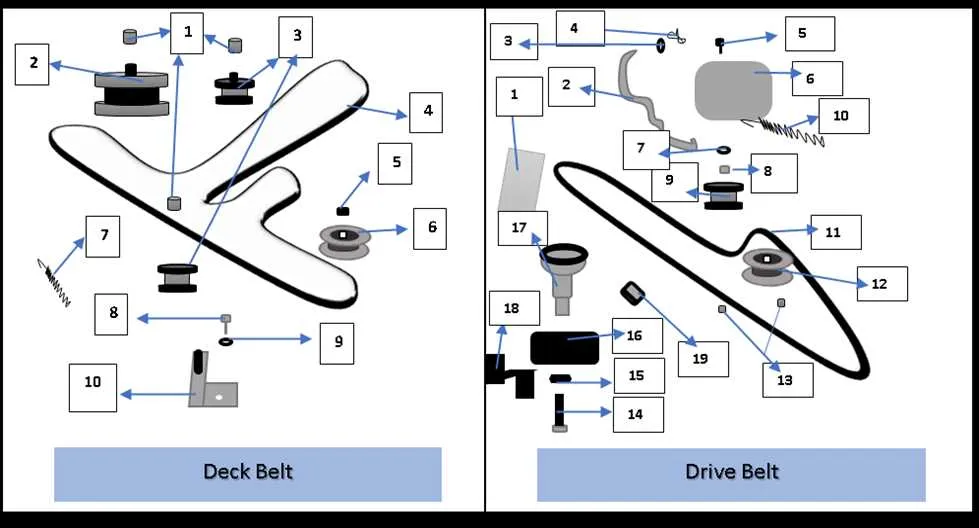

Belt Diagram for John Deere L120
The John Deere L120 uses a specific belt system to drive various components like the blades, engine, and transmission. To replace or repair the belt, follow the routing diagram carefully for the best results.
First, identify the main drive belt that connects the engine’s crankshaft pulley to the transmission pulley. This belt is crucial for powering the mower’s wheels. Ensure the belt is properly tensioned; a slack belt may cause the mower to lose power or stall.

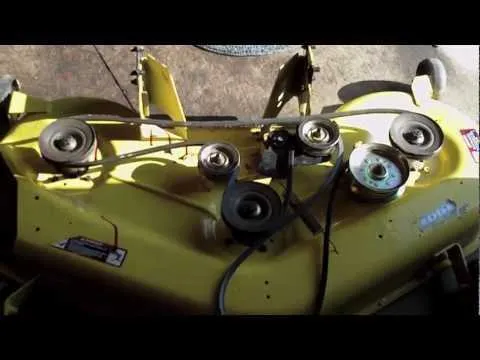

Next, locate the deck drive belt, which connects the engine to the mower deck. This belt drives the blades, so check it for any visible wear or damage. If the belt is cracked or frayed, it needs replacement. Refer to the diagram to ensure proper routing around pulleys and idlers.
Pay attention to the idler pulleys and springs. The tension spring should be securely attached and the idler pulley should rotate freely. A malfunctioning idler can cause the belt to slip off or fail prematurely. Use the diagram to confirm the correct placement of these components.
Before reassembling, inspect the pulleys and idlers for any signs of wear. Misaligned or damaged parts can lead to premature belt wear or failure. Once everything is in place, test the mower’s operation to ensure the belt runs smoothly and efficiently.
How to Read the Belt Diagram for John Deere L120
Identify the components involved in the belt system by locating the various pulleys and idlers shown in the diagram. Pay attention to the direction of the arrows indicating belt routing. This shows how the belt should loop around the pulleys for proper operation.
Start with the engine pulley and follow the path of the belt. Ensure that the belt follows the correct routing over the pulleys, idlers, and tensioners. If the diagram shows a spring-loaded tensioner, check that the belt fits properly within the tensioner’s range to maintain correct tension.
Look for any notations in the diagram about the orientation of the pulleys. Sometimes pulleys have specific features, such as ribs or grooves, which need to be aligned with the belt’s grooves. This is crucial for optimal performance and to avoid premature wear.
Compare the belt diagram with the actual layout on your machine. If the belt seems misaligned or the routing doesn’t match, check the pulleys for damage or misplacement. A visual inspection can reveal if the components are worn or improperly positioned.
Use the diagram to confirm belt length and type, as incorrect belt dimensions can lead to malfunctioning or excessive wear. If you’re replacing the belt, make sure the new belt matches the specifications shown in the diagram.
Steps to Replace the Belt on John Deere L120
To replace the belt on your John Deere L120, follow these steps to ensure a proper installation.
- Lift the front of the mower using a jack to provide easy access to the underside of the deck.
- Remove the belt covers from the deck. These can be secured with screws or bolts, depending on your model.
- Take note of the current belt routing by referencing the diagram for your L120 or taking a picture. This will help when installing the new belt.
- Release the tension on the belt by loosening the idler pulley. Use a wrench to loosen the bolt holding it in place.
- Carefully remove the old belt from the pulleys and discard it.
- Place the new belt onto the pulleys, following the routing instructions. Ensure that it sits correctly in each pulley groove.
- Reapply tension to the belt by tightening the idler pulley bolt.
- Check that the belt moves smoothly through the pulleys by rotating them by hand.
- Reattach the belt covers to the deck.
- Lower the mower and test the operation by starting the engine and running the mower briefly. Verify that the belt runs smoothly without slipping or making unusual noises.
Replacing the belt is straightforward, but always double-check that it is correctly installed before using the mower again.
Common Issues with the Belt System on John Deere L120
Worn or Damaged Belts: Over time, belts on the John Deere L120 can wear out, causing slippage, loss of tension, or even breakage. Inspect belts regularly for signs of cracks, fraying, or excessive wear. Replace any damaged belts immediately to prevent further damage to the system.
Improper Tension: Incorrect tension on the belt can lead to slipping or inefficient operation. Use the manufacturer’s specifications to ensure the belt has the right amount of tension. A loose belt may cause the mower to stop functioning, while a tight belt can cause premature wear and additional strain on the engine.
Misalignment of Pulleys: Misaligned pulleys can cause the belt to rub against components, leading to premature wear. Check for any signs of misalignment or uneven pulley wear. Adjust or replace pulleys as necessary to ensure proper alignment and smooth belt operation.
Debris Buildup: Grass clippings, dirt, and debris can accumulate on the belt, pulleys, and other components, causing the belt to slip or overheat. Clean the area regularly to prevent debris from affecting belt performance.
Improper Installation: When installing a new belt, make sure it’s routed correctly according to the diagram. Incorrect routing can cause the belt to slip off or fail to engage properly. Double-check the belt path before securing it in place.
