54 Inch John Deere D170 Belt Diagram and Maintenance Guide

Understanding the belt diagram for the 54-inch John Deere D170 is crucial for maintaining your mower’s performance. The diagram provides a clear layout of how the belts should be routed, helping you avoid installation mistakes that could affect your mower’s functionality. Follow this guide to ensure proper belt alignment and avoid unnecessary repairs.

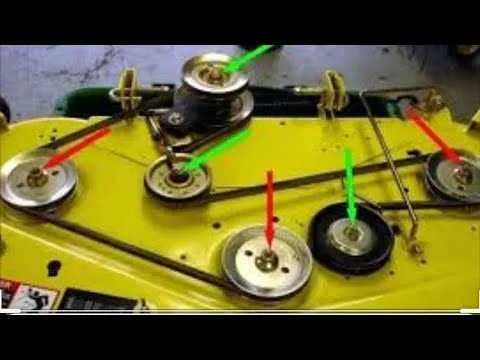

Start by examining the routing path of the deck belt. The diagram shows the precise location of the belt on pulleys and spindles, ensuring it operates smoothly. The belt needs to follow a specific path to engage the mower blades correctly. Ensure each pulley is aligned and the belt tension is correct for optimal performance.

Check the condition of the belt regularly. Over time, belts wear out due to friction, heat, and constant movement. A well-maintained belt ensures smoother operation and prevents sudden breakdowns. If you notice any signs of wear or cracking, consider replacing the belt with a new one as shown in the diagram.

Use the diagram as a reference when performing maintenance. Having a visual guide can significantly speed up the process of troubleshooting or replacing the belt. By following the diagram step-by-step, you reduce the risk of errors and improve the longevity of your John Deere D170 mower.

54 Inch John Deere D170 Belt Diagram

The 54-inch John Deere D170 mower uses a specific belt arrangement for optimal performance. Follow these steps to ensure you install the belt correctly and troubleshoot any issues efficiently.

Start by locating the mower deck and identifying the correct belt path. The diagram shows how the belt should loop around the pulleys and spindles. Make sure the tension is adjusted properly to avoid unnecessary wear on the belt.

• Check that the belt is correctly aligned with the pulleys to prevent slippage.
• Ensure the deck is securely mounted to avoid unnecessary vibrations that could affect the belt.
• If the belt appears worn or damaged, replace it with a new one of the exact specifications as listed in the owner’s manual.

If the belt comes off during use, check for any blockages or broken components that could disrupt the system. Regularly inspect the belt for signs of excessive wear, especially near the pulleys, to prolong its lifespan.

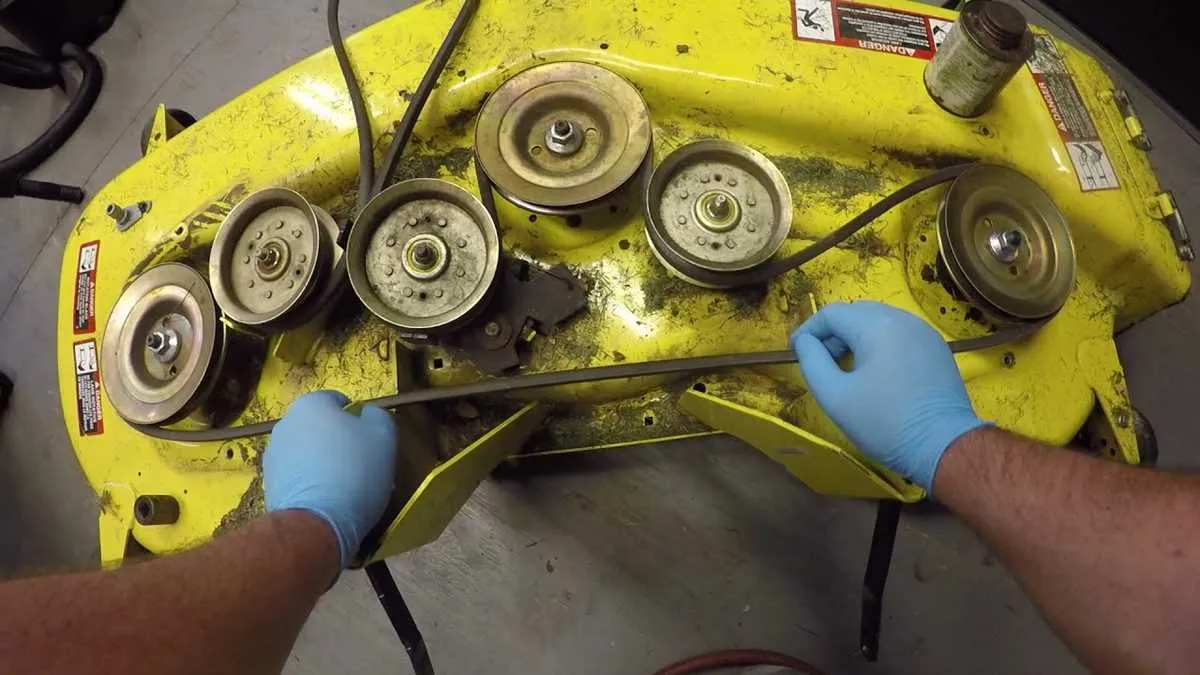

How to Properly Route the Belt on a 54 Inch John Deere D170

To route the belt correctly on a 54-inch John Deere D170, first ensure the tractor is powered off and the key is removed. Raise the mower deck to gain easy access to the belt and pulleys.

Start by placing the belt over the engine pulley. Ensure it is positioned properly on the idler pulley to avoid tension issues. Move the belt towards the two blade pulleys, routing it beneath the tensioner spring, making sure the belt remains taut but not too tight.

Next, route the belt around the spindle pulleys, ensuring it fits snugly in each groove. Double-check the alignment of the belt on all pulleys, ensuring that it is neither slipping nor too tight. The correct tension is crucial for smooth operation.

Finally, inspect the belt routing once more before lowering the deck back into its working position. Turn the tractor on briefly to confirm that the belt moves smoothly without slipping or misalignment.

Identifying Common Belt Issues on the John Deere D170 Mower

Uneven Belt Wear: Inspect the belt for signs of uneven wear, which could indicate misalignment of the pulleys. If the belt is excessively worn on one side, it may need to be adjusted or replaced. Ensure the pulleys are aligned properly to prevent further damage.

Squeaking or Slipping: A squeaky or slipping belt typically points to insufficient tension or debris buildup. Check the tensioner spring and replace any worn components. Clean the area around the belt and pulleys to remove grass, dirt, or other debris that might cause friction.

Belt Fraying: Frayed belts are often caused by contact with sharp objects or excessive heat. Examine the belt closely for any fraying along the edges. If fraying is severe, replace the belt to avoid complete failure during use.

Loose Belt: If the belt appears loose, it may have stretched over time or the tensioner may not be functioning properly. Tighten the tensioner or replace the belt if necessary. A loose belt can lead to inefficient performance and reduced cutting power.

Cracking or Glazing: Cracks or a glazed surface on the belt usually indicate wear from prolonged use or excessive heat. If these signs are present, it’s time to replace the belt to maintain optimal performance and avoid further damage to the mower’s components.

Step-by-Step Guide for Replacing the Belt on the John Deere D170

1. Disconnect the Battery

Before starting any repair, disconnect the mower’s battery to prevent any accidental engagement of the engine while working.

2. Lift the Mower Deck

Use the deck lift lever to raise the mower deck to its highest position. This will give you better access to the belt and its components.

3. Remove the Belt Cover

Locate the belt cover on the mower deck and remove any screws or fasteners securing it. Carefully remove the cover to expose the belt assembly.

4. Release the Tension on the Belt

Find the belt tensioner and release the tension by pulling or rotating it away from the belt. This will allow you to remove the old belt easily.

5. Remove the Old Belt

Carefully slide the old belt off the pulleys, making sure to remember the routing path for reinstallation. Take note of the belt’s direction and positioning.

6. Install the New Belt

Place the new belt over the pulleys, following the exact routing path of the old belt. Ensure that the belt fits securely over each pulley without any twists or bends.

7. Reapply Tension

Once the new belt is in place, use the tensioner to apply the correct tension to the belt. Make sure the belt is tight enough to engage properly but not too tight to cause excessive wear.

8. Replace the Belt Cover

After confirming the belt is in position and properly tensioned, replace the belt cover and secure it with screws or fasteners.

9. Reconnect the Battery

Finally, reconnect the battery to restore power to the mower. Start the engine and check the belt’s operation to ensure everything functions smoothly.
