John Deere L120 48 Inch Belt Diagram for Maintenance and Repair
If you’re working on the John Deere L120, the first thing you need to do is identify the correct belt routing. The diagram for the 48-inch deck is key to ensuring proper installation and avoiding unnecessary wear. Start by locating the pulley system, which includes the engine pulley, spindle pulleys, and tensioner pulley. Each component must be connected in the right sequence to maintain tension and optimal performance.
Use the diagram to match the belt size and position. Typically, the L120 uses a 1/2 inch wide belt, and the length can vary slightly depending on the specific configuration. Make sure the belt is routed around the deck pulleys in the prescribed direction to avoid damage. Improper routing can cause slippage or premature belt wear.
Once the belt is routed correctly, check the tensioner. It should hold the belt firmly, but not too tight. If the tensioner is faulty, replace it immediately to prevent further damage to the belt and pulleys. Regular inspection of the belt and tensioner can save you from costly repairs down the line.

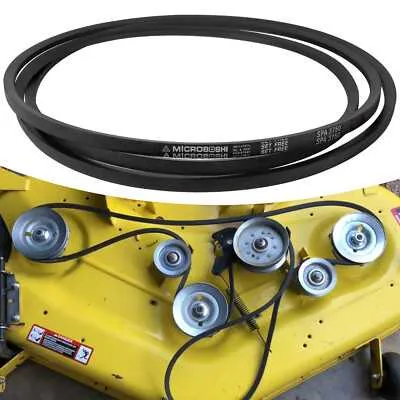

48 Inch John Deere L120 Belt Diagram
To replace or inspect the belt on your 48-inch John Deere L120, follow this detailed diagram guide. This model requires the proper routing of the deck drive belt for optimal performance.
| Part | Description | Diagram Location |
|---|---|---|
| Deck Drive Belt | Main belt that powers the mower deck. | Runs around the deck pulleys and the engine pulley. |
| Idler Pulley | Controls the tension of the deck drive belt. | Located near the engine on the left side of the deck. |
| Engine Pulley | Transfers power from the engine to the belt. | Located on the engine shaft. |
| Deck Pulleys | Support the belt and control the cutting blades. | Mounted on the mower deck. |
| Idler Arm | Holds the idler pulley in place and adjusts tension. | Attached to the deck frame. |
Ensure the belt follows the proper path as shown in the diagram. Check that the belt is neither too tight nor too loose to avoid unnecessary wear or malfunction.
If the belt slips or becomes worn, it may be necessary to replace it. Always verify the belt’s condition before each season’s use to maintain smooth operation.
How to Read the 48 Inch John Deere L120 Belt Diagram
Start by locating the diagram on your John Deere L120’s service manual or the mower’s deck. The diagram will show the exact routing of the mower’s drive belt, often split into sections to indicate where each belt goes. It’s important to recognize the key parts labeled in the diagram: the belt’s routing path, pulleys, and tensioning components.
First, identify the main components: the engine pulley, deck pulleys, and any tensioners or idlers. The diagram will show how the belt loops around these parts. The pulleys typically guide the belt in a particular direction, so follow the arrows that mark the belt’s route. Look for any crisscross or under/over relationships between pulleys, as this can indicate specific routing necessary for proper belt tension and operation.
Next, note the belt’s position relative to the mower deck. Make sure to check the alignment of the belt with the spindles. This helps ensure smooth rotation without unnecessary wear. The diagram will also show which pulleys apply tension to the belt. Verify that the tensioner is positioned as shown in the diagram to avoid belt slippage or poor performance.
As you read the diagram, pay attention to any notes indicating belt size or specific models of pulleys. These details ensure you’re using the right replacement parts. Double-check for any instructions on belt installation or removal, such as how to release the tensioner or remove obstructions before replacing the belt.
Finally, if the belt diagram isn’t immediately clear, compare it with the actual setup on your mower. Sometimes diagrams can be generalized, so aligning it with the actual components of your L120 will help clarify any confusion.

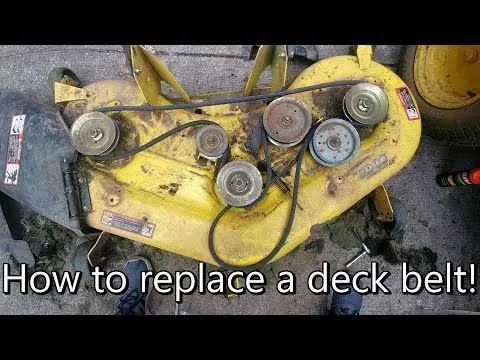

Step-by-Step Guide to Replacing the Belt on a John Deere L120
Start by ensuring the engine is off and the key is removed to avoid any accidents during the replacement process. Park the mower on a flat surface and engage the parking brake.
- Lift the Mower Deck: Use a jack or lift the mower with the appropriate tools to access the underside of the deck. Make sure it’s securely elevated before proceeding.
- Locate the Belt Diagram: Refer to the John Deere L120 belt diagram for guidance on belt routing. This will be crucial for ensuring the new belt is installed correctly.
- Remove the Old Belt: Start by detaching any retaining bolts or clips holding the belt in place. Work from the outer edges of the deck, carefully removing the belt from the pulleys. Take note of its position for reference.
- Install the New Belt: Position the new belt over the pulleys, following the path outlined in the diagram. Make sure the belt is properly aligned with each pulley groove to prevent slipping or wear.
- Reassemble the Mower Deck: Once the belt is in place, reattach any components that were removed during the process, such as the bolts or clips that hold the belt in position. Double-check that everything is secure.
- Test the Mower: Start the engine and engage the blades to ensure the new belt is functioning correctly. Listen for any unusual noises that might indicate improper installation.
If the mower operates smoothly, you’ve successfully replaced the belt. Always keep spare belts on hand to prevent delays in future maintenance.
Common Belt Issues and Troubleshooting Tips for the John Deere L120
If the belt on your John Deere L120 is slipping or breaking, check for worn or damaged pulleys. Over time, pulleys can wear out, causing the belt to slip or misalign. Replace any pulleys that appear worn or rusty.
Check the tension of the belt. A loose belt can slip, leading to reduced performance. Adjust the belt tensioner to ensure the correct tightness. If the tensioner is faulty or damaged, replace it to restore proper belt tension.
Inspect the belt for visible signs of wear such as cracks or fraying. If the belt is damaged, replace it with a new one of the correct size and type for the L120 model. A damaged belt will lose its grip and fail to transfer power efficiently.
Examine the belt routing. A misrouted belt can lead to poor performance and premature wear. Refer to the John Deere L120 belt diagram to ensure the belt is properly routed around the pulleys and components.
If the mower is making unusual noises, the belt may be misaligned or rubbing against a component. Check the alignment of the belt and adjust if necessary. Ensure that all components, including the blade, are in good condition and securely fastened.
Examine the belt for debris build-up. Grass, dirt, or debris stuck on the belt can cause it to slip or wear out faster. Clean the belt and surrounding areas regularly to prevent debris from affecting performance.
Finally, replace any damaged or worn parts immediately. Operating the mower with faulty components can lead to more severe damage and costly repairs in the long run.
