48 Inch John Deere D140 Drive Belt Diagram and Installation Guide

Check the belt tension and routing regularly to ensure your John Deere D140 operates smoothly. The correct routing of the 48-inch drive belt is critical for optimal performance. Misalignment or improper tension can cause significant damage to the belt and other components. Consult the diagram to identify the correct path the belt should follow, and ensure the pulleys are correctly aligned.

Start by examining the drive belt’s routing around the mower’s pulleys. The diagram outlines each pulley’s position, making it easy to compare and confirm that the belt fits correctly. If the belt is loose or too tight, adjust the tensioner to achieve the recommended tension level. Regular inspection helps prevent premature wear and extends the lifespan of both the belt and the mower.

Follow the diagram for proper installation when replacing the belt. The drive belt on the D140 connects various engine components, making proper installation a must for smooth functionality. Misrouted belts can lead to poor performance, such as engine overheating or inefficient cutting. Use the diagram to guide your installation process and prevent unnecessary repairs.

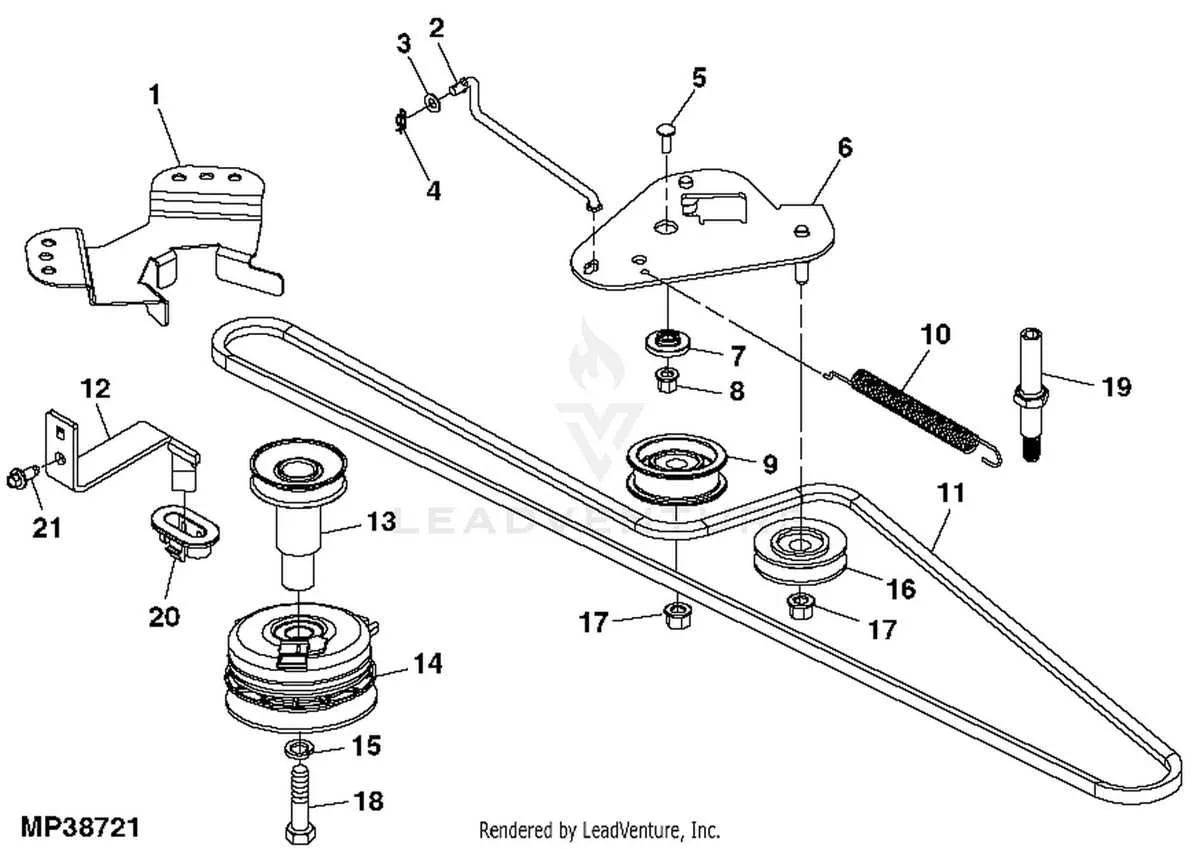

48 Inch John Deere D140 Drive Belt Diagram

To properly replace or inspect the drive belt on your 48-inch John Deere D140, refer to the diagram showing the correct routing and tension points. Ensure that the belt follows the path precisely to avoid slippage or premature wear.

The drive belt should loop around the engine pulley, the deck pulley, and the transmission pulley, following the correct sequence outlined in the diagram. Misalignment of the belt can cause excessive wear or even damage to surrounding components.

When installing the belt, be mindful of the tensioner pulley. It should apply enough pressure to keep the belt tight but not too tight to prevent the system from operating smoothly. Over-tensioning can lead to premature failure of both the belt and the pulleys.

Check the condition of the belt regularly. Signs of wear, such as cracks, fraying, or glazing, indicate that the belt needs replacement. If you notice slippage, it could be due to improper tension, pulley misalignment, or a worn belt.

For accurate adjustments, always consult the manufacturer’s instructions and ensure you are using the correct belt size. Using a belt that is too long or too short can result in poor performance and increased maintenance needs.

Identifying Key Components of the 48 Inch Drive Belt System

To properly maintain and troubleshoot the drive belt system of the 48-inch John Deere D140, it is critical to recognize the key components involved. These parts ensure smooth operation and proper belt tension. Below are the main components:

• Drive Belt: The primary component that connects the engine pulley to the transmission pulley, transferring power to the wheels.
• Engine Pulley: Located at the front of the engine, it drives the belt and connects to the crankshaft. It plays a crucial role in power transmission.
• Transmission Pulley: This component receives power from the engine pulley and drives the transmission, ensuring movement.
• Idler Pulley: Used to maintain tension on the belt and guide it around various pulleys. It helps prevent belt slippage and ensures smooth operation.
• Tension Spring: This component helps maintain the correct tension on the drive belt, preventing slack that could cause slippage.
• Pulley Guard: A protective cover that keeps the belt and pulleys secure, preventing debris from damaging the system.

When inspecting these components, check for wear and tear on the pulleys, cracks in the drive belt, or any misalignment that could lead to slippage. Regular maintenance of these parts is crucial to ensure the system operates efficiently.

Step-by-Step Instructions for Proper Belt Installation

Begin by lifting the mower deck to allow easy access to the drive belt area. Ensure the engine is off and the ignition is in the “off” position.

Remove the deck from the mower by loosening the necessary bolts and detaching it from the tractor. This step will vary depending on the model, so refer to the specific manual for detailed instructions.

Next, locate the drive belt. Carefully examine the routing path of the belt, noting the position of each pulley and tensioner. If the belt appears worn or damaged, replace it with a new one of the same size and specification.

Position the new belt in the same configuration as the old one, making sure it fits into all the pulleys correctly. Start from the engine and work your way toward the transmission pulley.

Install the belt around the pulleys and tensioner, ensuring it is aligned properly and runs smoothly. If necessary, adjust the tensioner to hold the belt in place.

Reinstall the deck by reversing the removal steps. Secure all bolts and double-check that the deck is firmly attached and properly aligned.

Finally, test the belt by turning the engine on and briefly engaging the drive system. Verify that the belt runs smoothly without slipping or making unusual noises. If the belt is misaligned, repeat the process to adjust it accordingly.

Common Belt Issues and Troubleshooting Tips

Misalignment of the drive belt is one of the most frequent issues. Inspect the pulleys and idlers to ensure they are aligned properly. Misalignment can cause uneven wear and ultimately lead to belt failure. If misalignment is evident, check for any bent or damaged pulleys and replace them if necessary.

Slipping belts can result from improper tension or excessive wear. Ensure the tension is within the recommended range. A loose belt will slip, creating a loss of power and potentially damaging other components. Adjust the tension or replace the belt if it shows signs of excessive wear.

Cracking or Fraying on the belt often indicates that the belt is old or has been exposed to extreme conditions. If the belt shows signs of cracking or fraying, replace it immediately to prevent further damage. Be sure to check for any sharp edges or obstructions that may have caused the damage.

Noise such as squealing or whining typically comes from a worn-out or improperly tensioned belt. If you hear unusual noises, inspect the belt for wear and ensure it is properly tensioned. A noisy belt can also signal a problem with the pulleys or the belt’s alignment.

Overheating can be caused by excessive friction due to improper installation or misalignment. Overheating can lead to belt damage and reduced performance. Check for proper pulley alignment and ensure that the belt is correctly routed through the system.

Regular inspection of the belt and related components is crucial for maintaining the performance of the 48-inch John Deere D140. If you notice any of these issues, take immediate action to correct them to avoid further damage.
