42 Inch John Deere Sabre 42 Deck Belt Diagram and Installation Guide

When replacing the deck belt on your 42-inch John Deere Sabre mower, it’s crucial to follow a clear and accurate diagram. The correct routing ensures optimal performance and prevents unnecessary wear on the components. This guide will provide you with a detailed belt diagram and key tips for a smooth replacement process.

The Sabre 42 deck belt runs through a series of pulleys that drive the blades. First, ensure that the mower is off and the ignition switch is disconnected. Remove the deck from the mower for easier access to the belt and pulleys. Pay attention to the specific routing of the belt around each pulley, as this is essential for the belt’s proper tension and function.

Step-by-step instructions: Begin by locating the tensioner pulley. Next, follow the belt’s path around the deck pulleys, ensuring it goes through the right grooves. The belt should be positioned securely without excessive slack or tightness. Refer to the diagram for precise placement, and verify the belt’s condition before reinstalling the deck.

By following these steps and using the provided diagram, you’ll ensure that your 42-inch John Deere Sabre mower runs smoothly, cutting evenly without unnecessary strain on the belt system.

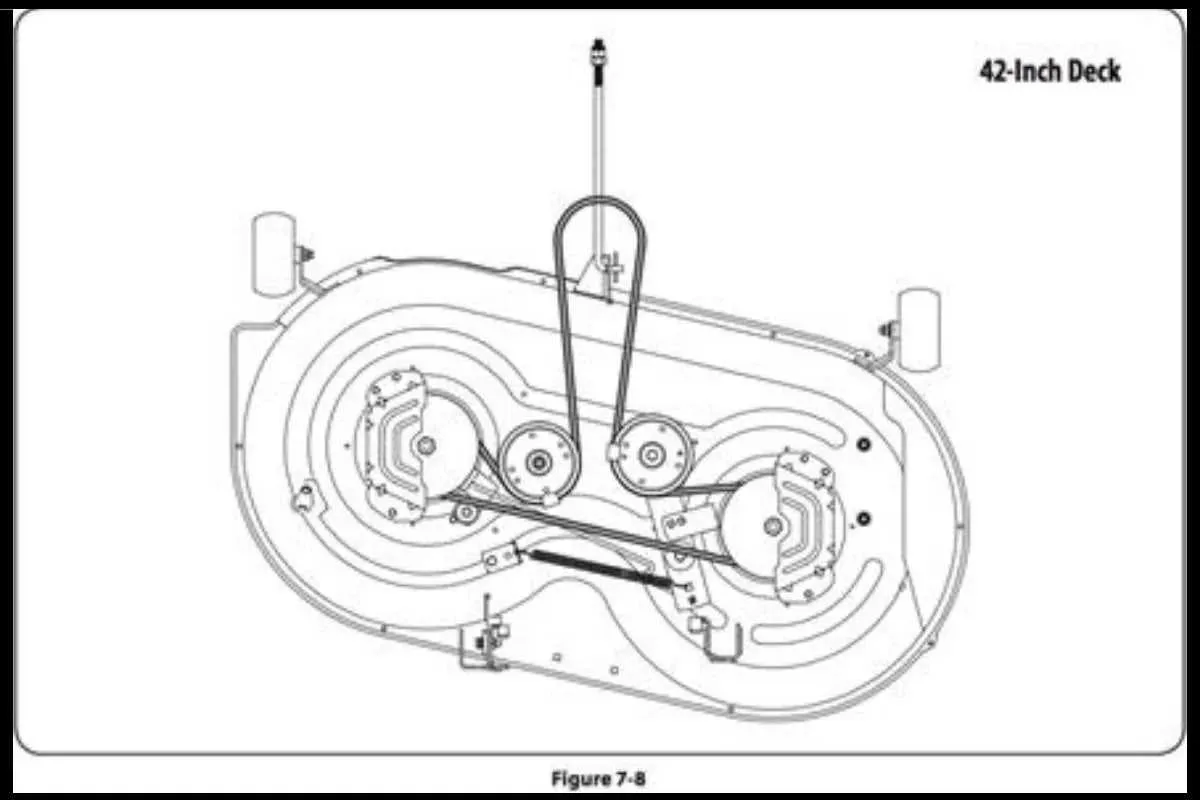

42 Inch John Deere Sabre 42 Deck Belt Diagram

To replace or repair the deck belt on a 42-inch John Deere Sabre, follow the precise routing shown in the diagram. First, make sure the mower is off, the key is removed, and the parking brake is engaged. The deck belt should run from the engine pulley to the idler pulleys, and then to the mower deck spindles.

Start by routing the belt around the engine pulley at the front of the mower, ensuring it sits properly within the grooves. Then, pass the belt around the idler pulleys, making sure the tensioning mechanism is fully engaged. The belt should loop around the deck pulleys in a smooth, continuous path to avoid slippage or damage during operation.

It’s crucial to maintain the belt’s tension correctly; too tight or too loose can lead to premature wear. If the belt looks frayed or worn out, replace it before use to avoid breakdowns or potential damage to the mower’s deck system. Keep the belt clean and free of debris for optimal performance.

Consult the John Deere manual for the specific part number of the replacement belt and make sure to follow the exact routing as shown in the diagram for your model. Doing so will ensure the mower operates efficiently and prolong the life of the parts.

How to Identify the Correct Belt for Your John Deere Sabre 42

Check the model number of your John Deere Sabre mower to ensure compatibility with the right deck belt. The correct belt is essential for optimal performance, so use the mower’s model number and deck size to find the exact match. The 42-inch deck requires a specific belt, which is usually listed in the owner’s manual or can be found on the mower’s deck.

Inspect the existing belt for visible damage or wear. If you’re replacing it, note the length and width of the old belt as a reference. Measure the old belt or refer to the John Deere parts catalog to confirm the specifications before purchasing a new one. Always cross-check the part number, as belts can vary by deck type and model year.

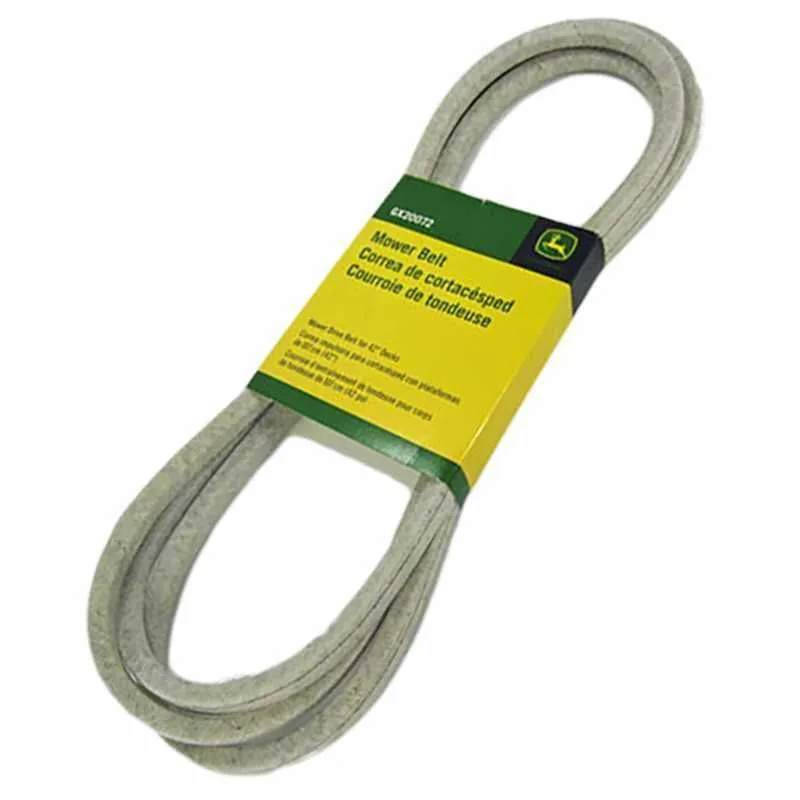

Use OEM (Original Equipment Manufacturer) belts whenever possible. These are designed to fit and perform best on your mower. Aftermarket belts may work, but their quality and fit can sometimes be inconsistent. For the Sabre 42, John Deere’s OEM belts typically have part numbers like GX20072 for the 42-inch deck.

When installing, ensure the belt is routed correctly around all pulleys. An incorrect installation can lead to premature wear or even belt failure. Use a diagram from the owner’s manual or online resources to guide the routing process.

Step-by-Step Guide to Replacing the Deck Belt on a John Deere Sabre 42

1. Raise the mower deck. Use a jack or lift the mower to make the deck accessible for belt replacement. Ensure it’s stable and secure before working underneath.

2. Disconnect the battery. Remove the negative terminal to avoid any electrical issues while working on the mower.

3. Remove the deck from the mower. Disconnect the deck lift arms and any attached cables. Detach the deck by lifting it off the mower chassis.

4. Locate the deck belt. On the John Deere Sabre 42, it runs around the pulleys and spindles. Take note of the belt routing or refer to the manual for a diagram to help with reinstallation.

5. Release the tension on the old belt. Use a wrench or socket to loosen the spring-loaded idler pulley, releasing the tension on the deck belt.

6. Remove the old belt. Slide the belt off the pulleys and spindles. Be mindful of any areas where the belt might be stuck, and carefully work it free.

7. Install the new belt. Begin by threading the new deck belt through the pulleys, following the original routing pattern. Make sure it sits properly on each pulley.

8. Apply tension to the new belt. Tighten the idler pulley to restore the correct tension to the new deck belt. Double-check that the belt is aligned and not rubbing against any components.

9. Reinstall the deck. Lower the deck back into position and reconnect the lift arms, cables, and any other components you removed earlier.

10. Test the mower. Reconnect the battery, start the engine, and run the mower to ensure the new belt is working properly. Listen for any unusual noises that might indicate improper installation.

Common Issues with the Deck Belt and How to Troubleshoot Them

If your John Deere Sabre 42-inch deck belt isn’t functioning properly, check for these common issues first:

• Worn or Frayed Belt: Inspect the belt for visible wear or damage. If the belt looks frayed or cracked, replace it immediately. A worn belt can slip or break, preventing the blades from turning.
• Incorrect Belt Tension: Ensure the belt is properly tensioned. Too loose or too tight a belt can cause malfunction or premature wear. Adjust the tension according to the manufacturer’s recommendations.
• Misaligned Pulleys: Check the alignment of the pulleys. Misaligned pulleys can cause the belt to slip off or wear unevenly. Ensure all pulleys are straight and turn freely.
• Obstructions or Debris: Clear any debris from around the deck and pulleys. Grass clippings or dirt can obstruct the belt path and cause it to malfunction. Regular cleaning prevents buildup.
• Improper Installation: Verify that the belt is installed correctly. A wrongly routed belt can cause slipping or damage to the belt and surrounding components. Refer to the diagram to ensure proper installation.
• Pulley Damage: Inspect each pulley for signs of wear, cracking, or damage. A damaged pulley can cause the belt to skip or wear unevenly. Replace any damaged pulleys.

Regular maintenance and checks will keep your John Deere Sabre running smoothly and prevent costly repairs. If issues persist after troubleshooting, consulting the manufacturer’s manual or seeking professional help is recommended.
