Troy-Bilt Pony 42 Deck Belt Diagram and Maintenance Instructions
To properly maintain your Troy-Bilt Pony 42, understanding the deck belt diagram is essential. This diagram visually maps out the correct routing of the belts, ensuring smooth operation of your mower. If you’re replacing the deck belt or need to troubleshoot issues, referring to this diagram will save you time and effort.
The diagram typically includes a detailed path that shows how the belt interacts with pulleys, spindles, and other components. It’s crucial to align the belt correctly to avoid wear or damage. Misrouting can lead to improper tension, reduced performance, or even a snapped belt, all of which can disrupt your mowing tasks.
Check the belt tension after installation. If it’s too loose, the mower may not cut evenly. If it’s too tight, the belt can wear prematurely, leading to more frequent replacements. Use the diagram as a guide to ensure your deck belt is installed according to specifications, promoting longevity and efficiency in your equipment.

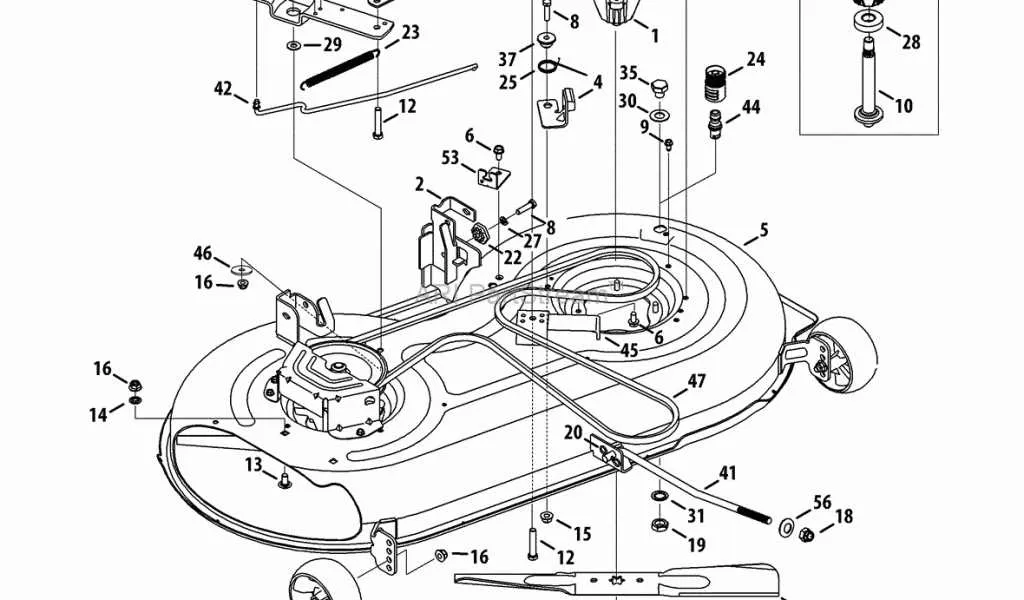

Troy-Bilt Pony 42 Deck Belt Diagram
The Troy-Bilt Pony 42 deck belt diagram is key for properly maintaining the belt system. To replace or inspect the deck belt, follow the steps provided by the diagram to ensure accurate installation. The deck belt on the Pony 42 connects the engine pulley to the deck, powering the blades. If the belt is worn or misaligned, it can lead to poor cutting performance or even damage the mower.
Refer to the diagram when you’re installing or adjusting the belt. First, remove any obstacles, like grass or debris, from the area around the deck and engine. Start by loosening the tension on the old belt by adjusting the idler pulley. Carefully note the path of the old belt before removing it to ensure the new belt is routed correctly.

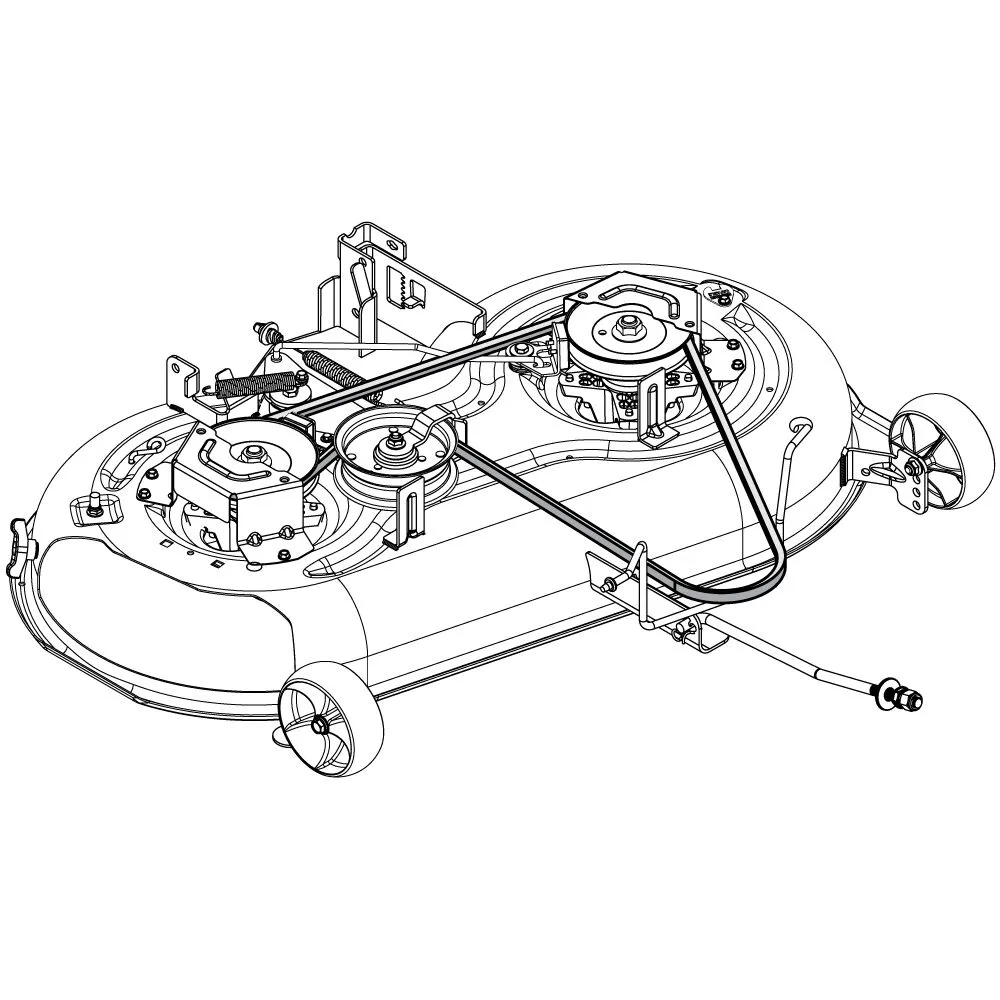

The diagram shows the exact routing of the deck belt, including the positioning of pulleys and the tensioner. Pay attention to the direction the belt should face on the pulleys and the position of any idler arms. If you’re unsure, always compare the diagram with your current setup for accuracy.
Once the new belt is in place, check its tension. The belt should be tight enough to engage the pulleys but should not be over-stretched. A loose belt will slip, reducing cutting power. An overly tight belt may wear out prematurely. After confirming the proper tension, check the mower’s operation to ensure everything works smoothly.
Following the correct belt diagram will help maintain the performance of your Troy-Bilt Pony 42 mower, reducing the risk of mechanical failure and keeping your lawn looking its best.
How to Identify the Correct Deck Belt for Your Troy-Bilt Pony 42
Check the model number of your Troy-Bilt Pony 42 before purchasing a replacement deck belt. The right belt depends on your mower’s specific configuration, including the engine type and deck size. Look for the serial number plate, typically found under the seat or on the frame, to confirm the exact model.
Measure the existing belt if it’s still intact. Use a tape measure to get the length and width, ensuring the new belt matches these dimensions. The typical belt for the Troy-Bilt Pony 42 is around 1/2 inch wide, but always confirm with your owner’s manual for exact specifications.
Identify the belt path using the deck belt diagram. This diagram, often found in your user manual or online, shows how the belt should loop around pulleys and spindles. Be sure to match the routing instructions exactly to avoid operational issues.
If your belt is missing or severely worn, check the deck pulley system for damage. Broken pulleys or excessive wear can lead to issues with the new belt’s fit or function. Replace any damaged components before installing a new belt.
Finally, check the tension of the belt once installed. The correct tension ensures proper mower performance. If the belt feels too loose or tight, adjust the spring tensioner as necessary to maintain optimal operation.
Step-by-Step Instructions for Replacing the Deck Belt on Troy-Bilt Pony 42
1. Disconnect the spark plug to prevent accidental starts while working.
2. Lift the mower deck to its highest position using the deck lift lever.
3. Use a socket wrench to remove the bolts securing the deck to the frame. There may be several bolts around the edges; take note of their positions for reassembly.
4. Slide the deck out from under the mower and place it on a flat surface. This will make it easier to access the belt.
5. Locate the existing deck belt. It will run around the pulleys on the mower deck and the engine. Take a picture or make a note of how the belt is routed before removal. This will be useful during installation.
6. Release the tension on the belt by loosening the tension spring. Use a wrench or pliers to unhook the spring from the tension arm. This will allow the belt to become slack.
7. Slide the old belt off the pulleys, making sure not to damage any components during removal.
8. Install the new deck belt by first routing it around the pulleys in the same pattern as the old one. Refer to your notes or picture for guidance. Make sure the belt sits properly in the grooves of the pulleys.
9. Reattach the tension spring to the tension arm to ensure proper tension on the belt.
10. Reinstall the mower deck onto the frame by aligning it with the bolts and tightening them securely.
11. Lower the deck to its normal operating position and reconnect the spark plug.
12. Test the mower by starting the engine and engaging the blades. Check that the new belt is running smoothly and that the blades are rotating properly.
Common Issues with Troy-Bilt Pony 42 Deck Belts and How to Troubleshoot Them
If the belt on your Troy-Bilt Pony 42 mower is slipping or breaking frequently, it’s likely caused by one of several issues. Below are the most common problems and how to address them:
- Worn or Frayed Belt
If the belt appears cracked or frayed, it is time for a replacement. Inspect the entire length of the belt for visible damage. Look for wear patterns on the outer edges or any pieces of the belt that are unraveling. Replace the belt with the recommended part to ensure proper tension and fit. - Improper Belt Tension
If the belt is too loose, it will slip and fail to turn the blades efficiently. On the other hand, excessive tension can cause premature wear. Check the tension by pressing on the belt and ensure it has enough slack to move but not too much. If necessary, adjust the tension using the tension spring or replace it if it’s weak. - Incorrect Routing
Verify that the belt is routed according to the diagram for your specific model. A misrouted belt can lead to improper operation, causing the belt to slip or become damaged. Check the pulley system to ensure everything is aligned and follow the manufacturer’s instructions for the correct path. - Debris or Obstructions on the Pulleys
Debris buildup on pulleys or around the deck can hinder the smooth movement of the belt. Inspect the pulleys for grass, dirt, or debris, and clean them thoroughly. A clean system ensures that the belt operates as intended and lasts longer. - Damaged Pulleys
A damaged or worn-out pulley can cause excessive friction and uneven tension on the belt. Inspect each pulley for cracks, corrosion, or irregularities in the surface. Replace any defective pulleys to maintain proper belt function. - Worn Deck Bearings
Worn bearings on the mower deck can cause excessive resistance as the belt drives the blades, leading to slippage or overheating. Inspect the bearings and replace them if they feel loose or rough when turned by hand. - Incorrect Belt Size
Using the wrong size belt can lead to poor performance. If the belt is too short, it may not fit correctly and can slip. If it’s too long, it may not provide the right amount of tension. Always double-check the size of the belt against the manufacturer’s specifications before installing a new one.
Regular maintenance and timely repairs will ensure your Troy-Bilt Pony 42 mower continues to perform optimally, reducing the frequency of belt issues and extending its overall lifespan.
