Troy Bilt Bronco deck belt diagram with clear routing details for proper installation
The quickest way to replace or adjust the deck belt on a Troy Bilt Bronco is to follow a clear diagram that shows the exact belt routing. A properly installed belt keeps the blades synchronized, reduces wear on pulleys, and prevents slipping during mowing. By comparing the diagram with your mower, you can confirm the correct belt path before tightening any bolts.
The deck belt wraps around multiple pulleys, including the spindle pulleys, idler pulleys, and the engine pulley. Each pulley has a specific function: spindle pulleys rotate the blades, idler pulleys maintain tension, and the engine pulley drives the system. Understanding how these connect helps avoid mistakes that can cause uneven cutting or damage to the belt.
Use the diagram as a step-by-step guide while routing the belt. Begin at the engine pulley, loop the belt around the spindle pulleys, then fit it through the idler pulleys according to the layout. Double-check that the V-side of the belt faces the correct grooves and that there is no twist along the path. Tighten the tensioner after confirming the alignment matches the diagram.
A clear belt diagram not only saves time during replacement but also extends the mower’s service life. Keeping a copy nearby ensures you can quickly recheck the routing during seasonal maintenance or whenever the belt shows signs of wear.
Troy Bilt Bronco Deck Belt Diagram

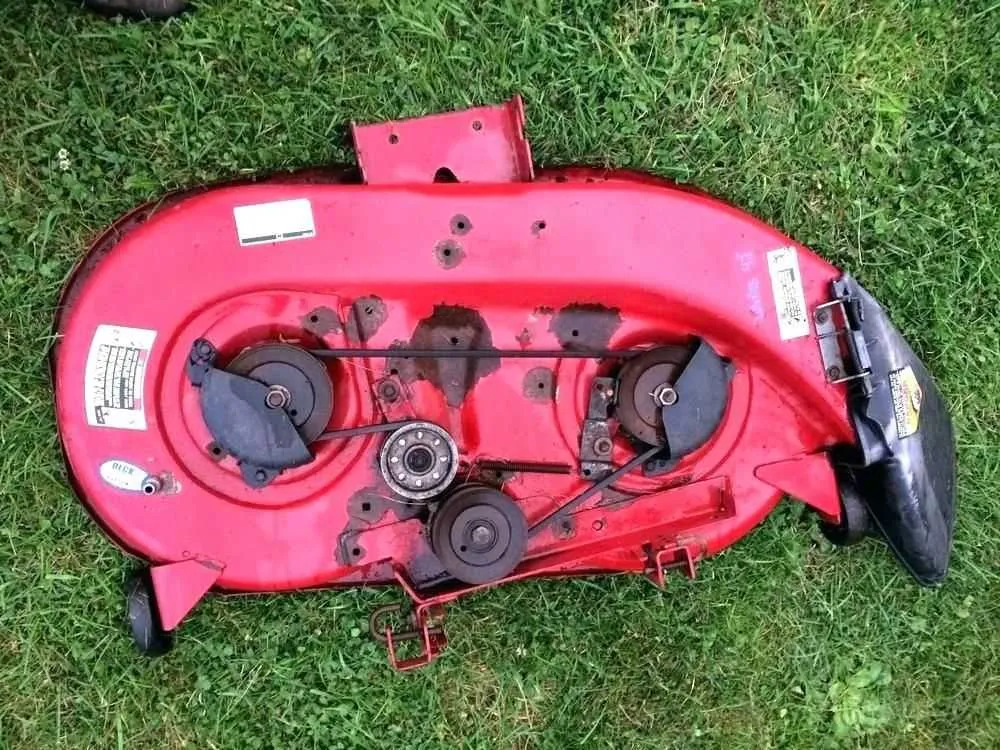

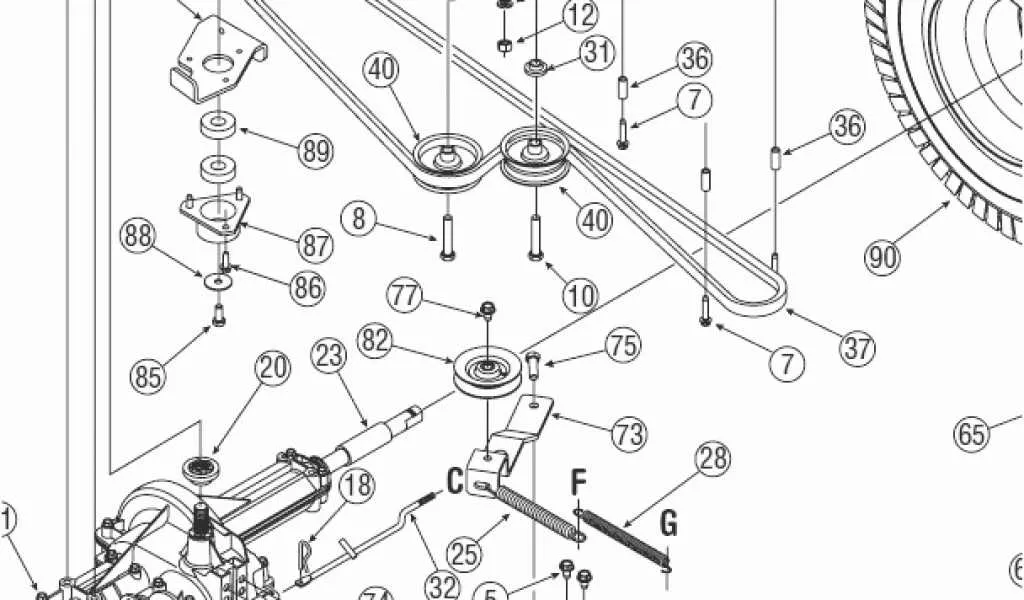

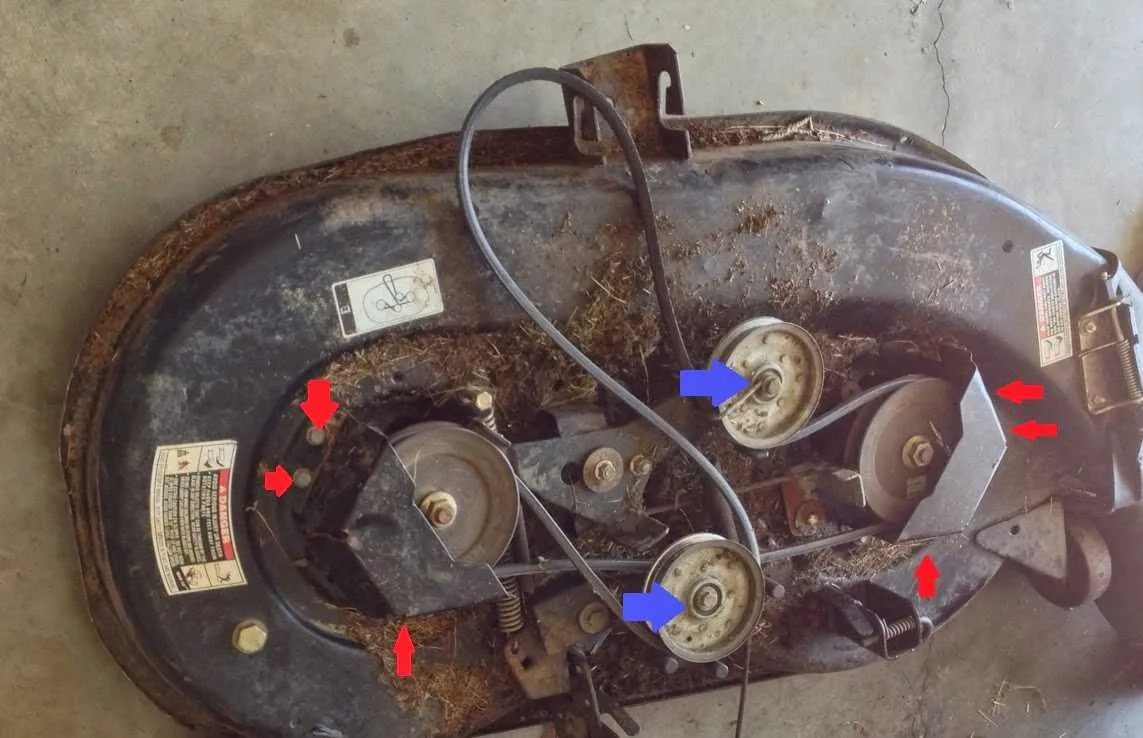

Check the routing path first: the belt runs from the engine pulley to the deck idler pulleys and around the blade spindles. Make sure the flat side of the belt contacts the flat idlers, while the V side sits in the spindle pulleys. This prevents slipping and uneven cutting.
Release the deck tension spring before removing or installing the belt. Slide the belt over the engine pulley, then thread it through the idlers according to the diagram. Keep the belt tight against the pulleys while attaching the tension spring back to its bracket.
Inspect each pulley for wear, cracks, or wobbling before finishing. Replace any worn parts immediately to extend belt life. A clean deck and properly aligned pulleys reduce stress on the new belt and ensure smooth mowing.
Keep a printed diagram nearby while working. Misrouting one pulley often causes the belt to jump off during mowing. A correct path guarantees proper blade synchronization and consistent cut quality.
How to Identify the Correct Deck Belt Size and Part Number
Check the model number of your Troy-Bilt Bronco first. You can find it on a sticker under the seat, on the mower frame, or near the engine. Write it down exactly as shown, including dashes and letters.
Use the model number to match the correct belt in the Troy-Bilt parts catalog or the manufacturer’s website. This guarantees you get the right length and width, since different Bronco years and deck sizes require different belts.
If you don’t have the catalog at hand, measure the old belt. Lay it flat, use a flexible tape, and measure the outer circumference. Compare the measurement with official belt specifications for your mower model. Check the belt width as well–most Bronco deck belts are 1/2 inch or 5/8 inch wide.
Confirm the part number printed on the original belt if it’s still readable. Troy-Bilt belts usually have numbers such as 954-04060C or 954-0467A. Ordering by part number avoids errors and ensures compatibility with pulleys and tensioners.
Always buy genuine or OEM belts. Generic belts often slip or wear faster, causing uneven cuts and strain on the mower. Matching the exact size and part number extends deck life and keeps performance steady.
Step-by-Step Deck Belt Routing on Troy Bilt Bronco
Park the mower on a flat surface, set the parking brake, and disconnect the spark plug wire to prevent accidental starting.
- Lower the mower deck completely and remove the belt covers by loosening the screws on top of the deck.
- Release the belt from the engine pulley by moving the idler pulley arm and slipping the belt free.
- Pull the belt off the spindle pulleys on both sides of the deck.
- Remove the belt from the deck idler pulleys, noting the exact routing path.
- Position the new belt around both spindle pulleys, keeping the V-side inside the grooves.
- Guide the belt through the idler pulleys. Ensure it sits securely in the grooves without twists.
- Route the belt back to the engine pulley and slip it over while holding the idler arm back.
- Rotate each pulley by hand to confirm smooth alignment and correct tension.
- Reattach the belt covers and reconnect the spark plug wire.
Check belt tracking by engaging the blades briefly and observing the movement. Adjust if the belt slips or rides unevenly.
Common Deck Belt Problems and Troubleshooting Solutions
Check for belt slippage if the blades fail to engage fully. A loose tensioner spring or worn idler pulley often causes this issue. Tighten the spring or replace the pulley to restore proper grip.
Inspect the belt for cracks or glazing. Heat and friction harden the surface, reducing traction. Replace the belt immediately to avoid sudden breakage during mowing.
Listen for squealing noises while the deck operates. This sound usually indicates misaligned pulleys or debris buildup. Clean the pulleys thoroughly and verify they spin freely without wobbling.
Look for belt derailment if the belt repeatedly jumps off the pulleys. Bent brackets or misaligned tensioners commonly cause this. Straighten the bracket or adjust alignment to keep the belt in its track.
Check for uneven wear across the belt surface. This points to pulley damage or improper tension. Replace the faulty pulley and set the correct tension to extend belt life.
Address frequent belt breakage by examining spindle bearings. A seized or rough-bearing spindle increases stress and cuts the belt prematurely. Replacing the bearing prevents repeated failures.
