La145 Deck Belt Diagram and Maintenance Guide

To keep your La145 mower running smoothly, ensuring the deck belt is correctly installed and maintained is key. If the belt becomes worn or damaged, it can cause operational issues that may result in poor mowing performance or even engine damage. Always check the belt for signs of wear, such as fraying or cracking, and replace it if necessary.

Consult the La145 deck belt diagram to understand the specific routing of the belt and how it interacts with various components. This diagram will help you identify the correct path for the belt, ensuring it fits snugly around pulleys and other parts. Referencing the diagram will save you time and effort when diagnosing belt-related problems and during installation.

If you’re replacing the deck belt, follow the steps carefully to avoid unnecessary tension on the components. Begin by lifting the deck and removing any obstacles that might block access to the belt. Refer to the diagram to ensure the belt is routed properly through each pulley and adjust the tension according to manufacturer specifications.

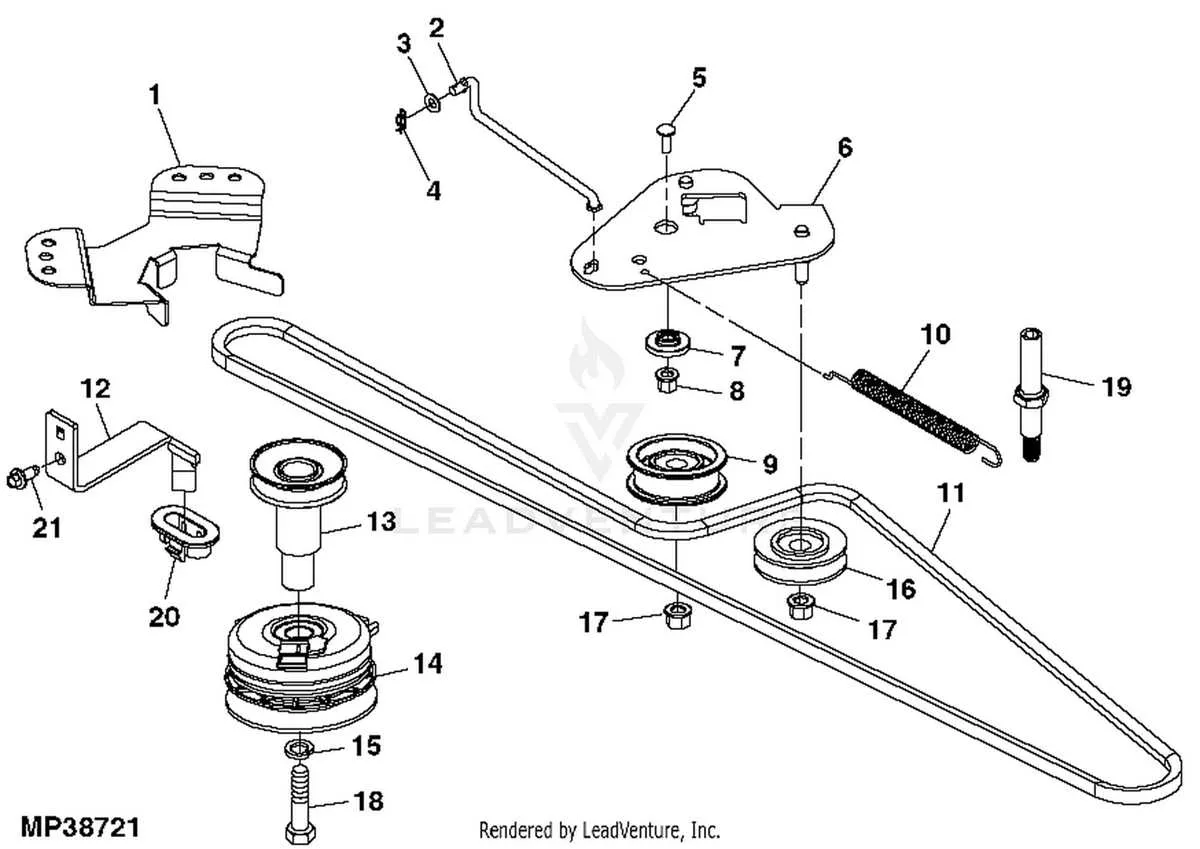

La145 Deck Belt Diagram

The La145 deck belt is a crucial component that drives the mower deck, allowing for efficient cutting. Proper routing is key to ensuring optimal performance and preventing premature wear. Start by ensuring the belt is properly aligned and tensioned, as improper tension can lead to slippage and reduced cutting efficiency.

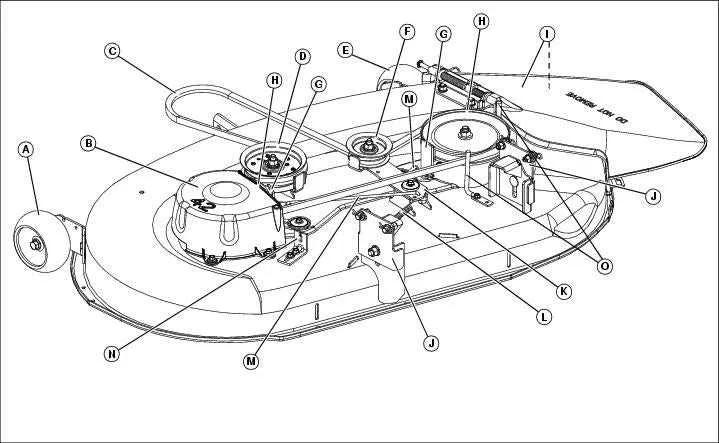

First, locate the belt routing diagram specific to your La145 model. This can typically be found in the owner’s manual or on the machine itself. The diagram will show the correct path for the belt, including its alignment over pulleys and around the deck. Pay close attention to the direction of the belt’s path, as incorrect routing can result in malfunction or damage to components.

When replacing the deck belt, make sure to use a genuine replacement part. After installing the new belt, check the tension using the adjustment mechanisms on the mower. The belt should be tight enough to function without slipping but not so tight that it causes undue strain on the engine or pulleys.

Lastly, periodically inspect the belt for signs of wear, such as fraying or cracking. A worn belt can lead to reduced performance or sudden failure. Regular maintenance of the deck belt will extend the life of your mower and ensure it operates efficiently throughout its service life.

How to Identify Key Components of the La145 Deck Belt System

Inspect the deck belt routing by focusing on the main components: the idler pulleys, drive pulleys, and the belt itself. The idler pulleys guide the belt along its path, while the drive pulleys provide the necessary tension and movement. Check the condition of these pulleys for any visible wear or damage, such as cracks or excessive rust. A worn-out pulley can cause the belt to slip or misalign.

Examine the belt for signs of fraying or cracking. A damaged belt will often show visible wear along its edges or on the surface. Measure its tension by pressing the belt down midway between pulleys. If it sinks too far, it’s likely too loose. Tighten the belt accordingly to maintain proper functionality.

Verify the correct alignment of all components. Misalignment of pulleys can lead to uneven wear on the belt and decreased system performance. Use a straight edge or a visual reference to ensure all pulleys are in the correct line with each other.

If the belt is not properly aligned or tensioned, it can lead to slippage, premature wear, or even complete failure of the system. Regularly inspect and maintain these components to ensure the deck belt system operates smoothly.

Step-by-Step Guide for Proper Belt Installation on La145

Start by disconnecting the battery to ensure safety. This prevents accidental engine starts while working on the belt system.

Lift the front of the mower using a jack or lift. Secure it properly to avoid any movement during the installation process.

Locate the belt routing diagram on the mower deck. This diagram provides the correct path the belt should follow around pulleys and other components. It’s important to refer to this while installing the belt.

Remove any existing, worn, or damaged belt. If necessary, use a wrench to loosen the tensioner pulley and remove the old belt.

Install the new belt by following the path shown on the diagram. Begin by placing the belt around the engine pulley, ensuring it fits snugly into place. Carefully thread it through all other pulleys, ensuring there are no twists or misalignments.

Once the belt is in position, adjust the tensioner pulley to ensure the belt has proper tension. The belt should be tight enough to prevent slipping but not overly tight, which could cause unnecessary wear.

Check the alignment of the belt, ensuring it sits properly on each pulley. Turn the engine by hand to verify that the belt moves freely and does not slip off any pulleys.

Reconnect the battery and test the mower by running the engine at low speed. Listen for any abnormal noises that might indicate the belt is misaligned or improperly tensioned.

If everything sounds and operates correctly, lower the mower and perform a final check to confirm the belt is securely in place.

Troubleshooting Common Belt Issues in the La145 Mower

If the La145 mower belt is slipping or not engaging properly, check for wear or damage. Inspect the belt for cracks or frays, as this can prevent proper tension and function. Replace any worn sections immediately to avoid further damage.

A common issue is the belt coming off the pulleys. This can occur if the belt is too loose or the pulleys are misaligned. Adjust the tensioner to ensure the belt is tight enough, but not overstretched. Verify that all pulleys are aligned correctly and not obstructed by debris or rust.

Another frequent problem is unusual noise, which can be caused by a misaligned or damaged belt. To fix this, inspect the pulley system for any signs of wear or misalignment. Clean out any debris that might be interfering with the smooth movement of the belt.

If the mower stalls or lacks power, the belt may be slipping under load. This could be due to an improper tension setting. Recheck the belt tension and make sure it’s in line with the manufacturer’s specifications. If the issue persists, the belt may need to be replaced with a new one.

Lastly, check the idler pulley and spring assembly. A malfunctioning idler pulley can cause the belt to slip or come off entirely. Ensure the spring mechanism is in good condition and replace the pulley if it is damaged or worn out.
