Huskee 46 Inch Deck Belt Diagram and Installation Guide
To replace or maintain the deck belt on your Huskee 46-inch lawn mower, it’s crucial to understand the correct routing of the belt. The diagram provided for the 46-inch deck offers a clear, step-by-step view of how the belt should be threaded through the system, ensuring smooth operation of the mower’s cutting deck. By following this diagram, you can avoid common mistakes like improper tensioning or misplacement, which can lead to premature wear and tear or poor performance.
The belt routing on the Huskee 46-inch deck involves several key components, including the pulleys, spindles, and tensioner. Start by locating the main drive pulley and noting how the belt loops around it before heading to the spindle pulleys. Understanding this path helps you maintain the correct tension and prevents the belt from slipping or becoming damaged. Ensure that the belt is properly seated in each groove, as this ensures efficient power transfer from the engine to the blades.
Pay close attention to the idler pulleys and the tensioner system. These components are vital for maintaining the appropriate belt tension, preventing it from loosening during operation. If you notice any wear on these parts or hear unusual noises, it may be time for a replacement. Refer to the Huskee 46-inch deck belt diagram regularly for upkeep, as the correct belt routing significantly extends the lifespan of your mower.
Huskee 46 Inch Deck Belt Diagram

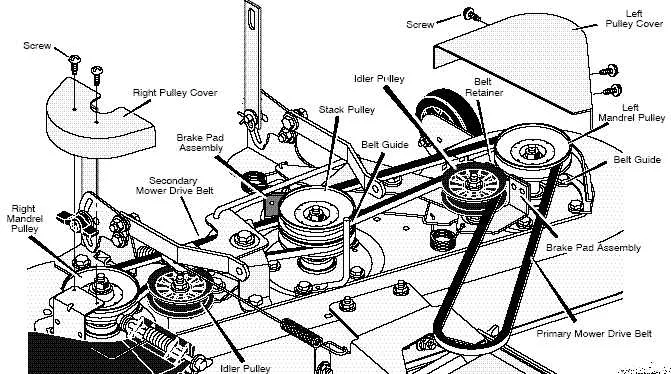

For accurate belt replacement, consult the Huskee 46-inch deck belt diagram. It ensures the belt is routed correctly to maintain optimal mower performance. Start by locating the tensioner pulley and idler pulley, as these guide the path of the belt. The belt should loop around the blades, with one side running across the main pulleys and the other guiding the tensioner. Refer to the diagram to identify the specific routing sequence and check the direction of the belt’s twist, as it varies with mower models.
Replace any worn-out parts, such as the idler pulley or the deck pulleys, before installing the new belt. A stretched or damaged belt can cause improper function and lead to further mechanical issues. Ensure the belt’s tension is correctly adjusted–too loose or tight can damage components. Once the belt is in place, verify the alignment by rotating the deck manually to make sure the belt moves freely.
Regular inspection of the belt’s condition is key. If it starts to fray or shows signs of wear, it’s time for a replacement. Always follow the manufacturer’s recommendations for the correct belt size and replacement intervals.
How to Identify the Correct Belt Size for Huskee 46 Inch Deck
To find the right belt size for your Huskee 46-inch deck, first check the model number of your lawn mower. This will determine the correct belt length and width. Belt size can vary based on the mower’s design, so always match the size with the specifications listed in the user manual or on the manufacturer’s label.
Here’s how to identify the correct size:
- Measure the length of the old belt if it’s still usable. Use a measuring tape to track the exact length from end to end.
- Check the belt’s width. This measurement is crucial for fitting the pulleys properly.
- Confirm the belt’s part number. This is often stamped or printed on the belt itself. You can also cross-reference this number with Huskee’s parts catalog.
- Visit the manufacturer’s website or your local dealer for belt size recommendations based on your specific Huskee mower model.
Remember, choosing the correct belt ensures smooth operation and prevents unnecessary wear on the mower’s pulley system. Avoid using a belt that’s too tight or too loose, as both can lead to performance issues and premature failure.
If you can’t find the belt size in the manual or on the mower, consider calling customer support with your model number for assistance. They can provide the precise information for your needs.
Step-by-Step Guide to Installing the Belt on Huskee 46 Inch Deck
Remove the old belt by loosening the idler pulley and carefully sliding it off the pulleys.
Lift the mower deck to its highest position for better access to the belt system. Use a jack or appropriate tool to support the deck if needed.
Locate the belt diagram on the mower deck, which provides the correct routing path for the new belt. This is crucial to ensure everything fits properly.
Place the new belt over the pulleys, following the diagram closely. Ensure it runs smoothly around the engine pulley, the idler pulleys, and the deck spindles.
Reattach the idler pulley, making sure it is properly tensioned. The belt should be snug but not overly tight.
Double-check the belt alignment to avoid any misrouting that could cause malfunction during operation.
Lower the deck and test the belt’s movement. Start the mower to ensure the belt operates smoothly without any slipping or unusual noises.
Make any necessary adjustments to the tension or routing before using the mower for extended periods.
Common Issues with Huskee 46 Inch Deck Belt and How to Fix Them
One of the most frequent problems with the Huskee 46-inch deck belt is premature wear due to misalignment. If the belt isn’t properly aligned, it can cause uneven wear and eventually lead to breakage. Check the pulleys and idlers for any debris or damage. Realign them if needed and replace any worn-out components.
Another common issue is belt slipping, which usually occurs when the tension is too loose. This can cause poor cutting performance and excessive strain on the engine. Adjust the tension by tightening the belt using the tensioner spring. Make sure the belt is not too tight, as it can lead to premature wear of both the belt and the pulleys.
Belt stretching is also a common issue, particularly after heavy use. A stretched belt will not maintain proper tension and can slip off the pulleys. If the belt appears stretched or worn, it’s time to replace it with a new one. Always use the recommended replacement belt to ensure optimal performance.
A noisy deck is often a sign of a worn or loose belt. If you hear squeaking or grinding noises, inspect the belt for any visible damage. Replace the belt if it’s frayed, cracked, or damaged. Also, check the pulleys for smooth operation and ensure they’re free from rust or buildup that could cause friction.
If the mower isn’t cutting evenly, the deck belt might be skipping over the pulleys. This can happen when the belt is too loose or not correctly installed. Double-check the belt routing to ensure it follows the correct path and re-adjust it if necessary. Proper installation helps maintain consistent cutting performance.
