Ferris IS600Z 48 Inch Deck Belt Diagram and Replacement Guide

The Ferris IS600Z 48-inch deck belt is a crucial component for the proper operation of your zero-turn mower. To replace or maintain this belt, follow the diagram closely to ensure proper routing and avoid unnecessary wear. The diagram will show the exact path the belt takes, which is essential for smooth operation and preventing belt slippage or breakage.

Begin by inspecting the belt’s condition before replacement. Check for visible signs of damage, such as cracks or fraying, especially near the pulleys. If the belt shows significant wear, replace it as soon as possible to maintain mower performance. The diagram also includes information on the exact tension settings, ensuring the belt operates within the correct limits.

To install the new belt, align it carefully along the pulley system according to the provided diagram. Ensure the belt is seated properly in the pulleys and that it is not twisted. After installation, test the system by engaging the mower to confirm that the belt operates smoothly without slipping. Regularly inspect the belt for signs of wear to extend its lifespan.

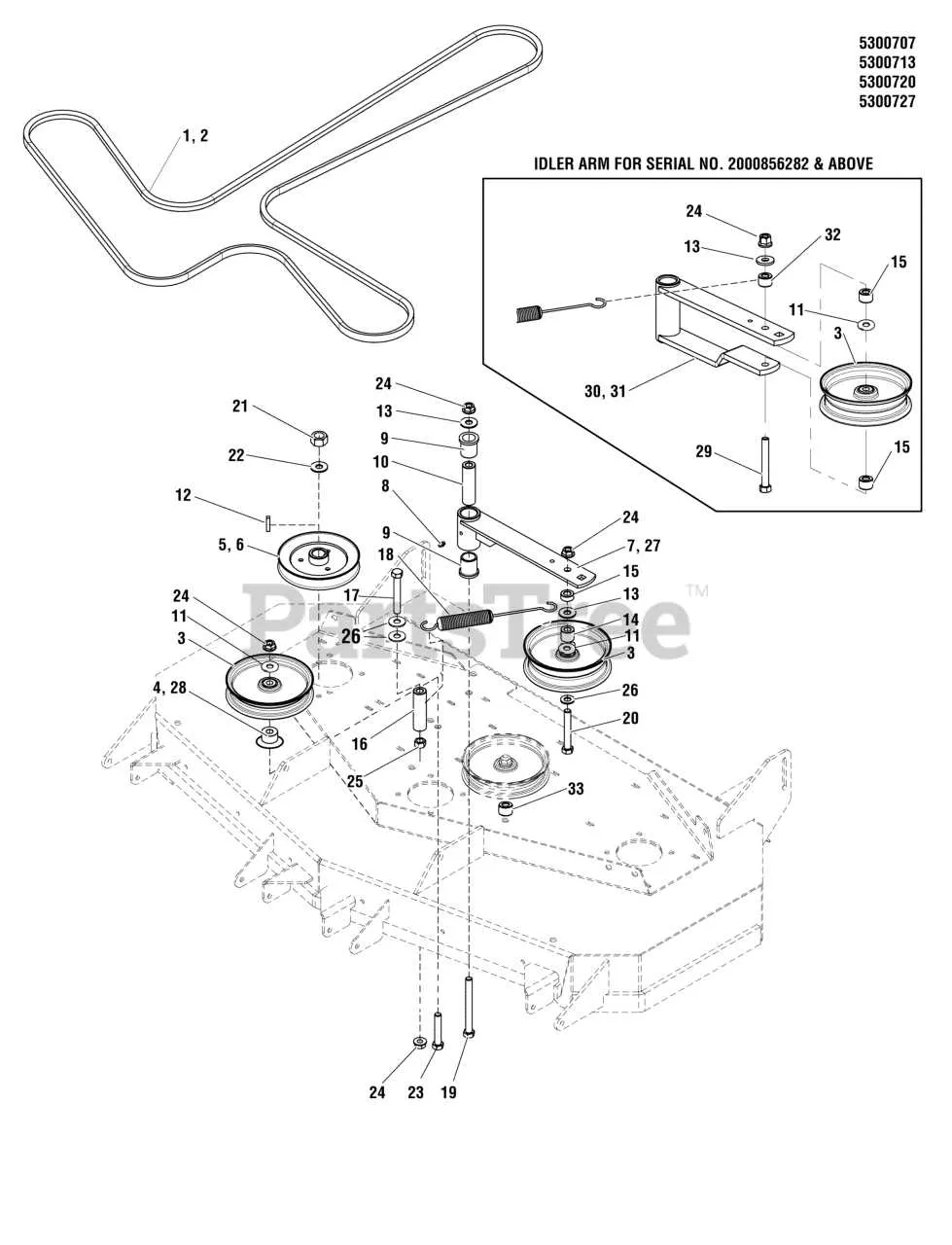

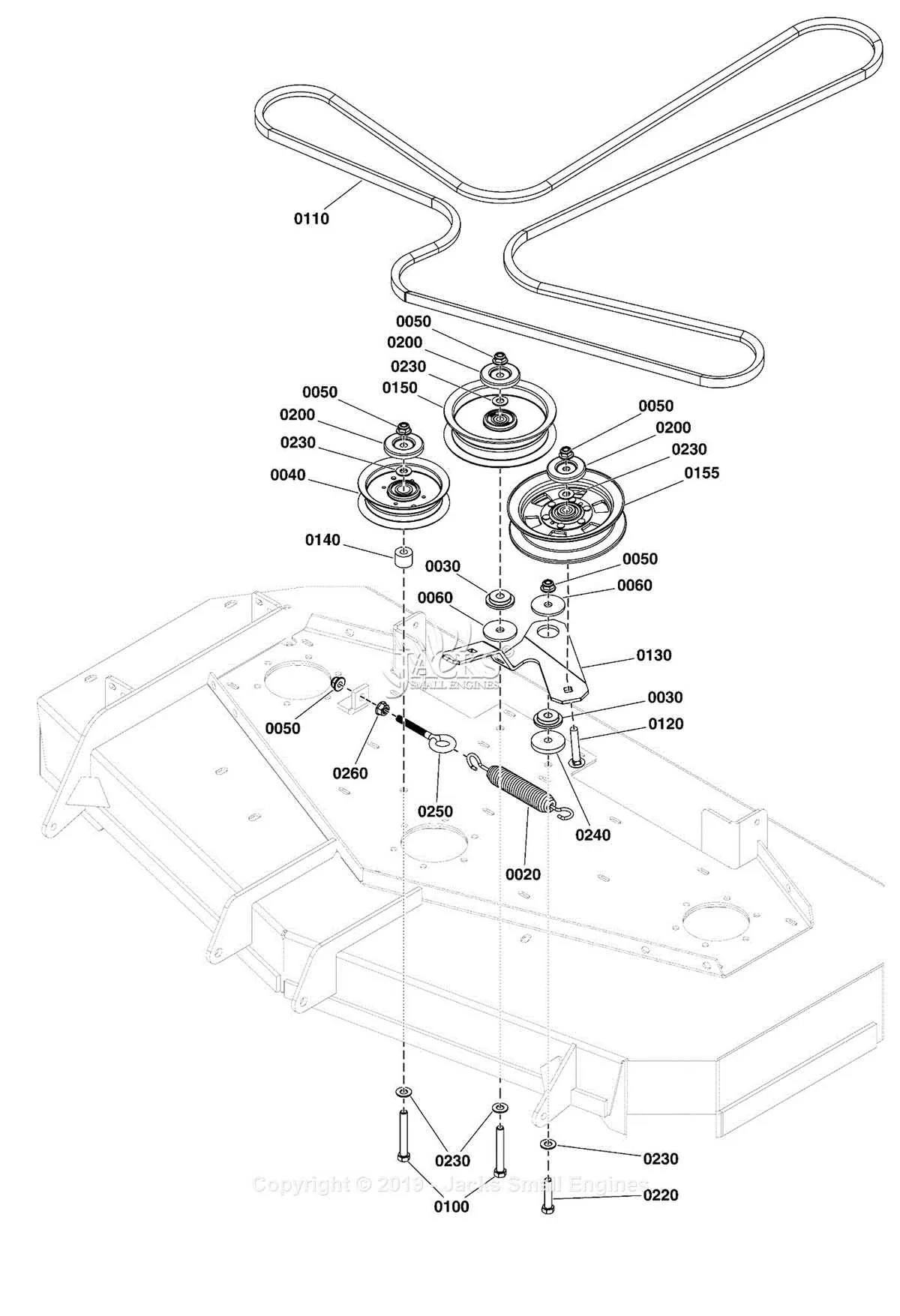

Ferris IS600Z 48 Deck Belt Diagram

The Ferris IS600Z 48 deck belt diagram provides a clear illustration of how the belts are routed through the 48-inch mower deck. This diagram is key for proper belt replacement or maintenance, ensuring optimal performance of your mower.

The primary drive belt runs from the engine pulley to the deck pulleys. Pay close attention to the path the belt takes around the idler pulleys to maintain correct tension. The belt should be routed in such a way that it avoids unnecessary wear and ensures smooth operation. If you’re replacing the belt, check for any signs of fraying or cracks that could indicate it’s time for a replacement.

Use the diagram to double-check the routing process, as improper installation can lead to belt slippage or premature wear. Start by confirming that the belt is aligned with all pulleys, ensuring no misalignment. This will help maintain the longevity of the belt and prevent mechanical failures.

Always consult the diagram for correct pulley placement, especially when reassembling after replacing components or performing maintenance. A proper setup ensures even wear across the pulleys and the belt itself. If the belt is not properly routed or tensioned, it could result in poor cutting performance and increased wear on the system.

How to Identify Belt Components in the Ferris IS600Z 48 Deck

Start by locating the main drive belt, which connects the engine pulley to the deck pulleys. This is the largest belt in the system and is responsible for transferring power to the blades. To identify it, look for the belt running from the engine towards the center of the deck, usually passing over a tensioner pulley.

Next, find the deck idler pulleys. These small pulleys maintain the proper tension on the belt. They are located at the sides of the deck and often have a spring-loaded mechanism that keeps them tight against the belt. Check for any wear signs or damage, as these components can affect the overall belt performance.

The spindle pulleys are key components as well. These are located on each corner of the deck and are connected directly to the blades. Inspect each spindle pulley for wear and proper alignment, as they rotate with the blades, influencing the movement of the belt.

Finally, inspect the belt tensioner. This part ensures that the belt maintains the correct tension while operating. It can be found near the drive pulley and is typically spring-loaded. If the belt appears loose or overly tight, this component may need adjustment or replacement.

• Main drive belt: Connects the engine pulley to the deck pulleys.
• Deck idler pulleys: Maintain proper tension on the belt.
• Spindle pulleys: Directly connected to the blades, crucial for belt movement.
• Belt tensioner: Keeps the belt at the right tension during operation.

Inspect each component regularly to ensure smooth operation and prevent premature wear on the belt system.

Step-by-Step Guide to Replacing the Belt on a Ferris IS600Z 48 Deck

Begin by disengaging the mower’s power. Turn off the engine and remove the ignition key to avoid accidental starting.

Lift the mower deck. Use the deck lift lever to raise it to its highest setting for better access to the belt system.

Locate the belt tensioner. Release the tension by using a socket wrench to move the tensioner arm away from the belt. This will loosen the belt and allow it to be removed.

Carefully remove the belt from the pulleys. Start at the engine pulley and work your way to the deck pulleys. Take note of the routing for reinstallation.

Inspect the old belt for wear and damage. If the belt is cracked, frayed, or overly stretched, it should be replaced. Compare the old belt with the new one to ensure correct size and fit.

Install the new belt by following the same routing as the old one. Begin at the engine pulley and work your way toward the deck pulleys, ensuring the belt sits securely on all pulleys.

Reapply tension to the belt by moving the tensioner arm back into position. Use a socket wrench to tighten the tensioner, ensuring the belt has the proper tension.

Lower the mower deck back to its normal position. Double-check that the belt is properly aligned and seated on all pulleys.

Test the mower by starting the engine and running the deck for a few seconds. Check for any unusual noises or misalignment. If everything runs smoothly, the replacement is complete.

Troubleshooting Belt Issues in the Ferris IS600Z 48 Deck

Inspect the Belt for Wear and Tear

If you notice unusual noises or reduced performance, start by inspecting the belt for visible damage. Look for signs of fraying, cracks, or stretched areas. A damaged belt should be replaced immediately to prevent further issues. Regularly check for wear, especially after heavy use or prolonged exposure to outdoor conditions.

Check Belt Tension

Incorrect tension can cause slipping, overheating, or premature wear. To check the belt tension, press on the belt between the pulleys. It should have slight give, but not too much. If it’s too loose, adjust the tensioner. If it’s too tight, loosen it slightly to avoid excessive strain on the system.

Examine the Pulleys and Idlers

Inspect all pulleys and idlers for any debris, damage, or wear. A misaligned or damaged pulley can cause the belt to slip or track improperly. Clean the pulleys, and replace any damaged parts. Ensure that the idler pulley spins freely without obstruction.

Verify the Pulley Alignment

Misaligned pulleys can cause the belt to move off-track, leading to wear or even failure. Check the alignment of the pulleys along the deck and transmission system. If misalignment is present, adjust or replace the pulleys to restore proper belt function.

Lubricate Moving Parts

Lubricate all moving components in the system, such as pulleys and tensioners, to ensure smooth operation. A dry system can lead to increased friction, which accelerates belt wear and reduces overall efficiency. Use the appropriate grease or lubricant specified in the user manual.

Inspect the Belt Routing

Ensure that the belt is properly routed around all pulleys and tensioners as per the manufacturer’s diagram. Incorrect routing can cause the belt to rub against surfaces, leading to premature failure. Refer to the Ferris IS600Z 48 deck belt diagram for correct routing.

Check for Obstructions or Debris

Examine the area around the belt and pulleys for any debris or obstructions that could interfere with the belt’s operation. Grass clippings, dirt, or other materials can cause the belt to wear unevenly or slip. Clear any debris regularly to keep the system running smoothly.

Test the Drive System

Finally, engage the drive system and observe how the belt behaves under load. If the belt squeals, skips, or doesn’t engage properly, this could indicate a deeper mechanical issue, such as a worn pulley or a malfunctioning tensioner. Troubleshoot or replace parts as needed.
