Exmark Lazer Z 60 Inch Deck Belt Diagram and Installation Guide

Replace your Exmark Lazer Z 60-inch deck belt with ease using this detailed belt diagram. Understanding the correct routing and placement of the belt is key to maintaining optimal mower performance. Below is the diagram you need for proper installation and troubleshooting.

The diagram shows the belt path, making it clear where each section of the belt should be placed around pulleys and spindles. Always check the condition of the belt before replacing it. Worn or damaged belts can affect cutting efficiency and may cause further mechanical issues.

For smooth operation, ensure the belt is properly tensioned. Over-tightening or under-tightening can lead to premature wear or reduced performance. Keep the belt clean and free from debris to extend its lifespan. Regular maintenance of the deck and belt system will keep your mower running smoothly season after season.

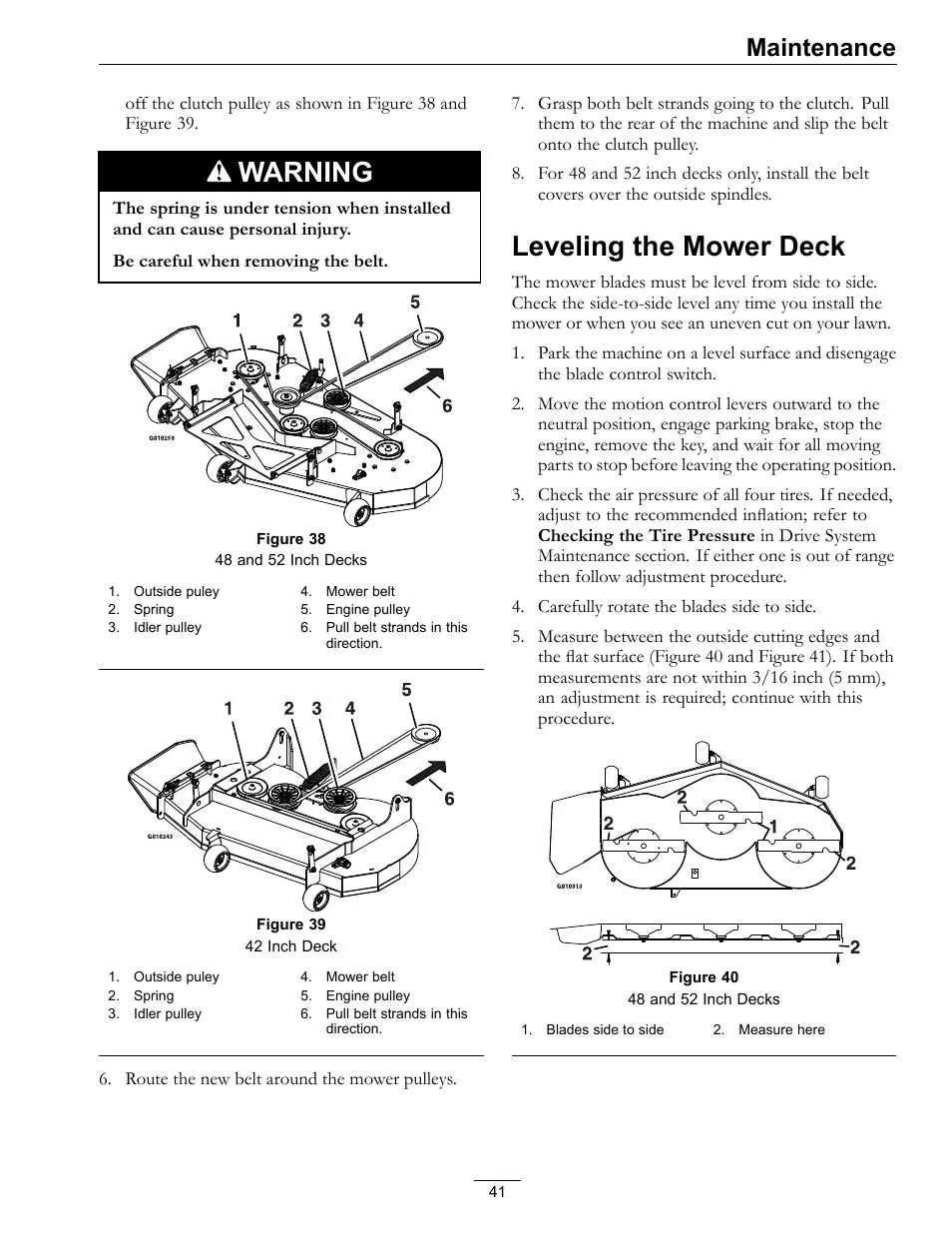

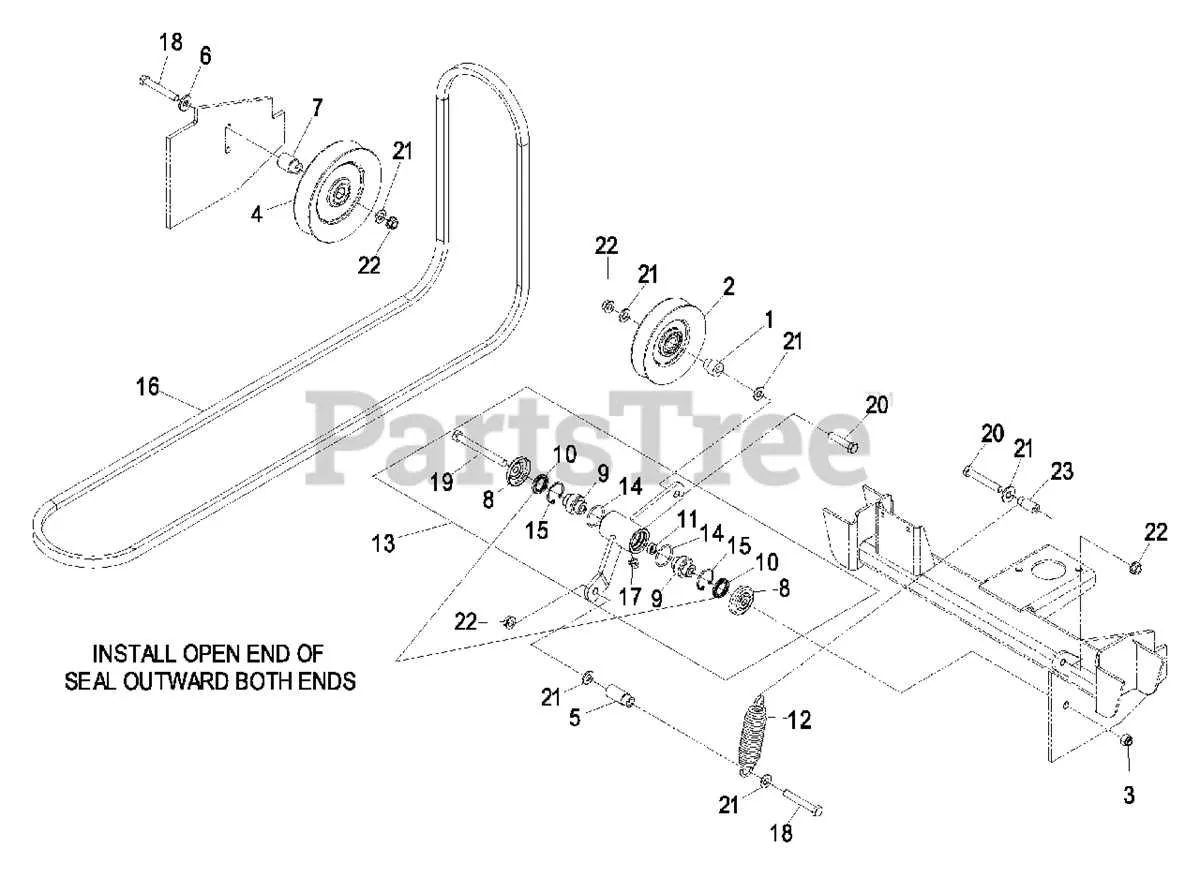

Exmark Lazer Z 60 Inch Deck Belt Diagram

The Exmark Lazer Z 60-inch deck uses a specific belt arrangement to ensure proper operation. Refer to the diagram for precise placement, as incorrect belt routing can lead to performance issues. The diagram shows how the deck belt should loop around the pulleys, spindles, and tensioner. Pay close attention to the direction of belt rotation and the positioning of the idler pulley. Ensuring proper tension is critical for the belt’s longevity and effective power transmission. When replacing the belt, ensure it is routed according to the diagram and that all pulleys and spindles are in good condition.

The deck belt should be installed with enough slack for smooth operation but not so loose that it affects the cutting performance. Make sure the tensioner pulley is aligned correctly and that it applies the right amount of pressure to maintain tension without overstretching the belt. Check that the pulleys and spindle bearings are free from debris and properly greased to reduce wear and extend belt life. If you’re unsure about belt condition or routing, consult the diagram or your machine’s manual for additional details.

Regular maintenance, such as inspecting for frays or cracks on the belt, is necessary to prevent premature failure. If the belt appears worn or damaged, replace it immediately to avoid further damage to other components. Always use the specified replacement belt for the 60-inch deck to ensure optimal performance and compatibility.

Understanding the Belt Routing for the Exmark Lazer Z 60 Inch Deck

The correct belt routing ensures smooth operation and prevents unnecessary wear on components. For the Exmark Lazer Z 60-inch deck, it’s important to follow the precise belt path to maintain optimal performance. Begin by positioning the belt around the engine pulley, ensuring it’s placed correctly in the groove. Next, route the belt over the two deck pulleys, making sure it moves freely between them.

One of the key points is the belt’s path through the idler pulleys. These pulleys help maintain proper tension. If the belt is routed incorrectly through the idlers, it could slip or create excess friction, which accelerates wear. Double-check that the belt loops around the tension pulleys with the correct orientation, ensuring it remains tight and properly aligned throughout the deck.

When routing the belt through the spindle pulleys, make sure it is positioned evenly and without any twists. Misalignment here can lead to uneven cutting or even damage to the belt. Always inspect the belt for wear and replace it if you notice any cracks or fraying along its surface.

Before securing the belt, adjust the tension by checking the idler spring’s position. The belt should be tight but not over-stretched, allowing for smooth rotation while preventing slippage. Ensure that all pulleys rotate freely without obstruction. After completing the routing, perform a quick test to confirm that the belt moves correctly across the entire system.

Step-by-Step Guide to Replacing the Deck Belt on Exmark Lazer Z 60 Inch

To replace the deck belt on your Exmark Lazer Z 60-inch mower, follow these detailed steps. This process ensures smooth operation and avoids unnecessary downtime.

1. Safety First

Disconnect the battery to prevent accidental starts. Wear gloves to protect your hands from sharp components. Park the mower on a flat surface and engage the parking brake.

2. Remove the Deck

Use a wrench to remove the bolts securing the deck to the mower frame. Lower the deck to its lowest setting before detaching it from the mower. You may need to lift the deck slightly to fully disconnect it.

3. Locate the Belt and Pulleys

Identify the belt routing diagram on the mower for a clear understanding of how the belt fits around the pulleys. This guide is often printed on a label under the seat or deck.

4. Remove the Old Belt

Release the tension on the deck belt by loosening the tensioner pulley. Carefully remove the old belt from the pulleys, making sure not to damage any parts during removal.

5. Install the New Belt

Position the new belt according to the routing diagram. Ensure the belt fits snugly over the pulleys and follows the correct path. Double-check the alignment before proceeding.

6. Reinstall the Deck

Once the new belt is in place, lift the deck back into position and secure it with the bolts. Tighten them securely to avoid any movement during operation.

7. Test the Mower

Reconnect the battery and start the mower to test the belt’s function. Listen for any unusual sounds or movements. If everything runs smoothly, you’ve completed the belt replacement successfully.

By following these steps, your Exmark Lazer Z mower should be ready to perform at its best. Regular maintenance, including belt replacements, helps extend the mower’s life and ensures optimal performance.

Troubleshooting Common Belt Issues on the Exmark Lazer Z 60 Inch Deck

Inspect the belt tension regularly. If the belt is too loose or too tight, it can affect performance and cause premature wear. Adjust the tension according to the manufacturer’s guidelines.

If the belt slips, check for wear or damage. A frayed or cracked belt can lead to slipping. Replace the belt if necessary and make sure it’s installed correctly along the pulley system.

Inspect pulleys for misalignment. Misaligned pulleys can lead to excessive wear on both the belt and the pulleys. Align them as needed to avoid further issues.

Look for debris buildup around the pulleys or on the belt. Grass, dirt, or other debris can interfere with smooth operation, leading to strain on the system. Clean the pulleys and the belt to maintain proper function.

Examine the idler pulleys and tension springs. If the idler pulleys are worn or the springs are damaged, they won’t apply the proper pressure to keep the belt taut. Replace these parts if they show signs of wear.

If the belt is making noise, inspect the belt path for obstructions or damaged components. Any obstruction can cause friction, leading to noise or wear. Clear the path and replace any faulty parts.

Lastly, regularly check the deck for any misalignment or structural issues. A misaligned deck can stress the belt and other components, leading to faster wear and tear. Fix any alignment issues to ensure smooth operation.
