Exmark 72 Inch Deck Belt Diagram and Installation Guide
When working with the Exmark 72-inch deck mower, understanding the belt diagram is key for proper maintenance and performance. The belt connects the engine to the mower’s blades, so ensuring it is properly routed is crucial for smooth operation.
Start by identifying the main components in the system: the engine, the idler pulleys, and the blades. The diagram will clearly show how the belt should be threaded through each part to maintain tension and ensure the blades spin correctly. Pay attention to the direction of the belt on the pulleys–incorrect routing can cause premature wear or even damage.
Check the tension regularly as well. If the belt becomes too loose or too tight, it can affect the mower’s cutting efficiency. A proper belt tension ensures that the engine drives the blades smoothly without unnecessary strain. Refer to the diagram when replacing the belt or adjusting tension to keep everything running smoothly.
By using the Exmark 72-inch deck belt diagram as a guide, you’ll be able to handle replacements and adjustments with ease. Always follow the manufacturer’s recommendations for the best results.

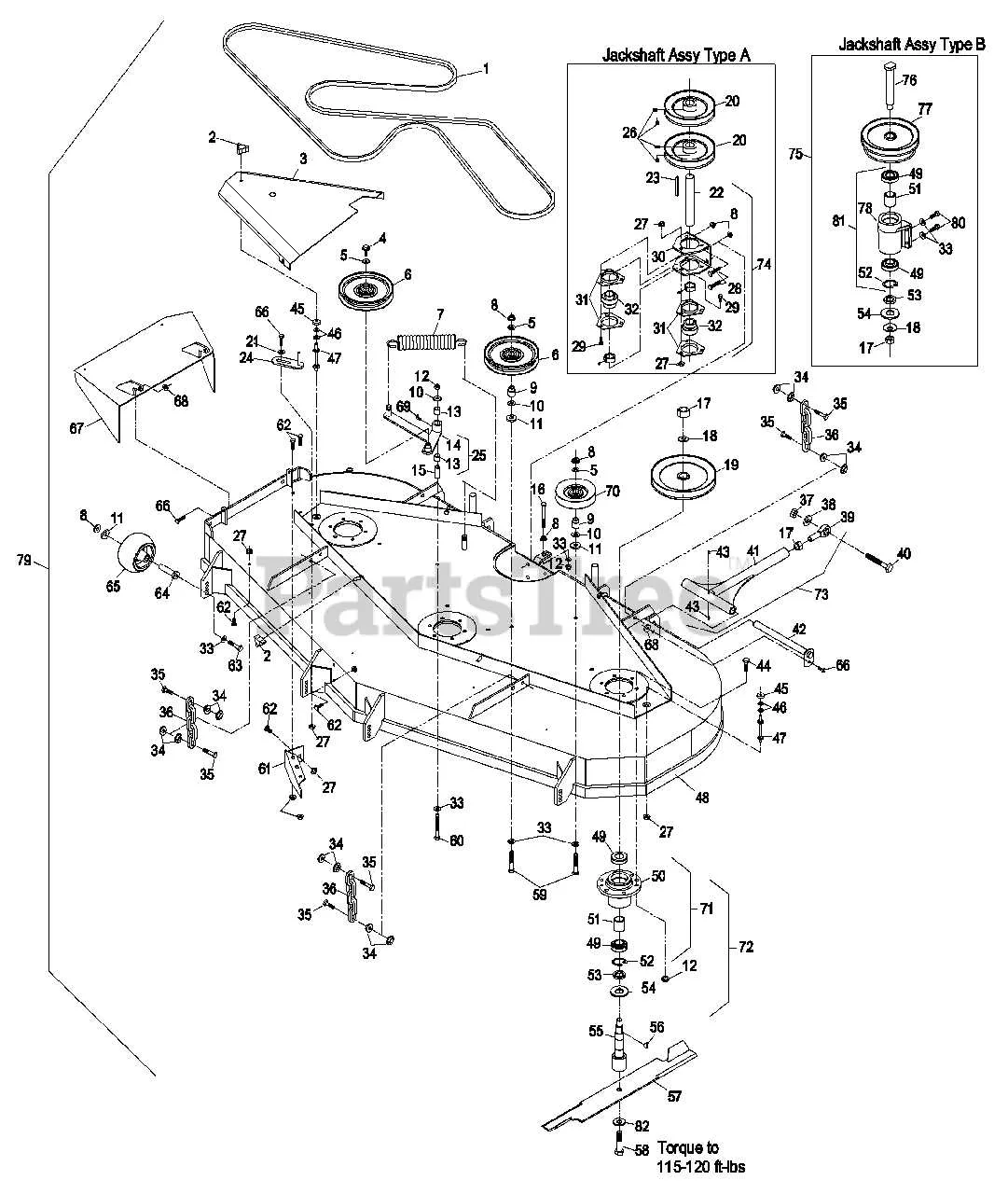

Exmark 72 Inch Deck Belt Diagram
To replace or inspect the belt on your Exmark 72-inch deck, follow the diagram closely. First, ensure the mower is turned off and the engine is cool. Begin by lifting the deck or ensuring it is in the highest position to access the components easily.
The primary deck belt runs from the engine’s pulley to the deck, connecting the main drive pulley to the blades. Refer to the diagram for the exact routing, as incorrect routing can damage the belt or cause it to slip off during operation.
Routing Order: Start by placing the belt around the engine pulley. Make sure it fits securely around the tensioner pulley, following the outlined path as shown in the diagram. The belt should loop around all pulleys, ensuring that it’s tight enough to prevent slippage but not overly stretched.
The tensioner pulley plays a key role in maintaining the belt’s tension. Ensure the spring-loaded tensioner is functioning properly and keeping the belt under the correct tension. If the belt is loose or frayed, replace it immediately to avoid further issues.
For proper maintenance, regularly inspect the belt for wear and tear. If you notice any cracks, tears, or significant wear, replace the belt before the mower’s performance is affected.
For a successful installation, always double-check the diagram, ensuring that each pulley is aligned properly and that the belt has the correct tension. Misalignment or improper tension can lead to malfunctioning blades or decreased mower performance.
How to Identify the Correct Belt for Your Exmark 72 Inch Deck
Check the model number of your Exmark mower. It’s located on a label near the deck or engine. This helps you find the exact replacement belt for your 72-inch deck. If you don’t have the model number, you can search using the mower’s serial number, which can also be found on the label.
Next, measure the length of the old belt. If you’re replacing a worn-out belt, use a measuring tape to get an accurate length. Compare it with the specifications in the owner’s manual or on the manufacturer’s website. Keep in mind, the correct belt should fit tightly around the pulleys but not too tight to avoid excessive strain.
Make sure you’re selecting a belt designed for a 72-inch deck. Exmark offers various belts depending on the model, so check for compatibility with your specific mower. If in doubt, visit an authorized dealer or an online store where the belt type and size for your mower model are listed clearly.
Consider the type of material and construction of the belt. Exmark typically uses high-quality, durable belts designed to withstand heavy-duty use. If you’re opting for a third-party replacement, make sure the belt is built to handle the same stress and conditions as the original one.

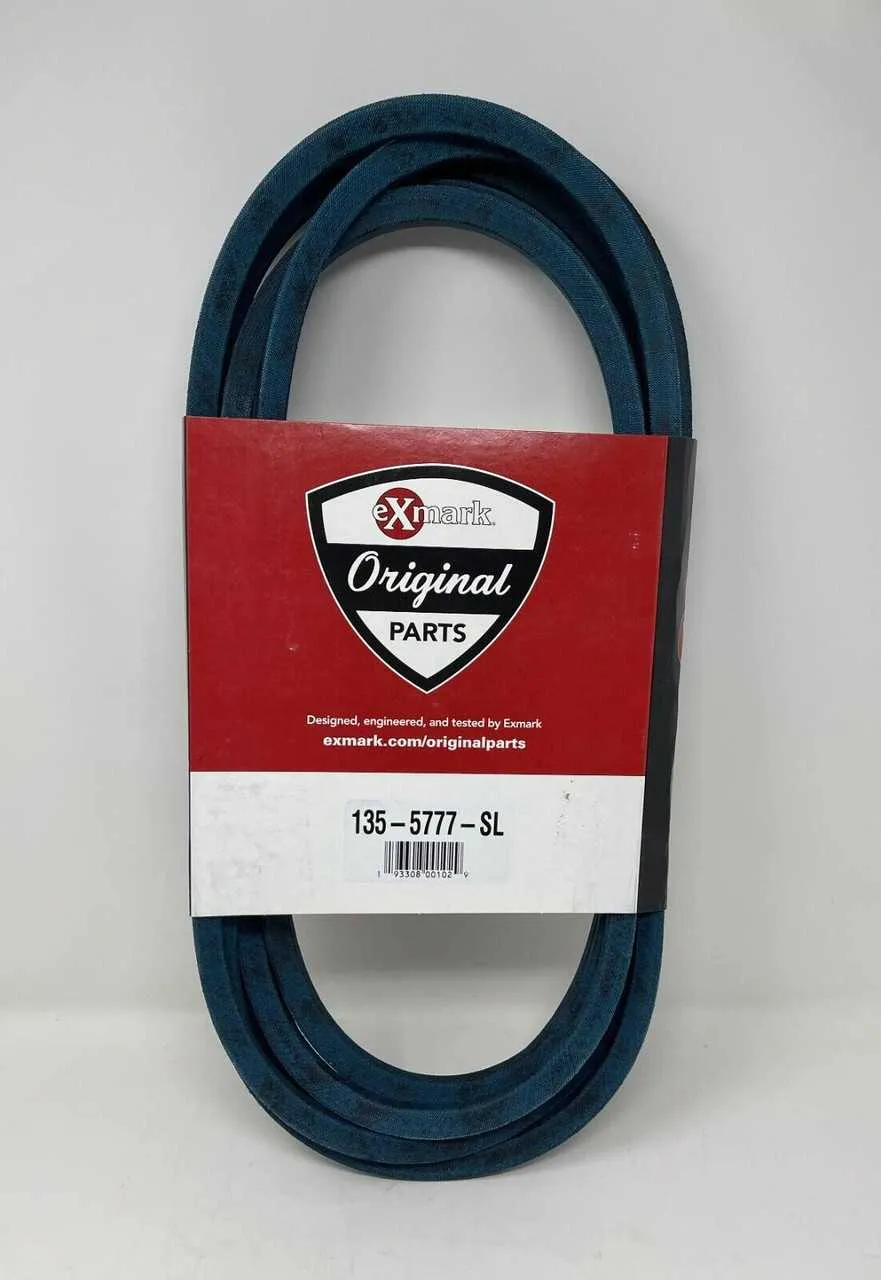

Finally, check the belt’s part number. The part number for the Exmark 72-inch deck belt is usually printed on the packaging or listed in the manual. Matching this number ensures you’re purchasing the correct replacement belt.
Step-by-Step Guide for Installing the Belt on Exmark 72 Inch Deck
Follow these instructions to replace or install the belt on your Exmark 72-inch deck with precision.
- Prepare Your Tools: Gather the necessary tools before starting the installation. You’ll need a socket wrench, belt, and safety gloves.
- Disconnect the Battery: For safety, disconnect the battery before working on the mower.
- Lift the Mower Deck: Use a jack or a suitable lift to raise the mower deck off the ground, making it easier to access the belt system.
- Remove the Old Belt: If you’re replacing an old belt, use the socket wrench to loosen the tension on the idler pulleys. Slide the belt off the pulleys and remove it from the deck.
- Inspect the Pulley System: Check all pulleys for any signs of wear, damage, or misalignment. Replace any faulty pulleys before installing the new belt.
- Install the New Belt: Place the new belt around the pulleys following the diagram for your specific model. Ensure the belt is properly routed and fits into each groove securely.
- Check Tension: Adjust the idler pulleys to create proper belt tension. The belt should have enough tension to move freely but should not be too tight, as this can cause excessive wear.
- Test the Installation: Reconnect the battery and lower the deck. Start the mower and test the belt by engaging the blades. Make sure everything operates smoothly without slipping or jerking.
- Reassemble and Tighten Bolts: Once everything is working correctly, tighten all bolts and reassemble any parts you removed during the installation process.
Ensure all components are in place and the belt is functioning before using the mower. Regular inspection and maintenance will extend the life of the belt and the mower itself.
Troubleshooting Common Issues with Exmark 72 Inch Deck Belts
If your Exmark 72-inch deck belt isn’t functioning properly, start by checking for visible damage. A frayed or cracked belt can be the main culprit behind poor performance or failure. Replace the belt immediately if you notice any signs of wear.
Check the tension of the belt. A loose belt can slip off or fail to engage the mower blades effectively. Use the mower’s tension adjustment system to correct the tightness, ensuring it’s neither too tight nor too loose.
Inspect the pulleys for wear or obstruction. Worn-out pulleys can cause the belt to slip or misalign. Remove any debris from the pulleys and check for any rust or signs of damage. If necessary, replace the pulleys to ensure smooth operation.
Verify the routing of the belt. Improperly routed belts often lead to slipping or misalignment. Refer to the Exmark manual for the correct diagram to ensure the belt is positioned properly around all pulleys.
If the belt is continuously slipping off the pulleys, the issue might lie with the idler pulley. Check its spring tension and functionality. A broken or weak spring could lead to the belt losing tension, requiring replacement or adjustment.
| Issue | Possible Causes | Solution |
|---|---|---|
| Belt Slipping | Loose tension, worn pulleys, or debris | Adjust tension, clean pulleys, replace worn parts |
| Belt Off Alignment | Incorrect routing | Check and correct belt routing according to manual |
| Belt Fraying or Breaking | Worn belt or excessive heat | Replace the belt and check for overheating |
| Uneven Cutting | Worn or damaged belt | Replace belt, check for worn pulleys or idlers |
Lastly, always use the correct replacement belt as specified in your Exmark mower’s manual. Using the wrong size or type of belt can result in premature failure and other issues.
