Exmark 60 Inch Deck Belt Diagram and Maintenance Guide

The Exmark 60 deck belt diagram is your go-to guide for maintaining and replacing the belt on your Exmark lawn mower. By following the diagram, you can easily identify the correct routing path for the belt, ensuring optimal performance and preventing potential damage to the mower’s components.

To replace the belt, start by removing the old one and carefully following the diagram to install the new belt. Pay attention to the belt’s path, as incorrect installation can lead to premature wear or inefficient operation. Be sure to check for any debris or buildup around the pulleys before installing the new belt.

For added convenience, ensure the belt tension is set according to the manufacturer’s specifications. A well-tensioned belt ensures smooth operation and prevents unnecessary strain on the engine and other mower parts.

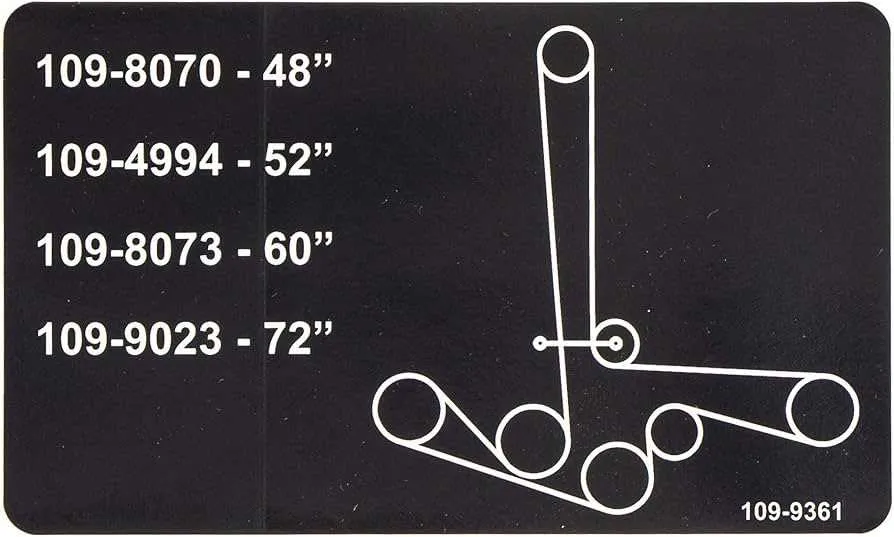

Exmark 60 Deck Belt Diagram

To replace or adjust the belt on your Exmark 60 deck, it’s critical to follow the correct routing as shown in the belt diagram. Start by disconnecting the battery and lifting the deck to access the components. The diagram provides a step-by-step visual guide for the exact positioning of the belt around pulleys and spindles. This ensures smooth operation and prevents premature wear.

Follow the diagram carefully, ensuring the belt is aligned with each pulley. The idler pulleys control the tension, so check that they are in good condition and can move freely. Misalignment can cause belt damage or improper function.

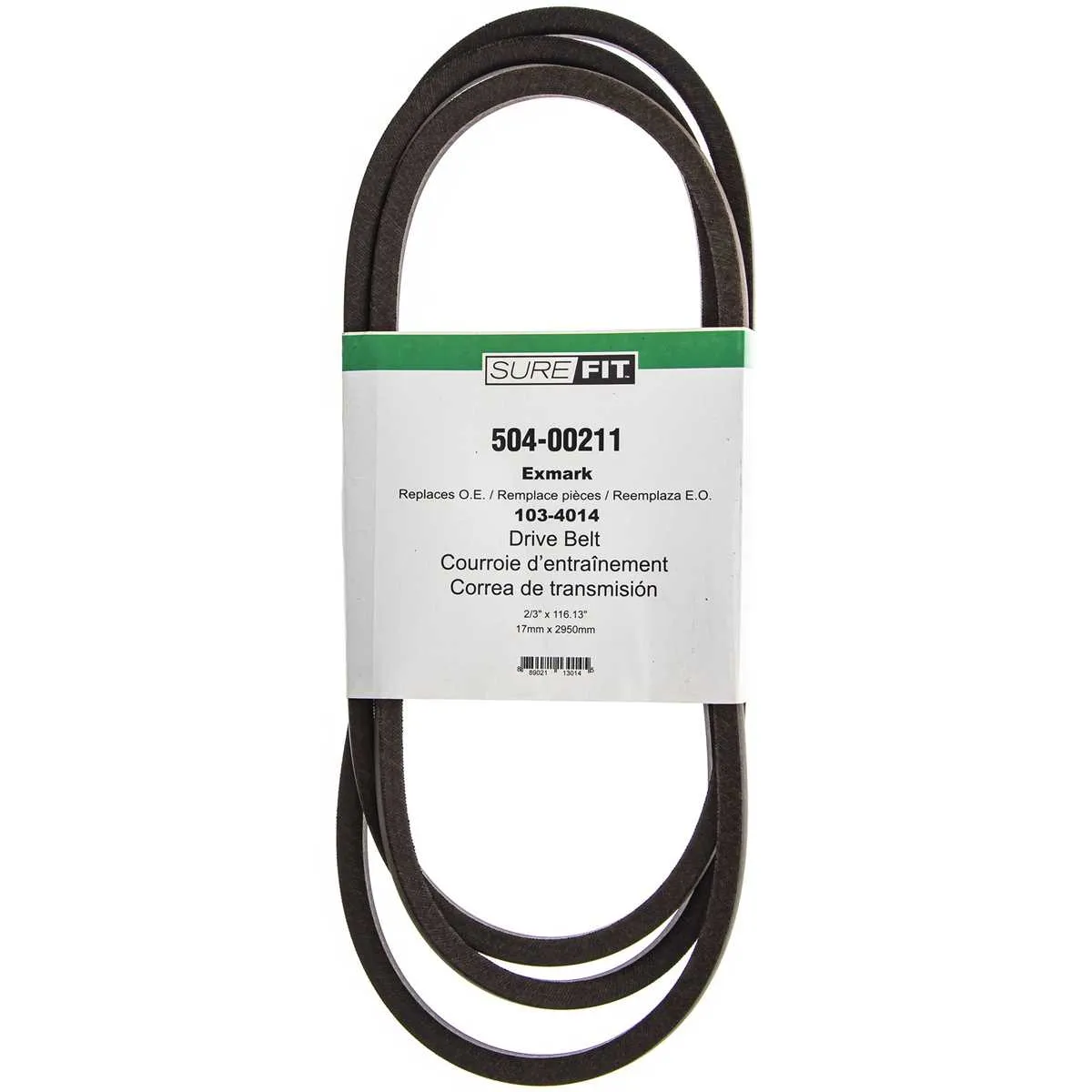

Before reassembling the deck, inspect the belt for any signs of wear or cracks. If needed, replace the belt with the correct model specified by Exmark. Refer to your user manual for the specific part number to ensure compatibility with your mower.

How to Properly Install the Exmark 60 Deck Belt

Before starting the installation, disconnect the battery to prevent accidental engagement of the mower. Lift the mower deck to a convenient working height using a jack or deck lift. Position the belt near the deck for easy access.

1. Begin by loosening the tension on the old belt. Use a wrench to release the tension from the tensioner pulley. This will allow you to remove the belt without resistance.

2. Remove the old belt carefully, noting its path around the pulleys. This will serve as a guide when installing the new belt. If needed, refer to the Exmark 60 deck belt diagram for precise routing instructions.

3. Place the new belt around the deck pulleys following the diagram. Make sure the belt fits correctly over each pulley, including the drive pulley and idler pulleys, ensuring the teeth face the right direction for proper grip.

4. Adjust the belt’s tension by positioning the tensioner pulley back into place. Tighten the tensioner to apply the proper tension on the belt. Ensure that the belt is taut, but not overly tight.

5. Double-check the routing of the belt to confirm it matches the diagram. Ensure there are no twists or misalignments. If everything looks correct, lower the deck back into position.

6. Reconnect the battery and test the mower to make sure the belt runs smoothly. Listen for any unusual sounds that could indicate improper installation or tension.

Once confirmed, your Exmark 60 deck belt is properly installed and ready for use.

Troubleshooting Common Issues with Exmark 60 Deck Belt

To fix a slipping or broken deck belt, start by inspecting the belt for signs of wear. A worn-out belt may be frayed, cracked, or stretched. If you notice any damage, replace the belt immediately.

If the deck belt isn’t turning the blades properly, check the tension. A loose belt will cause inefficient operation and uneven cutting. Adjust the tensioner according to the manufacturer’s specifications to ensure the belt is tight enough to engage the pulleys but not overly tight.

Inspect the pulleys and idler arms. If any of these parts are misaligned, the belt may not run smoothly. Ensure that all components are in good condition and properly aligned. Misalignment may cause the belt to slip off or wear unevenly.

In case of belt squealing, check for pulley wear or misalignment. A worn pulley will increase friction and cause noise. Also, make sure the belt is correctly routed, following the Exmark 60 deck belt diagram. Incorrect routing can put excessive stress on the belt and cause premature failure.

• Inspect belt for damage and replace if needed.
• Check the belt tension and adjust it to the proper level.
• Align pulleys and idler arms to ensure smooth operation.
• Ensure the belt is routed correctly as per the diagram.

If the belt keeps coming off, check for any debris around the pulleys or belt path. Remove any obstructions that could interfere with the belt’s movement. Also, inspect the tension springs for proper function. Weak springs may fail to maintain the correct belt tension, leading to frequent slipping.

Understanding the Exmark 60 Deck Belt Routing for Maintenance

To replace or maintain the Exmark 60 deck belt, first ensure the mower is turned off, and the ignition is in the off position. Raise the deck to the highest setting to give yourself enough room to work.

The belt routing is straightforward. Start by positioning the belt around the engine pulley. It should pass under the idler pulley, then over the spindle pulleys. Make sure the belt follows the correct path through the tensioner, which keeps the belt tight during operation. Finally, ensure the belt is securely wrapped around the deck pulleys, making sure it isn’t twisted.

When replacing the belt, inspect it for any signs of wear or damage, such as cracks or fraying. It’s best to replace the belt with one that matches the manufacturer’s specifications for the Exmark 60. Always check the belt tension after installation and adjust it as needed to avoid premature wear.

If you encounter any resistance or notice the belt slipping, inspect the pulleys and tensioners for any signs of damage or misalignment. Misaligned components will cause the belt to wear unevenly and reduce the mower’s performance.

Regularly check the belt routing and ensure it remains in place during each use. This can help avoid unexpected breakdowns and extend the life of your mower’s components.
