Complete Guide to the Cummins ISB 6.7 Belt Diagram and Configuration

To properly maintain the Cummins ISB 6.7 engine, it’s crucial to understand the layout of its belt system. A clear understanding of the belt diagram ensures that the engine runs smoothly, avoiding unnecessary wear and tear. This diagram visually represents the arrangement of the belts, pulleys, and associated components.

The belt system plays a key role in transferring mechanical power from the engine to essential systems such as the alternator, power steering, and air conditioning. A misaligned or worn-out belt can lead to severe engine performance issues, including overheating and power loss. Pay attention to any visible signs of damage or fraying on the belts to avoid costly repairs.

For an effective repair or replacement, always consult the specific Cummins ISB 6.7 belt diagram. It provides clear steps on how to route the belts correctly and which components need attention. Proper installation not only ensures optimal engine performance but also extends the longevity of the belt system.

Cummins ISB 6.7 Belt Diagram

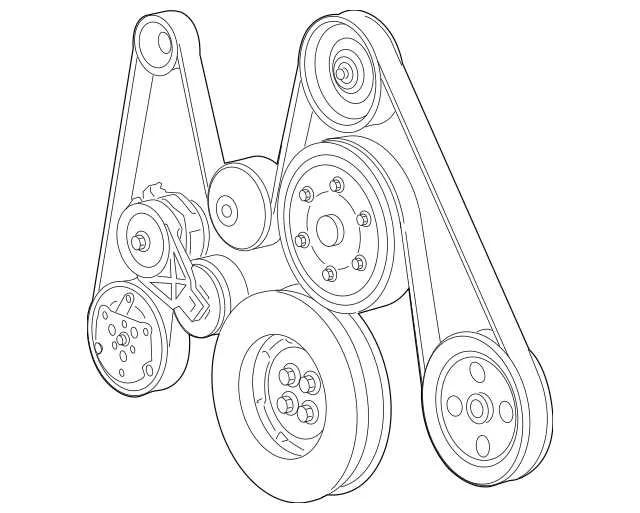

The Cummins ISB 6.7 belt diagram outlines the exact configuration of belts that power critical engine components such as the alternator, power steering pump, and water pump. The proper alignment of these belts is vital for engine efficiency and longevity. Ensure the correct belt size and tension to avoid unnecessary wear and damage.

Refer to the service manual to verify the exact routing, as the belt configuration can vary based on the engine’s specific model year and any modifications that may have been made. Misrouting the belts can lead to improper operation of the engine accessories or even cause the belt to slip off, damaging other components.

Use a belt tension gauge to measure the tension before starting the engine. If the tension is too loose or tight, adjust it as necessary to avoid premature belt failure. Regularly inspect the belts for signs of wear, such as cracks or fraying, and replace them as needed to maintain optimal performance.

How to Properly Install the Belt on Cummins ISB 6.7 Engine

To install the belt on a Cummins ISB 6.7 engine, start by ensuring that the engine is off and cool. Disconnect the battery to avoid any electrical hazards during the process.

Locate the tensioner pulley. Use a suitable tool, like a ratchet wrench, to relieve tension from the belt. Rotate the tensioner in the direction indicated by the arrow on the pulley until the belt becomes loose enough to be removed.

Carefully remove the old belt, noting its routing path around the pulleys. This will help when installing the new belt. Take a moment to inspect the pulleys and tensioner for any damage or wear, replacing them if necessary.

Install the new belt by following the same routing as the old one. Ensure that the belt sits correctly on each pulley, without slipping off or misaligning. Pay particular attention to the alignment of the crankshaft, alternator, and air conditioning pulleys.

Once the belt is in place, use the ratchet wrench to apply tension to the tensioner. Ensure the belt is tight but not over-stretched, as this could cause premature wear.

Finally, inspect the belt’s alignment and tension one last time. Start the engine and verify that the belt runs smoothly without any unusual noise or slippage.

Troubleshooting Belt Issues on Cummins ISB 6.7 Engine

Inspect the belt tension regularly. A loose belt can cause slippage, leading to poor performance or damage. Use a tension gauge to measure tension against manufacturer specifications. If the belt is too tight, adjust the tensioner to prevent premature wear of the belt and components.

Check the belt for signs of wear. Look for fraying, cracking, or glazing. Replace the belt if any of these signs are visible. Ensure that the belt is aligned properly with all pulleys to prevent uneven wear.

Inspect the pulleys for damage. Damaged or worn pulleys can cause the belt to misalign, which may result in excessive wear or breakage. Rotate each pulley by hand and listen for any unusual noises, such as grinding or squealing, which indicate internal damage or friction.

Examine the tensioner. A faulty tensioner can fail to maintain proper tension on the belt, leading to slippage or excessive wear. If the tensioner is unable to maintain the correct tension, replace it with a new one.

Check for proper routing. Ensure the belt is routed according to the manufacturer’s diagram. Incorrect routing can cause binding, slipping, or reduced efficiency. Refer to the Cummins ISB 6.7 belt diagram to confirm proper routing.

Inspect the alternator and other driven components. If any driven components, like the alternator or water pump, are stiff or difficult to turn, they may cause excessive load on the belt, leading to premature failure. Replace any faulty components to prevent further damage to the belt system.

If the engine makes a squealing or chirping noise during operation, it may indicate a misalignment or wear issue. Tighten or replace any worn components and verify belt alignment to resolve the noise.

Monitor engine temperature. Overheating can cause belts to degrade faster. Ensure the cooling system is functioning properly, as excessive heat can affect belt lifespan and performance.

Understanding Belt Tensioning and Maintenance for Cummins ISB 6.7

Maintain the correct belt tension on the Cummins ISB 6.7 engine to ensure optimal performance and prevent premature wear. Over-tightened or under-tightened belts can cause damage to the components and reduce the lifespan of the belt itself.

To adjust the tension, use a tension gauge to measure the deflection of the belt. A belt that is too tight can strain the pulleys and bearings, while a loose belt will slip, leading to inefficient engine operation. Refer to the manufacturer’s specifications for proper deflection measurements and adjust accordingly.

Regularly inspect the belt for signs of wear, cracking, or fraying. Any visible damage should be addressed immediately to avoid more extensive issues. Keep an eye on the belt’s alignment as well–misalignment can cause uneven wear and increase the risk of belt failure.

Routine maintenance includes cleaning the belt and surrounding components to prevent the buildup of dirt and debris. Apply a suitable lubricant to reduce friction if necessary, but avoid over-lubricating, as excess oil can attract dirt and accelerate wear.

Replace the belt if it shows signs of significant wear or if it fails to maintain the proper tension. A worn-out or damaged belt can compromise engine performance, leading to costly repairs or downtime.

Remember, proper tensioning and maintenance prevent breakdowns and extend the lifespan of the Cummins ISB 6.7 engine’s belt system. Regular checks and timely adjustments keep the engine running smoothly.
