Cummins 5.9 Belt Diagram and Routing Guide

The Cummins 5.9 engine uses a specific serpentine belt routing to drive various components such as the alternator, power steering pump, and air conditioning compressor. Ensuring the correct routing and tension is crucial for optimal engine performance. If you notice any irregularities with your engine’s performance or unusual noises, checking the belt alignment and condition is a quick first step.

The belt should be replaced if it shows signs of wear, such as cracking, fraying, or glazing. Make sure to follow the diagram carefully when installing a new belt to avoid misalignment, which can lead to further engine damage. The correct tension must also be applied to prevent slippage or excessive wear.

If you’re unsure about the replacement process, refer to the factory service manual for your specific model. Using a professional-grade tool to measure belt tension can save time and ensure the longevity of your engine components.

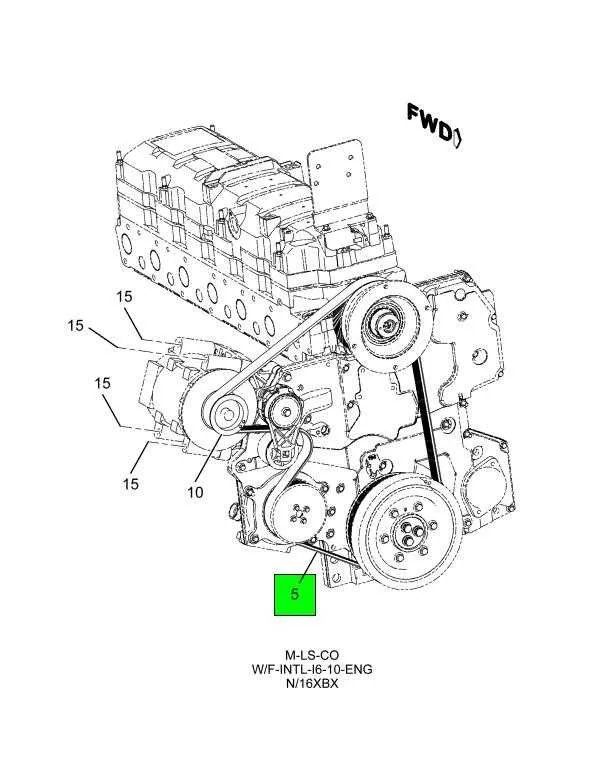

Cummins 5.9 Belt Diagram

For proper maintenance and performance, it’s critical to follow the correct belt routing for the Cummins 5.9 engine. The serpentine belt plays a key role in driving components such as the alternator, power steering pump, water pump, and air conditioning compressor. Incorrect routing can cause premature wear and inefficient operation.

Here’s a step-by-step breakdown of the belt configuration for the Cummins 5.9 engine:

• The belt routes around the crankshaft pulley first, which is the main drive point.
• It then passes through the tensioner, ensuring proper tension is maintained for the other pulleys.
• The alternator pulley is next, located near the front of the engine, driving the alternator for charging the battery.
• From there, the belt moves to the power steering pump, assisting with steering performance.
• The water pump is driven by the belt, keeping the engine cool by circulating coolant.
• The belt also loops around the air conditioning compressor, providing cooling power for the cabin.

To ensure proper belt routing, always consult the Cummins 5.9 diagram and replace the belt according to the manufacturer’s guidelines. Failure to do so may result in misalignment, belt slippage, or even belt breakage, which could lead to engine damage.

Check the belt regularly for signs of wear such as cracks or fraying, and replace it as needed to maintain optimal performance.

How to Read and Interpret the Cummins 5.9 Belt Diagram

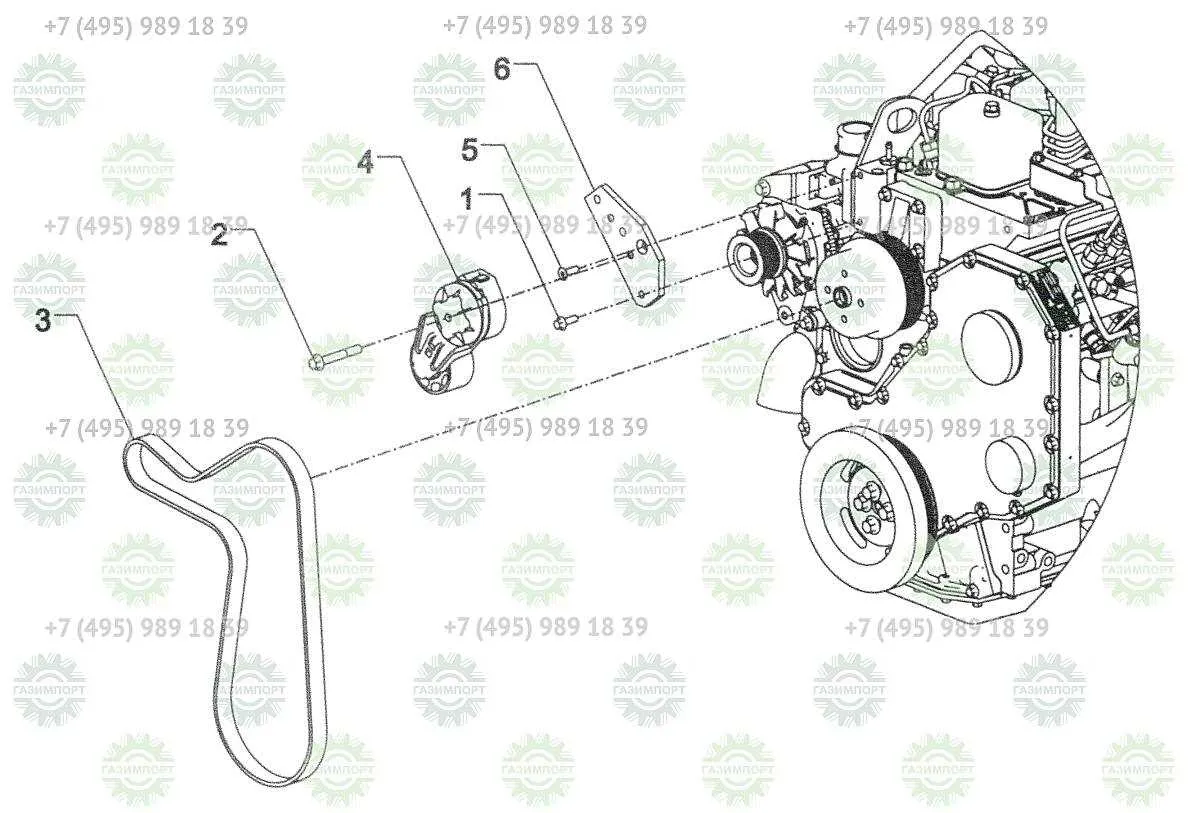

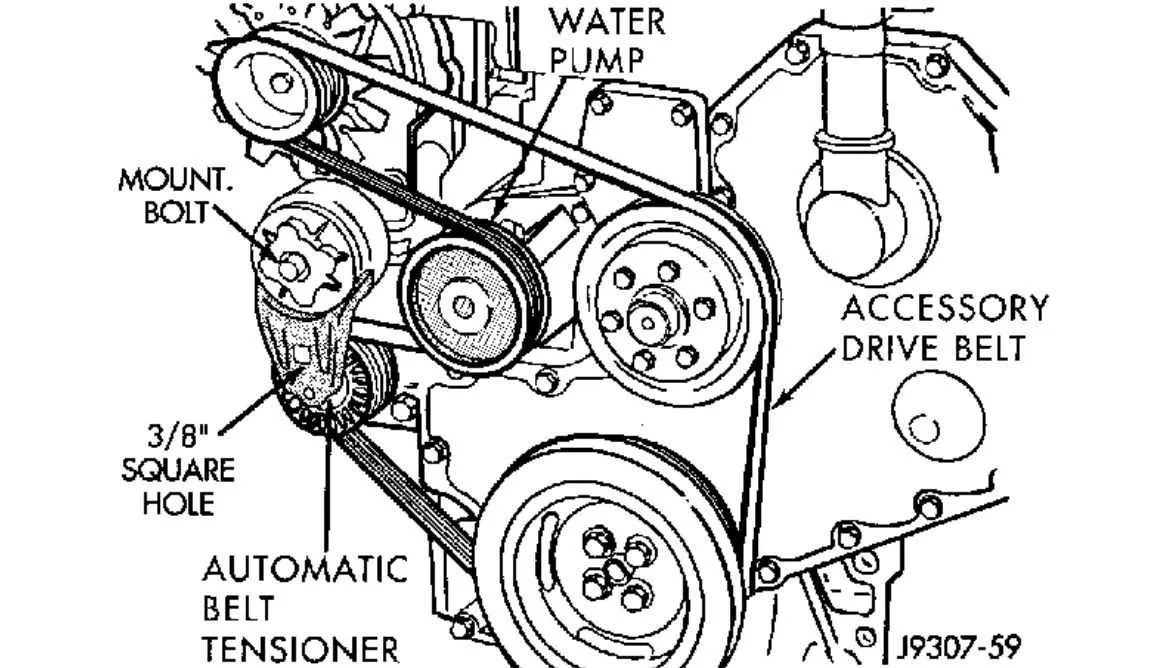

To properly read and interpret the Cummins 5.9 belt diagram, start by identifying the key components: the engine pulleys, tensioner, and accessories powered by the serpentine belt. Each component is represented by a symbol or label, typically indicating the direction of rotation and the routing path.

Focus on the belt’s path. The diagram will show how the serpentine belt loops around the various pulleys. Pay attention to any directional arrows, which indicate how the belt should be installed to ensure proper rotation. The tensioner pulley is also an important element; its position on the diagram shows where the belt’s tension should be adjusted.

Next, locate the accessories driven by the belt, such as the alternator, power steering pump, and air conditioning compressor. Each accessory will be clearly marked with a symbol, showing how it connects to the belt system. It’s important to ensure that these components are correctly aligned to avoid unnecessary wear on the belt.

Lastly, check for any maintenance instructions or notes on the diagram. Some diagrams will provide helpful information on the recommended belt replacement interval or any specific adjustments needed during installation.

By following the diagram step by step and ensuring each component aligns as shown, you can effectively replace or troubleshoot the serpentine belt system in your Cummins 5.9 engine.

Step-by-Step Guide to Replacing the Serpentine Belt on Cummins 5.9 Engine

1. Prepare the Workspace: Before starting, make sure the engine is turned off and cool. Disconnect the negative terminal of the battery to avoid electrical issues. Have all necessary tools ready: a ratchet, socket set, serpentine belt tool, and a new serpentine belt that matches the manufacturer specifications.

2. Locate the Serpentine Belt: The serpentine belt is typically located at the front of the engine, looping around various pulleys. You can find a diagram of the belt routing on a sticker or in the engine manual. Familiarize yourself with how the belt routes through the tensioner, alternator, power steering pump, and other components.

3. Release Tension from the Belt: Using a serpentine belt tool or a wrench, rotate the tensioner pulley in the direction that releases tension from the belt. This will loosen the belt and allow you to remove it. Take care not to damage the tensioner mechanism.

4. Remove the Old Serpentine Belt: Once the tension is released, carefully slide the belt off the pulleys. Make sure to remember the path of the belt, as it will need to be routed the same way for the new one.

5. Inspect Pulley Components: While the belt is off, check all pulleys and components for wear or damage. Look for any signs of rust, rough movement, or misalignment. This is the best time to replace a worn-out pulley or idler if necessary.

6. Install the New Serpentine Belt: Begin threading the new belt through the pulleys, following the path as shown in the belt diagram. Make sure it sits properly in the grooves of each pulley. Double-check that the routing is correct before proceeding.

7. Apply Tension: Rotate the tensioner pulley to apply tension to the new belt. The tensioner should automatically tighten the belt to the correct level. Ensure that the belt is snug but not overly tight.

8. Check Belt Alignment: After installing the new belt, turn the engine over briefly by hand to make sure the belt is tracking correctly. Check for any squealing sounds or misalignment, which could indicate that the belt is improperly installed.

9. Reconnect the Battery: Once you’re confident that the new belt is installed correctly and securely, reconnect the negative terminal of the battery. Start the engine and observe the belt for any signs of malfunction or improper tension.

10. Final Check: After running the engine for a few minutes, inspect the belt one last time to ensure it’s running smoothly. If everything appears to be functioning properly, the replacement is complete.

Troubleshooting Common Issues with Cummins 5.9 Serpentine Belt

If the serpentine belt on your Cummins 5.9 engine shows signs of wear, such as cracks or fraying, replace it immediately to prevent further damage to other engine components. Worn belts may slip or lose tension, which can lead to overheating, power steering failure, or a dead battery.

One common issue is belt slippage, which can be caused by improper tension. Inspect the tensioner for wear or damage. If the tensioner is faulty, it may not maintain the necessary pressure on the belt, resulting in slippage. Replacing the tensioner can restore proper tension and belt operation.

Another problem to watch for is misalignment. Check if the pulleys are aligned correctly. Misalignment can be caused by a damaged pulley or a mispositioned component, such as the alternator or water pump. Ensure all pulleys are in line and free from debris or corrosion. If any pulley is damaged, it should be replaced.

If you notice squealing or noise from the serpentine belt, inspect the pulleys and belt for wear. A squeaking noise could indicate insufficient lubrication or a buildup of dirt on the pulleys. Clean the pulleys and consider using a belt dressing to reduce friction and prevent noise.

In some cases, the belt may stretch over time, especially if it has been in use for a long period. Stretching results in the belt becoming loose, which can cause it to slip or even break. Regularly check for signs of stretching and replace the belt if it no longer fits tightly around the pulleys.

Lastly, excessive wear on the serpentine belt can sometimes be linked to an underlying issue with the engine’s cooling system. A malfunctioning water pump or radiator can cause overheating, leading to premature wear on the belt. Ensure the cooling system is functioning properly to avoid further belt degradation.
