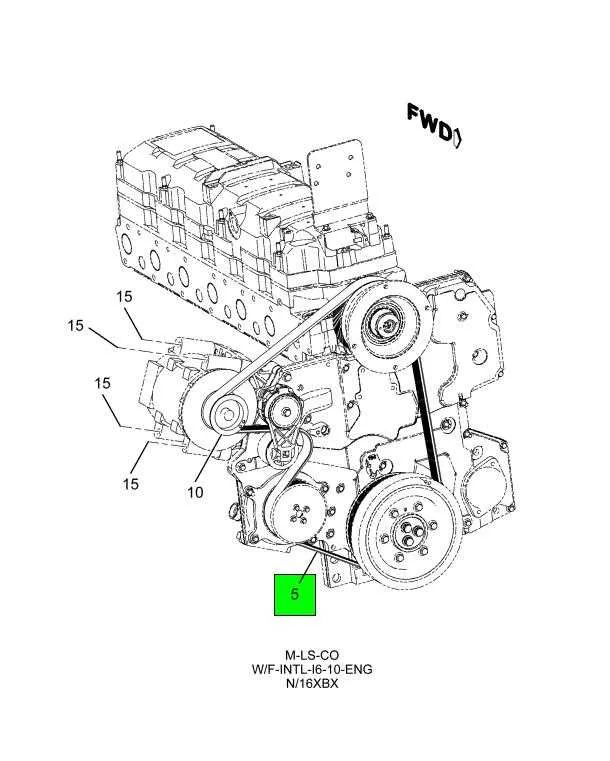

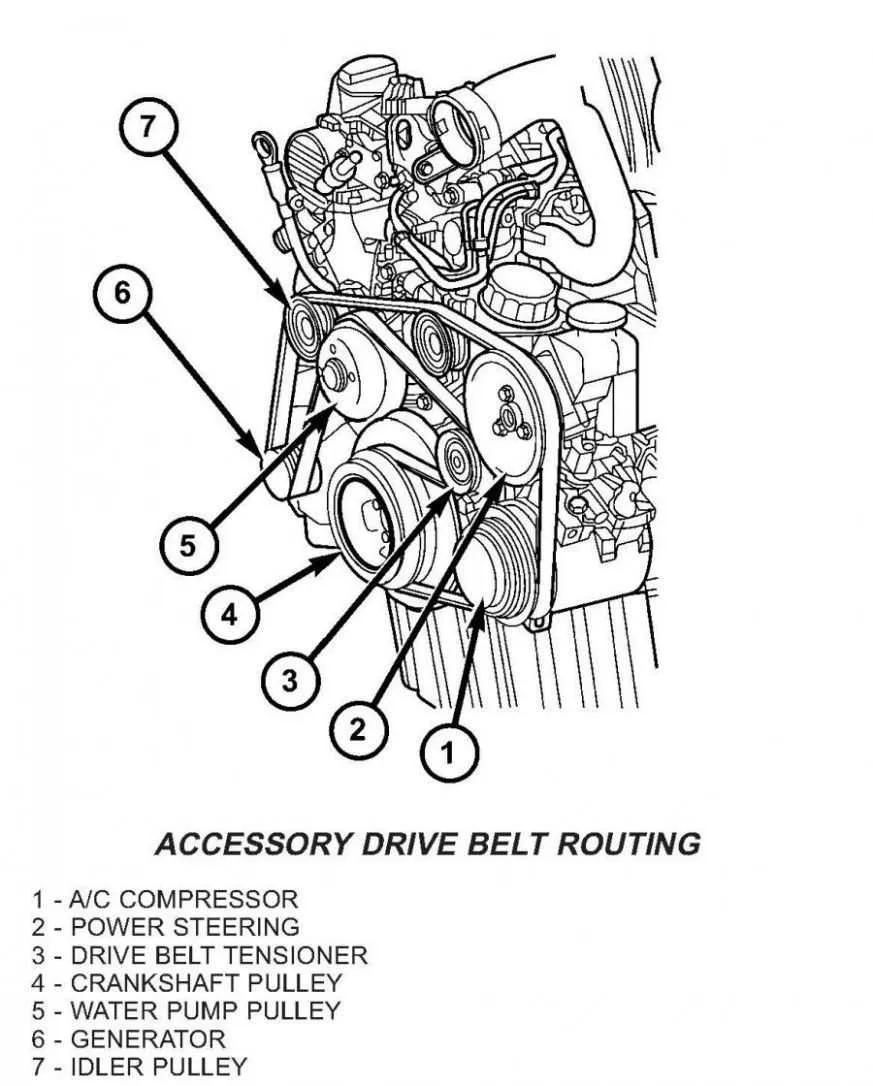

5.9 Cummins Serpentine Belt Diagram and Installation Guide

For optimal engine performance, it’s crucial to understand how the serpentine belt is routed in your 5.9 Cummins engine. This diagram shows the precise belt layout, ensuring all connected components receive the power they need to function smoothly. When replacing the serpentine belt, use this diagram to confirm proper installation, reducing the risk of damage or inefficient operation.

Pay attention to the path the belt takes through various pulleys and accessories. The layout typically includes the alternator, power steering pump, water pump, and air conditioning compressor. Misalignment can lead to premature wear or even belt failure. A quick inspection using the diagram will help avoid these issues.

Another important aspect is the tensioning system. The diagram includes the location of the automatic tensioner, which keeps the belt tight enough to prevent slippage. Over time, the tensioner may wear out, causing the belt to loosen or even snap. Regular inspection can save you from costly repairs.

Incorporating this diagram into your maintenance routine is a simple but effective step in extending the life of your 5.9 Cummins engine. Always check the belt’s condition, including any signs of cracking or fraying, to ensure your engine runs without a hitch.

Cummins Serpentine Belt Diagram: A Practical Guide

To replace or inspect your Cummins serpentine belt, refer directly to the diagram for your engine model. The diagram provides a precise view of how the belt should run, showing the correct routing around pulleys and components like the alternator, tensioner, and idler pulleys.

Start by locating the tensioner. It keeps the belt tight and must be released to remove or install the belt. The diagram clearly marks the proper direction and method for loosening the tension. Once the tensioner is relaxed, the belt can be slipped off the pulleys.

Ensure the new serpentine belt matches the specifications listed in your vehicle’s manual. Using the wrong size can cause improper tension or slipping. Pay close attention to the orientation of the belt in relation to the pulleys–incorrect routing can damage components or result in a malfunction.

Check each pulley’s condition as you replace the belt. If any pulleys seem worn or damaged, replace them before installing the new belt. A smooth-running system will extend the life of your new serpentine belt.

Once the belt is properly routed, use the tensioner to ensure the belt is tight but not over-stretched. A properly tensioned belt ensures maximum efficiency and prevents slippage.

Understanding the Role of the Serpentine Belt in Your 5.9 Cummins Engine

The serpentine belt on your 5.9 Cummins engine drives several essential components, including the alternator, power steering pump, water pump, and air conditioning compressor. It’s a single, continuous belt that winds its way around multiple pulleys. If the serpentine belt fails, it can cause the engine to overheat, lose electrical power, or stop running altogether.

Check the condition of the serpentine belt regularly for any visible signs of wear, such as cracks, fraying, or glazing. Any of these can reduce the belt’s efficiency and eventually lead to failure. If the belt is damaged, replace it as soon as possible to avoid more serious engine issues.

To help maintain the belt’s performance, ensure that the tension is correct. A loose or overly tight belt can lead to premature wear. The 5.9 Cummins engine features an automatic tensioner, but it should still be checked periodically for proper function. If the tensioner is malfunctioning, it could cause the belt to slip or wear unevenly.

It’s important to inspect the pulleys and accessories the serpentine belt drives as well. If one of these components starts to fail, it can place extra stress on the belt, leading to faster deterioration. Be sure to check for proper alignment and any unusual noises from the pulleys, as this can signal problems that may affect the belt’s lifespan.

• Inspect the serpentine belt for signs of cracks or wear every 30,000 miles.
• Ensure the automatic tensioner is functioning correctly to maintain belt tension.
• Check the alignment and condition of all pulleys and driven accessories.

Regular maintenance of the serpentine belt is a small task that can prevent larger, more costly engine repairs down the line. Keeping this belt in good shape ensures smooth engine operation and helps avoid unexpected breakdowns.

Step-by-Step Instructions for Correctly Installing the Serpentine Belt on a 5.9 Cummins

Begin by ensuring the engine is off and cool. Disconnect the battery to avoid any electrical issues during the process. Locate the serpentine belt diagram, either on the engine bay or in your service manual, to confirm the belt’s routing.

Next, release the tension on the serpentine belt using a 3/8″ ratchet wrench and a serpentine belt tensioner tool. Position the tool into the tensioner pulley bolt and rotate it counterclockwise to loosen the belt. Carefully slide the belt off the pulleys once tension is released.

Now, inspect the new serpentine belt for any visible damage or defects before installation. Compare the new belt with the old one to ensure correct length and specifications. If everything looks good, position the new belt on the appropriate pulleys, following the routing diagram exactly as it was on the old belt.

Once the belt is properly seated, use the ratchet wrench to release the tension on the belt tensioner and allow the tensioner to apply pressure to the belt. Double-check the belt’s alignment on all pulleys to make sure it sits properly.

Reconnect the battery and start the engine. Observe the belt’s operation, listening for any unusual noises. If everything runs smoothly, the serpentine belt installation is complete. Make sure to dispose of the old belt properly.

Troubleshooting Common Issues with the Serpentine Belt on the 5.9 Cummins Engine

If the serpentine belt on your 5.9 Cummins engine starts showing signs of wear or malfunction, it’s crucial to address the issue quickly to avoid further damage to critical components. Here’s how to troubleshoot common problems and keep the belt functioning optimally.

1. Belt Squealing or Noise

A squealing sound often indicates a loose or worn belt. Inspect the tensioner and pulley system. If the tensioner is faulty or worn out, it may fail to maintain proper belt tension, causing slippage. Replace the tensioner and check the belt for cracks or fraying. If the belt shows significant damage, replace it immediately to prevent failure.

2. Belt Slipping

If the serpentine belt slips, check the alignment of the pulleys. Misalignment can be caused by a worn-out idler pulley or tensioner. Examine each pulley for wear or damage. If they’re not spinning freely or if there’s noticeable play, replace them to restore proper tension and alignment.

3. Belt Wear and Cracks

Regular inspection of the belt’s surface is key to preventing failure. Look for visible signs of wear, such as cracks, fraying, or glazing. If the belt is cracked, it’s time to replace it. Keep in mind that a worn belt can also put extra strain on the engine’s accessories, such as the alternator or power steering pump.

4. Tension Loss

Loss of tension can result from a weak or broken tensioner. If the tensioner arm or spring is damaged, it won’t apply enough pressure on the belt, leading to slipping or improper operation of engine components. Replacing the tensioner will restore proper tension and belt performance.

5. Power Steering Failure

If you experience intermittent power steering failure, it may be related to the serpentine belt not providing enough power to the steering pump. Check the belt for proper tension and wear. If the belt is worn or stretched, it may not turn the pump efficiently, requiring a replacement belt to restore power steering functionality.

6. Overheating

Serpentine belt issues can also lead to overheating. If the belt is not functioning correctly, the water pump may not operate at the right speed, reducing coolant circulation. Ensure the belt is in good condition and securely in place. If overheating persists, check for blockages or failure in the cooling system components.
