2012 6.7 Cummins Belt Diagram and System Overview

Check the belt configuration of the 2012 6.7 Cummins engine regularly to avoid premature wear and potential damage to other engine components. The serpentine belt system plays a critical role in powering several important engine accessories such as the alternator, air conditioning compressor, and power steering pump. A misaligned or damaged belt can result in engine malfunction, so it’s essential to stay on top of any wear signs.

Understanding the routing diagram is key for troubleshooting and proper belt replacement. The 2012 6.7 Cummins features a specific routing pattern for the serpentine belt. Familiarizing yourself with this pattern allows for quick identification of potential issues such as improper tension or wear on individual components.

Proper tensioning of the serpentine belt is vital to maintaining smooth engine operation. A loose or tight belt can lead to poor performance, inefficient power transfer, or even system failure. Always verify the tension using the manufacturer’s recommended procedure, and use a tension gauge for accurate measurements.

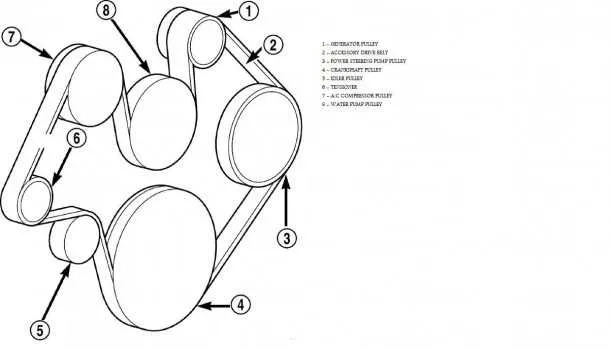

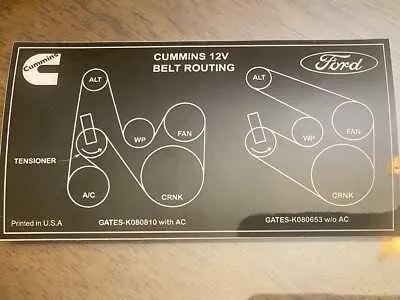

2012 6.7 Cummins Belt Diagram

To properly install the serpentine belt on the 2012 6.7 Cummins engine, follow the belt routing diagram specific to the model. The serpentine belt drives various components such as the alternator, power steering pump, and air conditioning compressor. Incorrect routing can lead to excessive wear, reduced engine performance, or even belt failure.

Begin by locating the tensioner pulley. Use a wrench or belt tool to relieve tension before removing the old belt. Ensure the new belt follows the path shown in the diagram, making sure it loops around the alternator, power steering pump, and other critical components. Verify that the belt sits properly in each pulley groove to avoid slipping or misalignment.

Double-check the tensioner position after installing the new belt. A properly tensioned belt should have just enough slack to allow for slight movement, but not too much. If the belt is too loose, the tensioner may need adjustment. If the belt is too tight, it can cause excessive strain on the components it powers.

Finally, inspect the belt periodically for signs of wear such as cracking, fraying, or glazing. If any of these issues arise, replace the belt to avoid more serious engine problems.

Understanding the Layout of the 2012 6.7 Cummins Belt System

The 2012 6.7 Cummins engine uses a serpentine belt system, which drives several essential components like the alternator, power steering pump, and water pump. The belt layout is designed to provide smooth and efficient power distribution across these components, ensuring optimal engine performance.

Start by locating the tensioner pulley, which is responsible for maintaining the correct belt tension. The tensioner is spring-loaded and can be adjusted using a ratchet tool. Pay attention to the direction of the belt’s movement to ensure proper alignment along the pulleys.

The main serpentine belt runs through the alternator, power steering pump, and water pump. Its configuration allows the belt to wrap around each pulley in a specific order. This configuration ensures that the engine components work together in harmony. Check the routing diagram located on the engine compartment to verify that the belt is routed correctly.

If the belt shows signs of wear such as cracking, fraying, or squealing, it’s crucial to replace it immediately. A worn-out belt can lead to failure of essential components like the alternator or power steering pump, causing engine damage and safety concerns.

To ensure proper maintenance, always check the condition of the belt at regular intervals. When replacing the belt, make sure to use the correct part number for the 2012 6.7 Cummins. Using an incompatible belt can lead to improper fitment, reducing the overall lifespan of the components it drives.

Common Issues with the 2012 6.7 Cummins Belt and Their Solutions

One of the most frequent issues with the 2012 6.7 Cummins belt system is premature wear. This is often caused by misalignment of the pulleys or improper tension. The belt may wear unevenly or crack, which leads to slipping or failure. Regular inspection and ensuring proper pulley alignment can prevent this problem.

Another issue is belt slippage. This usually happens when the serpentine belt tensioner fails to maintain the correct tension. A faulty tensioner allows the belt to slip, which can cause the alternator and other accessories to function improperly. Replacing the tensioner or adjusting the tension can resolve this issue.

Overheating of the belt system is also common. If the water pump or idler pulley fails, the belt may experience excessive friction, leading to heat buildup. Replacing the faulty components and lubricating moving parts can reduce the chances of overheating.

In some cases, the 2012 6.7 Cummins belt may break unexpectedly. A belt that has not been replaced within the recommended time frame or has been exposed to extreme wear can snap. It is critical to replace the belt at the intervals specified in the owner’s manual to avoid sudden failures.

• Regularly inspect the belt for cracks, fraying, or glazing.
• Ensure the pulleys and tensioners are aligned and functioning properly.
• Replace the belt at the recommended interval, even if no visible damage is apparent.
• If experiencing slippage, check and replace the tensioner as needed.

By addressing these common issues early, you can extend the lifespan of the 2012 6.7 Cummins belt system and avoid more costly repairs down the road.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2012 6.7 Cummins

Start by ensuring the engine is off and the vehicle is securely parked. Open the hood and locate the serpentine belt system on the front of the engine.

Use a ratchet wrench to release the tension on the belt. Insert the wrench into the tensioner pulley and rotate it counterclockwise to relieve tension. Once relaxed, remove the belt from the pulleys.

Examine the belt routing diagram, which can typically be found on a sticker near the engine or refer to the vehicle’s manual for reference. Make sure to keep track of the belt’s path as you remove it.

Before installing the new belt, compare its size and length with the old one to ensure it matches. The new belt should be free of defects or damage.

Install the new serpentine belt by following the routing diagram. Begin at the pulleys that are easiest to reach and work your way around. Ensure the belt sits properly in all grooves.

Once the belt is in place, use the ratchet wrench to move the tensioner pulley back into position and allow the belt to rest under tension. Double-check that the belt is aligned correctly across all pulleys.

Start the engine and observe the belt’s movement to ensure it operates smoothly without slipping. If you notice any unusual noise or misalignment, turn off the engine and adjust the belt as needed.

Close the hood, and your serpentine belt replacement is complete. It’s a good idea to monitor the belt during the next few drives for any signs of wear or irregularities.
