2006 Cummins Serpentine Belt Diagram and Configuration

The 2006 Cummins engine belt system is designed to ensure the smooth operation of essential components like the alternator, power steering pump, and air conditioning compressor. To replace or repair the serpentine belt, understanding its layout is crucial for accurate and efficient work.

First, inspect the belt for any visible signs of wear such as cracks or fraying. If the belt appears damaged, it must be replaced to avoid further engine issues. Ensure that the belt routing follows the specific diagram for the 2006 Cummins to prevent misalignment and potential damage to engine parts.

For the replacement process, begin by removing any accessories that may obstruct access to the belt. Use a proper tensioner tool to relieve the tension on the belt before removing it. Installing the new belt should follow the exact routing path shown in the diagram, ensuring that it sits correctly on all pulleys.

Lastly, double-check the tension after installation. If the belt is too loose, it may slip, causing overheating or reduced performance. Tighten it according to the manufacturer’s specifications to ensure optimal functionality of the engine’s belt-driven components.

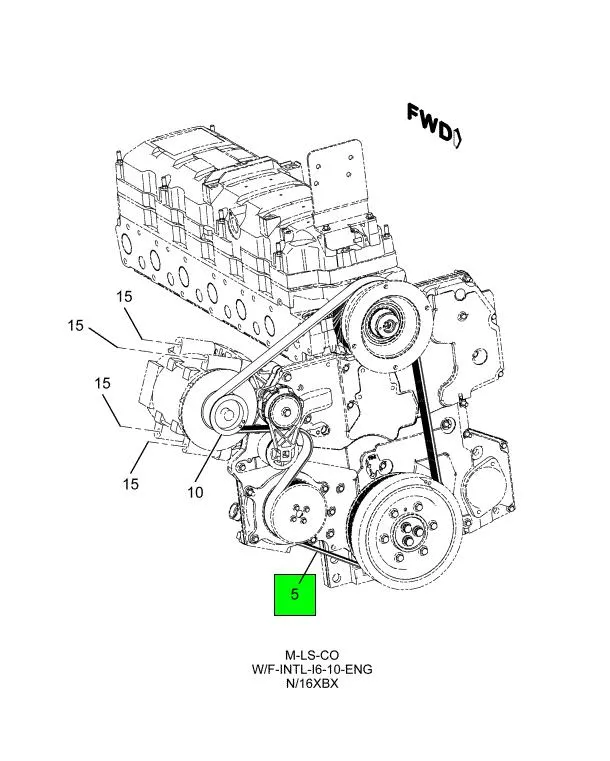

2006 Cummins Belt Diagram

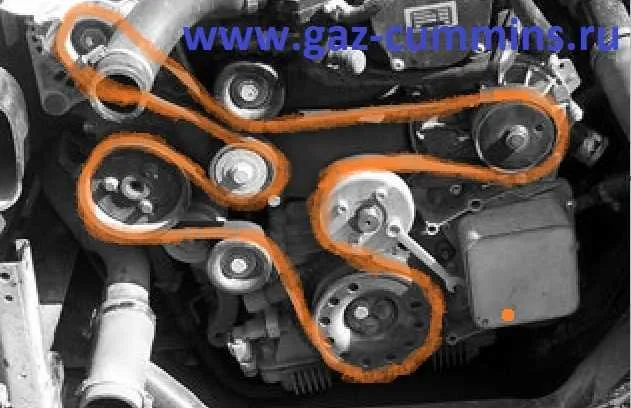

To properly identify the serpentine belt layout for a 2006 Cummins engine, ensure you refer to the correct diagram. This belt layout drives various components, including the alternator, power steering pump, air conditioning compressor, and the water pump. A clear understanding of this layout is crucial for maintaining optimal engine performance.

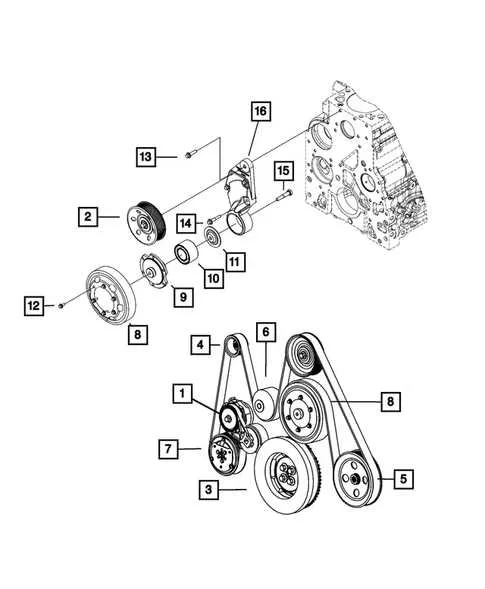

Start by locating the belt routing diagram, which is typically found on the radiator support or the engine bay. This visual guide will show how the belt runs around the pulleys and tensioners.

Key elements to check:

• Alternator: Ensure the belt aligns with the alternator pulley, as this component plays a key role in charging the battery.
• Idler Pulley: Verify that the belt runs smoothly over the idler pulley, which maintains the necessary tension for the entire system.
• Tensioner: The tensioner is responsible for keeping the belt tight. Ensure the tensioner is working properly to prevent slipping.
• AC Compressor: The belt should also drive the AC compressor, which is essential for maintaining cabin temperature control.

If the belt shows signs of wear or damage, such as fraying or cracking, replacement is necessary. Check the belt regularly, especially if you hear squealing noises, as this is often a sign of a loose or worn belt.

Following the diagram accurately will help you avoid misalignment, which can cause premature wear on the components. Proper installation ensures that the engine operates smoothly and efficiently.

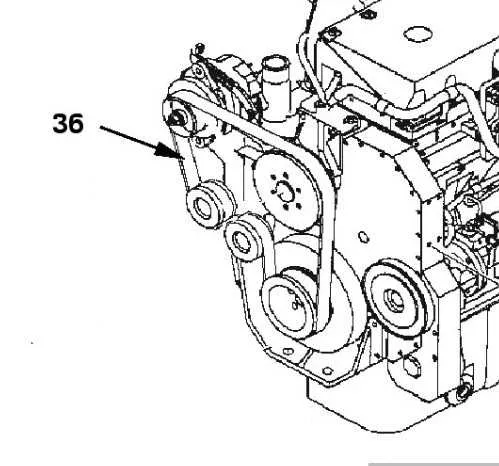

Understanding the Belt Routing on a 2006 Cummins Engine

The serpentine belt on the 2006 Cummins engine is designed to power multiple components such as the alternator, air conditioning compressor, and power steering pump. Accurate belt routing is crucial for the engine’s performance and longevity. To route the belt correctly, follow the diagram closely, ensuring that it loops around the tensioner and the various pulleys in the specified order.

Begin by placing the belt over the crankshaft pulley. Then route it over the water pump pulley and air conditioning compressor. Be sure to pass it under the idler pulley and around the alternator pulley. The belt should loop over the power steering pump, passing around the tensioner last. The tensioner will maintain the necessary tension on the belt for proper operation.

Check the tension of the belt regularly. A loose belt can cause slippage, leading to poor engine performance, while a belt that is too tight can cause excessive wear on the pulleys. Replace the belt if any signs of cracking, fraying, or wear are visible. Always use the correct replacement part to ensure the proper fit and function.

Common Issues with the Serpentine Belt in 2006 Cummins Engines

The serpentine belt in 2006 Cummins engines often faces wear due to tension issues or contamination. A common problem is improper tension, which can cause slippage, leading to squealing noises or failure to power essential components like the alternator, water pump, and air conditioning compressor. Inspect the belt for signs of fraying or cracks, especially if there is a noticeable drop in engine performance.

Another issue is misalignment, often caused by a damaged pulley or faulty tensioner. This can result in uneven wear on the belt, which may cause it to snap prematurely. Regularly check the pulleys for damage or wear, and ensure the tensioner is working correctly to maintain the proper tension on the belt.

Contamination from engine fluids, such as oil or coolant, can weaken the belt material. If the serpentine belt comes into contact with these fluids, it can lead to softening and premature failure. Keep the engine compartment clean and repair any leaks promptly to prevent fluid from reaching the belt.

Lastly, improper routing of the belt during installation or replacement can also cause issues. Double-check the belt routing diagram to ensure correct placement over all pulleys. An incorrectly routed belt can stress the engine components and cause uneven wear or slipping.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2006 Cummins

To replace the serpentine belt on a 2006 Cummins, gather the necessary tools: a new serpentine belt, a 3/8″ drive ratchet, a socket wrench, and a tensioner tool. Start by locating the serpentine belt routing diagram on the engine block or your vehicle’s manual. This will show you how the belt loops around various pulleys and components.

1. Release the Tension on the Belt: Use a 3/8″ drive ratchet to move the serpentine belt tensioner. Insert the ratchet into the tensioner pulley and rotate it counterclockwise. This will relieve the tension on the belt, allowing you to remove it. Make sure the ratchet is firmly in place to avoid slippage.

2. Remove the Old Belt: Once the tension is released, carefully slide the serpentine belt off the pulleys. Take note of how the belt is routed for easier installation of the new one. It’s helpful to take a photo or refer to the routing diagram if needed.

3. Inspect Components: Before installing the new belt, inspect the pulleys, tensioner, and idler pulley for wear or damage. Replace any components showing signs of wear, as a damaged pulley can quickly cause the new belt to fail.

4. Install the New Serpentine Belt: Begin by placing the new belt around the pulleys following the routing diagram. Ensure the belt sits properly in each pulley groove. The belt should be taut and aligned correctly. Pay attention to the alignment with the tensioner pulley.

5. Reapply Tension: Use the ratchet on the tensioner pulley to apply tension to the new belt. Rotate the tensioner clockwise to tighten the belt. Ensure the belt is snug but not overly tight.

6. Check Belt Alignment: Once the belt is in place, double-check the alignment and that the belt is sitting evenly in each pulley groove. Rotate the engine by hand to verify the belt runs smoothly and without interference.

7. Test the Engine: Start the engine and observe the belt’s movement. Listen for any unusual sounds or squeaks, which could indicate misalignment or incorrect tension. If everything looks good, you’re done.

Step	Action
1	Release tension on the belt using a 3/8″ drive ratchet.
2	Remove the old serpentine belt.
3	Inspect pulleys and tensioner for damage.
4	Install the new serpentine belt, following the routing diagram.
5	Reapply tension to the new belt using the ratchet.
6	Check belt alignment and rotation.
7	Test the engine to ensure proper operation.
